物理化学学报 >> 2012, Vol. 28 >> Issue (03): 596-602.doi: 10.3866/PKU.WHXB201112261

电化学和新能源 上一篇    下一篇

氨基蒽醌衍生物的合成及其用作锂电池正极材料的电化学性能

赵磊1, 王安邦2, 王维坤2, 余仲宝2, 陈实1, 杨裕生1,2

  1. 1. 北京理工大学化工与环境学院, 北京 100081;
    2. 防化研究院军用化学电源研究与发展中心, 北京 100191
  • 收稿日期:2011-10-11 修回日期:2011-12-07 发布日期:2012-02-23
  • 通讯作者: 王维坤 E-mail:wangweikun2002@163.com
  • 基金资助:

    国家重点基础研究发展计划项目(973)(2009CB220100)资助

Preparation and Electrochemical Performance of Aminoanthraquinone Derivative as Cathode Materials in Rechargeable Lithium Batteries

ZHAO Lei1, WANG An-Bang2, WANG Wei-Kun2, YU Zhong-Bao2, CHEN Shi1, YANG Yu-Sheng1,2

  1. 1. School of Chemical Engineering and Environment, Beijing Institute of Technology, Beijing 100081, P. R. China;
    2. Military Power Sources Research and Development Center, Research Institute of Chemical Defense, Beijing 100191, P. R. China
  • Received:2011-10-11 Revised:2011-12-07 Published:2012-02-23
  • Contact: WANG Wei-Kun E-mail:wangweikun2002@163.com
  • Supported by:

    The project was supported by the National Key Basic Research Program of China (973) (2009CB220100).

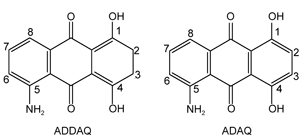

摘要: 合成了两种新型的有机正极材料——5-氨基-2,3-二氢-1,4-二羟基蒽醌(ADDAQ)和5-氨基-1,4-二羟基蒽醌(ADAQ), 用核磁氢谱(1H-NMR)、质谱(MS)、元素分析(EA)、傅里叶红外(FTIR)光谱、紫外-可见(UV-Vis)光谱等方法对材料进行了表征, 应用恒流充放电(GD/C)、循环伏安法(CV)、交流阻抗(EIS)等测试手段对材料的电化学性能进行了测试. 实验结果表明: 相比ADDAQ, ADAQ首次放电容量和循环性能都有显著提高. ADAQ的首次放电比容量为185 mAh·g-1, 50次循环之后容量为93 mAh·g-1. 并讨论了ADDAQ和ADAQ电化学性能差异的原因.

关键词: 锂电池, 5-氨基-2,3-二氢-1,4-二羟基蒽醌, 5-氨基-1,4-二羟基蒽醌, 有机正极材料, 电化学性能

Abstract: Two novel organic compounds, 5-amino-2,3-dihydro-1,4-dyhydroxy anthraquinone (ADDAQ) and 5-amino-1,4-dyhydroxy anthraquinone (ADAQ), were synthesized as cathode materials for lithium batteries. The compounds were characterized by 1H nuclear magnetic resonance (1H NMR) spectroscopy, mass spectrometry (MS), elemental analysis (EA), Fourier transform infrared spectroscopy (FTIR), ultraviolet-visible (UV-Vis) spectroscopy. The electrochemical performance of the compounds was investigated by galvanostatic discharge/charge (GD/C) measurements, cyclic voltammetry (CV), and electrochemical impedance spectrum (EIS). Compared with ADDAQ, the initial discharge specific capacity and cycle performance of ADAQ were effectively improved. The initial discharge specific capacity of ADAQ was 185 mAh·g-1, after 50 cycles, the specific capacity was maintained at 93 mAh·g-1. A reason for this improvement is discussed.

Key words: Lithium battery, 5-Amion-2,3-dihydro-1,4-dyhydroxy anthraquinone, 5-Amino-1,4-dyhydroxy anthraquinone, Organic cathode material, Electrochemical performance

MSC2000:

  • O646
