物理化学学报  2017, Vol. 33 Issue (6): 1140-1148    DOI: 10.3866/PKU.WHXB201702242
论文
混合溶剂对β-HMX结晶形貌影响的分子动力学模拟
CHENFang1,*(),LIUYuan-Yuan1,WANGJian-Long1,SuNing-Ning2,LILi-Jie3,CHENHong-Chun1
1 中北大学理学院,太原030051
2 中北大学理学院,太原030051
3 北京理工大学材料学院,北京100081
Investigation of the Co-Solvent Effect on the Crystal Morphology of β-HMX using Molecular Dynamics Simulations
1 School of Science, North University of China, Taiyuan 030051, P. R. China
2 School of Science, North University of China, Taiyuan 030051, P. R. China
3 School of Material Science and Engineering, Beijing Institute of Technology, Beijing 100081, P. R. China
 全文: PDF(1820 KB)   HTML 输出: BibTeX | EndNote (RIS) |
摘要:

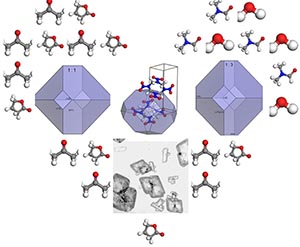

为了解释混合溶剂对β-HMX结晶形貌的影响,采用分子动力学方法系统地研究了β-HMX晶体表面与混合溶剂(丙酮/γ-丁内酯和二甲基甲酰胺/水)的相互作用,体积比从1:3到3:1。使用修正的附着能模型预测了β-HMX在混合溶剂中的生长习性。结果表明:β-HMX晶体的(020)面与溶剂分子的相互作用最弱,混合溶剂对β-HMX不同晶面的作用变化,可以显著的改变β-HMX的晶体形态。通过比较β-HMX在不同体积比混合溶剂作用下结晶形貌的纵横比,发现混合溶剂为二甲基甲酰胺/水,其体积比为1:3时,有利于β-HMX晶体球形化。

关键词: β-HMX晶体形貌混合溶剂分子动力学模拟附着能
Abstract:

In an attempt to explain the co-solvent effect on the shape of β-HMX crystals, molecular dynamics simulations were applied to systematically investigate the interactions of β-HMX crystal faces and the co-solvents (acetone/γ-butyrolactone, dimethylformamide/H2O) by varying the volume ratio from 1:3 to 3:1. The growth habit of β-HMX in co-solvent was predicted using the modified attachment energy model. The results indicated that the (020) face of the β-HMX crystal has the weakest interaction with solvent molecule, and the binary solvent effects on different crystal faces varied such that the crystal morphology was affected significantly. The comparison of the β-HMX crystal aspect ratios grown from co-solvents with different volume ratios revealed that dimethylformamide/H2O with volume ratio of 1:3 favors the spheroidization of β-HMX.

Key words: β-HMX    Crystal morphology    Co-solvent    Molecular dynamics simulations    Attachment energy
收稿日期: 2016-11-28 出版日期: 2017-02-24
中图分类号:  O641
基金资助: 国家自然科学基金(11447219);国家自然科学基金(11547264)
通讯作者: CHENFang     E-mail: f_chen@nuc.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
CHENFang
LIUYuan-Yuan
WANGJian-Long
SuNing-Ning
LILi-Jie
CHENHong-Chun

引用本文:

CHENFang,LIUYuan-Yuan,WANGJian-Long,SuNing-Ning,LILi-Jie,CHENHong-Chun. 混合溶剂对β-HMX结晶形貌影响的分子动力学模拟[J]. 物理化学学报, 2017, 33(6): 1140-1148.

链接本文:

http://www.whxb.pku.edu.cn/CN/Y2017/V33/I6/1140

Fig 1  Molecular (left) and crystal (right) structures of β-HMX gray, carbon; blue, nitrogen; red, oxygen; white, hydrogen. color online
Fig 2  Schematic diagram of β-HMX-mixed solvents interface model
Fig 3  Plot of energies and temperature vs simulation time for β-HMX (020) surface-acetone/γ-butyrolactone (volume ratio of 1 : 1) solvent interface at 298 K
Fig 4  Crystal morphology of β-HMX in vacuum calculated by the AE model
(hkl) Eatt/(kJ·mol-1) Total facet area/% Rhkl
(011) -78.66 46.89 1
(111) -91.25 34.87 1.16
(020) -91.46 10.65 1.16
(102) -100.50 4.42 1.28
(100) -119.53 3.17 1.52
Table 1  Habit parameters of β-HMX crystal in vacuum calculated by the AE model
Volume ratio (hkl) (011) (111) (020) (100) (102)
Eatt -78.66 -91.25 -91.46 -119.53 -100.50
Rhkl 1 1.16 1.16 1.52 1.28
Aacc 1.08 1.17 0.59 1.52 1.33
Abox 7.85 8.57 4.39 9.09 10.51
1:3 Eint -456.32 -536.69 -264.28 -424.98 -638.22
Eatts -15.76 -17.90 -55.78 -48.69 -19.70
R'hkl 1 1.14 3.54 3.09 1.25
1:2 Eint -445.88 -515.81 -267.17 -674.14 -630.23
Eatts -17.20 -20.75 -55.39 -7.16 -20.71
R'hkl 1 1.21 3.22 0.42 1.20
1 : 1 Eint -439.30 -473.65 -261.46 -426.84 -577.15
Eatts -18.10 -26.52 -56.16 -48.38 -27.43
R'hkl 1 1.47 3.10 2.67 1.52
2 : 1 Eint -453.63 -442.71 -239.31 -548.84 -575.46
Eatts -16.13 -30.74 -59.15 -28.05 -27.64
R'hkl 1 1.91 3.67 1.74 1.71
3 : 1 Eint -332.77 -438.11 -229.70 -649.91 -594.35
Eatts -32.79 -31.37 -60.45 -11.20 -25.25
R'hkl 1 0.96 1.84 0.34 0.77
Table 2  Calculated attachment energies for dominant crystal habit faces together with modified attachment energy and relative growth rates of faces under a variety of acetone/γ-butyrolactone ratios
Volume ratio (hkl) Total facet area/% Aspect ratio
1:3 (011) 55.79 1.93
(111) 40.01
(102) 4.20
(011) 36.51 4.41
(111) 6.38
(100) 50.79
1:2 (102) 6.32
1:1 (011) 65.59 2.24
(111) 31.10
(102) 3.31
2:1 (011) 70.36 2.23
(111) 15.94
(100) 8.44
(102) 5.26
3:1 (011) 17.92 5.28
(111) 14.37
(100) 51.39
(102) 16.32
Table 3  Crystal morphology for different crystal habits of β-HMX in co-solvents of acetone/γ-butyrolactone
Fig 5  Crystal morphology of β-HMX in co-solvent of acetone/γ-butyrolactone with volume ratios of 1 : 3 to 3 : 1 predicted by the modified AE model
Fig 6  Comparison of the predicted β-HMX crystal morphology and the corresponding experiment shape grown from 1 : 1 molar acetone/γ-butyrolactone mixture (a): the experimental shape by the cooling crystallization10 (Copyright (2004) American Chemical Society); (b) the predicted β-HMX crystal morphology by the MAE model with volume ratios of 1 : 1
Volume ratio (011) (111) (020) (100) (102)
Eatt -78.66 -91.25 -91.46 -119.53 -100.50
Rhkl 1 1.16 1.16 1.52 1.28
Aacc 1.08 1.17 0.59 1.52 1.33
Abox 7.85 8.57 4.39 9.09 10.51
1:3 Eint -293.67 -343.55 -209.87 -380.03 -424.13
Eatts -38.18 -44.30 -63.13 -56.19 -46.80
R'hkl 1 1.16 1.65 1.47 1.23
1:2 Eint -336.78 -337.29 -160.87 -436.17 -451.79
Eatts -32.24 -45.15 -69.74 -46.83 -43.30
R'hkl 1 1.40 2.16 1.45 1.34
1 : 1 Eint -425.64 -416.07 -261.97 -599.92 -517.25
Eatts -19.99 -4.39 -56.10 -19.53 -35.01
R'hkl 1 1.72 2.81 0.98 1.75
2 : 1 Eint -461.65 -450.96 -259.73 -377.43 -601.77
Eatts -15.03 -29.62 -56.40 -56.62 -24.31
R'hkl 1 1.97 3.75 3.77 1.62
3 : 1 Eint -469.79 -530.81 -266.18 -659.93 -621.17
Eatts -13.90 -18.70 -55.53 -9.53 -21.86
R'hkl 1 1.35 3.99 0.69 1.57
Table 4  Calculated attachment energies for dominant crystal habit faces together with modified attachment energy and relative growth rates of faces under a variety of DMF/H2O ratios
Volume ratio (hkl) Total facet percentage areas/% Aspect ratio
(011) 53.33 1.70
(111) 36.42
(020) 1.31
(100) 3.68
(102) 5.26
(011) 60.63 1.89
(111) 26.13
(100) 7.13
(102) 6.11
(011) 62.46 2.08
(111) 6.67
(100) 28.26
(102) 2.61
(011) 72.68 2.76
(111) 19.69
(102) 7.63
(011) 51.25 2.73
(111) 12.43
(100) 34.51
(102) 1.81
Table 5  Crystal morphology for different crystal habits of β-HMX in co-solvents of DMF/H2O
Fig 7  Crystal morphology of β-HMX in co-solvent of DMF/H2O with volume ratios of 1 : 3 to 3 : 1 predicted by the modified AE model
1 Lee B. M. ; Kim S. J. ; Lee B. C. ; Kim H. S. ; Kim H. ; Lee Y. W. Ind. Eng. Chem. Res. 2011, 50 (15), 9107.
doi: 10.1021/ie102593p
2 Zhou T. T. ; Shi Y. D. ; Huang F. L. Acta Phys. -Chim. Sin. 2012, 28 (11), 2605.
doi: 10.3866/PKU.WHXB201208031
周婷婷; 石一丁; 黄风雷. 物理化学学报, 2012, 28 (11), 2605.
doi: 10.3866/PKU.WHXB201208031
3 Jiang F. L. ; Zhai G. H. ; Ding L. ; Yue K. F. ; Liu N. ; Shi Q. Z. ; Wen Z. Y. Acta Phys. -Chim. Sin. 2010, 26 (2), 409.
doi: 10.3866/PKU.WHXB20100128
姜富灵; 翟高红; 丁黎; 岳可芬; 刘妮; 史启祯; 文振翼. 物理化学学报, 2010, 26 (2), 409.
doi: 10.3866/PKU.WHXB20100128
4 Wang L. X. ; Liu Y. ; Tuo X. L. ; Li S. N. ; Wang X. G. Acta Phys. -Chim. Sin. 2007, 23 (10), 1560.
doi: 10.3866/PKU.WHXB20071013
王罗新; 刘勇; 庹新林; 李松年; 王晓工. 物理化学学报, 2007, 23 (10), 1560.
doi: 10.3866/PKU.WHXB20071013
5 Shi W. Y. ; Chu Y. T. ; Xia M. Z. ; Lei W. ; Wang F. Y. J.Mol. Graphics Model. 2016, 64, 94.
doi: 10.1016/j.jmgm.2016.01.004
6 Liu N. ; Li Y. N. ; Zeman S. ; Shu Y. J. ; Wang B. Z. ; Zhou Y. S. ; Zhao Q. L. ; Wang W. L. CrystEngComm. 2016, 18 (16), 2843.
doi: 10.1039/c6ce00049e
7 Yan T. ; Wang J. H. ; Liu Y. C. ; Zhao J. ; Yuan J. M. ; Guo J.H. J. Cryst. Growth. 2015, 430, 7.
doi: 10.1016/j.jcrysgro.2015.07.031
8 Kim D. Y. ; Kim K. J.Chem. Eng. Res. Des. 2010, 88 (11A), 1461.
doi: 10.1016/j.cherd.2009.08.012
9 Kim C. K. ; Lee B. C. ; Lee Y. W. ; Kim H. S. Korean J.Chem. Eng. 2009, 26 (4), 1125.
doi: 10.2478/s11814-009-0187-6
10 Antoine E. D. M. ; van der H. ; Richard H. B. B. Cryst. Growth & Des. 2004, 4 (5), 999.
doi: 10.1021/cg049965a
11 Hod I. ; Mastai Y. ; Medina D. D. CrystEngComm. 2011, 13 (2), 502.
doi: 10.1039/c0ce00133c
12 Lee H. E. ; Lee T. B. ; Kim H. S. ; Koo K. K. Cryst. Growth Des. 2010, 10 (2), 618.
doi: 10.1021/cg901023s
13 Zhang L. ; Yue L. H. ; Wang F. ; Wang Q. J.Phys. Chem. B 2008, 112 (34), 10668.
doi: 10.1021/jp8034659
14 Chen G. ; Chen C. Y. ; Xia M. Z. ; Lei W. ; Wang F. Y. ; Gong X. D. RSC Adv. 2015, 5 (32), 25581.
doi: 10.1039/c4ra07544g
15 Shi W. Y. ; Xia M. Z. ; Lei W. ; Wang F. Y. J.Mol. Graphics Model. 2014, 50, 71.
doi: 10.1016/j.jmgm.2014.03.005
16 Shen F. F. ; Lv P. H. ; Sun C. H. ; Zhang R. B. ; Pang S. P. Molecules. 2014, 19 (11), 18574.
doi: 10.3390/molecules191118574
17 Chen G. ; Xia M. Z. ; Lei W. ; Wang F. Y. ; Gong X. D. J.Phys. Chem. A 2014, 118 (49), 11471.
doi: 10.1021/jp508731q
18 Zhang C. Y. ; Ji C. L. ; Li H. Z. ; Zhou Y. ; Xu J. J. ; Xu R. J. ; Li J. ; Luo Y. J.Cryst. Growth Des. 2013, 13 (1), 282.
doi: 10.1021/cg301421e
19 Duan X. H. ; Wei C. X. ; Liu Y. G. ; Pei C. H. J.Hazard. Mater. 2010, 174 (1-3), 175.
doi: 10.1016/j.jhazmat.2009.09.033
20 Svensson L. ; Nyqvist J. O. ; Westling L. J.Hazard. Mater. 1986, 13 (1), 103.
doi: 10.1016/0304-3894(86)80011-5
21 Hartman P. ; Bennema P. J.Cryst. Growth. 1980, 49 (1), 145.
doi: 10.1016/0022-0248(80)90075-5
22 Berkovitch-Yellin Z. J.Am. Chem. Soc. 1985, 107 (26), 8239.
doi: 10.1021/ja00312a070
23 Sun H. J.Phys. Chem. B 1998, 102, 38.
doi: 10.1021/jp980939v
24 Song X. L. ; Wang Y. ; An C. W. ; Guo X. D. ; Li F. S. J.Hazard. Mater. 2008, 159 (2-3), 222.
doi: 10.1016/j.jhazmat.2008.02.009
25 Liu, F.; Wu, X. Q.; Ai, G.; Wang, Z. Q.; Li, W. Initiators & Pyrotechnics 2011, No. 6, 30.
