物理化学学报  2017, Vol. 33 Issue (6): 1108-1113    DOI: 10.3866/PKU.WHXB201703222
论文
金属粉末的吸氢统计热力学模型
吴广新1,2,3,*(),彭望君1,2,3,张捷宇1,2,3
1 上海大学,高品质特殊钢冶金与制备国家重点实验室,上海200072
2 上海大学,上海钢铁冶金新技术重点实验室,上海200072
3 上海大学,材料科学与工程学院,上海200072
Statistic Thermodynamic Model of Hydrogen Absorption on Metal Powders
1 State Key Laboratory of Advanced Special Steels, Shanghai University, Shanghai 200072, P. R. China
2 Shanghai Key Laboratory of Advanced Ferrometallurgy, Shanghai University, Shanghai 200072, P. R. China
3 Department of Materials Science and Engineering, Shanghai University, Shanghai 200072, P. R. China
 全文: PDF(1374 KB)   HTML 输出: BibTeX | EndNote (RIS) |
摘要:

提出了一种基于零阶Bragg-Williams近似的新统计热力学模型。新模型的独特之处在于引入了表观压缩系数α来校正高压气体的体积变化,并且在拟合结果中获得无环状曲线。然后,新模型成功应用于金属粉末的吸氢过程。所有结果表明这个新模型运行很好,特别是新模型可用于预测不同温度下的PCT曲线。因此,我们的新模型可以在实际系统中应用。

关键词: 统计热力学理论氢化过程储氢材料粉末
Abstract:

Based on zero-order Bragg-Williams approximation, a new statistic thermodynamic model is presented herein. The distinctive feature of the new model is that an apparent compressibility factor α is introduced to correct the volume change of high-pressure gases and ensure no loop-like curves are obtained in the fitting results. The new model is successfully applied to investigate hydrogen absorption on metal powders. Our results indicate that the model works very well and can be used to predict PCT curves at different temperatures. Hence, our new model exhibits significant potential for application in practical systems.

Key words: Statistic thermodynamic theory    Hydriding process    Hydrogen storage materials powder
收稿日期: 2016-12-09 出版日期: 2017-03-22
中图分类号:  O642
基金资助: The project was supported by the National Natural Science Foundation of China(51104098);The project was supported by the National Natural Science Foundation of China(51674163);Science and Technology Committee of Shanghai, China(14521100603);Science and Technology Committee of Shanghai, China(16ZR1412000)
通讯作者: 吴广新     E-mail: gxwu@shu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
吴广新
彭望君
张捷宇

引用本文:

吴广新,彭望君,张捷宇. 金属粉末的吸氢统计热力学模型[J]. 物理化学学报, 2017, 33(6): 1108-1113.

链接本文:

http://www.whxb.pku.edu.cn/CN/Y2017/V33/I6/1108

Fig 1  Schematic illumination of our new PCT model and Lacher-type model

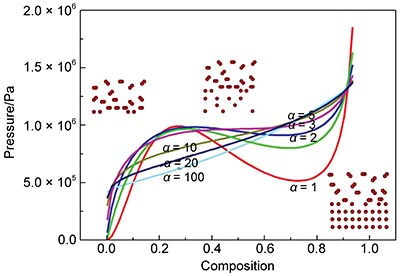

Fig 2  Our PCT function plots at various α values With the value of α increasing from 1 to 100, it can be seen that the shape of the curves change from S-type to linear-type.
Fig 3  Comparison between the experimental (points) and the fitted (solid lines) isotherms
T?1/K?1C = 0.3C = 0.5C = 0.7
1/5782.5330062.6366832.731689
1/5602.0582432.1415122.229907
1/5431.5771631.6548131.726456
Table 1  Data of T?1 versus lnP for C = 0.3, C = 0.5 and C = 0.7 fitted by the equation
Fig 4  Van't Hoff plots for some H/M composition ratios
H/Mg molar ratioΔH/(kJ·mol?1)ΔS/(J·mol?1·K?1)
0.3?71.2276?144.262
0.5?73.1661?148.48
0.7?74.9076?152.297
Table 2  Data of slope and intercept for C = 0.3, C = 0.5 and C = 0.7
Fig 5  Partial molar ΔH and ΔS as a function of H/M composition ratio
Fig 6  Comparison between the experimental (points) and the fitted (solid lines) isotherms All pressure values were corrected to fugacities.
T?1/K?1C = 0.3C = 0.5C = 0.7
1/5730.4229780.5624690.702206
1/5630.1581140.2711720.401725
1/553?0.11878?0.03170.061377
Table 3  Data of T?1 versus lnP for C = 0.2, C = 0.35 and C = 0.5 fitted by the equation
Fig 7  Van't Hoff plots for some H/M composition ratios
H/Mg molar ratioΔH/(kJ·mol?1)ΔS/(J·mol?1·K?1)
0.3?71.3303?128.004
0.5?78.2288?141.201
0.7?84.3939?153.16
Table 4  Data of slope and intercept for C = 0.3, C = 0.5 and C = 0.7
Fig 8  Partial molar ΔH and ΔS as a function of H/M composition ratio
Fig 9  Partial molar ΔH and ΔS as a function of H/M composition ratio
