钠离子电池炭基负极材料研究进展

doi:10.3866/PKU.WHXB201905003

Abstract

Abstract:

Na-ion batteries are currently an emerging and low-cost energy storage technology, which have attracted enormous attention and research due to its promising potentiality for large-scale energy storage applications. As the key electrode materials for Na-ion batteries, non-graphite carbonaceous materials have been regarded as the best choice for practical application due to its high sodium storage activity, low-cost and non-toxicity. According to the current research, graphite materials are not suitable to be anode materials of Na-ion batteries for practical application due to its low sodium storage capacity in carbonate electrolytes. Hard carbons have a high capacity of ~300 mAh·g^-1 with low sodium storage potential and thus are suitable for practical applications. Soft carbons have a sodium storage capacity about 200 mAh·g^-1 with sodium storage potential below 1 V vs. Na⁺/Na. Soft carbons usually exhibit excellent rate performances and thus are suitable to be used as anode materials for power Na-ion batteries. Reduced graphene oxide (rGO) has a sodium storage capacity of about 220 mAh·g^-1 and excellent rate performances. A high sodium storage capacity can be obtained by doping heteroatoms and introducing defect sites in rGO. However, the low material density, high sodium storage potential and large irreversible capacity of rGO will restrict its practical application. Porous carbons have high capacities of 300-450 mAh·g^-1 with excellent rate performances because their developed porous structure can provide more defects as the active sites for sodium storage and shorten the diffusion path of Na⁺ to improve rate performances. Carbon nanowires/fibers have good flexibility due to their unique one-dimensional feature and stable sodium storage reversible capacity with good rate performance. These materials have advantages to be flexible electrodes for sodium-based flexible energy storage devices. By introducing N, S and other heteroatoms, heteroatom-doped carbons have more active sites for sodium storage and thus achieve higher sodium storage capacity. In summary, carbon materials with low graphitization degree are important development directions for anode materials of low cost Na-ion batteries. New carbon materials with unique microstructure and morphology have higher sodium storage capacity and rate capability, so they can be used as high power anode materials for sodium storage. Considering many factors, such as cycle life, energy density, power density and manufacturing cost, of practical application, hard carbon anodes is currently the best choice for practical application of Na-ion batteries. In the future, improving SEI stability, increasing Coulombic efficiency and improving electrical conductivity of hard carbon are urgent problems to be solved for practical application. Herein, the recent progress of carbonaceous anode materials is reviewed. The sodium storage mechanism and characteristics of carbon materials are summarized and discussed. Furthermore, the relationship between micro-structures and electrochemical performances, and remained problems of carbon anodes are discussed. This review will promote the development and understanding of carbon anode materials for sodium storage.

Key words: Na-ion battery, Carbon material, Anode material, Sodium storage mechanism, Research progress

MSC2000:

O646

Bin Cao,Xifei Li. Recent Progress on Carbon-based Anode Materials for Na-ion Batteries[J].Acta Physico-Chimica Sinica, 2020, 36(5): 1905003.

Figures/Tables 11

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

Table 1

References 124

1	Goodenough J. B. Nat. Electron. 2018, 1, 204. doi: 10.1038/s41928-018-0048-6
2	Zhang S. ; Zheng Y. ; Huang X. ; Hong J. ; Cao B. ; Hao J. ; Fan Q. ; Zhou T. ; Guo Z. Adv. Energy Mater. 2019, 9, 1900081. doi: 10.1002/aenm.201900081
3	Liu H. ; Zhang S. ; Zhu Q. ; Cao B. ; Zhang P. ; Sun N. ; Xu B. ; Wu F. ; Chen R. J. Mater. Chem. A 2019, 7, 11205. doi: 10.1039/c9ta02030f
4	Yang Y. ; Ni C. ; Gao M. ; Wang J. ; Liu Y. ; Pan H. Energy Storage Mater. 2018, 14, 279. doi: 10.1016/j.ensm.2018.04.008
5	Yang Y. ; Qu X. ; Zhang L. ; Gao M. ; Liu Y. ; Pan H. ACS Appl. Mater. Inter. 2018, 10, 20591. doi: 10.1021/acsami.8b05609
6	Wang X. ; Chen K. ; Wang G. ; Liu X. ; Wang H. ACS Nano 2017, 11, 11602. doi: 10.1021/acsnano.7b06625
7	Cao B. ; Liu H. ; Xing Z. ; Lei Y. ; Song H. ; Chen X. ; Zhou J. ; Ma Z. ACS Sustain. Chem. Eng. 2015, 3, 1786. doi: 10.1021/acssuschemeng.5b00359
8	Tarascon J. Nat. Chem. 2010, 2, 510. doi: 10.1038/nchem.680
9	Qin J. ; Kheimeh Sari H. M. ; He C. ; Li X. J. Mater. Chem. A 2019, 7, 3673. doi: 10.1039/c8ta12040d
10	Cao B. ; Zhang Q. ; Liu H. ; Xu B. ; Zhang S. ; Zhou T. ; Mao J. ; Pang W. K. ; Guo Z. ; Li A. ; et al Adv. Energy Mater. 2018, 8, 1801149. doi: 10.1002/aenm.201801149
11	Zhang Q. ; Mao J. ; Pang W. K. ; Zheng T. ; Sencadas V. ; Chen Y. ; Liu Y. ; Guo Z. Adv. Energy Mater. 2018, 8, 1703288. doi: 10.1002/aenm.201703288
12	Wu X. ; Leonard D. P. ; Ji X. Chem. Mater. 2017, 29, 5031. doi: 10.1021/acs.chemmater.7b01764
13	Yabuuchi N. ; Kubota K. ; Dahbi M. ; Komaba S. Chem. Rev. 2014, 114, 11636. doi: 10.1021/cr500192f
14	Saurel D. ; Orayech B. ; Xiao B. ; Carriazo D. ; Li X. ; Rojo T. Adv. Energy Mater. 2018, 8, 1703268. doi: 10.1002/aenm.201703268
15	Pan H. ; Hu Y. ; Chen L. Energy Environ. Sci. 2013, 6, 2338. doi: 10.1039/c3ee40847g
16	Li L. ; Zheng Y. ; Zhang S. ; Yang J. ; Shao Z. ; Guo Z. Energy Environ. Sci. 2018, 11, 2310. doi: 10.1039/c8ee01023d
17	Mao J. ; Zhou T. ; Zheng Y. ; Gao H. ; Liu H. K. ; Guo Z. J. Mater. Chem. A 2018, 6, 3284. doi: 10.1039/c7ta10500b
18	Qiu S. ; Cao Y. ; Ai X. ; Yang H. Sci. Sin. Chim. 2017, 47, 573. doi: 10.1360/n032016-00236
	邱珅; 曹余良; 艾新平; 杨汉西. 中国科学:化学, 2017, 47, 573. doi: 10.1360/n032016-00236
19	He H. ; Wang H. ; Tang Y. ; Liu Y. Prog. Chem. 2014, 26, 572. doi: 10.7536/pc130919
	何菡娜; 王海燕; 唐有根; 刘又年. 化学进展, 2014, 26, 572. doi: 10.7536/pc130919
20	Jin Y. ; Sun X. ; Yu Y. ; Ding C. ; Chen C. ; Guan Y. Prog. Chem. 2014, 26, 582. doi: 10.7536/pc130914
	金翼; 孙信; 余彦; 丁楚雄; 陈春华; 官亦标. 化学进展, 2014, 26, 582. doi: 10.7536/pc130914
21	Fang Z. ; Cao Y. ; Hu Y. ; Chen L. ; Huang X. Energ. Stor. Sci. Technol. 2016, 5, 149. doi: 10.3969/j.issn.2095-4239.2016.02.005
	方铮; 曹余良; 胡勇胜; 陈立泉; 黄学杰. 储能科学与技术, 2016, 5, 149. doi: 10.3969/j.issn.2095-4239.2016.02.005
22	Delmas C. ; Braconnier J. ; Fouassier C. ; Hagenmuller P. Solid State Ionics. 1981, 3, 165. doi: 10.1016/0167-2738(81)90076-x
23	Liu T. ; Zhang Y. ; Jiang Z. ; Zeng X. ; Ji J. ; Li Z. ; Gao X. ; Sun M. ; Lin Z. ; Ling M. ; et al Energy Environ. Sci. 2019, 12, 1512. doi: 10.1039/c8ee03727b
24	Zhu Q. ; Chang X. ; Sun N. ; Liu H. ; Chen R. ; Wu F. ; Xu B. J. Mater. Chem. A 2017, 5, 9982. doi: 10.1039/c7ta02165h
25	Fang Y. ; Chen Z. ; Ai X. ; Yang H. ; Cao Y. Acta Phys. -Chim. Sin. 2017, 33, 211. doi: 10.3866/PKU.WHXB201610111
	方永进; 陈重学; 艾新平; 杨汉西; 曹余良. 物理化学学报, 2017, 33, 211. doi: 10.3866/PKU.WHXB201610111
26	Cao Y. ; Xiao L. ; Sushko M. L. ; Wang W. ; Schwenzer B. ; Xiao J. ; Nie Z. ; Saraf L. V. ; Yang Z. ; Liu J. Nano Lett. 2012, 12, 3783. doi: 10.1021/nl3016957
27	Wen Y. ; He K. ; Zhu Y. ; Han F. ; Xu Y. ; Matsuda I. ; Ishii Y. ; Cumings J. ; Wang C. Nat. Commun. 2014, 5 doi: 10.1038/ncomms5033
28	Jache B. ; Adelhelm P. Angew. Chem. Int. Ed. 2014, 53, 10169. doi: 10.1002/anie.201403734
29	Jian Z. ; Luo W. ; Ji X. J. Am. Chem. Soc. 2015, 137, 11566. doi: 10.1021/jacs.5b06809
30	Stevens D. A. ; Dahn J. R. J. Electrochem. Soc. 2001, 148, A803. doi: 10.1149/1.1379565
31	Moriwake H. ; Kuwabara A. ; Fisher C. A. J. ; Ikuhara Y. RSC Adv. 2017, 7, 36550. doi: 10.1039/c7ra06777a
32	Liu Y. ; Merinov B. V. ; Goddard W. A. Proc. Natl. Acad. Sci. 2016, 113, 3735. doi: 10.1073/pnas.1602473113
33	Dresselhaus M. S. ; Dresselhaus G. Adv. Phys. 2006, 30, 139. doi: 10.1080/00018738100101367
34	Sangster J. J. Phase Equilib. Diff. 2007, 28, 571. doi: 10.1007/s11669-007-9194-7
35	Kim H. ; Hong J. ; Park Y. ; Kim J. ; Hwang I. ; Kang K. Adv. Funct. Mater. 2015, 25, 534. doi: 10.1002/adfm.201402984
36	Yoon G. ; Kim H. ; Park I. ; Kang K. Adv. Energy Mater. 2016, 7, 1601519. doi: 10.1002/aenm.201601519
37	Doeff M. M. ; Ma Y. ; Visco S. J. ; Jonghe L. C. D. J. Electrochem. Soc. 1993, 140, L169. doi: 10.1149/1.2221153
38	Alcántara R. ; Fernández Madrigal F. J. ; Lavela P. ; Tirado J. L. ; Jiménez Mateos J. M. ; Gómez De Salazar C. ; Stoyanova R. ; Zhecheva E. Carbon 2000, 38, 1031. doi: 10.1016/S0008-6223(99)00215-8
39	Alcántara R. ; Lavela P. ; Ortiz G. F. ; Tirado J. L. ; Menéndez R. ; Santamaría R. ; Jiménez-Mateos J. M. Carbon 2003, 41, 3003. doi: 10.1016/S0008-6223(03)00432-9
40	Song L. ; Liu S. ; Yu B. ; Wang C. ; Li M. Carbon 2015, 95, 972. doi: 10.1016/j.carbon.2015.09.032
41	Cao B. ; Liu H. ; Xu B. ; Lei Y. ; Chen X. ; Song H. J. Mater. Chem. A 2016, 4, 6472. doi: 10.1039/C6TA00950F
42	Luo W. ; Jian Z. ; Xing Z. ; Wang W. ; Bommier C. ; Lerner M. M. ; Ji X. ACS Cent. Sci. 2015, 1, 516. doi: 10.1021/acscentsci.5b00329
43	Jian Z. ; Bommier C. ; Luo L. ; Li Z. ; Wang W. ; Wang C. ; Greaney P. A. ; Ji X. Chem. Mater. 2017, 29, 2314. doi: 10.1021/acs.chemmater.6b05474
44	Thomas P. ; Billaud D. Electrochim. Acta 2002, 47, 3303. doi: 10.1016/S0013-4686(02)00250-5
45	Irisarri E. ; Ponrouch A. ; Palacin M. R. J. Electrochem. Soc. 2015, 162, A2476. doi: 10.1149/2.0091514jes
46	Sun N. ; Guan Y. ; Liu Y. ; Zhu Q. ; Shen J. ; Liu H. ; Zhou S. ; Xu B. Carbon 2018, 137, 475. doi: 10.1016/j.carbon.2018.05.056
47	Wang Y. ; Xiao N. ; Wang Z. ; Li H. ; Yu M. ; Tang Y. ; Hao M. ; Liu C. ; Zhou Y. ; Qiu J. Chem. Eng. J. 2018, 342, 52. doi: 10.1016/j.cej.2018.01.098
48	Li Y. ; Hu Y. ; Li H. ; Chen L. ; Huang X. J. Mater. Chem. A 2016, 4, 96. doi: 10.1039/c5ta08601a
49	Jin J. ; Yu B. ; Shi Z. ; Wang C. ; Chong C. J. Power Sources 2014, 272, 800. doi: 10.1016/j.jpowsour.2014.08.119
50	Li Y. ; Xu S. ; Wu X. ; Yu J. ; Wang Y. ; Hu Y. ; Li H. ; Chen L. ; Huang X. J. Mater. Chem. A 2015, 3, 71. doi: 10.1039/c4ta05451b
51	Tang K. ; Fu L. ; White R. J. ; Yu L. ; Titirici M. ; Antonietti M. ; Maier J. Adv. Energy Mater. 2012, 2, 873. doi: 10.1002/aenm.201100691
52	Xiao L. ; Cao Y. ; Henderson W. A. ; Sushko M. L. ; Shao Y. ; Xiao J. ; Wang W. ; Engelhard M. H. ; Nie Z. ; Liu J. Nano Energy 2016, 19, 279. doi: 10.1016/j.nanoen.2015.10.034
53	Rybarczyk M. K. ; Li Y. ; Qiao M. ; Hu Y. ; Titirici M. ; Lieder M. J. Energy Chem. 2019, 29, 17. doi: 10.1016/j.jechem.2018.01.025
54	Luo W. ; Schardt J. ; Bommier C. ; Wang B. ; Razink J. ; Simonsen J. ; Ji X. J. Mater. Chem. A 2013, 1, 10662. doi: 10.1039/c3ta12389h
55	Luo W. ; Wang B. ; Heron C. G. ; Allen M. J. ; Morre J. ; Maier C. S. ; Stickle W. F. ; Ji X. Nano Lett. 2014, 14, 2225. doi: 10.1021/nl500859p
56	Zhu X. ; Li Q. ; Qiu S. ; Liu X. ; Xiao L. ; Ai X. ; Yang H. ; Cao Y. JOM 2016, 68, 2579. doi: 10.1007/s11837-016-2064-1
57	Li Y. ; Hu Y. ; Titirici M. ; Chen L. ; Huang X. Adv. Energy Mater. 2016, 6, 1600659. doi: 10.1002/aenm.201600659
58	Li Y. ; Mu L. ; Hu Y. ; Li H. ; Chen L. ; Huang X. Energy Storage Mater. 2016, 2, 139. doi: 10.1016/j.ensm.2015.10.003
59	Ding J. ; Wang H. ; Li Z. ; Cui K. ; Karpuzov D. ; Tan X. ; Kohandehghan A. ; Mitlin D. Energy Environ. Sci. 2015, 8, 941. doi: 10.1039/c4ee02986k
60	Lotfabad E. M. ; Ding J. ; Cui K. ; Kohandehghan A. ; Kalisvaart W. P. ; Hazelton M. ; Mitlin D. ACS Nano 2014, 8, 7115. doi: 10.1021/nn502045y
61	Hong K. ; Qie L. ; Zeng R. ; Yi Z. ; Zhang W. ; Wang D. ; Yin W. ; Wu C. ; Fan Q. ; Zhang W. ; et al J. Mater. Chem. A 2014, 2, 12733. doi: 10.1039/c4ta02068e
62	Ding J. ; Wang H. ; Li Z. ; Kohandehghan A. ; Cui K. ; Xu Z. ; Zahiri B. ; Tan X. ; Lotfabad E. M. ; Olsen B. C. ; Mitlin D. ACS Nano 2013, 7, 11004. doi: 10.1021/nn404640c
63	Zheng Y. ; Wang Y. ; Lu Y. ; Hu Y. ; Li J. Nano Energy 2017, 39, 489. doi: 10.1016/j.nanoen.2017.07.018
64	Zheng Y. ; Lu Y. ; Qi X. ; Wang Y. ; Mu L. ; Li Y. ; Ma Q. ; Li J. ; Hu Y. Energy Storage Mater. 2019, 18, 269. doi: 10.1016/j.ensm.2018.09.002
65	Zhao C. ; Wang Q. ; Lu Y. ; Li B. ; Chen L. ; Hu Y. Sci. Bull. 2018, 63, 1125. doi: 10.1016/j.scib.2018.07.018
66	Li Y. ; Hu Y. ; Qi X. ; Rong X. ; Li H. ; Huang X. ; Chen L. Energy Storage Mater. 2016, 5, 191. doi: 10.1016/j.ensm.2016.07.006
67	Lu Y. ; Zhao C. ; Qi X. ; Qi Y. ; Li H. ; Huang X. ; Chen L. ; Hu Y. Adv. Energy Mater. 2018, 8, 1800108. doi: 10.1002/aenm.201800108
68	Sun N. ; Liu H. ; Xu B. J. Mater. Chem. A 2015, 3, 20560. doi: 10.1039/c5ta05118e
69	Stevens D. A. ; Dahn J. R. J. Electrochem. Soc. 2000, 147, 4428. doi: 10.1149/1.1394081
70	Komaba S. ; Murata W. ; Ishikawa T. ; Yabuuchi N. ; Ozeki T. ; Nakayama T. ; Ogata A. ; Gotoh K. ; Fujiwara K. Adv. Funct. Mater. 2011, 21, 3859. doi: 10.1002/adfm.201100854
71	Bommier C. ; Surta T. W. ; Dolgos M. ; Ji X. Nano Lett. 2015, 15, 5888. doi: 10.1021/acs.nanolett.5b01969
72	Qiu S. ; Xiao L. ; Sushko M. L. ; Han K. ; Shao Y. ; Yan M. ; Liang X. ; Mai L. ; Feng J. ; Cao Y. ;et al Adv. Energy Mater. 2017, 7, 1700403. doi: 10.1002/aenm.201700403
73	Alvin S. ; Yoon D. ; Chandra C. ; Cahyadi H. S. ; Park J. ; Chang W. ; Chung K. Y. ; Kim J. Carbon 2019, 145, 67. doi: 10.1016/j.carbon.2018.12.112
74	Bai P. ; He Y. ; Zou X. ; Zhao X. ; Xiong P. ; Xu Y. Adv. Energy Mater. 2018, 8, 1703217. doi: 10.1002/aenm.201703217
75	Xu B. ; Wang H. ; Zhu Q. ; Sun N. ; Anasori B. ; Hu L. ; Wang F. ; Guan Y. ; Gogotsi Y. Energy Storage Mater. 2018, 12, 128. doi: 10.1016/j.ensm.2017.12.006
76	Guo P. ; Song H. ; Chen X. Electrochem. Commun. 2009, 11, 1320. doi: 10.1016/j.elecom.2009.04.036
77	Liu H. ; Jia M. ; Zhu Q. ; Cao B. ; Chen R. ; Wang Y. ; Wu F. ; Xu B. ACS Appl. Mater. Inter. 2016, 8, 26878. doi: 10.1021/acsami.6b09496
78	Wang Y. ; Chou S. ; Liu H. ; Dou S. Carbon 2013, 57, 202. doi: 10.1016/j.carbon.2013.01.064
79	Yan Y. ; Yin Y. ; Guo Y. ; Wan L. Adv. Energy Mater. 2014, 4, 1301584. doi: 10.1002/aenm.201301584
80	Zhou X. ; Zhu X. ; Liu X. ; Xu Y. ; Liu Y. ; Dai Z. ; Bao J. J. Phys. Chem. C 2014, 118, 22426. doi: 10.1021/jp5064403
81	Xu J. ; Wang M. ; Wickramaratne N. P. ; Jaroniec M. ; Dou S. ; Dai L. Adv. Mater. 2015, 27, 2042. doi: 10.1002/adma.201405370
82	Yun Y. S. ; Park Y. ; Chang S. ; Kim B. H. ; Choi J. ; Wang J. ; Zhang D. ; Braun P. V. ; Jin H. ; Kang K. Carbon 2016, 99, 658. doi: 10.1016/j.carbon.2015.12.047
83	Yang Y. ; Tang D. ; Zhang C. ; Zhang Y. ; Liang Q. ; Chen S. ; Weng Q. ; Zhou M. ; Xue Y. ; Liu J. ; et al Energy Environ. Sci. 2017. doi: 10.1039/c7ee00329c
84	Wenzel S. ; Hara T. ; Janek J. ; Adelhelm P. Energy Environ. Sci. 2011, 4, 3342. doi: 10.1039/c1ee01744f
85	Liu H. ; Jia M. ; Yue S. ; Cao B. ; Zhu Q. ; Sun N. ; Xu B. J. Mater. Chem. A 2017, 5, 9572. doi: 10.1039/c7ta01891f
86	Yun Y. S. ; Cho S. Y. ; Kim H. ; Jin H. ; Kang K. ChemElectroChem 2015, 2, 359. doi: 10.1002/celc.201402359
87	Hou H. ; Banks C. E. ; Jing M. ; Zhang Y. ; Ji X. Adv. Mater. 2015, 27, 7861. doi: 10.1002/adma.201503816
88	Kado Y. ; Soneda Y. ; Yoshizawa N. ECS Electrochem. Lett. 2014, 4, A22. doi: 10.1149/2.0051502eel
89	Qu Q. ; Yun J. ; Wan Z. ; Zheng H. ; Gao T. ; Shen M. ; Shao J. ; Zheng H. RSC Adv. 2014, 4, 64692. doi: 10.1039/c4ra11009a
90	Zhou D. ; Peer M. ; Yang Z. ; Pol V. G. ; Key F. D. ; Jorne J. ; Foley H. C. ; Johnson C. S. J. Mater. Chem. A 2016, 4, 6271. doi: 10.1039/c6ta00242k
91	Prabakar S. J. R. ; Jeong J. ; Pyo M. Electrochim. Acta 2015, 161, 23. doi: 10.1016/j.electacta.2015.02.086
92	Stratford J. M. ; Allan P. K. ; Pecher O. ; Chater P. A. ; Grey C. P. Chem. Commun. 2016, 52, 12430. doi: 10.1039/c6cc06990h
93	Wang X. ; Liu X. ; Wang G. ; Xia Y. ; Wang H. J. Mater. Chem. A 2016, 4, 18532. doi: 10.1039/c6ta07452a
94	Zhu J. ; Chen C. ; Lu Y. ; Ge Y. ; Jiang H. ; Fu K. ; Zhang X. Carbon 2015, 94, 189. doi: 10.1016/j.carbon.2015.06.076
95	Yang H. ; Xu R. ; Yu Y. Energy Storage Mater. 2019. doi: 10.1016/j.ensm.2019.01.003
96	Sun X. ; Wang C. ; Gong Y. ; Gu L. ; Chen Q. ; Yu Y. Small 2018, 14, 1802218. doi: 10.1002/smll.201802218
97	Yuan B. ; Zeng L. ; Sun X. ; Yu Y. ; Wang Q. Nano Res. 2018, 11, 2256. doi: 10.1007/s12274-017-1847-1
98	Wang M. ; Yang Z. ; Li W. ; Gu L. ; Yu Y. Small 2016, 12, 2559. doi: 10.1002/smll.201600101
99	Li W. ; Zeng L. ; Yang Z. ; Gu L. ; Wang J. ; Liu X. ; Cheng J. ; Yu Y. Nanoscale 2014, 6, 693. doi: 10.1039/c3nr05022j
100	Fu L. ; Tang K. ; Song K. ; A Van Aken P. ; Yu Y. ; Maier J. Nanoscale 2014, 6, 1384. doi: 10.1039/c3nr05374a
101	Xu B. ; Hou S. ; Cao G. ; Wu F. ; Yang Y. J. Mater. Chem. 2012, 22, 19088. doi: 10.1039/c2jm32759g
102	Mao Y. ; Duan H. ; Xu B. ; Zhang L. ; Hu Y. ; Zhao C. ; Wang Z. ; Chen L. ; Yang Y. Energy Environ. Sci. 2012, 5, 7950. doi: 10.1039/c2ee21817h
103	Guan Z. ; Liu H. ; Xu B. ; Hao X. ; Wang Z. ; Chen L. J. Mater. Chem. A 2015, 3, 7849. doi: 10.1039/c5ta01446h
104	Xu B. ; Yue S. ; Sui Z. ; Zhang X. ; Hou S. ; Cao G. ; Yang Y. Energy Environ. Sci. 2011, 4, 2826. doi: 10.1039/c1ee01198g
105	Shen W. ; Wang C. ; Xu Q. ; Liu H. ; Wang Y. Adv. Energy Mater. 2015, 5, 1400982. doi: 10.1002/aenm.201400982
106	Liu H. ; Jia M. ; Sun N. ; Cao B. ; Chen R. ; Zhu Q. ; Wu F. ; Qiao N. ; Xu B. ACS Appl. Mater. Inter. 2015, 7, 27124. doi: 10.1021/acsami.5b06898
107	Liu H. ; Jia M. ; Cao B. ; Chen R. ; Lv X. ; Tang R. ; Wu F. ; Xu B. J. Power Sources 2016, 319, 195. doi: 10.1016/j.jpowsour.2016.04.040
108	Zhou C. ; Li A. ; Cao B. ; Chen X. ; Jia M. ; Song H. J. Electrochem. Soc. 2018, 165, A1447. doi: 10.1149/2.1061807jes
109	Wang H. ; Wu Z. ; Meng F. ; Ma D. ; Huang X. ; Wang L. ; Zhang X. ChemSusChem 2013, 6, 56. doi: 10.1002/cssc.201200680
110	Fan Q. ; Zhang W. ; Duan J. ; Hong K. ; Xue L. ; Huang Y. Electrochim. Acta 2015, 174, 970. doi: 10.1016/j.electacta.2015.06.039
111	Lin Z. ; Xiong X. ; Zheng J. ; Wang G. ; Yang C. Mater. Lett. 2017, 202, 123. doi: 10.1016/j.matlet.2017.05.046
112	Liu Y. ; Gao Z. ChemElectroChem 2017, 4, 1059. doi: 10.1002/celc.201600834
113	Xu D. ; Chen C. ; Xie J. ; Zhang B. ; Miao L. ; Cai J. ; Huang Y. ; Zhang L. Adv. Energy Mater. 2016, 6, 1501929. doi: 10.1002/aenm.201501929
114	Wang S. ; Xia L. ; Yu L. ; Zhang L. ; Wang H. ; Lou X. W. D. Adv. Energy Mater. 2016, 6 doi: 10.1002/aenm.201502217
115	Yang F. ; Zhang Z. ; Du K. ; Zhao X. ; Chen W. ; Lai Y. ; Li J. Carbon 2015, 91, 88. doi: 10.1016/j.carbon.2015.04.049
116	Li W. ; Zhou M. ; Li H. ; Wang K. ; Cheng S. ; Jiang K. Energy Environ. Sci. 2015, 8, 2916. doi: 10.1039/c5ee01985k
117	Zhang S. ; Yao F. ; Yang L. ; Zhang F. ; Xu S. Carbon 2015, 93, 143. doi: 10.1016/j.carbon.2015.04.091
118	Deng X. ; Xie K. ; Li L. ; Zhou W. ; Sunarso J. ; Shao Z. Carbon 2016, 107, 67. doi: 10.1016/j.carbon.2016.05.052
119	Qie L. ; Chen W. ; Xiong X. ; Hu C. ; Zou F. ; Hu P. ; Huang Y. Adv. Sci. 2015, 2, 1500195. doi: 10.1002/advs.201500195
120	Sun N. ; Guan Z. ; Liu Y. ; Cao Y. ; Zhu Q. ; Liu H. ; Wang Z. ; Zhang P. ; Xu B. Adv. Energy Mater. 2019. doi: 10.1002/aenm.201901351
121	Yang H. ; Zhang X. ; Hong Y. ; Maleki Kheimeh Sari H. ; Zhou Z. ; Sun S. ; Li X. ChemSusChem 2019. doi: 10.1002/cssc.201901330
122	Guo N. ; Zhang S. ; Wang L. ; Jia D. Acta Phys. -Chim. Sin. 2020, 36, 1903055. doi: 10.3866/PKU.WHXB201903055
	郭楠楠; 张苏; 王鲁香; 贾殿赠. 物理化学学报, 2020, 36, 1903055. doi: 10.3866/PKU.WHXB201903055
123	Liu H. ; Zhang X. ; Zhu Y. ; Cao B. ; Zhu Q. ; Zhang P. ; Xu B. ; Wu F. ; Chen R. Nano-Micro Lett. 2019. doi: 10.1007/s40820-019-0296-7
124	Wang D. ; Zhou C. ; Cao B. ; Xu Y. ; Zhang D. ; Li A. ; Zhou J. ; Ma Z. ; Chen X. ; Song H. Energy Storage Mater. 2019. doi: 10.1016/j.ensm.2019.07.045

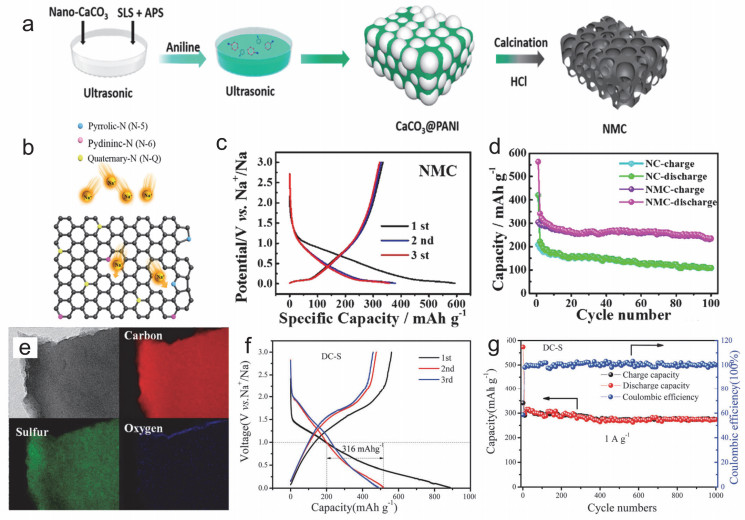

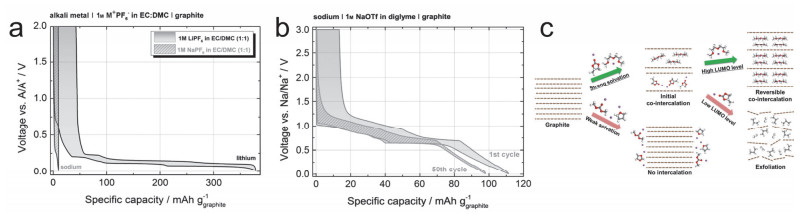

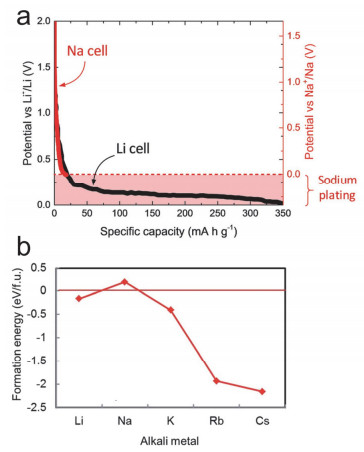

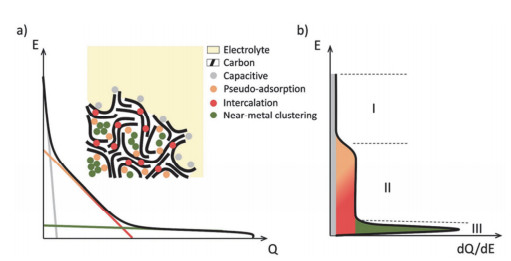

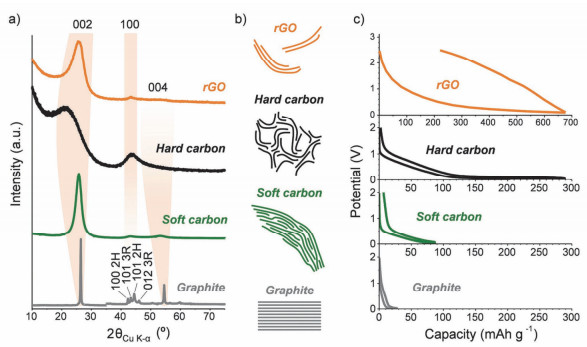

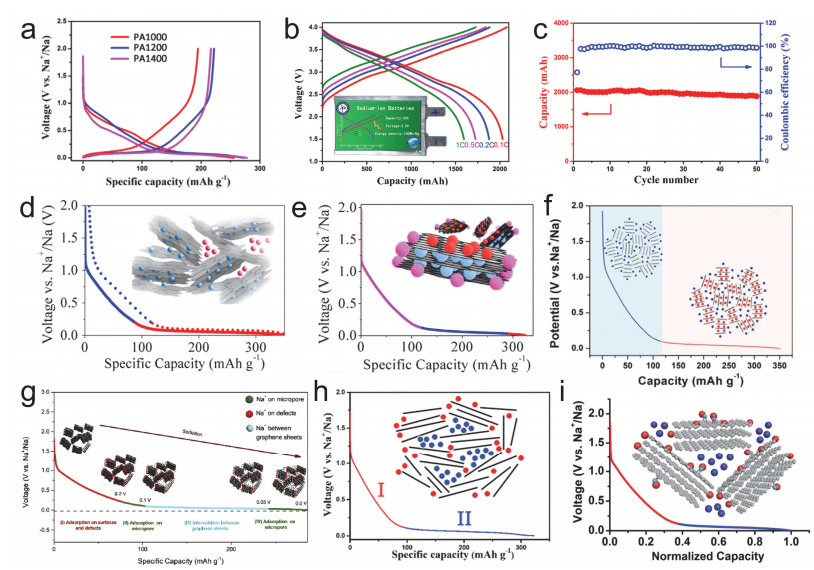

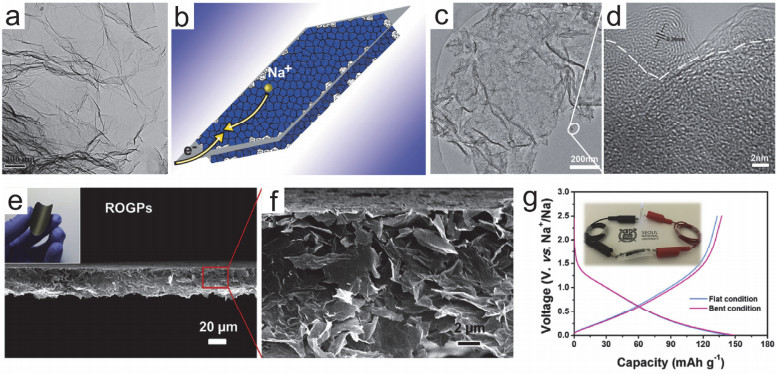

Materials	Electrolyte	Reversible capacity/(mAh g^-1)	Sodium storage potential	Initial Coulombic efficiency	Cyclability	Rate performances	Ref.
Graphite	1 mol·L^-1 NaPF₆ EC/DEMC	~0	-	-	-	-	28
Graphite	Ether-based Electrolyte	90-150	medium	~54%	2500 cycles at 0.5 A·g^-1	100 mAh·g^-1 at 5 A·g^-1	28, 35
Soft carbon	1 mol·L^-1 NaClO₄ EC/DEC	243	medium	71%	200 cycles at 0.05 A·g^-1	30 mAh·g^-1 at 0.5 A·g^-1	41
Soft carbon	1 mol·L^-1 NaPF₆ EC/DEC	90-250	medium	~60%	240 cycles at 1 A·g^-1	50-140 mAh·g^-1 at 1 A·g^-1	42
Hard carbon	0.8 mol·L^-1 NaPF₆ EC/DMC	190-222	low	81%	600 cycles at 0.06 A·g^-1	100-135 mAh·g^-1 at 0.3 A·g^-1	66
Hard carbon	1 mol·L^-1 NaPF₆ EC/DMC	300.6	low	89%	200 cycles at 0.03 A·g^-1	~50 mAh·g^-1 at 1.2 A·g^-1	67
Hard carbon	1 mol·L^-1 NaClO₄ EC/DEC	430.5	low	63%-70%	300 cycles at 0.2 A·g^-1	~100 mAh·g^-1 at 2 A·g^-1	68
rGO	1 mol·L^-1 NaClO₄ PC	217.2	high	~23%	1000 cycles at 0.04 A·g^-1	95.6 mAh·g^-1 at 1 A·g^-1	78
Porous carbon/Graphene	1 mol·L^-1 NaPF₆ PC/EC	670	high	~25%	1000 cycles at 1 A·g^-1	250 mAh·g^-1 at 1 A·g^-1	79
Porous carbon	1 mol·L^-1 NaClO₄ EC/DEC	331	high	45%	3000 cycles at 0.5 A·g^-1	53 mAh·g^-1 at 10 A·g^-1	41
Porous carbon	1 mol·L^-1 NaClO₄ PC + 5% FEC	255.5	high	35%	10000 cycles at 5 A·g^-1	90 mAh·g^-1 at 20 A·g^-1	87
Carbon nanofiber	1 mol·L^-1 NaOTf Diglyme	303	low	93%	10000 cycles at 10 A·g^-1	128 mAh·g^-1 at 20 A·g^-1	95
Nitrogen-rich porous carbon	1 mol·L^-1 NaClO₄ EC/DEC + 5% FEC	434.6	high	36.8%-41.6%	300 cycles at 0.05 A·g^-1	~100 mAh·g^-1 at 2 A·g^-1	85
Nitrogen-doped carbon/graphene	1 mol·L^-1 NaClO₄ EC/DEC	336	high	~50%	200 cycles at 0.05 A·g^-1	94 mAh·g^-1 at 5 A·g^-1	106
Sulfur-doped disorderedcarbon	1 mol·L^-1 NaClO₄ EC/DEC + 5% FEC	516	high	63.2%	1000 cycles at 1 A·g^-1	158 mAh·g^-1 at 4 A·g^-1	116

[1]	Haixia Li,Jiwei Wang,Lifang Jiao,Zhanliang Tao,Jing Liang. Spherical Nano-SnSb/C Composite as a High-Performance Anode Material for Sodium Ion Batteries [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1904017-0.
[2]	Feixiang Ding,Fei Gao,Xiaohui Rong,Kai Yang,Yaxiang Lu,Yong-Sheng Hu. Mixed-Phase Na_0.65Li_0.13Mg_0.13Ti_0.74O₂ as a High-Performance Na-Ion Battery Layered Anode [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1904022-0.
[3]	Xiaoxia Lu,Shengyang Dong,Zhijie Chen,Langyuan Wu,Xiaogang Zhang. Preparation of Carbon Coated Ti₂Nb₂O₉ Nanosheets and Its Sodium Ion Storage Properties [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1906024-0.
[4]	Peng Zhou,Jinzhi Sheng,Chongwei Gao,Jun Dong,Qinyou An,Liqiang Mai. Synthesis of V₂O₅/Fe₂V₄O₁₃ Nanocomposite Materials using In situ Phase Separation and the Electrochemical Performance for Sodium Storage [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1906046-0.
[5]	Jiayao Zhu,Yue Dong,Su Zhang,Zhuangjun Fan. Application of Carbon-/Graphene Quantum Dots for Supercapacitors [J]. Acta Physico-Chimica Sinica, 2020, 36(2): 1903052-0.
[6]	Mingyu ZHAO,Lin ZHU,Bowen FU,Suhua JIANG,Yongning ZHOU,Yun SONG. Sodium Ion Storage Performance of NiCo₂S₄ Hexagonal Nanosheets [J]. Acta Phys. -Chim. Sin., 2019, 35(2): 193-199.
[7]	Shuang LIU,Lianyi SHAO,Xuejing ZHANG,Zhanliang TAO,Jun CHEN. Advances in Electrode Materials for Aqueous Rechargeable Sodium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2018, 34(6): 581-597.
[8]	Ying-Jie ZHANG,Zi-Yi ZHU,Peng DONG,Zhen-Ping QIU,Hui-Xin LIANG,Xue LI. New Research Progress of the Electrochemical Reaction Mechanism, Preparation and Modification for LiFePO₄ [J]. Acta Phys. -Chim. Sin., 2017, 33(6): 1085-1107.
[9]	Xu ZHEN,Xue-Jing GUO. Synthesis and Lithium Storage Performance of Three-Dimensional Mesostructured ZnCo₂O₄ Cubes [J]. Acta Phys. -Chim. Sin., 2017, 33(4): 845-852.
[10]	Rui XIA,Shi-Mao WANG,Wei-Wei DONG,Xiao-Dong FANG. Research Progress of Counter Electrodes for Quantum Dot-Sensitized Solar Cells [J]. Acta Phys. -Chim. Sin., 2017, 33(4): 670-690.
[11]	Xiao-Ye NIU,Xiao-Qin DU,Qin-Chao WANG,Xiao-Jing WU,Xin ZHANG,Yong-Ning ZHOU. AlN-Fe Nanocomposite Thin Film:A New Anode Material for Lithium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2017, 33(12): 2517-2522.
[12]	Bo PENG,Yao-Lin XU,Fokko M. MULDER. Improving the Performance of Si-Based Li-Ion Battery Anodes by Utilizing Phosphorene Encapsulation [J]. Acta Phys. -Chim. Sin., 2017, 33(11): 2127-2132.
[13]	Xue-Qin LI,Lin CHANG,Shen-Long ZHAO,Chang-Long HAO,Chen-Guang LU,Yi-Hua ZHU,Zhi-Yong TANG. Research on Carbon-Based Electrode Materials for Supercapacitors [J]. Acta Phys. -Chim. Sin., 2017, 33(1): 130-148.
[14]	Yan-Ping TANG,Sha YUAN,Yu-Zhong GUO,Rui-An HUANG,Jian-Hua WANG,Bin YANG,Yong-Nian DAI. Magnesiothermic Reduction Preparation and Electrochemical Properties of a Highly Ordered Mesoporous Si/C Anode Material for Lithium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2016, 32(9): 2280-2286.
[15]	Jia-Jun HUANG,Zhi-Jun DONG,Xu ZHANG,Guan-Ming YUAN,Ye CONG,Zheng-Wei CUI,Xuan-Ke LI. Effects of Structure on Electrochemical Performances of Ribbon-Shaped Mesophase Pitch-Based Graphite Fibers [J]. Acta Phys. -Chim. Sin., 2016, 32(7): 1699-1707.

Recent Progress on Carbon-based Anode Materials for Na-ion Batteries

RichHTML

PDF (PC)

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 11

References 124

Related Articles 15

Metrics

Comments

Recommended 6
