Construction of Three-Dimensional Hematite/Graphene with Effective Catalytic Activity for the Thermal Decomposition of CL-20

Ting Zhang1,2,Cuicui Li1,Wei Wang2,Zhaoqi Guo1,Aimin Pang2,*(),Haixia Ma1,*()

  1. 1 School of Chemical Engineering, Northwest University, Xi'an 710069, P. R. China
    2 Science and Technology on Aerospace Chemical Power Laboratory, Hubei Institute of Aerospace Chemotechnology, Xiangyang 441003, Hubei Province, P. R. China
  • Received:2019-05-13 Accepted:2019-06-11 Published:2019-06-17
  • Contact: Aimin Pang,Haixia Ma;
  • Supported by:
    the National Natural Science Foundation of China(21673179);the National Natural Science Foundation of China(21373161);Open Research Fund Program of Science and Technology on Aerospace Chemical Power Laboratory(STACPL320181B03-2)

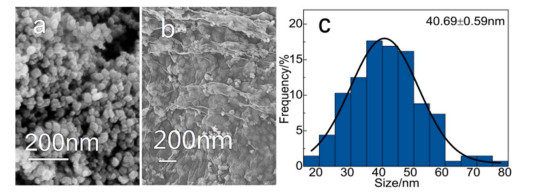

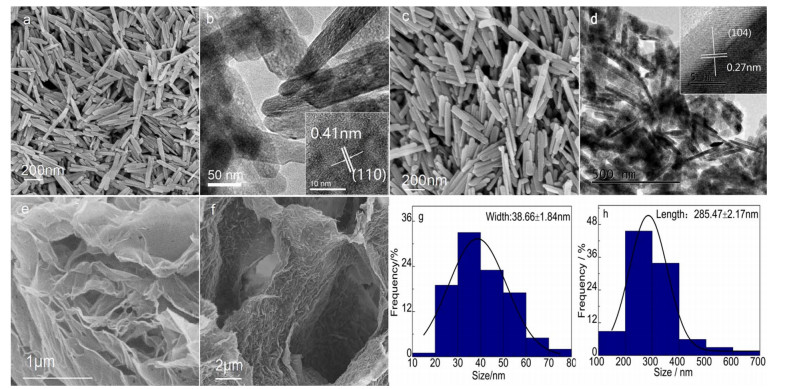

High-performance solid propellants are very important for the development of modern weapons. Aside from their high energy and high burning rate, safety performance is regarded as the most important factor that should be considered whenever a new solid propellant recipe is formulated. Therefore, exploring a new type of combustion catalyst that can improve both catalytic activity and reduce the sensitivity of the energetic component is significant. Traditionally, transition metals or metal oxides are used as a combustion catalyst for accelerating the thermal decomposition of energetic components. However, the existing problem of these catalysts is the aggregation of particles accompanied by poor surface area. Coupling metal oxides with graphene is a promising approach to obtain a binary composite with stable structure and large specific surface area. In this work, rod-like and granular Fe2O3 nanoparticles were synthesized using a hydrothermal method. Then, the two as-prepared Fe2O3 nanoparticles were coupled with graphene sheets using an interfacial self-assembly method, which can effectively prevent the aggregation of Fe2O3 particles and simultaneously increase the active sites that participate in the reaction. X-ray diffraction and X-ray photoelectron spectroscopy were used to identify the phase states and chemical compositions of the prepared samples. The morphology and internal structures were further demonstrated through scanning electron microscopy, transmission electron microscopy and nitrogen adsorption-desorption tests. Both phase analysis and structure identification indicate that the prepared Fe2O3/G has high purity and high surface area. The catalytic performance of the prepared Fe2O3 and Fe2O3/G in the thermal decomposition of hexanitrohexaazaisowurtzitane (CL-20) was evaluated based on thermal gravimetric analysis-infrared spectroscopy (TGA-IR) and differential scanning calorimetry (DSC) tests. The non-isothermal decomposition kinetics of CL-20, Fe2O3/CL-20, and Fe2O3/G/CL-20 were further studied by DSC. The results reveal the excellent catalytic activity of Fe2O3/G in the thermal decomposition of CL-20, which is attributed to the presence of abundant pore structure and large surface area. The reaction mechanisms of the exothermic decomposition process of CL-20, Fe2O3/CL-20, and Fe2O3/G/CL-20 were obtained by the logical choice method, and the composites all followed same mechanism function model as CL-20. Through comparison, the rod-like Fe2O3 coupled with graphene was found to have the best catalytic activity in the thermal decomposition of CL-20. Thus, the rod-like Fe2O3 and its Fe2O3/G composite were used to investigate their influence on the impact sensitivity of CL-20 by fall hammer apparatus. The results show that rFe2O3/G can effectively decrease the impact sensitivity of CL-20 compared with pure CL-20 and rFe2O3/CL-20. Therefore, rFe2O3 coupled with graphene not only promotes the thermal decomposition but also improves the safety performance of CL-20.

Key words: Fe2O3/graphene, Three-dimensional net structure, Catalytic activity, Thermal decomposition, Kinetics
