Acta Phys. -Chim. Sin. ›› 2021, Vol. 37 ›› Issue (4): 2008095.doi: 10.3866/PKU.WHXB202008095
Special Issue: Metal Halide Perovskite Optoelectronic Material and Device
• PERSPECTIVE • Previous Articles Next Articles
Jun Ji, Xin Liu, Hao Huang, Haoran Jiang, Mingjun Duan, Benyu Liu, Peng Cui, Yingfeng Li, Meicheng Li()
Received:
2020-08-31
Accepted:
2020-09-25
Published:
2020-10-16
Contact:
Meicheng Li
E-mail:mcli@ncepu.edu.cn
About author:
Meicheng Li, Email: mcli@ncepu.edu.cnSupported by:
MSC2000:
Jun Ji, Xin Liu, Hao Huang, Haoran Jiang, Mingjun Duan, Benyu Liu, Peng Cui, Yingfeng Li, Meicheng Li. Recent Progress on Perovskite Homojunction Solar Cells[J].Acta Phys. -Chim. Sin., 2021, 37(4): 2008095.

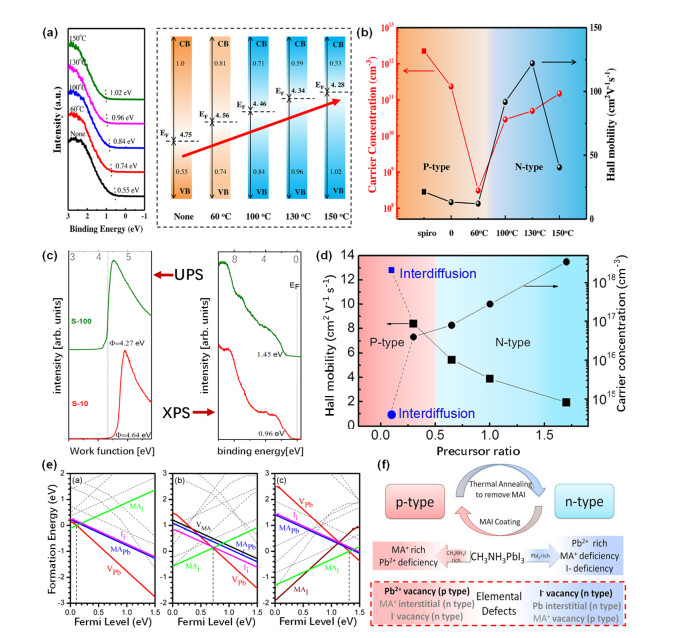

Fig 1
Self-doping mechanism of perovskite materials. (a) Valence spectra of CH3NH3PbI3 films formed by one-step solution method with different annealing temperatures and the energetic levels of the corresponding perovskite films; (b) annealing temperatures dependent carrier concentration and carrier mobility in perovskite films (circle) and the spiro-MeOTAD film (square) by Hall measurement; (c) photoemission spectra of perovskite samples annealed at 100 ℃ for 10 and 100 min. UPS secondary electron cut-off spectra and XPS valence spectra; (d) composition dependent carrier concentration (circle) and carrier mobility (square) in perovskite films; (e) the formation energies of intrinsic point defects in CH3NH3PbI3; (f) schematic conductivity type conversions in perovskite films by excess CH3NH3I (left side) or excess PbI2 (right side). Possible point defects in perovskite films caused by composition variation were illustrated correspondingly. (a, b) Adapted from Wiley publisher24. (c) Adapted from Royal Society of Chemistry publisher 31. (d, f) Adapted from AIP publishing publisher 23. (e) Adapted from AIP publishing publisher 34. "

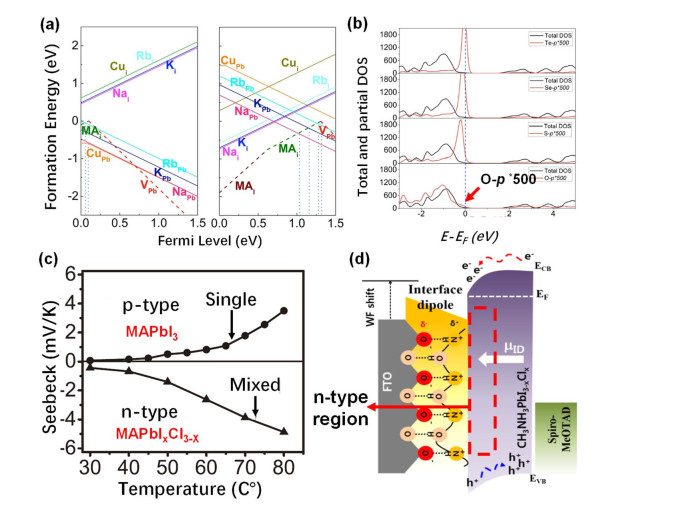

Fig 2
Exogenous doping mechanism of perovskite materials. (a) Calculated formations energies of defects formed by group-IA and-IB elements as functions as the Fermi levels at I-rich/Pb-poor and I-poor/Pb-rich conditions. The vertical dotted lines indicate the Fermi level pinning, the Fermi levels are referenced to the VBM; (b) calculated total DOS and partial DOS for acceptors of OI, SI, SeI, and TeI; (c) the Seebeck effects for organo-metal halide perovskite films based on lateral Au/perovskite/Au device design (Single: CH3NH3PbI3, Mixed: CH3NH3PbIxCl3-x); (d) illustration of energy band bending in the perovskite layer with PEIE film. (a, b) Adapted from ACS Publications publisher 35. (c) Adapted from Elsevier publisher 37. (d) Adapted from Elsevier publisher 27. "

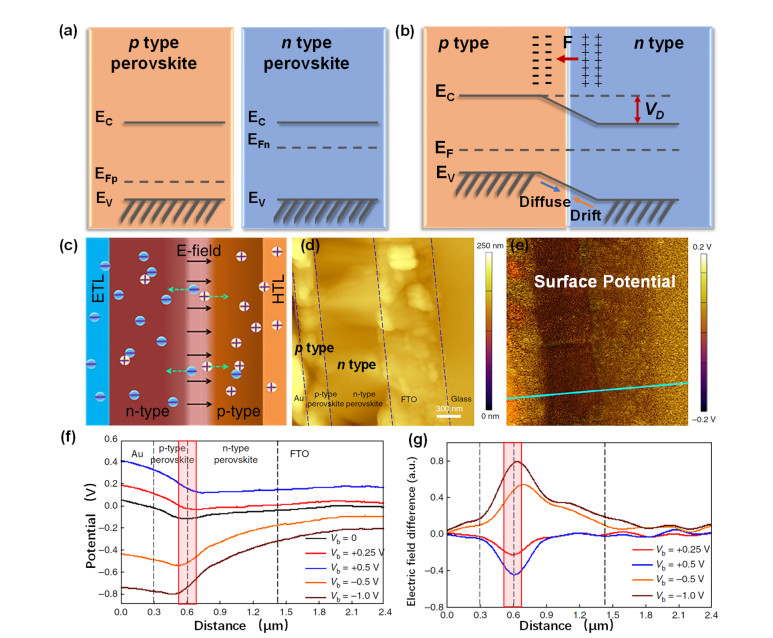

Fig 3
Perovskite p-n homojunction. (a) Schematic diagram of p-type and n-type perovskite energy bands; (b) electric field structure and energy band diagram of perovskite homojunction; (c) diagram of carrier transport in perovskite homojunction structure; (d) AFM topography images of the perovskite solar cells cross section (Vb = 0). The dashed blue lines are used to identify the layers in the device; (e) the corresponding KPFM images. The color scale bars of the KPFM indicate the relative scales of the surface potential; (f) potential profiles of the device under the various bias voltages; (g) electric field profiles under the various bias voltages. (c-g) Adapted from Springer Nature publisher 30."
