铁基多相助催化剂光电化学水氧化研究进展

doi:10.3866/PKU.WHXB202009022

Abstract

Abstract:

The use of fossil fuels has caused serious environmental problems such as air pollution and the greenhouse effect. Moreover, because fossil fuels are a non-renewable energy source, they cannot meet the continuously increasing demand for energy. Therefore, the development of clean and renewable energy sources is necessitated. Hydrogen energy is a clean, non-polluting renewable energy source that can ease the energy pressure of the whole society. The sunlight received by the Earth is 1.7× 10¹⁴ J in 1 s, which far exceeds the total energy consumption of humans in one year. Therefore, conversion of solar energy to valuable hydrogen energy is of significance for reducing the dependence on fossil fuels. Since Fujishima and Honda first reported on TiO₂ in 1972, it has been discovered that semiconductors can generate clean, pollution-free hydrogen through water splitting driven by electricity or light. Hydrogen generated through this approach can not only replace fossil fuels but also provide environmentally friendly renewable hydrogen energy, which has attracted considerable attention. Photoelectrochemical (PEC) water splitting can use solar energy to produce clean, sustainable hydrogen energy. Because the oxygen evolution reaction (OER) over a photoanode is sluggish, the overall energy conversion efficiency is considerably low, limiting the practical application of PEC water splitting. A cocatalyst is, thus, necessary to improve PEC water splitting performance. So far, the synthesis of first-row transition-metal-based (e.g., Fe, Co, Ni, and Mn) cocatalysts has been intensively studied. Iron is earth-abundant and less toxic than other transition metals, making it a good cocatalyst. In addition, iron-based compounds exhibit the properties of a semiconductor/metal and have unique electronic structures, which can improve electrical conductivity and water adsorption. Various iron-based catalysts with high activity have been designed to improve the efficiency of PEC water oxidation. This article briefly summarizes the research progress related to the structure, synthesis, and application of iron oxyhydroxides, iron-based layered double hydroxides, and iron-based perovskites and discusses the evaluation of the performance of these cocatalysts toward photoelectrochemical water oxidation.

Key words: Photoelectrochemical water splitting, Oxygen evolution reaction, Ferric hydroxide, Iron-based layered double hydroxide, Iron-based perovskites

MSC2000:

O649

Yan Li, Xingsheng Hu, Jingwei Huang, Lei Wang, Houde She, Qizhao Wang. Development of Iron-Based Heterogeneous Cocatalysts for Photoelectrochemical Water Oxidation[J].Acta Phys. -Chim. Sin., 2021, 37(8): 2009022.

Figures/Tables 7

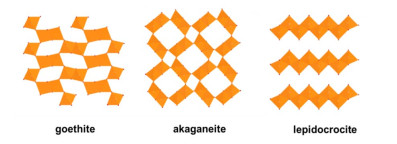

Photoanode	Photocurrent density change	The onset potential change	Illumination conditions	Ref.
WO₃@a-Fe₂O₃/FeOOH	0.3 to 1.12 mA·cm^-2 at 1.23 V vs. RHE	0.9 V to 0.78 V	AM 1.5G, 100 mW·cm^-2	14
V₂O₅/rGO/BiVO₄/FeOOH/NiOOH	0.25 to 3.06 mA·cm^-2 at 1.5 V vs. Ag/AgCl	0.5 V to 0.2 V	AM 1.5G, 100 mW·cm^-2	64
Fe₂O₃/FeOOH NFs on Au/Fe	1.45 to 3.1 mA·cm^-2 at 1.5 V vs. RHE	1 V to 0.7 V	AM 1.5G, 100 mW·cm^-2	65

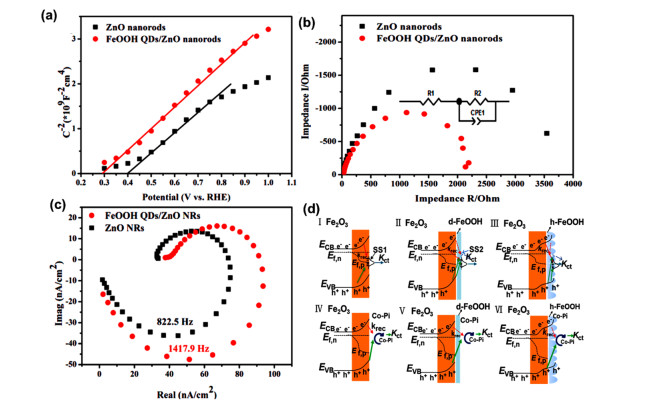

FeOOH QDs/ZnO	0.21 to 0.44 mA·cm^-2 at 1.23 V vs. RHE	0.7 V to 0.4 V	AM 1.5G, 100 mW·cm^-2	69
h-FeOOH/Fe₂O₃	0.85 to 1.31 mA·cm^-2 at 1.23 V vs. RHE	0.92 V to 0.83 V	AM 1.5G, 100 mW·cm^-2	70

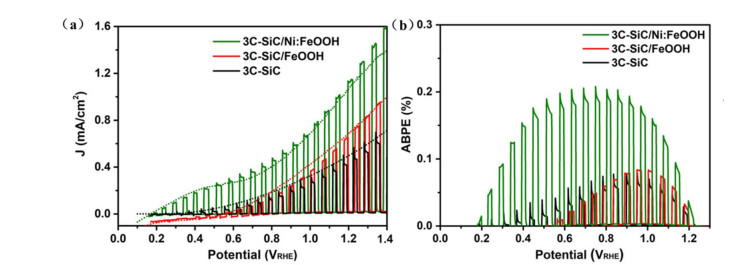

3C-SiC/FeOOH	0.52 to 0.73 mA·cm^-2 at 1.23 V vs. RHE	0.4 V to 0.2 V	AM 1.5G, 100 mW·cm^-2	71
β-FeOOH/BiVO₄	0.62 to 4.3 mA·cm^-2 at 1.23 V vs. RHE	0.8 V to 0.6 V	AM 1.5G, 100 mW·cm^-2	72
FeOOH/BiVO₄	1.1 to 2.3 mA·cm^-2 at 1.23 V vs. RHE	0.45 V to 0.3 V	AM 1.5G, 100 mW·cm^-2	73
rGO-α-Fe₂O₃/β-FeOOH	0.26 to 0.62 mA·cm^-2 at 1.23 V vs. RHE	0.88 V to 0.75 V	AM 1.5G, 100 mW·cm^-2	75
BiVO₄@Ni:FeOOH	0.25 to 2.86 mA·cm^-2 at 1.23 V vs. RHE	0.6 V to 0.4 V	AM 1.5G, 100 mW·cm^-2	76
FeOOH/H:BiVO₄	0.42 to 1.66 mA·cm^-2 at 1.23 V vs. RHE	0.95 V to 0.23 V	150 W Xe lamp, 100 mW·cm^-2	77
CuWO₄/CdS/FeOOH	0.58 to 2.05 mA·cm^-2 at 1.23 V vs. RHE	0.35 V to 0.25 V	AM 1.5G, 100 mW·cm^-2	78
Fe₂O₃/NiFeOOH	0.09 to 0.67 mA·cm^-2 at 1.23 V vs. RHE	1 V to 0.8 V	AM 1.5G, 100 mW·cm^-2	79
Ti-Fe₂O₃/FeOOH	nearly zero to mA·cm^-2 at 1.5 V vs. RHE	1 V to 0.92 V	AM 1.5G, 100 mW·cm^-2	80
ZnO/TiO₂/FeOOH	0.23 to 1.59 mA·cm^-2 at 1.8 V vs. RHE	0.41 V to 0.14 V	AM 1.5G, 100 mW·cm^-2	81
Fe₂O₃/FeOOH	0.83 to 0.91 mA·cm^-2 at 1.23 V vs. RHE	0.72 V to 0.63 V	AM 1.5G, 100 mW·cm^-2	82
WO₃/FeOOH	0.65 to 1.3 mA·cm^-2 at 1.23 V vs. RHE	0.7 V to 0.6 V	AM 1.5G, 100 mW·cm^-2	83
Co-FeOOH	0.69 to 4.71 mA·cm^-2 at 1.0 V vs. RHE	1.5 V to 1.23 V	AM 1.5G, 100 mW·cm^-2	84
Ni-FeOOH	0.69 to 2.55 mA·cm^-2 at 1.0 V vs. RHE	1.5 V to 1.23 V	AM 1.5G, 100 mW·cm^-2	84
WO₃/porous-BiVO₄/FeOOH	1.01 to 4.4 mA·cm^-2 at 1.23 V vs. RHE	0.3 V to 0.2 V	AM 1.5G, 100 mW·cm^-2	85
FeOOH/Fe₂O₃	1.55 to 2.4 mA·cm^-2 at 1.23 V vs. RHE	0.661 V to 0.582 V	AM 1.5G, 100 mW·cm^-2	86
FeOOH/rGO/BiVO₄	0.99 to 3.25 mA·cm^-2 at 1.23 V vs. RHE	0.35 V to 0.3 V	AM 1.5G, 100 mW·cm^-2	87
FeOOH/Fe₂O₃	0.612 to 1.21 mA·cm^-2 at 1.23 V vs. RHE	0.77 V to 0.65 V	AM 1.5G, 100 mW·cm^-2	88

References 128

1	Shao Y. B. ; Zheng M. Y. ; Cai M. M. ; He L. ; Xu C. L. Electrochim. Acta 2017, 257, 1. doi: 10.1016/j.electacta.2017.09.093
2	Wang J. Y. ; Li S. M. ; Lin R. B. ; Tu G. M. ; Wang J. ; Li Z. Q. Electrochim. Acta 2019, 301, 258. doi: 10.1016/j.electacta.2019.01.157
3	Sun S. ; Zhang X. ; Liu X. ; Pan L. ; Zhang X. ; Zou J. Acta Phys. -Chim. Sin. 2020, 36 (3), 1905007.
	孙尚聪; 张旭雅; 刘显龙; 潘伦; 张香文; 邹吉军; 物理化学学报, 2020, 36 (3), 1905007. doi: 10.3866/PKU.WHXB201905007
4	Kong D. ; Zheng Y. ; Kobielusz M. ; Wang Y. ; Bai Z. ; Macyk W. ; Wang X. ; Tang J. Mater. Today 2018, 21 (8), 897. doi: 10.1016/j.mattod.2018.04.009
5	Osterloh F. E. Chem. Soc. Rev. 2013, 42 (6), 2294. doi: 10.1039/C2CS35266D
6	Qiu W. T. ; Huang Y. C. ; Wang Z. L. ; Xiao S. ; Ji H. B. ; Tong Y. X. Acta Phys. -Chim. Sin. 2017, 33 (1), 80.
	邱伟涛; 黄勇潮; 王子龙; 肖爽; 纪红兵; 童叶翔; 物理化学学报, 2017, 33 (1), 80. doi: 10.3866/PKU.WHXB201607293
7	Chen S. ; Thind S. S. ; Chen A. Electrochem. Commun. 2016, 63, 10. doi: 10.1016/j.elecom.2015.12.003
8	Das D. V. T. N. Int. J. Hydrog. Energy 2001, 26, 13. doi: 10.1016/S0360-3199(00)00058-6
9	She H. ; Jiang M. ; Yue P. ; Huang J. ; Wang L. ; Li J. ; Zhu G. ; Wang Q. J. Colloid Interface Sci. 2019, 549, 80. doi: 10.1016/j.jcis.2019.04.038
10	Fujishima A. H. K. Nature 1972, 238 (5358), 37. doi: 10.1038/238037a0
11	Wang Y. Q. ; Shen S. H. Acta Phys. -Chim. Sin. 2020, 36 (3), 1905080.
	王亦清; 沈少华; 物理化学学报, 2020, 36 (3), 1905080. doi: 10.3866/PKU.WHXB201905080
12	Jiang C. X. ; Hu Y. X. ; Dong W. ; Zheng F. G. ; Su X. D. ; Fang L. ; Shen M. R. Acta Phys. -Chim. Sin. 2014, 30 (10), 1867.
	姜春香; 胡玉祥; 董雯; 郑分刚; 苏晓东; 方亮; 沈明荣; 物理化学学报, 2014, 30 (10), 1867. doi: 10.3866/PKU.WHXB201407221
13	Wang Y. ; Ni Y. Y. ; Liu B. ; Shang S. X. ; Yang S. ; Cao M. H. ; Hu C. W. Electrochim. Acta 2017, 257, 356. doi: 10.1016/j.electacta.2017.10.011
14	Zhang J. ; Zhu G. ; Liu W. ; Xi Y. ; Golosov D. A. ; Zavadski S. М. ; Melnikov S. N. J. Alloy. Compd. 2020, 834, 154992. doi: 10.1016/j.jallcom.2020.154992
15	Li N. B. ; Wei S. T. ; Xu Y. X. ; Liu J. ; Wu J. D. ; Jia G. R. ; Cui X. Q. Electrochim. Acta 2018, 290, 364. doi: 10.1016/j.electacta.2018.09.098
16	Liao A. Z. ; He H. C. ; Tang L. Q. ; Li Y. C. ; Zhang J. J. ; Chen J. N. ; Chen L. ; Zhang C. F. ; Zhou Y. ; Zou Z. G. ACS Appl. Mater. Interfaces 2018, 10 (12), 10141. doi: 10.1021/acsami.8b00367
17	Hu Y. W. ; Zhu J. S. ; Yang H. ; Lyu S. S. ; Chen J. Inorg. Chem. Commun. 2020, 117 doi: 10.1016/j.inoche.2020.107971
18	Niu S. Q. ; Sun Y. C. ; Sun G. J. ; Rakov D. ; Li Y. Z. ; Ma Y. ; Chu J. Y. ; Xu P. ACS Appl. Energy Mater. 2019, 2 (5), 3927. doi: 10.1021/acsaem.9b00785
19	Wang Y. ; Ni Y. M. ; Wang X. ; Zhang N. ; Li P. H. ; Dong J. ; Liu B. ; Liu J. H. ; Cao M. H. ; Hu C. W. ACS Appl. Energy Mater. 2018, 5725 doi: 10.1021/acsaem.8b01289
20	Chen J. D. ; Zheng F. ; Zhang S. J. ; Fisher A. ; Zhou Y. ; Wang Z. Y. ; Li Y.Y. ; Xu B. B. ; Li J. T. ; Sun S. G. ACS Catal. 2018, 8 (12), 11342. doi: 10.1021/acscatal.8b03489
21	Chemelewski W. D. ; Lee H. C. ; Lin J. F. ; Bard A. J. ; Mullins C. B. J. Am. Chem. Soc. 2014, 136 (7), 2843. doi: 10.1021/ja411835a
22	Lee J. M. ; Baek J. H. ; Gill T. M. ; Shi X. ; Lee S. ; Cho I. S. ; Jung H. S. ; Zheng X. J. Mater. Chem. A 2019, 7 (15), 9019. doi: 10.1039/c9ta00205g
23	Tolstoy V. P. ; Kuklo L. I. ; Gulina L. B. J. Alloy. Compd. 2019, 786, 198. doi: 10.1016/j.jallcom.2019.01.324
24	Zhang X. F. ; Zhang B. Y. ; Liub S. S. ; Kang H. W. ; Kong W. Q. ; Zhang S. R. ; Shen Y. ; Yang B. C. Appl. Surf. Sci. 2018, 436, 974. doi: 10.1016/j.apsusc.2017.12.078
25	Zhou S. Q. ; Chen K. Y. ; Huang J. W. ; Wang L. ; Zhang M. Y. ; Bai B. ; Wang Q. Z. Appl. Catal. B 2020, 266, 118513. doi: 10.1016/j.apcatb.2019.118513
26	Yang X. D. ; Xu B. ; Zhang S. T. ; Zhao Z. H. ; Sun Y. Q. ; Liu G. N. ; Liu Q. S. ; Li C. C. Int. J. Hydrog. Energy 2020, 45 (16), 9546. doi: 10.1016/j.ijhydene.2020.01.159
27	Zheng M. Y. ; Guo K. L. ; Jiang W. J. ; T T. ; Wang X. Y. ; Zhou P. P. ; Du J. ; Zhao Y. Q. ; Xua C. L. ; Hu J. S. Appl. Catal. B: Environ. 2019, 244, 1004. doi: 10.1016/j.apcatb.2018.12.019
28	Yin J. ; Jin J. ; Lin H. ; Yin Z. ; Li J. ; Lu M. ; Guo L. ; Xi P. ; Tang Y. ; Yan C. H. Adv. Sci. 2020, 7 (10), 1903070. doi: 10.1002/advs.201903070
29	Newman S. P. ; Jones W. New J. Chem. 1998, 22 (2), 105. doi: 10.1039/a708319j
30	Yan L. T. ; Cao L. ; Dai P. C. ; Gu X. ; Liu D. D. ; Li L. J. ; Wang Y. ; Zhao X. B. Adv. Funct. Mater. 2017, 27 (40) doi: 10.1002/adfm.201703455
31	Zhang X. H. ; Cockreham C. B. ; Yilmaz E. ; Li G. N. ; Li N. L. ; Ha S. ; Fu L. J. ; Qi J. Q. ; Xu H. W. ; Wu D. J. Phys. Chem. Lett. 2020, 11 (9), 3745. doi: 10.1021/acs.jpclett.0c00865
32	Fang X. Q. ; Han S. C. ; Liu D. K. ; Zhu Y. F. Chem. Phys. Lett. 2020, 746, 137282. doi: 10.1016/j.cplett.2020.137282
33	Chen X. ; Wang H. ; Meng R. ; Xia B. ; Ma Z. ACS Appl. Energy Mater. 2020, 3 (2), 1305. doi: 10.1021/acsaem.9b02352
34	Zhang J. ; Si C. H. ; Kou T. Y. ; Wang J. F. ; Zhang Z. H. Sustain. Energ. Fuels 2020, 4 (6), 2625. doi: 10.1039/c9se01312a
35	Hu Y. W. ; Yang H. ; Chen J. J. ; Xiong T. Z. ; Balogun M. S. J. T. ; Tong Y. X. ACS Appl. Mater. Interfaces 2019, 11 (5), 5152. doi: 10.1021/acsami.8b20717
36	Lewis N. S. Science 2016, 351 (6271), aad1920. doi: 10.1126/science.aad1920
37	Chen D. ; Liu Z. F. ; Zhou M. ; Wu P. D. ; Wei J. D. J. Alloy. Compd. 2018, 742, 918. doi: 10.1016/j.jallcom.2018.01.334
38	Malathi A. ; Madhavan J. ; Ashokkumar M. ; Arunachalam P. Appl. Catal. A: Gen. 2018, 555, 47. doi: 10.1016/j.apcata.2018.02.010
39	Ye S. ; Ding C. ; Chen R. ; Fan F. ; Fu P. ; Yin H. ; Wang X. ; Wang Z. ; Du P. ; Li C. J. Am. Chem. Soc. 2018, 140 (9), 3250. doi: 10.1021/jacs.7b10662
40	Wang Q. ; He J. ; Shi Y. ; Zhang S. ; Niu T. ; She H. ; Bi Y. ; Lei Z. Appl. Catal. B 2017, 214, 158. doi: 10.1016/j.apcatb.2017.05.044
41	Wu P. ; Liu Z. ; Chen D. ; Zhou M. ; Wei J. Appl. Surf. Sci. 2018, 440, 1101. doi: 10.1016/j.apsusc.2018.01.292
42	Huang J. ; Yue P. ; Wang L. ; She H. ; Wang Q. Chin. J. Catal. 2019, 40 (10), 1408. doi: 10.1016/s1872-2067(19)63399-1
43	Shen L. J. ; Cao Y. N. ; Du Z. J. ; Zhao W. T. ; Lin K. ; Jiang L. L. Appl. Surf. Sci. 2017, 425, 212. doi: 10.1016/j.apsusc.2017.06.295
44	Guo Y. D. ; Li C. X. ; Gong Z. H. ; Guo Y. P. ; Wang X. G. ; Gao B. ; Qin W. J. ; Wang G. H. J. Hazard. Mater. 2020, 397, 122580. doi: 10.1016/j.jhazmat.2020.122580
45	Fu X. H. ; Jia L. C. ; Wang A. L. ; Cao H. J. ; Ling Z. C. ; Liu C. Q. ; Shi E. ; Wu Z. C. ; Li B. ; Zhang J. Icarus 2020, 336, 113435. doi: 10.1016/j.icarus.2019.113435
46	Fan J. Y. ; Zhao Z. W. ; Ding Z. X. ; Liu J. RSC Adv. 2018, 8 (13), 7269. doi: 10.1039/c7ra12615h
47	Fracchia M. ; Visibile A. ; Ahlberg E. ; Vertova A. ; Minguzzi A. ; Ghigna P. ; Rondinini S. ACS Appl. Energy Mater. 2018, 1 (4), 1716. doi: 10.1021/acsaem.8b00209
48	Lima A. L. D. ; Batalha D. C. ; Fajardo H. V. ; Rodrigues J. L. ; Pereira M. C. ; Silva A. C. Catal. Today 2020, 344, 118. doi: 10.1016/j.cattod.2018.10.035
49	Wan C. ; Jiao Y. ; Qiang T. ; Li J. Carbohydr. Polym. 2017, 156, 427. doi: 10.1016/j.carbpol.2016.09.028
50	Hien V. X. ; Hung P. T. Mat. Sci. Semicon. Proc. 2020, 107, 104857. doi: 10.1016/j.mssp.2019.104857
51	Sakamoto Y. ; Noda Y. ; Ohno K. ; Koike K. ; Fujii K. ; Suzuki T. M. ; Morikawa T. ; Nakamura S. Phys. Chem. Chem. Phys. 2019, 21 (34), 18486. doi: 10.1039/c9cp00157c
52	Huang Z. X. ; Han F. S. ; Li M. T. ; Zhou Z. H. ; Guan X. J. ; Guo L. J. Comp. Mater. Sci. 2019, 169, 109110. doi: 10.1016/j.commatsci.2019.109110
53	Dutrizac J. E. ; Soriano C. Hydrometallurgy 2018, 176, 87. doi: 10.1016/j.hydromet.2018.01.015
54	Fortunato L. F. ; Zubieta C. E. ; Fuente S. A. ; Belelli P. G. ; Ferullo R. M. Appl. Surf. Sci. 2016, 387, 894. doi: 10.1016/j.apsusc.2016.07.011
55	Yin H. ; Wu Y. L. ; Hou J. T. ; Yan X. R. ; Li Z. H. ; Zhu C. W. ; Zhang J. ; Feng X. H. ; Tan W. F. ; Liu F. Chem. Geol. 2020, 532 doi: 10.1016/j.chemgeo.2019.119378
56	Suzuki T. M. ; Nonaka T. ; Suda A. ; Suzuki N. ; Matsuoka Y. ; Arai T. ; Sato S. ; Morikawa T. Sustain. Energ. Fuels 2017, 1 (3), 636. doi: 10.1039/c7se00043j
57	Snow C. L. ; Smith S. J. ; Lang B. E. ; Shi Q. ; Boerio-Goates J. ; Woodfield B. F. ; Navrotsky A. J. Chem. Thermodyn. 2011, 43 (2), 190. doi: 10.1016/j.jct.2010.08.022
58	Li Z. Y. ; Liu G. G. ; Su Q. ; Jin X. Y. ; Wen X. Q. ; Zhang G. J. ; Huang R. Arab. J. Chem. 2018, 11 (6), 910. doi: 10.1016/j.arabjc.2018.02.005
59	Yang L. S. ; Liu Y. ; Li J. B. ; Du G. P. J. Alloy. Compd. 2018, 763, 134. doi: 10.1016/j.jallcom.2018.05.305
60	Wang Y. C. ; Gu Y. ; Li H. M. ; Ye M. X. ; Qin W. X. ; Zhang H. M. ; Wang G. Z. ; Zhang Y. X. ; Zhao H. J. Chem. Eng. J. 2020, 392 doi: 10.1016/j.cej.2019.123773
61	Ma P. ; Luo S. ; Luo Y. ; Huang X. ; Yang M. ; Zhao Z. ; Yuan F. ; Chen M. ; Ma J. J. Colloid Interface Sci. 2020, 574, 241. doi: 10.1016/j.jcis.2020.04.058
62	Chowdhury D. R. ; Spiccia L. ; Amritphale S. S. ; Paul A. ; Singh A. J. Mater. Chem. A 2016, 4 (10), 3655. doi: 10.1039/c6ta00313c
63	Lee J. ; Lee H. ; Lim B. J. Ind. Eng. Chem. 2018, 58, 100. doi: 10.1016/j.jiec.2017.09.013
64	Yaw C. S. ; Tang J. ; Soh A. K. ; Chong M. N. Chem. Eng. J. 2020, 380 doi: 10.1016/j.cej.2019.122501
65	Wang L. ; Nguyen N. T. ; Zhang Y. ; Bi Y. ; Schmuki P. ChemSusChem 2017, 10 (13), 2720. doi: 10.1002/cssc.201700522
66	Kanan M. W. ; Nocera D. G. Science 2008, 321 (5892), 1072. doi: 10.1126/science.1162018
67	Shi X. J. ; Zhang K. ; Park J. H. Int. J. Hydrog. Energy 2013, 38 (29), 12725. doi: 10.1016/j.ijhydene.2013.07.057
68	Ponomarev E. A. ; Peter L. M. J. Electroanal. Chem. 1995, 396 (1-2), 219. doi: 10.1016/0022-0728(95)04115-5
69	Zhan F. Q. ; Yang Y. H. ; Liu W. H. ; Wang K. K. ; Li W. Z. ; Li J. ACS Sustain. Chem. Eng. 2018, 6 (6), 7789. doi: 10.1021/acssuschemeng.8b00776
70	Xiao J. R. ; Fan L. L. ; Huang Z. L. ; Zhong J. ; Zhao F. G. ; Xu K. J. ; Zhou S. F. ; Zhan G. W. Chin. J. Catal. 2020, 41 (11), 1761. doi: 10.1016/s1872-2067(20)63618-x
71	Jian J. X. ; Shi Y. C. ; Syväjärvi M. ; Yakimova R. ; Sun J. W. Sol. RRL 2019, 4 (1), 1900364. doi: 10.1002/solr.201900364
72	Zhang B. ; Wang L. ; Zhang Y. ; Ding Y. ; Bi Y. Angew. Chem. Int. Ed. 2018, 57 (8), 2248. doi: 10.1002/anie.201712499
73	She H.D. ; Yue P. F. ; Huang J. W. ; Wang L. ; Wang Q. Z. Chem. Eng. J. 2020, 392 doi: 10.1016/j.cej.2019.123703
74	Wang L. ; Yang Y. ; Zhang Y. J. ; Rui Q. ; Zhang B. B. ; Shen Z. Q. ; Bi Y. P. J. Mater. Chem. A 2017, 5 (32), 17056. doi: 10.1039/c7ta05318e
75	Bazri B. ; Kowsari E. ; Seifvand N. ; Naseri N. J. Electroanal. Chem. 2019, 843, 1. doi: 10.1016/j.jelechem.2019.04.069
76	Zhang X. F. ; Li H. ; Kong W. Q. ; Liu H. L. ; Fan H. B. ; Wang M. K. Electrochim. Acta 2019, 300, 77. doi: 10.1016/j.electacta.2019.01.073
77	Singh A. P. ; Saini N. ; Mehta B. R. ; Hellman A. ; Iandolo B. ; Wickman B. Catal. Today 2019, 321-322, 87. doi: 10.1016/j.cattod.2018.03.041
78	Zhou M. ; Liu Z. H. ; Li X. F. ; Liu Z. F. Ind. Eng. Chem. Res. 2018, 57 (18), 6210. doi: 10.1021/acs.iecr.8b00358
79	Chen D. ; Liu Z. ; Zhang S. Appl. Catal. B: Environ. 2020, 265 doi: 10.1016/j.apcatb.2019.118580
80	Abel A. J. ; Patel A. M. ; Smolin S. Y. ; Opasanont B. ; Baxter J. B. J. Mater. Chem. A 2016, 4 (17), 6495. doi: 10.1039/c6ta01862a
81	Li Z. H. ; Feng S. L. ; Liu S. Y. ; Li X. ; Wang L. ; Lu W. Q. Nanoscale 2015, 7 (45), 19178. doi: 10.1039/c5nr06212h
82	Deng J. J. ; Zhang Q. Z. ; Feng K. ; Lan H. W. ; Zhong J. ; Chaker M. ; Ma D. ChemSusChem 2018, 11 (21), 3783. doi: 10.1002/cssc.201801751
83	Huang J. W. ; Ding Y. ; Luo X. ; Feng Y. Y. J. Catal. 2016, 333, 200. doi: 10.1016/j.jcat.2015.11.003
84	Yan J. Q. ; Li P. ; Ji Y. J. ; Bian H. ; Li Y. Y. ; Liu S. Z. J. Catal. 2017, 5 (40), 21478. doi: 10.1039/c7ta07208b
85	Ma Z. Z. ; Hou H. L. ; Song K. ; Fang Z. ; Wang L. ; Gao F. M. ; Yang Z. B. ; Tang B. ; Yang W. Y. ChemElectroChem 2018, 5 (23), 3660. doi: 10.1002/celc.201801233
86	Shi Q. ; Liu Q. ; Ma Y. ; Fang Z. ; Liang Z. ; Shao G. ; Tang B. ; Yang W. ; Qin L. ; Fang X. Adv. Energy Mater. 2020, 10 (10) doi: 10.1002/aenm.201903854
87	Zeng G. H. ; Hou L. Q. ; Zhang J. ; Zhu J. Q. ; Yu X. ; Fu X. H. ; Zhu Y. ; Zhang Y. M. ChemCatChem 2020, 12, 3769. doi: 10.1002/cctc.202000382
88	Kim J. Y. ; Youn D. H. ; Kang K. ; Lee J. S. Angew. Chem. Int. Ed. 2016, 55 (36), 10854. doi: 10.1002/anie.201605924
89	Rosenberg S. P. ; Armstrong L. Light Metals 2016, 1, 235. doi: 10.1007/978-3-319-48176-0_31
90	She H. D. ; Yue P. F. ; Ma X. Y. ; Huang J. W. ; Wang L. ; Wang Q. Z. Appl. Catal. B. 2020, 263, 118280. doi: 10.1016/j.apcatb.2019.118280
91	Reichle W. T. Solid State Ion 1986, 22 (1), 135. doi: 10.1016/0167-2738(86)90067-6
92	Vanderlaan R. K. ; White J. L. ; Hem S. L. J. Pharm. Sci. 1982, 71 (7), 780. doi: 10.1002/jps.2600710715
93	Allmann R. J. H. P. Neues Jahrb. Miner. Monatsh. 1969, 12, 544. doi: 10.1016/0927-7757(96)03542-X
94	Taylor H. F. W. Mineral. Mag. 1969, 37, 338. doi: 10.1107/S0567740870002443
95	Pachayappan L. ; Nagendran S. ; Kamath P. V. Cryst. Growth Des. 2017, 17 (5), 2536. doi: 10.1021/acs.cgd.7b00071
96	Dewangan N. ; Hui W. M. ; Jayaprakash S. ; Bawah A.-R. ; Poerjoto A. J. ; Jie T. ; Jangam A. ; Hidajat K. ; Kawi S. Catal. Today 2020, 356, 490. doi: 10.1016/j.cattod.2020.06.020
97	Guo J. ; Yang X. ; Bai S. ; Xiang X. ; Luo R. ; He J. ; Chen A. J. Colloid Interface Sci. 2019, 540, 9. doi: 10.1016/j.jcis.2018.12.069
98	Fan G. ; Li F. ; Evans D. G. ; Duan X. Chem. Soc. Rev. 2014, 43 (20), 7040. doi: 10.1039/c4cs00160e
99	Gao R. ; Yan D. Adv. Energy Mater. 2019, 10 (11) doi: 10.1002/aenm.201900954
100	Wang Q. ; O'Hare D. Chem. Rev. 2012, 112 (7), 4124. doi: 10.1021/cr200434v
101	Zhou W. ; Jiang T. ; Zhao Y. ; Xu C. ; Pei C. ; Xue H. J. Colloid Interface Sci. 2019, 549, 42. doi: 10.1016/j.jcis.2019.04.026
102	Youn D. H. ; Park Y. B. ; Kim J. Y. ; Magesh G. ; Jang Y. J. ; Lee J. S. J. Power Sources 2015, 294, 437. doi: 10.1016/j.jpowsour.2015.06.098
103	Wang Q. ; Niu T. ; Wang L. ; Huang J. ; She H. Chin. J. Catal. 2018, 39 (4), 613. doi: 10.1016/s1872-2067(17)62987-5
104	Lv X. W. ; Xiao X. ; Cao M. L. ; Bu Y. ; Wang C. Q. ; Wang M. K. ; Shen Y. Appl. Surf. Sci. 2018, 439, 1065. doi: 10.1016/j.apsusc.2017.12.182
105	Zhu Y. ; Ren J. ; Yang X. ; Chang G. ; Bu Y. ; Wei G. ; Han W. ; Yang D. J. Mater. Chem. A 2017, 5 (20), 9952. doi: 10.1039/c7ta02179h
106	Bai S. ; Yang X. ; Liu C. ; Xiang X. ; Luo R. ; He J. ; Chen A. ACS Sustain. Chem. Eng. 2018, 6 (10), 12906. doi: 10.1021/acssuschemeng.8b02267
107	Chen H. ; Wang S. ; Wu J. ; Zhang X. ; Zhang J. ; Lyu M. ; Luo B. ; Qian G. ; Wang L. J. Mater. Chem. A 2020, 8 (26), 13231. doi: 10.1039/d0ta04572a
108	Ning F. ; Shao M. ; Xu S. ; Fu Y. ; Zhang R. ; Wei M. ; Evans D. G. ; Duan X. Energy Environ. Sci. 2016, 9 (8), 2633. doi: 10.1039/c6ee01092j
109	Guo J. ; Mao C. Y. ; Zhang R. K. ; Shao M. F. ; Wei M. ; Feng P. Y. J. Mater. Chem. A 2017, 5 (22), 11016. doi: 10.1039/c7ta00770a
110	Sayed R. A. ; Abd El Hafiz S. E. ; Gamal N. ; GadelHak Y. ; El Rouby W. M. A. J. Alloy. Compd. 2017, 728, 1171. doi: 10.1016/j.jallcom.2017.09.083
111	Arif M. ; Yasin G. ; Shakeel M. ; Mushtaq M. A. ; Ye W. ; Fang X. ; Ji S. ; Yan D. Mater. Chem. Front. 2019, 3 (3), 520. doi: 10.1039/c8qm00677f
112	Cui W. C. ; Bai H. Y. ; Shang J. P. ; Wang F. G. ; Xu D. B. ; Ding J. R. ; Fan W. Q. ; Shi W. D. Electrochim. Acta 2020, 349, 136383. doi: 10.1016/j.electacta.2020.136383
113	Zhu Y. ; Zhao X. ; Li J. ; Zhang H. ; Chen S. ; Han W. ; Yang D. J. Alloy. Compd. 2018, 764, 341. doi: 10.1016/j.jallcom.2018.06.064
114	Huang J. W. ; Hu G. W. ; Ding Y. ; Pang M. C. ; Ma B. C. J. Catal. 2016, 340, 261. doi: 10.1016/j.jcat.2016.05.007
115	AlSalka Y. ; Granone L. I. ; Ramadan W. ; Hakki A. ; Dillert R. ; Bahnemann D. W. Appl. Catal. B: Environ. 2019, 244, 1065. doi: 10.1016/j.apcatb.2018.12.014
116	Singh D. ; Tabari T. ; Ebadi M. ; Trochowski M. ; Baris Yagci M. ; Macyk W. Appl. Surf. Sci. 2019, 471, 1017. doi: 10.1016/j.apsusc.2018.12.082
117	Lam S. M. ; Sin J. C. ; Mohamed A. R. Mater. Res. Bull. 2017, 90, 15. doi: 10.1016/j.materresbull.2016.12.052
118	McDonnell K. A. ; Wadnerkar N. ; English N. J. ; Rahman M. ; Dowling D. Chem. Phys. Lett. 2013, 572, 78. doi: 10.1016/j.cplett.2013.04.024
119	Chen G. ; Zhu Y. ; Chen H. M. ; Hu Z. ; Hung S. F. ; Ma N. ; Dai J. ; Lin H. J. ; Chen C. T. ; Zhou W. ; et al Adv Mater. 2019, 31 (28), 1900883. doi: 10.1002/adma.201900883
120	Wang W. ; Xu M. G. ; Xu X. M. ; Zhou W. ; Shao Z. P. Angew. Chem. Int. Ed. 2020, 59 (1), 136. doi: 10.1002/anie.201900292
121	Huang Y. ; Liu J. ; Deng Y. ; Qian Y. ; Jia X. ; Ma M. ; Yang C. ; Liu K. ; Wang Z. ; Qu S. ; et al J. Semicond. 2020, 41 (1), 011701. doi: 10.1088/1674-4926/41/1/011701
122	Han B. ; Grimaud A. ; Giordano L. ; Hong W. T. ; Diaz-Morales O. ; Yueh-Lin L. ; Hwang J. ; Charles N. ; Stoerzinger K. A. ; Yang W. ; et al J. Phys. Chem. C 2018, 122 (15), 8445. doi: 10.1021/acs.jpcc.8b01397
123	Wang Z. ; Tan S. P. ; Xiong Y. P. ; Wei J. H. Prog. Nat. Sci. Mater. 2018, 28 (4), 399. doi: 10.1016/j.pnsc.2018.03.002
124	Khan R. ; Mehran M. T. ; Naqvi S. R. ; Khoja A. H. ; Mahmood K. ; Shahzad F. ; Hussain S. Int. J. Energy Res. 2020, 44 (12), 9714. doi: 10.1002/er.5635
125	Hu C. ; Bai Y. ; Xiao S. ; Zhang T. ; Meng X. ; Ng W. K. ; Yang Y. ; Wong K. S. ; Chen H. ; Yang S. J. Mater. Chem. A 2017, 5 (41), 21858. doi: 10.1039/C7TA07139F
126	Wu X. ; Li H. ; Wang X. ; Jiang L. ; Xi J. ; Du G. ; Ji Z. J. Alloy. Compd. 2019, 783, 643. doi: 10.1016/j.jallcom.2018.12.345
127	Xie J. L. ; Guo C. X. ; Yang P. P. ; Wang X. D. ; Liu D. Y. ; Li C. M. Nano Energy 2017, 31, 28. doi: 10.1016/j.nanoen.2016.10.048
128	Khoomortezaei S. ; Abdizadeh H. ; Golobostanfard M. R. ACS Appl. Energy Mater. 2019, 2 (9), 6439. doi: 10.1021/acsaem.9b01041

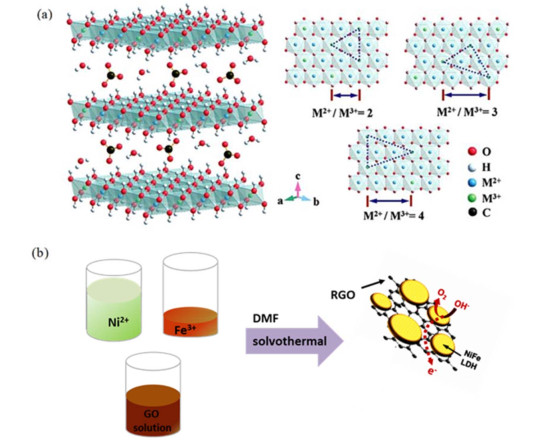

Photoanode	Photocurrent density change	The onset potential change	Illumination conditions	Ref.
BiVO₄/NiFe-LDH	0.5 to 1.58 mA·cm^-2 at 1.23 V vs. RHE	0.75 V to 0.32 V	AM 1.5G, 100 mW·cm^-2	97
NiFe-LDH/rGO/Fe₂O₃	0.45 to 0.95 mA·cm^-2 at 1.23 V vs. RHE	1.0 V to 0.85 V	AM 1.5G, 100 mW·cm^-2	101
TiO₂/BiVO₄/NiFe-LDH	6.9 to 17.6 μA·cm^-2 at 0.1 V vs. Ag/AgCl	0.74 V to 0.72 V	AM 1.5G, 100 mW·cm^-2	102
NiFe-LDH/BiVO₄	0.79 mA to 1.93 mA·cm^-2 at 1.23 V vs. RHE	0.7 V to 0.6 V	AM 1.5G, 100 mW·cm^-2	104
BiVO₄/Ni_0.5Fe_0.5-LDH	0.3 to 1.21 mA·cm^-2 at 1.23 V vs. RHE	0.47 V to 0.15 V	AM 1.5G, 100 mW·cm^-2	105
BiVO₄/Co_0.5Fe_0.5-LDH	0.3 to 1.05 mA·cm^-2 at 1.23 V vs. RHE	0.47 V to 0.18 V	AM 1.5G, 100 mW·cm^-2	105
WO₃/Fe₂O₃/NiFe-LDH	1.6 to 3.0 mA·cm^-2 at 1.8 V vs. RHE	0.2 V to 0.1 V	AM 1.5G, 100 mW·cm^-2	106
BiVO₄/rGO/NiFe-LDH	1.14 to 3.26 mA·cm^-2 at 1.23 V vs. RHE	similar onset potential	AM 1.5G, 100 mW·cm^-2	107
TiO₂/NiFe-LDH	0.92 to 1.18 mA·cm^-2 at 1.245 V vs. RHE	-0.2 V to -0.3 V	AM 1.5G, 100 mW·cm^-2	108
Ti-TiO_2-x@CoFe-LDH	0.65 to 0.78 mA·cm^-2 at 1.23 V vs. RHE	0.23 V to 0.18 V	AM 1.5G, 100 mW·cm^-2	109
CoFe-LDH/TNWs	0.33 to 3.0 mA·cm^-2 at 1.23 V vs. RHE	0.33 V to 0.22 V	AM 1.5G, 100 mW·cm^-2	110
CoFe-LDH@g-C₃N₄	0.061 to 0.196 mA·cm^-2 at 1.23 V vs. RHE	0.38 V to 0.346 V	AM 1.5G, 100 mW·cm^-2	111
NiFe-LDH/TiO₂	0.23 to 0.41 mA·cm^-2 at 1.23 V vs. RHE	0.36 V to 0.29 V	AM 1.5G, 100 mW·cm^-2	112
a-Fe₂O₃/NiFe-LDH	47 to 141 μA·cm^-2 at 1.23 V vs. RHE	0.5 V to 0.4 V	AM 1.5G, 100 mW·cm^-2	113
Mn:Fe₂O₃/NiFe-LDH	0.5 to 1.8 mA·cm^-2 at 1.23 V vs. RHE	0.7 V to 0.6 V	AM 1.5G, 100 mW·cm^-2	114

[1]	Daqiang Yan, Lin Zhang, Zupeng Chen, Weiping Xiao, Xiaofei Yang. Nickel-Based Metal-Organic Framework-Derived Bifunctional Electrocatalysts for Hydrogen and Oxygen Evolution Reactions [J]. Acta Phys. -Chim. Sin., 2021, 37(7): 2009054-0.
[2]	Xueqing Gao, Shujiao Yang, Wei Zhang, Rui Cao. Biomimicking Hydrogen-Bonding Network by Ammoniated and Hydrated Manganese (Ⅱ) Phosphate for Electrocatalytic Water Oxidation [J]. Acta Phys. -Chim. Sin., 2021, 37(7): 2007031-0.
[3]	Bingyan Xu, Ying Zhang, Yecan Pi, Qi Shao, Xiaoqing Huang. Research Progress of Nickel-Based Metal-Organic Frameworks and Their Derivatives for Oxygen Evolution Catalysis [J]. Acta Phys. -Chim. Sin., 2021, 37(7): 2009074-0.
[4]	Zengqiang Gao, Congyong Wang, Junjun Li, Yating Zhu, Zhicheng Zhang, Wenping Hu. Conductive Metal-Organic Frameworks for Electrocatalysis:Achievements, Challenges, and Opportunities [J]. Acta Phys. -Chim. Sin., 2021, 37(7): 2010025-0.
[5]	Chufeng ZHANG,Zhewei CHEN,Yuebin LIAN,Yujie CHEN,Qin LI,Yindong GU,Yongtao LU,Zhao DENG,Yang PENG. Copper-based Conductive Metal Organic Framework In-situ Grown on Copper Foam as a Bifunctional Electrocatalyst [J]. Acta Physico-Chimica Sinica, 2019, 35(12): 1404-1411.
[6]	Jordan LEE,Yong LI,Jianing TANG,Xiaoli CUI. Synthesis of Hydrogen Substituted Graphyne through Mechanochemistry and Its Electrocatalytic Properties [J]. Acta Phys. -Chim. Sin., 2018, 34(9): 1080-1087.
[7]	Pan LUO,Fang SUN,Ju DENG,Haitao XU,Huijuan ZHANG,Yu WANG. Tree-Like NiS-Ni₃S₂/NF Heterostructure Array and Its Application in Oxygen Evolution Reaction [J]. Acta Phys. -Chim. Sin., 2018, 34(12): 1397-1404.
[8]	Hai-Yan WANG, Gao-Quan SHI. Layered Double Hydroxide/Graphene Composites and Their Applications for Energy Storage and Conversion [J]. Acta Physico-Chimica Sinica, 2018, 34(1): 22-35.
[9]	Cui-Juan XUAN,Jie WANG,Jing ZHU,De-Li WANG. Recent Progress of Metal Organic Frameworks-Based Nanomaterials for Electrocatalysis [J]. Acta Phys. -Chim. Sin., 2017, 33(1): 149-164.
[10]	Jin-Fa CHANG,Yao XIAO,Zhao-Yan LUO,Jun-Jie GE,Chang-Peng LIU,Wei XING. Recent Progress of Non-Noble Metal Catalysts in Water Electrolysis for Hydrogen Production [J]. Acta Phys. -Chim. Sin., 2016, 32(7): 1556-1592.
[11]	WANG Sen-Lin, WANG Li-Pin, ZHANG Zhen-Hong. Preparation and Oxygen Evolution Reaction Performance of Ni/NiCo₂O₄ Electrode [J]. Acta Phys. -Chim. Sin., 2013, 29(05): 981-988.
[12]	DU Wei-Ping, LI Zhen, LENG Wen-Hua, XU Yi-Ming. Photocatalytic Reduction of Silver Ions on Ferric Oxides and Ferric Hydroxides [J]. Acta Phys. -Chim. Sin., 2009, 25(08): 1530-1534.
[13]	LI Hai-Ling; WANG Wen-Jing; KANG Guo-Hu; HUANG Jin-Zhao; XU Zheng. The Effect of Reactive Pressure to Fe:NiO_x Film as Anode Catalytic Film in Hydrogen Producing System by Solar Cell [J]. Acta Phys. -Chim. Sin., 2006, 22(03): 330-334.
[14]	SUN Zhen-ya; HUANG Jiang-bo. Effect of Dextran on the Crystallization of Ferric Hydroxide [J]. Acta Phys. -Chim. Sin., 2006, 22(02): 172-177.
[15]	Cheng Chuan-Xuan; Su Ying-Cao. A Mechanism of Colloid Protection for Ferric Hydroxide with Polyvinyl Alcohol——The Formation for Tubular Inclusion Species of Multi-Nucleate Ferric Hydroxide with PVA [J]. Acta Phys. -Chim. Sin., 1991, 7(03): 375-378.

Development of Iron-Based Heterogeneous Cocatalysts for Photoelectrochemical Water Oxidation

RichHTML

PDF

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 7

References 128

Related Articles 15

Metrics

Comments

Recommended 10
