Acta Physico-Chimica Sinica  2011, Vol. 27 Issue (08): 1868-1874    DOI: 10.3866/PKU.WHXB20110803
ELECTROCHEMISTRY AND NEW ENERGY
Preparation of ‘Sandwich-Like’ Au/Pt Composite Multilayer Films for Methanol Electrooxidation
ZHAO Jing, SUN Yue, LI Yong-Jun, LIANG Ren
Department of Chemisty, College of Chemistry and Chemical Engineering, Hunan University, Changsha 410082, P. R. China
Download:   PDF(959KB) Export: BibTeX | EndNote (RIS)

Abstract

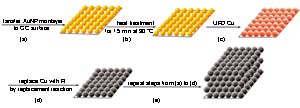

Pt/Au composite monolayer films were fabricated by combining interfacial assembly and under-potential deposition (UPD) with redox replacement. Based on the Pt/Au composite monolayers, an organic linker-free method was proposed for the fabrication of sandwich-like Pt/Au composite multilayer films: (Pt/Au)n, Ptm/Au, and (Pt3/Au)k (n, m, or k represents the layer number). Electron microscopy was used to characterize the morphologies of the Au monolayer films and the Pt/Au composite multilayer films. For each type of composite multilayer films, a common characteristic was that the effective electroactive areas increased with an increase in the layer number. Additionally, the electrocatalytic activities of the composite multilayer films for methanol electrooxidation are systematically discussed by examining the catalytic current densities and its tolerance toward carbonaceous species. For the same series of composite multilayer films (Pt/Au)3, Pt3/Au, and (Pt3/Au)2 showed a higher catalytic current density than bulk Pt (Ptbulk). Among the three composite multilayer films, (Pt/Au)3 showed the best catalytic performance in terms of the current density and tolerance toward carbonaceous species. The tolerance of (Pt/Au)3 to carbonaceous species was found to be better than that of the commercial Pt/C catalyst. This better electrocatalytic activity may be attributed to the maximum synergistic effect between Au and Pt, which depends on the Pt:Au atomic ratio and also the arrangement of Pt and Au nanoparticles.



Key wordsInterfacial self-assembly      Under-potential deposition      Au/Pt composite multilayer film      Electrooxidation      Methanol
Received: 11 April 2011      Published: 08 June 2011
MSC2000:  O646
Fund:

The project was supported by the National Natural Science Foundation of China (20703016), Scientific and Technological Projects of Hunan Province, China (2010FJ6030) and State Key Laboratory for Physical Chemistry of Solid Surface (Xiamen University), China.

Corresponding Authors: LI Yong-Jun     E-mail: liyongjunef@gmail.com
Cite this article:

ZHAO Jing, SUN Yue, LI Yong-Jun, LIANG Ren. Preparation of ‘Sandwich-Like’ Au/Pt Composite Multilayer Films for Methanol Electrooxidation. Acta Physico-Chimica Sinica, 2011, 27(08): 1868-1874.

URL:

http://www.whxb.pku.edu.cn/Jwk_wk/wlhx/10.3866/PKU.WHXB20110803     OR     http://www.whxb.pku.edu.cn/Jwk_wk/wlhx/Y2011/V27/I08/1868

(1) Steele, B. C. H.; Heinzel, A. Nature 2001, 414, 345.
(2) Liu, H. S.; Song, C. J.; Zhang, L.; Zhang, J. J.;Wang, H. J.; Wilkinson, D. P. J. Power Sources 2006, 155, 95.
(3) Winter, M.; Brodd, R. J. Chem. Rev. 2004, 104, 4245.
(4) Iwasita, T.; Hoster, H.; John-Anacker, A.; Lin,W. F.; Vielstich, W. Langmuir 1999, 16, 522.
(5) Liu, Z.; Reed, D.; Kwon, G. M.; Shamsuzzoha, D.; Nikles, E. J. Phys. Chem. C 2007, 111, 14223.
(6) Zhou, S. G.; McIlwrath, K.; Jackson, G.; Eichhorn, B. J. Am. Chem. Soc. 2006, 128, 1780.
(7) Guo, S. J.; Zhai, J. F.; Fang, Y.X.; Dong, S. J.;Wang, E. Chem. Asian J. 2008, 3, 1156.
(8) Zhao, D.; Xu, B. Q. Angew. Chem. Int. Edit. 2006, 45, 4955.
(9) Kiani, A.; Fard, E. N. Electrochim. Acta 2009, 54, 7254.
(10) Du, Y.; Xu, J. J.; Chen, H. Y. Electrochem. Commun. 2009, 11, 1717.
(11) Wang, J. J.; Yin, G. P.;Wang, G. J.;Wang, Z. B.; Gao, Y. Z. Electrochem. Commun. 2008, 10, 831.
(12) Markovic, N. M.; Ross, P. N. Surf. Sci. Rep. 2002, 45, 117.
(13) Mott, D.; Luo, J.; Njoki, P. N.; Lin, Y.;Wang, L. Y.; Zhong, C. J. Catal. Today 2007, 122, 378.
(14) Zeng, J. H.; Yang, J.; Lee, J. Y.; Zhou,W. J. J. Phys. Chem. B 2006, 110, 24606.
(15) Zhang, J. L.; Vukmirovic, M. B.; Sasaki, K.; Nilekar, A. U.; Mavrikakis, M.; Adzic, R. R. J. Am. Chem. Soc. 2005, 127, 12480.
(16) Zhang, J. L.; Vukmirovic, M. B.; Xu, Y.; Mavrikakis, M.; Adzic, R. R. Angew. Chem. Int. Edit. 2005, 44, 2132.
(17) Du, B. C.; Tong,Y. Y. J. Phys. Chem. B 2005, 109, 17775.
(18) Hammer, B.; Morikawa, Y.; Norskov, J. K. Phys. Rev. Lett. 1996, 76, 2141.
(19) Hammer, B.; Norskov, J. K. Adv. Catal. 2000, 45, 71.
(20) Park, S.; Yang, P.; Corredor, P.;Weaver, M. J. J. Am. Chem. Soc. 2002, 124, 2428.
(21) Aramata, A.; Modern Aspects of Electrochemistry, Vol. 31; Bockris, J. O. M.; White, R. E.; Conway, B. E. Eds, Kluwer Academic Publishers: New York, 1998; pp 181-250.
(22) Tang, H.; Chen, J. H.;Wang, M. Y.; Nie, L. H.; Kuang,Y. F.; Yao, S. Z. Appl. Catal. A 2004, 275, 43.
(23) Shin, T. Y.; Yoo, S. H.; Park, S. Chem. Mater. 2008, 20, 5682.
(24) Liu, P. P.; Ge, X. B.;Wang, R. Y.; Ma, H. Y.; Ding,Y. Langmuir 2009, 25, 561.
(25) Park, I. S.; Lee, K. S.; Choi, J. H.; Park, H. Y.; Sung,Y. E. J. Phys. Chem. C 2007, 111, 19126.
(26) Ge, X.;Wang, R.; Liu, P.; Ding,Y. Chem. Mater. 2007, 19, 5827.
(27) Kumar, S.; Zou, S. Z. Langmuir 2007, 23, 7365.
(28) Patra, S.; Das, J.; Yang, H. Electrochim. Acta 2009, 54, 3441.
(29) Huang, M.; Jin, Y.; Jiang, H.; Sun, X.; Chen, H.; Liu, B.;Wang, E.; Dong, S. J. Phys. Chem. B 2005, 109, 15264.
(30) Li, Y. J.; Huang,W. J.; Sun, S. G. Angew. Chem. Int. Edit. 2006, 45, 2537.
(31) Liu, C.; Li, Y. J.;Wang, M. H.; He, Y.; Yeung, E. S. Nanotechnology 2009, 20, 065604.
(32) Wang, M. H.; Li, Y. J.; Xie, Z. X.; Liu, C.; Yeung, E. S. Mater. Chem. Phys. 2010, 119, 153.
(33) Wang, M. H.; Hu, J.W.; Li, Y. J.; Yeung, E. S. Nanotechnology 2010, 21, 145608.
(34) Li, Y. J.; Liu, C.; Yang, M. H.; He, Y.; Yeung, E. S. J. Electroanal. Chem. 2008, 622, 103.
(35) Frens, G. Nat. Phys. Sci. 1973, 241, 20.
(36) Uosaki, K.; Ye, S.; Naohara, H.; Oda, Y.; Haba, T.; Kondo, T. J. Phys. Chem. B 1997, 101, 7566.
(37) Kolb, D. M. Adv. Electrochem. Electrochem. Eng. 1978, 11, 125.
(38) Mrozek, M. F.; Xie, Y.;Weaver, M. J. Anal. Chem. 2001, 73, 5953.
(39) Brankovic, S. R.;Wang, J. X.; Adzic, R. R. Surf. Sci. 2001, 474, L173.
(40) Maillard, F.; Eikerling, M.; Cherstiouk, O. V.; Schreier, S.; Savinova, E.; Stimming, U. Faraday Discuss. 2004, 125, 357.
(41) Mayrhofer, K. J. J.; Arenz, M.; Blizanac, B. B.; Stamenkovic, V.; Ross, P. N.; Markovic, N. M. Electrochim. Acta 2005, 50, 5144.
(42) Arenz, M.; Mayrhofer, K. J. J.; Stamenkovic, V.; Blizanac, B. B.; Tomoyuki, T.; Ross, P. N.; Markovic, N. M. J. Am. Chem. Soc. 2005, 127, 6819.
(43) Biegler, T.; Rand, D. A. J.;Woods, R. J. Electroanal. Chem. 1971, 29, 269.
(44) Liu, Z.; Ling, X. Y.; Su, X.; Lee, J. Y. J. Phys. Chem. B 2004, 108, 8234.
(45) Chang, S. C.; Ho, Y.;Weaver, M. J. Surf. Sci. 1992, 265, 81.
(46) Park, S.; Xie, Y.;Weaver, M. J. Langmuir 2002, 18, 5792.
(47) Zhang, J.; Lima, F. H. B.; Shao, M. H.; Sasaki, K.;Wang, J. X.; Hanson, J.; Adzic, R. R. J. Phys. Chem. B 2005, 109, 22701.
(48) Zhang, J.; Mo, Y.; Vukmirovic, M. B.; Klie, R.; Sasaki, K.; Adzic, R. R. J. Phys. Chem. B 2004, 108, 10955.
