Acta Phys. -Chim. Sin.  2014, Vol. 30 Issue (9): 1778-1786    DOI: 10.3866/PKU.WHXB201407112
PHYSICAL CHEMISTRY OF MATERIALS
Preparation of Nitrogen-Doped Graphene and Its Electrocatalytic Activity for Oxygen Reduction Reaction
PENG San, GUO Hui-Lin, KANG Xiao-Feng
Key Laboratory of Synthetic and Natural Functional Molecule Chemistry Ministry of Education, College of Chemistry and Materials Science, Northwest University, Xi'an 710069, P. R. China
Download:   PDF(1301KB) Export: BibTeX | EndNote (RIS)

Abstract

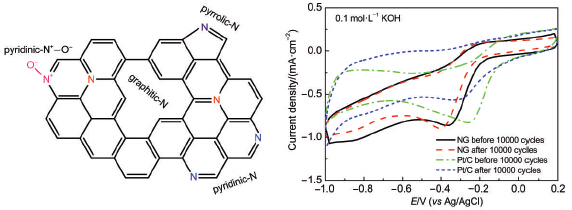

Nitrogen-doped graphene (NG) was prepared by chemical reduction of graphene oxide (GO) using dimethyl ketoxime (DMKO) as reducing and doping agents. The morphologies, structures, compositions, and electrocatalytic activities of the as-prepared materials were investigated using field-emission transmission electron microscopy (FETEM), ultraviolet- visible (UV-Vis) spectroscopy, Fourier-transform infrared (FTIR) spectroscopy, X-ray photoelectron spectroscopy (XPS), zeta potential and nanoparticle analyses, cyclic voltammetry (CV), and the rotating disk electrode (RDE) method. The results showed that GO sheets were effectively reduced by DMKO. NG samples with different nitrogen contents were obtained by adjusting the mass ratio of GO to DMKO; the nitrogen contents were in the range 4.40%-5.89% (atomic fraction). NG-1, obtained using a GO/DMKO mass ratio of 1:0.7, showed excellent electrocatalytic activity in the oxygen reduction reaction (ORR) in an O2-saturated 0.1 mol·L-1 KOH solution. The peak current was 0.93 mA·cm-2, and the number of electrons transferred per O2 was 3.6; this was attributed to the increase in the number of ORR active sites in the presence of pyridinic-N. In addition, the electrocatalytic activity of NG was found to be dependent on the graphitic-N content, which determined the limiting current density, because of its higher electronic conductivity. The pyridinic-N content improved the onset potential, because of its lower overpotential for the ORR. NG therefore exhibited a high selectivity in the ORR, with good tolerance of methanol cross-over effects. It is therefore superior to commercial Pt/C catalysts.



Key wordsGraphene      Nitrogen doping      Oxygen reduction reaction      Electrocatalysis
Received: 15 May 2014      Published: 11 July 2014
MSC2000:  O646
Fund:

The project was supported by the National Natural Science Foundation of China (21175105, 21375104), Specialized Research Fund for the Doctoral Program of Higher Education of China (20126101110015), Natural Science Foundation of Shaanxi Province, China (2014JM2042), and State Key Laboratory of Analytical Chemistry for Life Science, China (SKLACLS1210).

Corresponding Authors: GUO Hui-Lin     E-mail: hlguo@nwu.edu.cn
Cite this article:

PENG San, GUO Hui-Lin, KANG Xiao-Feng. Preparation of Nitrogen-Doped Graphene and Its Electrocatalytic Activity for Oxygen Reduction Reaction. Acta Phys. -Chim. Sin., 2014, 30(9): 1778-1786.

URL:

http://www.whxb.pku.edu.cn/10.3866/PKU.WHXB201407112     OR     http://www.whxb.pku.edu.cn/Y2014/V30/I9/1778
