Acta Phys. -Chim. Sin.  2014, Vol. 30 Issue (10): 1855-1860    DOI: 10.3866/PKU.WHXB201407151
ELECTROCHEMISTRY AND NEW ENERGY
Fabrication and Electrochemical Behavior of a Pure-Phase Li2MnO3 Thin Film for Cathode Material of Li-Ion Batteries
ZHENG Jie-Yun, WANG Rui, LI Hong
Institute of Physics, Chinese Academy of Sciences, Beijing 100190, P. R. China
Download:   PDF(984KB) Export: BibTeX | EndNote (RIS)

Abstract

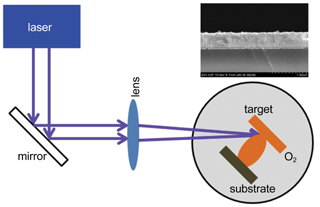

Li2MnO3 materials were synthesized by solid state reactions. A series of Li2MnO3 thin films were fabricated at different temperatures under O2 by pulsed laser deposition (PLD) using a home-made Li2MnO3 target. The structure and morphology of the as- prepared Li2MnO3 thin films were characterized by X- ray diffraction (XRD), Raman spectroscopy, and scanning electron microscopy (SEM). Their electrochemical performance was also investigated. The results show that the crystallinity of the thin films increased with an increase in deposition temperature, and the thin film electrode prepared at lower than 25 ℃ did not work well. The highest electrochemical activity was achieved by the thin film deposited at 400 ℃, and this result is consistent with our previous report on powder materials. The Li2MnO3 thin film electrodes deposited at 400 and 600 ℃ exhibited lower discharge voltage decay upon cycling compared with the powder electrode.



Key wordsLi2MnO3 thin film      Cathode material      Pulsed laser deposition      Potential decay      Li-ion battery
Received: 17 March 2014      Published: 15 July 2014
MSC2000:  O646
Fund:

The project was supported by the National Key Basic Research Program of China (973) (2012CB932900) and "Strategic Priority Research Program" of Chinese Academy of Sciences (XDA09010101).

Corresponding Authors: LI Hong     E-mail: hli@iphy.ac.cn
Cite this article:

ZHENG Jie-Yun, WANG Rui, LI Hong. Fabrication and Electrochemical Behavior of a Pure-Phase Li2MnO3 Thin Film for Cathode Material of Li-Ion Batteries. Acta Phys. -Chim. Sin., 2014, 30(10): 1855-1860.

URL:

http://www.whxb.pku.edu.cn/10.3866/PKU.WHXB201407151     OR     http://www.whxb.pku.edu.cn/Y2014/V30/I10/1855

(1) (a) Tarascon, J.; Armand, M. Nature 2001, 414, 359. doi: 10.1038/35104644
(b) Armand, M.; Tarascon, J. M. Nature 2008, 451 (7179), 652. (2) Zu, C. X.; Li, H. Energy & Environmental Science 2011, 4 (8), 2614. doi: 10.1039/c0ee00777c
(3) Numata, K.; Sakaki, C.; Yamanaka, S. Chem. Lett. 1997, 26 (8), 725. (4) Lu, Z. H.; Beaulieu, L. Y.; Donaberger, R. A.; Thomas, C. L.; Dahn, J. R. Journal of the Electrochemical Society 2002, 149(6), A778. (5) Kim, J. S.; Johnson, C. S.; Thackeray, M. M. Electrochemistry Communications 2002, 4 (3), 205. doi: 10.1016/S1388-2481(02)00251-5
(6) (a) Johnson, C. S.; Kim, J. S.; Lefief, C.; Li, N.; Vaughey, J. T.; Thackeray, M. M. Electrochemistry Communications 2004, 6(10), 1085. doi: 10.1016/j.elecom.2004.08.002
(b) Thackeray, M. M.; Kang, S. H.; Johnson, C. S.; Vaughey, J. T.; Benedek, R.; Hackney, S.A. J.Mater. Chem. 2007, 17 (30), 3112. (7) (a) Johnson, C. S.; Li, N. C.; Lefief, C.; Vaughey, J. T.; Thackeray, M. M. Chemistry of Materials 2008, 20 (19), 6095. doi: 10.1021/cm801245r
(b) Croy, J. R.; Kim, D.; Balasubramanian, M.; Gallagher, K.; Kang, S. H.; Thackeray, M. M. Journal of the Electrochemical Society 2012, 159 (6), A781. (8) Yu, C.; Li, G. S.; Guan, X. F.; Zheng, J.; Luo, D.; Li, L. P. Physical Chemistry Chemical Physics 2012, 14 (35), 12368. doi: 10.1039/c2cp41881a
(9) Yu, X.; Lyu, Y.; Gu, L.;Wu, H.; Bak, S. M.; Zhou, Y.; Amine, K.; Ehrlich, S. N.; Li, H.; Nam, K.W.; Yang, X. Q. Adv. Energy Mater. 2013, 4 (5), 1300950. (10) Yu, D. Y.W.; Yanagida, K.; Kato, Y.; Nakamura, H. Journal of the Electrochemical Society 2009, 156 (6), A417. (11) Wang, R.; He, X. Q.; He, L. H.;Wang, F.W.; Xiao, R. J.; Gu, L.; Li, H.; Chen, L. Q. Adv. Energy Mater. 2013, 3 (10), 1358. doi: 10.1002/aenm.v3.10
(12) Hirayama, M.; Ido, H.; Kim, K.; Cho,W.; Tamura, K.; Mizuki, J.; Kanno, R. Journal of the American Chemical Society 2010, 132 (43), 15268. doi: 10.1021/ja105389t
(13) Zheng, Y. M.; Taminato, S.; Suzuki, K.; Hirayama, M.; Kanno, R. Thin Solid Films 2012, 520 (15), 4889. doi: 10.1016/j.tsf.2012.03.029
(14) Yan, B. G.; Liu, J. C.; Song, B. H.; Xiao, P. F.; Lu, L. Scientific Reports 2013, 3, 3332. doi: 10.1038/srep03332
(15) Jacob, C.; Jian, J.; Zhu, Y. Y.; Su, Q.;Wang, H. Y. Journal of Materials Chemistry A 2014, 2 (7), 2283. doi: 10.1039/c3ta14413e
(16) Fischer, J.; Adelhelm, C.; Bergfeldt, T.; Chang, K.; Ziebert, C.; Leiste, H.; Stuber, M.; Ulrich, S.; Music, D.; Hallstedt, B.; Seifert, H. J. Thin Solid Films 2013, 528, 217. doi: 10.1016/j.tsf.2012.08.058
(17) (a) Julien, C. M.; Massot, M. Mat. Sci. Eng. B-Solid 2003, 100(1), 69. doi: 10.1016/S0921-5107(03)00077-1
(b) Yu, D. Y.W.; Yanagida, K. Journal of the Electrochemical Society 2011, 158 (9), A1015. (18) Park, S. H.; Sato, Y.; Kim, J. K.; Lee, Y. S. Mater. Chem. Phys. 2007, 102 (2-3), 225. doi: 10.1016/j.matchemphys.2006.12.008
(19) Wang, R. Investigation on High Capacity Cathode Materials for Li-Ion Batteries. Ph. D. Dissertation, The University of Chinese Academy of Sicences, Beijing, 2013. [汪锐. 锂离子电池高容量正极材料研究[D]. 北京: 中国科学院大学, 2013.] (20) Sun, J. P.; Tang, K.; Yu, X. Q.; Li, H.; Huang, X. J. Thin Solid Films 2009, 517 (8), 2618. doi: 10.1016/j.tsf.2008.10.054
