Density Functional Theory Study of Oxygen Reduction Reaction on Different Types of N-Doped Graphene
Jun WANG,Li LI*(),Zi-Dong WEI*()
Download: HTML     PDF(14687KB) Export: BibTeX | EndNote (RIS)

Abstract

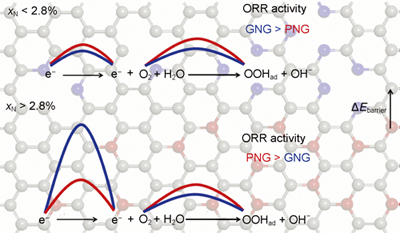

N-doped graphene has aroused much interest owing to its high activity and stability in oxygen reduction reaction (ORR) catalysis. However, the contribution of different types of N-doped graphene to ORR activity remains in dispute. Based on this issue, this paper conducts a comparative study of the ORR on graphitic N-doped graphene (GNG) and pyridinic N-doped grapheme (PNG). Band structure calculations show that the conductivity of GNG decreases as the nitrogen content increases; while that of PNG first increases to the highest at nitrogen content of 4.2% (atomic fraction), and then decreases. The conductivity of PNG is always higher than GNG when the doped nitrogen content is greater than 1.4%. Additionally, the free energy diagram of ORR shows that protonation of O2 is the potential-determining step among the whole ORR process, and the free energy change of this step on GNG is lower than on PNG, suggesting that GNG has higher ORR activity than PNG if their electron transport ability are the same. When the N content is lower than 2.8%, the conductivity difference between GNG and PNG is almost negligible, thus GNG with a higher capacity of O2 protonation exhibits better ORR activity than PNG. When the N content is greater than 2.8%, in this case, conductivity rather than free energy change will dominate, therefore the ORR on PNG will occur faster than on GNG because of its higher conductivity.



Key wordsOxygen reduction reaction      Nitrogen doped graphene      Pyridinic nitrogen      Graphitic nitrogen      Density functional theory
Received: 20 October 2015      Published: 09 December 2015
MSC2000:  O646
  O641
Fund:  the National Natural Science Foundation of China(21176271, 21376284)
Corresponding Authors: Li LI,Zi-Dong WEI     E-mail: liliracial@cqu.edu.cn;zdwei@cqu.edu.cn
Cite this article:

Jun WANG,Li LI,Zi-Dong WEI. Density Functional Theory Study of Oxygen Reduction Reaction on Different Types of N-Doped Graphene. Acta Phys. -Chim. Sin., 2016, 32(1): 321-328.

URL:

http://www.whxb.pku.edu.cn/10.3866/PKU.WHXB201512091     OR     http://www.whxb.pku.edu.cn/Y2016/V32/I1/321

Fig 1 Structures of GNG (a–d) and PNG (e–h) with different N doped contents
Fig 2 Band structure of the intrinsic graphene (a), and the GNG (b–e) and PNG (f–i) with different N doped contents
Fig 3 Bandgap vs N doped content for GNG and PNG
Fig 4 Bader charge distribution of GNG (a) and PNG (b)
Fig 5 Stable configurations of four oxygen-containing species O2, OOH, O, and OH adsorbed on GNG (a–d) and PNG (e–h)
$\Delta {{{E}}\!_{{{\rm{O}}_2}}}$/eV EOOH/eV EO/eV EOH/eV
GNG –0.359 –1.725 –6.076 –3.455
PNG –0.234 –0.476 –4.718 –2.406
Table 1 Adsorption energy of different oxygen-containing species on GNG and PNG
Elementary step GNG   PNG
∆ZPE/eV –∆TS/eV Ewater/eV G/eV ∆ZPE/eV –∆TS/eV Ewater/eV G/eV
O2 + * → O2 ads 0.001 0.64 –0.32 –0.139   –0.006 0.64 –0.32 –0.021
O2 ads + H2O + e → OOHads + OH- 0.227 2.05 –0.22 0.921   0.219 2.05 –0.22 2.037
OOHads + e → Oads + OH- 0.053 –0.465 0.07 –1.715   0.074 –0.465 0.07 –1.585
Oads + H2O + e → OHads + OH- 0.094 0.205 –0.28 0.463   0.166 0.205 –0.28 0.226
OHads + e → OH + * 0.105 –0.465 0.75 0.470   0.027 –0.465 0.75 –0.657
Table 2 Free energy change and relative correction of elementary steps involved in ORR on GNG and PNG
Fig 6 Free energy curves of ORR on GNG and PNG
