钴掺杂电子调控Ni-Mo-O多孔纳米棒选择性氧化5-羟甲基糠醛耦合制氢

doi:10.3866/PKU.WHXB202301032

摘要/Abstract

摘要：

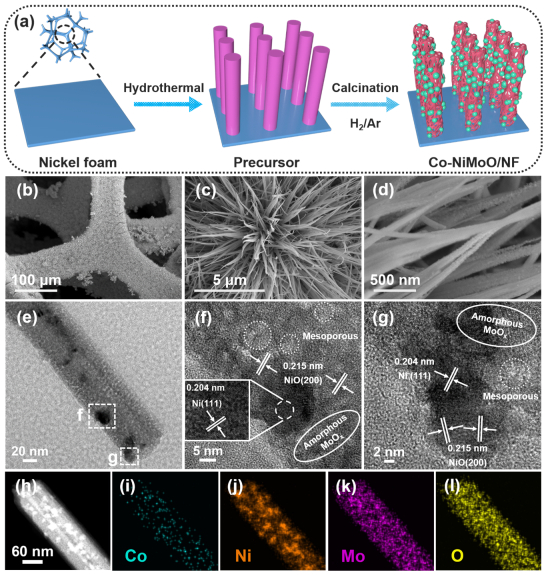

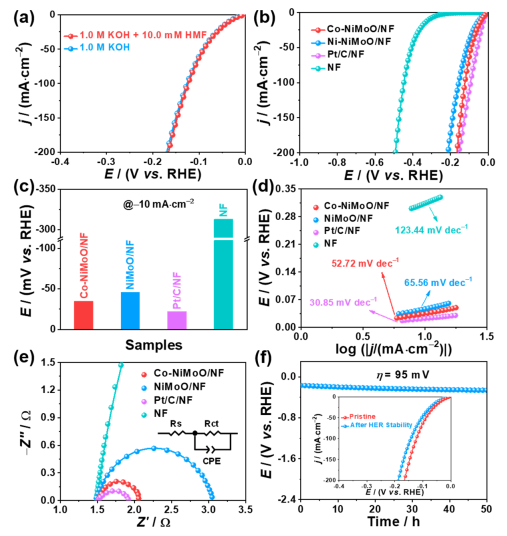

生物质作为一种可再生的有机碳源，可满足人类对能源和化学品的巨大需求。其中，5-羟甲基糠醛(HMF)是最具应用潜力的生物质衍生平台分子之一，其氧化产物2,5-呋喃二甲酸(FDCA)有望替代对苯二甲酸(PTA)用于合成生物基降解塑料。由于反应条件温和、速率快和选择性高，电催化氧化HMF已成为制备FDCA非常有前景的绿色方法。此外，阳极电氧化HMF反应的理论电位(HMFOR，0.3 V vs. RHE)远低于析氧反应(OER，1.23 V vs. RHE)，将其与阴极析氢反应(HER)耦合，有望在生产高附加值FDCA的同时降低产氢电位。然而，构建高效稳定的双功能催化剂用于HMFOR辅助制氢仍然具有挑战性。本文通过水热和高温煅烧的方法在泡沫镍上生长Co掺杂的Ni-Mo-O多孔纳米棒(Co-NiMoO/NF)用于HMFOR (E_10/100 = 1.31/1.37 V vs. RHE)和HER (E_−10/−100 = −35/−123 mV vs. RHE)，均表现出良好的活性和稳定性。对于HMFOR，Co-NiMoO/NF可以在1.36 V vs. RHE的恒电位下连续运行40个循环并保持较高的FDCA选择性(~99.2%)和法拉第效率(~95.7%)。对于HER，Co-NiMoO/NF可以在−200 mA∙cm⁻²的电流密度下稳定运行50 h。作为双功能电极用于全HMF分解时，仅需1.48 V可达到50 mA∙cm⁻²，较全水解降低了290 mV，证明了Co-NiMoO/NF电氧化HMF辅助制氢大幅降低能耗的可行性。特别是，双电极体系能在1.45 V恒电位的驱动下，高效稳定地工作10个循环，并保持较高的FDCA选择性(~97.6%)，表现出较好的应用潜力。Co-NiMoO/NF的良好催化性能可归因于Co的引入优化了Ni-Mo-O的电子结构和对反应物的吸附行为，从而提高了催化剂的本征活性和稳定性。同时，多孔纳米棒有助于底物分子和气泡在其表面的传输和脱附，进而提高了HMFOR/HER的反应动力学。这项工作有望为HMFOR和HER的高效稳定双功能催化剂的设计提供有益见解。

关键词: 5-羟甲基糠醛氧化反应, 析氢反应, 催化剂, 多孔结构, 电子结构

Abstract:

Fossil fuel depletion and environmental deterioration have created an urgent need to develop renewable and clean energy. Biomass, a sustainable organic carbon source, can meet the huge demand for energy and chemicals. Among them, 5-hydroxymethylfurfural (HMF) is an important biomass-derived platform molecule, which can be converted into various high-value chemicals. One of its oxidation products, 2,5-furandicarboxylic acid (FDCA), is expected to replace terephthalic acid as a raw material for the synthesis of bio-based degradable plastics. The electrooxidation of HMF emerges as a promising green route for preparing FDCA due to its advantages of mild conditions, fast reaction rate, and high selectivity. The theoretical potential of the HMF electrooxidation reaction (HMFOR, 0.3 V vs. reversible hydrogen electrode, RHE) is also lower than that of the oxygen evolution reaction (OER, 1.23 V vs. RHE). Coupling anodic HMFOR with cathodic hydrogen evolution reaction (HER) is expected to simultaneously produce valuable FDCA and reduce the cell voltage of hydrogen (H₂) evolution. However, the construction of efficient and stable bifunctional catalysts for HMFOR-assisted H₂ production is still challenging. In this study, Co-doped Ni-Mo-O porous nanorods grown on a nickel foam (Co-NiMoO/NF) is prepared by simple hydrothermal and calcination methods for both HMFOR and HER. Results of electrocatalytic studies indicate that Co-NiMoO/NF exhibits enhanced performance for HMFOR (E_10/100 = 1.31/1.37 V vs. RHE) and HER (E_−10/−100 = −35/−123 mV vs. RHE) and shows durable HMFOR/HER stability. In particular, Co-NiMoO/NF maintains high FDCA selectivity (~99.2%) and Faradaic efficiency (~95.7%) for 40 successive cycles at 1.36 V vs. RHE for HMFOR. Conversely, Co-NiMoO/NF maintains stable operation at −200 mA∙cm⁻² for 50 h with no significant activity attenuation for HER. When coupled as a bifunctional electrode for overall HMF splitting, Co-NiMoO/NF reaches an electric flux of 50 mA∙cm⁻² at 1.48 V, which is 290 mV lower than that of the overall water splitting. This confirms that the HMFOR-assisted H₂ production over Co-NiMoO/NF significantly reduces the energy consumption. Moreover, the two-electrode system maintains good FDCA selectivity (97.6%) for 10 cycles at 1.45 V, implying good stability of HMFOR-assisted H₂ evolution. The remarkable catalytic performance of Co-NiMoO/NF could be due to the introduction of Co, which optimizes the electronic structure of Ni-Mo-O and adsorption behaviors of the reactants, thereby enhancing the intrinsic activity and stability of the catalyst. Meanwhile, the porous nanorod structure enhanced the mass transport of substrates and desorption of bubbles, thereby elevating the HMFOR/HER kinetics. This study provides useful insights for designing efficient and durable bifunctional catalysts for HMFOR and HER.

Key words: 5-Hydroxymethylfurfural oxidation reaction, Hydrogen evolution reaction, Catalyst, Porous structure, Electronic structure

郑书逸, 吴佳, 王可, 胡梦晨, 文欢, 尹诗斌. 钴掺杂电子调控Ni-Mo-O多孔纳米棒选择性氧化5-羟甲基糠醛耦合制氢[J]. 物理化学学报, 2023, 39(12), 2301032. doi: 10.3866/PKU.WHXB202301032

Shuyi Zheng, Jia Wu, Ke Wang, Mengchen Hu, Huan Wen, Shibin Yin. Electronic Modulation of Ni-Mo-O Porous Nanorods by Co Doping for Selective Oxidation of 5-Hydroxymethylfurfural Coupled with Hydrogen Evolution[J]. Acta Phys. -Chim. Sin. 2023, 39(12), 2301032. doi: 10.3866/PKU.WHXB202301032

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202301032

https://www.whxb.pku.edu.cn/CN/Y2023/V39/I12/2301032

图/表 5

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

参考文献 54

1	Tang C. ; Zheng Y. ; Jaroniec M. ; Qiao S. Z. Angew. Chem. Int. Ed. 2021, 60, 19572. doi: 10.1002/anie.202101522
2	Prabhu P. ; Wan Y. ; Lee J. M. Matter 2020, 3, 1162. doi: 10.1016/j.matt.2020.09.002
3	Gérardy R. ; Debecker D. P. ; Estager J. ; Luis P. ; Monbaliu J. C. M. Chem. Rev. 2020, 120, 7219. doi: 10.1021/acs.chemrev.9b00846
4	Zhou H. ; Jing Y. X. ; Wang Y. Q. Acta Phys. -Chim. Sin. 2022, 38, 2203016.
	周浩; 景亚轩; 王艳芹; 物理化学学报, 2022, 38, 2203016. doi: 10.3866/PKU.WHXB202203016
5	Muhammad S. ; Zhao X. B. ; Liu D. H. Green Chem. 2018, 20, 5427. doi: 10.1039/c8gc02680g
6	Xu S. ; Zhou P. ; Zhang Z. H. ; Yang C. J. ; Zhang B. G. ; Deng K. J. ; Bottle S. ; Zhu H. Y. J. Am. Chem. Soc. 2017, 139, 14775. doi: 10.1021/jacs.7b08861
7	Xu C. ; Paone E. ; Rodríguez-Padrón D. ; Luque R. ; Mauriello F. Chem. Soc. Rev. 2020, 49, 4273. doi: 10.1039/d0cs00041h
8	Giannakoudakis D. A. ; Colmenares J. C. ; Tsiplakides D. ; Triantafyllidis K. S. ACS Sustain. Chem. Eng. 2021, 9, 1970. doi: 10.1021/acssuschemeng.0c07480
9	Yang Y. ; He B. W. ; Ma H. L. ; Yang S. ; Ren Z. H. ; Qin T. ; Lu F. G. ; Ren L. W. ; Zhang Y. X. ; Wang T. F. ; et al Acta Phys. -Chim. Sin. 2022, 38, 2201050.
	杨艳; 何博文; 马华隆; 杨森; 任州宏; 秦天; 卢发贵; 任力闻; 张熠霄; 王天富; 等. 物理化学学报, 2022, 38, 2201050. doi: 10.3866/PKU.WHXB202201050
10	Pasini T. ; Piccinini M. ; Blosi M. ; Bonelli R. ; Albonetti S. ; Dimitratos N. ; Lopez-Sanchez J. A. ; Sankar M. ; He Q. ; Kiely C. J. ; et al Green Chem. 2011, 13, 2091. doi: 10.1039/c1gc15355b
11	Rass H. A. ; Essayem N. ; Besson M. Green Chem. 2013, 15, 2240. doi: 10.1039/c3gc40727f
12	Zheng L. F. ; Zhao J. Q. ; Du Z. X. ; Zong B. N. ; Liu H. C. Sci. China Chem. 2017, 60, 950. doi: 10.1007/s11426-016-0489-3
13	Park M. ; Gu M. ; Kim B. S. ACS Nano 2020, 14, 6812. doi: 10.1021/acsnano.0c00581
14	Chadderdon X. H. ; Chadderdon D. J. ; Pfennig T. ; Shanks B. H. ; Li W. Z. Green Chem. 2019, 21, 6210. doi: 10.1039/c9gc02264c
15	Cao G. X. ; Chen Z. J. ; Yin H. ; Gan L. Y. ; Zang M. J. ; Xu N. ; Wang P. J. Mater. Chem. A 2019, 7, 10338. doi: 10.1039/c9ta00899c
16	Chen Y. Y. ; Zhang Y. ; Zhang X. ; Tang T. ; Luo H. ; Niu S. ; Dai Z. H. ; Wan L. J. ; Hu J. S. Adv. Mater. 2017, 29, 1703311. doi: 10.1002/adma.201703311
17	An Y. M. ; Long X. ; Ma M. ; Hu J. ; Lin H. ; Zhou D. ; Xing Z. ; Huang B. L. ; Yang S. H. Adv. Energy Mater. 2019, 9, 1901454. doi: 10.1002/aenm.201901454
18	Gouda L. ; Sévery L. ; Moehl T. ; Mas-Marzá E. ; Adams P. ; Fabregat-Santiago F. ; Tilley S. D. Green Chem. 2021, 23, 8061. doi: 10.1039/d1gc02031e
19	Taitt B. J. ; Nam D. H. ; Choi K. S. ACS Catal. 2018, 9, 660. doi: 10.1021/acscatal.8b04003
20	Gao F. ; He J. Q. ; Wang H. W. ; Lin J. H. ; Chen R. X. ; Yi K. ; Huang F. ; Lin Z. ; Wang M. Y. Nano Res. Energy 2022, 1, 9120029. doi: 10.26599/nre.2022.9120029
21	Wang J. ; Liao T. ; Wei Z. Z. ; Sun J. T. ; Guo J. J. ; Sun Z. Q. Small Methods 2021, 5, 2000988. doi: 10.1002/smtd.202000988
22	Zhang A. ; Liang Y. X. ; Zhang H. ; Geng Z. G. ; Zeng J. Chem. Soc. Rev. 2021, 50, 9817. doi: 10.1039/d1cs00330e
23	Wang H. ; Chen J. M. ; Lin Y. P. ; Wang X. H. ; Li J. M. ; Li Y. ; Gao L. J. ; Zhang L. B. ; Chao D. L. ; Xiao X. ; et al Adv. Mater. 2021, 33, 2008422. doi: 10.1002/adma.202008422
24	Chen C. ; Zhang X. ; Zhou Z. Y. ; Zhang X. S. ; Sun S. G. Acta Phys. -Chim. Sin. 2017, 33, 1875.
	陈驰; 张雪; 周志有; 张新胜; 孙世刚; 物理化学学报, 2017, 33, 1875. doi: 10.3866/PKU.WHXB201705088
25	Li J. X. ; Feng L. G. J. Electrochem. 2022, 28, 2214001.
	李家欣; 冯立纲; 电化学, 2022, 28, 2214001. doi: 10.13208/j.electrochem.2214001
26	Wu Z. C. ; Wang X. ; Huang J. S. ; Gao F. J. Mater. Chem. A 2018, 6, 167. doi: 10.1039/c7ta07956g
27	You B. ; Liu X. ; Liu X. ; Sun Y. J. ACS Catal. 2017, 7, 4564. doi: 10.1021/acscatal.7b00876
28	Ou J. Z. ; Campbell J. L. ; Yao D. ; Wlodarski W. ; Kalantar-Zadeh K. J. Phys. Chem. C 2011, 115, 10757. doi: 10.1021/jp202123a
29	Wu Y. Y. ; Li G. D. ; Liu Y. P. ; Yang L. ; Lian X. R. ; Asefa T. ; Zou X. X. Adv. Funct. Mater. 2016, 26, 4839. doi: 10.1002/adfm.201601315
30	Wu K. ; Sun Y. H. ; Liu J. ; Xiong J. X. ; Wu J. L. ; Zhang J. ; Fu M. L. ; Chen L. M. ; Huang H. M. ; Ye D. Q. J. Hazard. Mater. 2021, 405, 124156. doi: 10.1016/j.jhazmat.2020.124156
31	Zhang X. ; Yi H. ; Jin M. T. ; Lian Q. ; Huang Y. ; Ai Z. ; Huang R. Q. ; Zuo Z. T. ; Tang C. M. ; Amini A. ; et al Small 2022, 18, 2203710. doi: 10.1002/smll.202203710
32	Shen B. X. ; Zhu S. W. ; Zhang X. ; Chi G. L. ; Patel D. ; Si M. ; Wu C. F. Fuel 2018, 224, 241. doi: 10.1016/j.fuel.2018.03.080
33	Wang H. ; Wang H. J. ; Huang J. S. ; Zhou X. L. ; Wu Q. X. ; Luo Z. K. ; Wang F. ACS Appl. Mater. Interfaces 2019, 11, 44556. doi: 10.1021/acsami.9b13329
34	Guo F. J. ; Zhang M. Y. ; Yi S. C. ; Li X. X. ; Xin R. ; Yang M. ; Liu B. ; Chen H. B. ; Li H. M. ; Liu Y. J. Nano Res. Energy 2022, 1, 9120027. doi: 10.26599/nre.2022.9120027
35	Yang C. M. ; Wang C. T. ; Zhou L. H. ; Duan W. ; Song Y. Y. ; Zhang F. C. ; Zhen Y. Z. ; Zhang J. J. ; Bao W. W. ; Lu Y. X. ; et al Chem. Eng. J. 2021, 422, 130125. doi: 10.1016/j.cej.2021.130125
36	Lu Y. X. ; Liu T. Y. ; Dong C. L. ; Huang Y. C. ; Li Y. F. ; Chen J. ; Zou Y. Q. ; Wang S. Y. Adv. Mater. 2021, 33, 2007056. doi: 10.1002/adma.202007056
37	Sun Y. ; Wang J. ; Qi Y. F. ; Li W. J. ; Wang C. Adv. Sci. 2022, 9, 2200957. doi: 10.1002/advs.202200957
38	Wang H. L. ; Li C. ; An J. T. ; Zhuang Y. ; Tao S. Y. J. Mater. Chem. A 2021, 9, 18421. doi: 10.1039/d1ta05425b
39	Zhou Z. Y. ; Xie Y. N. ; Sun L. Z. ; Wang Z. M. ; Wang W. K. ; Jiang L. Z. ; Tao X. ; Li L. N. ; Li X. H. ; Zhao G. H. Appl. Catal. B 2022, 305, 121072. doi: 10.1016/j.apcatb.2022.121072
40	Luo R. P. ; Li Y. Y. ; Xing L. X. ; Wang N. ; Zhong R. Y. ; Qian Z. Y. ; Du C. Y. ; Yin G. P. ; Wang Y. C. ; Du L. Appl. Catal. B 2022, 311, 121357. doi: 10.1016/j.apcatb.2022.121357
41	Gao L. F. ; Bao Y. ; Gan S. Y. ; Sun Z. H. ; Song Z. Q. ; Han D. X. ; Li F. H. ; Niu L. ChemSusChem 2018, 11, 2547. doi: 10.1002/cssc.201800695
42	Gao L. F. ; Liu Z. B. ; Ma J. L. ; Zhong L. J. ; Song Z. Q. ; Xu J. A. ; Gan S. Y. ; Han D. X. ; Niu L. Appl. Catal. B 2020, 261, 118235. doi: 10.1016/j.apcatb.2019.118235
43	Zhang P. L. ; Sheng X. ; Chen X. Y. ; Fang Z. Y. ; Jiang J. ; Wang M. ; Li F. S. ; Fan L. Z. ; Ren Y. S. ; Zhang B. B. ; et al Angew. Chem. Int. Ed. 2019, 58, 9155. doi: 10.1002/anie.201903936
44	Liu Q. Q. ; Huang J. F. ; Cao L. Y. ; Kajiyoshi K. ; Li K. ; Feng Y. Q. ; Fu C. L. ; Kou L. J. ; Feng L. L. ACS Sustain. Chem. Eng. 2020, 8, 6222. doi: 10.1021/acssuschemeng.9b06959
45	Qiu Z. ; Ma Y. ; Edvinsson T. Nano Energy 2019, 66, 104118. doi: 10.1016/j.nanoen.2019.104118
46	Yu T. Q. ; Xu Q. L. ; Luo L. ; Liu C. R. ; Yin S. B. Chem. Eng. J. 2022, 430, 133117. doi: 10.1016/j.cej.2021.133117
47	Wu T. ; Xu Z. A. ; Wang X. L. ; Luo M. J. ; Xia Y. ; Zhang X. C. ; Li J. T. ; Liu J. ; Wang J. C. ; Wang H. L. ; et al Appl. Catal. B 2023, 323, 122126. doi: 10.1016/j.apcatb.2022.122126
48	Tong X. ; Li Y. ; Pang N. ; Qu Y. H. ; Yan C. H. ; Xiong D. Y. ; Xu S. H. ; Wang L. W. ; Chu P. K. Chem. Eng. J. 2021, 425, 130455. doi: 10.1016/j.cej.2021.130455
49	Ding M. Y. ; Jiang W. J. ; Yu T. Q. ; Zhuo X. Y. ; Qin X. J. ; Yin S. B. J. Electrochem. 2022, 28, 2214012.
	丁明宇; 蒋文杰; 余天琦; 卓小燕; 覃晓静; 尹诗斌; 电化学, 2022, 28, 2214012. doi: 10.13208/j.electrochem.2208121
50	Laursen A. B. ; Kegnæs S. ; Dahl S. ; Chorkendorff I. Energy Environ. Sci. 2012, 5, 5577. doi: 10.1039/c2ee02618j
51	Li M. T. ; Zheng X. Q. ; Li L. ; Wei Z. D. Acta Phys. -Chim. Sin. 2021, 37, 2007054.
	李孟婷; 郑星群; 李莉; 魏子栋; 物理化学学报, 2021, 37, 2007054. doi: 10.3866/PKU.WHXB202007054
52	Zhang L. Y. ; Zheng Y. J. ; Wang J. C. ; Geng Y. ; Zhang B. ; He J. J. ; Xue J. M. ; Frauenheim T. ; Li M. Small 2021, 17, 2006730. doi: 10.1002/smll.202006730
53	Yang Y. Q. ; Zhang K. ; Lin H. L. ; Li X. ; Chan H. C. ; Yang L. C. ; Gao Q. S. ACS Catal. 2017, 7, 2357. doi: 10.1021/acscatal.6b03192
54	Wu X. L. ; Han S. ; He D. H. ; Yu C. L. ; Lei C. J. ; Liu W. ; Zheng G. K. ; Zhang X. W. ; Lei L. C. ACS Sustain. Chem. Eng. 2018, 6, 8672. doi: 10.1021/acssuschemeng.8b00968
