氯取代近红外双缆共轭高分子材料与低能量损失单组分有机太阳能电池

doi:10.3866/PKU.WHXB202307037

物理化学学报 >> 2024, Vol. 40 >> Issue (8): 2307037.doi: 10.3866/PKU.WHXB202307037

氯取代近红外双缆共轭高分子材料与低能量损失单组分有机太阳能电池

李若男¹, 梁世洁², 许韵华¹^,*(), 张翠芬⁴, 唐正⁴, 刘柏侨³^,*(), 李韦伟²^,*()

¹ 北京交通大学物理科学与工程学院, 北京 100044
² 北京化工大学有机无机复合材料国家重点实验室, 北京 100029
³ 之江实验室, 智能芯片与器件研究中心, 杭州 311121
⁴ 东华大学先进低维材料中心, 上海 201620

收稿日期:2023-07-20 修回日期:2023-09-17 录用日期:2023-09-20 发布日期:2023-09-25
通讯作者: Email: yhxu@bjtu.edu.cn (许韵华)liubaiqiao@bjtu.edu.cn (刘柏侨)liweiwei@iccas.ac.cn (李韦伟)
基金资助:
国家自然科学基金(52073016); 国家自然科学基金(22105180)

Chlorine-Substituted Double-Cable Conjugated Polymers with Near-Infrared Absorption for Low Energy Loss Single-Component Organic Solar Cells

Ruonan Li¹, Shijie Liang², Yunhua Xu¹^,*(), Cuifen Zhang⁴, Zheng Tang⁴, Baiqiao Liu³^,*(), Weiwei Li²^,*()

¹ School of Physical Science and Engineering, Beijing Jiaotong University, Beijing 100044, China
² State Key Laboratory of Organic-Inorganic Composites, Beijing University of Chemical Technology, Beijing 100029, China
³ Research Center for Intelligent Chips and Devices, Zhejiang Lab, Hangzhou 311121, China
⁴ State Center for Advanced Low-dimension Materials, College of Materials Science and Engineering, Donghua University, Shanghai 201620, China

Received:2023-07-20 Revised:2023-09-17 Accepted:2023-09-20 Published:2023-09-25
Contact: Email: yhxu@bjtu.edu.cn (Yunhua Xu)liubaiqiao@bjtu.edu.cn (Baiqiao Liu)liweiwei@iccas.ac.cn (Weiwei Li)
Supported by:
the National Natural Science Foundation of China(52073016); the National Natural Science Foundation of China(22105180)

1. WHXB202307037-SI-11p.pdf(2480KB)

摘要/Abstract

摘要：

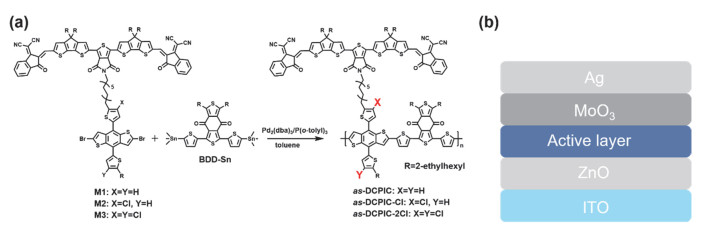

近红外型双缆共轭高分子材料的光电转换效率(PCE)已经超过了10%，然而较大的能量损失限制了其性能的进一步提升。本工作中，我们合成了两个氯取代的近红外双缆共轭聚合物材料，分别命名为as-DCPIC-Cl和as-DCPIC-2Cl。氯原子的引入使得单组分有机太阳能电池的能量损失低至0.57 eV。其中，基于as-DCPIC-Cl的器件实现了10.14%的PCE，为基于非稠环电子受体的双缆共轭聚合物的最高性能。研究表明，氯原子在实现高性能单组分有机太阳能电池方面具有重要的作用。

关键词: 双缆共轭高分子, 单组分有机太阳能电池, 近红外, 能量损失

Abstract:

Single-component organic solar cells (SCOSCs) have emerged as promising candidates for renewable energy applications due to their simplified film fabrication process and well-controlled morphology. High-performance SCOSCs typically employ active layer materials comprising block copolymers and double-cable conjugated polymers. Among these, double-cable conjugated polymers have attracted a lot of interest in SCOSCs due to their precisely defined structure and easily controllable microphase morphology. In the early stages of double-cable conjugated polymers, most of them contain the polythiophene backbone and fullerene side units, severely limiting the development of SCOSCs. Fortunately, the emergence of novel materials has progressively led to the development of new types of double-cable conjugated polymers. Double-cable conjugated polymers based on acylimide compound have exhibited device performances exceeding 8%. Nevertheless, acylimide-type electron acceptors exhibit a limited photo-response range, resulting in lower photocurrents in SCOSCs. The utilization of A-D-A-type electron acceptors (where D represents electron-donating groups and A represents electron-withdrawing groups) have effectively broadened the absorption spectra of materials due to induced intramolecular charge transfer. Double-cable polymers using A-D-A-type electron acceptors as the side units have achieved efficiencies exceeding 10%. However, significant voltage losses have hampered further improvements in their performance. Chlorine atoms play a crucial role in organic solar cells due to enhanced crystallinity in both chlorine-substituted donor polymers and acceptor molecules, and they can also adjust material energy levels and optimize film morphology. Nevertheless, their role in SCOSCs has been scarcely explored. This limitation arises from the increased complexity of morphology control in double-cable conjugated polymers, where the donor and acceptor segments are covalently linked in one molecule making their crystalline behavior more complicated on account of their mutual restraint. In this study, we have designed and synthesized chlorine-substituted double-cable conjugated polymers, denoted as as-DCPIC-Cl and as-DCPIC-2Cl. The results indicate that the introduction of chlorine atoms into the conjugated backbone reduces energy losses in the devices, resulting in an enhancement of open-circuit voltage (V_OC). However, the introduction of chlorine atoms also leads to unbalanced charge transport and increased trap-assisted charge recombination, causing a decrease in the fill factor (FF) and short-circuit current density (J_SC). Meanwhile, Grazing-incidence wide-angle X-ray scattering (GIWAXS) tests demonstrate that the introduction of chlorine atoms does not affect the aggregation/crystallization behavior of acceptor units. SCOSCs based on as-DCPIC-Cl achieved a power conversion efficiency (PCE) of 10.14%, which is among the best PCEs reported for SCOSCs based on non-fused electron acceptors.

Key words: Double-cable conjugated polymer, Single-component organic solar cell, Near-infrared, Energy loss

李若男, 梁世洁, 许韵华, 张翠芬, 唐正, 刘柏侨, 李韦伟. 氯取代近红外双缆共轭高分子材料与低能量损失单组分有机太阳能电池[J]. 物理化学学报, 2024, 40(8), 2307037. doi: 10.3866/PKU.WHXB202307037

Ruonan Li, Shijie Liang, Yunhua Xu, Cuifen Zhang, Zheng Tang, Baiqiao Liu, Weiwei Li. Chlorine-Substituted Double-Cable Conjugated Polymers with Near-Infrared Absorption for Low Energy Loss Single-Component Organic Solar Cells[J]. Acta Phys. -Chim. Sin. 2024, 40(8), 2307037. doi: 10.3866/PKU.WHXB202307037

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202307037

https://www.whxb.pku.edu.cn/CN/Y2024/V40/I8/2307037

图/表 8

图1

图2

表1

图3

表2

表3

图4

表4

参考文献 57

1	Li G. ; Zhu R. ; Yang Y. Nat. Photon. 2012, 6, 153. doi: 10.1038/nphoton.2012.11
2	Lin Y. ; Li Y. ; Zhan X. Chem. Soc. Rev. 2012, 41, 4245. doi: 10.1039/C2CS15313K
3	Roncali J. ; Grosu I. Adv. Sci. 2019, 6, 1801026. doi: 10.1002/advs.201801026
4	He Y. ; Wang B. ; Lüer L. ; Feng G. ; Osvet A. ; Heumüller T. ; Liu C. ; Li W. ; Guldi D. M. ; Li N. ; et al Adv. Energy Mater. 2021, 12, 2103406. doi: 10.1002/aenm.202103406
5	Xia D. ; Li C. ; Li W. Chem. Rec. 2019, 19, 962. doi: 10.1002/tcr.201800131
6	Roncali J. Chem. Soc. Rev. 2005, 34, 483. doi: 10.1039/b415941c
7	He Y. ; Li N. ; Heumüller T. ; Wortmann J. ; Hanisch B. ; Aubele A. ; Lucas S. ; Feng G. ; Jiang X. ; Li W. ; et al Joule 2022, 6, 1160. doi: 10.1016/j.joule.2022.05.008
8	He Y. ; Li N. ; Brabec C. J. Org. Mater. 2021, 3, 228. doi: 10.1055/s-0041-1727234
9	He Y. ; Heumüller T. ; Lai W. ; Feng G. ; Classen A. ; Du X. ; Liu C. ; Li W. ; Li N. ; Brabec C. J. Adv. Energy Mater. 2019, 9, 1900409. doi: 10.1002/aenm.201900409
10	Liu B. ; Xu Y. ; Xia D. ; Xiao C. ; Yang Z. ; Li W. Acta Phys. -Chim. Sin. 2021, 37, 2009056. doi: 10.3866/PKU.WHXB202009056
	刘柏侨; 许韵华; 夏冬冬; 肖承义; 杨兆凡; 李韦伟. 物理化学学报, 2021, 37, 2009056. doi: 10.3866/PKU.WHXB202009056
11	Wu Y. ; Fan Q. ; Fan B. ; Qi F. ; Wu Z. ; Lin F. R. ; Li Y. ; Lee C.-S. ; Woo H. Y. ; Yip H.-L. ; et al ACS Energy Lett. 2022, 7, 2196. doi: 10.1021/acsenergylett.2c01082
12	Li S. ; Yuan X. ; Zhang Q. ; Li B. ; Li Y. ; Sun J. ; Feng Y. ; Zhang X. ; Wu Z. ; Wei H. ; et al Adv. Mater. 2021, 33, e2101295. doi: 10.1002/adma.202101295
13	Hu H. ; Mu X. ; Li B. ; Gui R. ; Shi R. ; Chen T. ; Liu J. ; Yuan J. ; Ma J. ; Gao K. ; et al Adv. Sci. 2023, 10, 2205040. doi: 10.1002/advs.202205040
14	Wu Y. ; Guo J. ; Wang W. ; Chen Z. ; Chen Z. ; Sun R. ; Wu Q. ; Wang T. ; Hao X. ; Zhu H. ; et al Joule 2021, 5, 1800. doi: 10.1016/j.joule.2021.05.002
15	Li S. ; Li B. ; Yang X. ; Wei H. ; Wu Z. ; Li Y. ; Hu Y. ; Woo H. Y. ; Yuan J. J. Mater. Chem. A 2022, 10, 12997. doi: 10.1039/d2ta02307e
16	Kwon N. Y. ; Park S. H. ; Cho S. ; Lee D. W. ; Harit A. K. ; Woo H. Y. ; Cho M. J. ; Choi D. H. Polym. Chem. 2022, 13, 3335. doi: 10.1039/d2py00413e
17	Guo J. ; Wu Y. ; Wang W. ; Wang T. ; Min J. Sol. RRL 2022, 6, 2101024. doi: 10.1002/solr.202101024
18	Liang S. ; Jiang X. ; Xiao C. ; Li C. ; Chen Q. ; Li W. Acc. Chem. Res. 2021, 54, 2227. doi: 10.1021/acs.accounts.1c00070
19	Cravino A. ; Zerza G. ; Maggini M. ; Bucella S. ; Svensson M. ; Andersson M. R. ; Neugebauer H. ; Sariciftci N. S. Chem. Commun. 2000 (24), 2487. doi: 10.1039/B008072L
20	Cravino A. ; Zerza G. ; Neugebauer H. ; Maggini M. ; Bucella S. ; Menna E. ; Svensson M. ; Andersson M. R. ; Brabec C. J. ; Sariciftci N. S. J. Phys. Chem. B 2002, 106, 70. doi: 10.1021/jp013077y
21	Jousselme B. ; Blanchard P. ; Levillain E. ; de Bettignies R. ; Roncali J. Macromolecules 2003, 36, 3020. doi: 10.1021/ma034047r
22	Ramos A. M. ; Rispens M. T. ; van Duren J. K. J. ; Hummelen J. C. ; Janssen R. A. J. J. Am. Chem. Soc. 2001, 123, 6714. doi: 10.1021/ja015614y
23	Zhang F. ; Svensson M. ; Andersson M. R. ; Maggini M. ; Bucella S. ; Menna E. ; Inganäs O. Adv. Mater. 2001, 13, 1871. doi: 10.1002/1521-4095(200112)13:24<1871::AID-ADMA1871>3.0.CO;2-3
24	Pierini F. ; Lanzi M. ; Nakielski P. ; Pawłowska S. ; Urbanek O. ; Zembrzycki K. ; Kowalewski T. A. Macromolecules 2017, 50, 4972. doi: 10.1021/acs.macromol.7b00857
25	Miyanishi S. ; Zhang Y. ; Hashimoto K. ; Tajima K. Macromolecules 2012, 45, 6424. doi: 10.1021/ma300376m
26	Miyanishi S. ; Zhang Y. ; Tajima K. ; Hashimoto K. Chem. Commun. 2010, 46, 6723. doi: 10.1039/c0cc01819h
27	Liu B. ; Xu Y.. ; Liu F. ; Xie C. ; Liang S. ; Chen Q. ; Li W. Chin. J. Polym. Sci. 2022, 40, 898. doi: 10.1007/s10118-022-2732-2
28	Wang R. ; Xia D. ; Jiang X. ; Zhao C. ; Zhou S. ; Fang H. ; Wang J. ; Tang Z. ; Xiao C. ; Li W. ACS Appl. Mater. Interfaces 2022, 14, 47952. doi: 10.1021/acsami.2c10466
29	Li C. ; Wu X. ; Sui X. ; Wu H. ; Wang C. ; Feng G. ; Wu Y. ; Liu F. ; Liu X. ; Tang Z. ; et al Angew. Chem. Int. Ed. 2019, 58, 15532. doi: 10.1002/anie.201910489
30	Lai W. ; Li C. ; Zhang J. ; Yang F. ; Colberts F. J. M. ; Guo B. ; Wang Q. M. ; Li M. ; Zhang A. ; Janssen R. A. J. ; et al Chem. Mater. 2017, 29, 7073. doi: 10.1021/acs.chemmater.7b02534
31	Wang D. ; Yang Z. ; Liu F. ; Xiao C. ; Wu Y. ; Li W. Chin. Chem. Lett. 2022, 33, 466. doi: 10.1016/j.cclet.2021.06.042
32	Fang H. ; Xia D. ; Zhao C. ; Zhou S. ; Wang R. ; Zang Y. ; Xiao C. ; Li W. Dyes Pigm. 2022, 203, 110355. doi: 10.1016/j.dyepig.2022.110355
33	Jiang X. ; Xue W. ; Lai W. ; Xia D. ; Chen Q. ; Ma W. ; Li W. J. Mater. Chem. C 2021, 9, 16240. doi: 10.1039/d1tc01195b
34	Yu P. ; Feng G. ; Li J. ; Li C. ; Xu Y. ; Xiao C. ; Li W. J. Mater. Chem. C 2020, 8, 2790. doi: 10.1039/c9tc06667e
35	Liang S. ; Wang J. ; Ouyang Y. ; Tan W. L. ; McNeill C. R. ; Chen Q. ; Tang Z. ; Li W. Macromolecules 2022, 55, 2517. doi: 10.1021/acs.macromol.1c02593
36	Xie C. ; Xiao C. ; Jiang X. ; Liang S. ; Liu C. ; Zhang Z. ; Chen Q. ; Li W. Macromolecules 2021, 55, 322. doi: 10.1021/acs.macromol.1c02111
37	Yang F. ; Li J. ; Li C. ; Li W. Macromolecules 2019, 52, 3689. doi: 10.1021/acs.macromol.9b00495
38	Liang S. ; Xu Y. ; Li C. ; Li J. ; Wang D. ; Li W. Polym. Chem. 2019, 10, 4584. doi: 10.1039/c9py00765b
39	Yang Z. ; Liang S. ; Liu B. ; Wang J. ; Yang F. ; Chen Q. ; Xiao C. ; Tang Z. ; Li W. Polym. Chem. 2021, 12, 6865. doi: 10.1039/D1PY01188J
40	Yang F. ; Wang X. ; Feng G. ; Ma J. ; Li C. ; Li J. ; Ma W. ; Li W. Sci. China Chem. 2018, 61, 824. doi: 10.1007/s11426-018-9241-0
41	Xia D. ; Zhou S. ; Tan W. L. ; Karuthedath S. ; Xiao C. ; Zhao C. ; Laquai F. ; McNeill C. R. ; Li W. Aggregate 2023, 4, e279. doi: 10.1002/agt2.279
42	Feng G. ; Tan W. ; Karuthedath S. ; Li C. ; Jiao X. ; Liu A. C. Y. ; Venugopal H. ; Tang Z. ; Ye L. ; Laquai F. ; et al Angew. Chem. Int. Ed. 2021, 60, 25499. doi: 10.1002/anie.202111192
43	Jiang X. ; Yang J. ; Karuthedath S. ; Li J. ; Lai W. ; Li C. ; Xiao C. ; Ye L. ; Ma Z. ; Tang Z. ; et al Angew. Chem. Int. Ed. 2020, 59, 21683. doi: 10.1002/anie.202009272
44	Feng G. ; Li J. ; Colberts F. J. M. ; Li M. ; Zhang J. ; Yang F. ; Jin Y. ; Zhang F. ; Janssen R. A. J. ; Li C. ; et al J. Am. Chem. Soc. 2017, 139, 18647. doi: 10.1021/jacs.7b10499
45	Feng G. ; Li J. ; He Y. ; Zheng W. ; Wang J. ; Li C. ; Tang Z. ; Osvet A. ; Li N. ; Brabec C. J. ; et al Joule 2019, 3, 1765. doi: 10.1016/j.joule.2019.05.008
46	Hu Z. ; Xiao C. ; Tan W. L. ; Liu B. ; Liang S. ; Jiang X. ; McNeil C. R. ; Li W. Macromolecules 2022, 55, 5188. doi: 10.1021/acs.macromol.2c00444
47	Lin Y. ; Wang J. ; Zhang Z. G. ; Bai H. ; Li Y. ; Zhu D. ; Zhan X. Adv. Mater. 2015, 27, 1170. doi: 10.1002/adma.201404317
48	Yuan J. ; Zhang Y. ; Zhou L. ; Zhang G. ; Yip H.-L. ; Lau T.-K. ; Lu X. ; Zhu C. ; Peng H. ; Johnson P. A. ; et al Joule 2019, 3, 1140. doi: 10.1016/j.joule.2019.01.004
49	Liang S. ; Liu B. ; Karuthedath S. ; Wang J. ; He Y. ; Tan W. L. ; Li H. ; Xu Y. ; Li N. ; Hou J. ; et al Angew. Chem. Int. Ed. 2022, 61, e202209316. doi: 10.1002/anie.202209316
50	Liang S. ; Xiao C. ; Xie C. ; Liu B. ; Fang H. ; Li W. Adv. Mater. 2023, 35, 2300629. doi: 10.1002/adma.202300629
51	Liu B. ; Liang S. ; Karuthedath S. ; Xiao C. ; Wang J. ; Tan W. L. ; Li R. ; Li H. ; Hou J. ; Tang Z. ; et al J. Mater. Chem. A 2023, 11, 12236. doi: 10.1039/d3ta01501g
52	Zhang Z. ; Wang J. ; Hu Z. ; Xiao C. ; Chen Q. ; Tang Z. ; Li W. Chin. Chem. Lett. 2023, 34, 108527. doi: 10.1016/j.cclet.2023.108527
53	Liu B. ; Liang S. ; Karuthedath S. ; He Y. ; Wang J. ; Tan W. L. ; Li H. ; Xu Y. ; Laquai F. ; Brabec C. J. ; et al Macromolecules 2023, 56, 1154. doi: 10.1021/acs.macromol.2c02184
54	Qian D. ; Ye L. ; Zhang M. ; Liang Y. ; Li L. ; Huang Y. ; Guo X. ; Zhang S. ; Tan Z. A. ; Hou J. Macromolecules 2012, 45, 9611. doi: 10.1021/ma301900h
55	Zhang S. ; Qin Y. ; Zhu J. ; Hou J. Adv. Mater. 2018, 30, 1800868. doi: 10.1002/adma.201800868
56	Li W. ; Hendriks K. H. ; Furlan A. ; Wienk M. M. ; Janssen R. A. J. Am. Chem. Soc. 2015, 137, 2231. doi: 10.1021/ja5131897
57	Vandewal K. ; Tvingstedt K. ; Gadisa A. ; Inganäs O. ; Manca J. V. Phys. Rev. B 2010, 81, 125204. doi: 10.1103/PhysRevB.81.125204

	M_n/kDa	M_w/kDa	Ð_M	λ_onset^sol /nm ^a	λ_onset^film /nm ^b	E_g^film/eV ^c	E_HOMO/eV ^d	E_LUMO /eV ^d

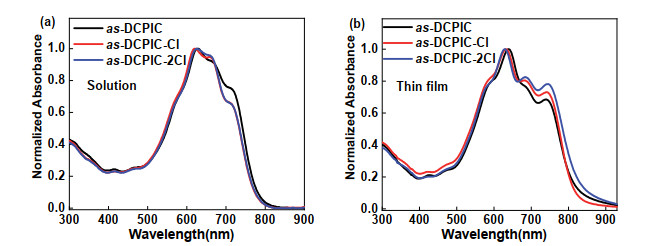

as-DCPIC-Cl	157.7	333.9	2.11	771	805	1.54	−5.59	−3.77
as-DCPIC-2Cl	84.2	216.3	2.57	771	828	1.50	−5.61	−3.75

Polymers	V_OC/V ^a	J_SC/(mA·cm⁻²) ^a	FF ^a	PCE/% ^a	E_loss/eV ^b

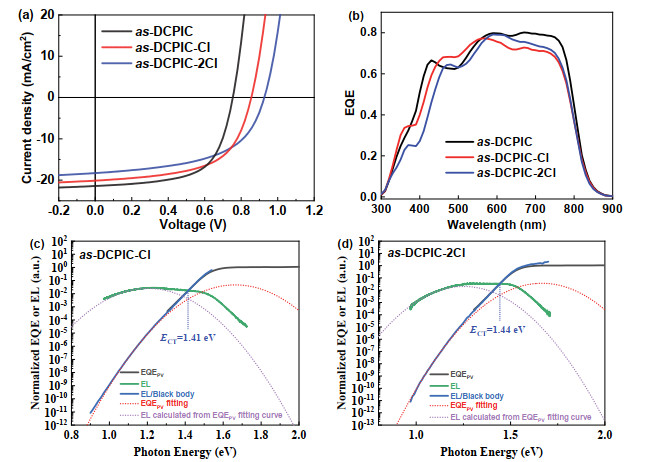

as-DCPIC	0.754 (0.746 ± 0.005)	21.46 (20.92 ± 0.45)	0.63 (0.62 ± 0.01)	10.12 (9.72 ± 0.11)	0.79
as-DCPIC-Cl	0.856 (0.845 ± 0.003)	20.17 (19.98 ± 0.59)	0.58 (0.58 ± 0.01)	10.14 (9.97 ± 0.09)	0.68
as-DCPIC-2Cl	0.927 (0.926 ± 0.001)	18.33 (17.49 ± 0.26)	0.54 (0.54 ± 0.01)	9.25 (9.02 ± 0.11)	0.57

Polymers	E_CT/eV	V_loss/V ^a	∆V_nr/V	∆V_r/V ^b
as-DCPIC-Cl	1.41	0.55	0.32	0.23
as-DCPIC-2Cl	1.44	0.51	0.27	0.24

Polymers	D(200)			D(010)
Polymers	q/nm⁻¹	d/nm	CL (nm) ^a	q/nm⁻¹	d/nm	CL (nm) ^a

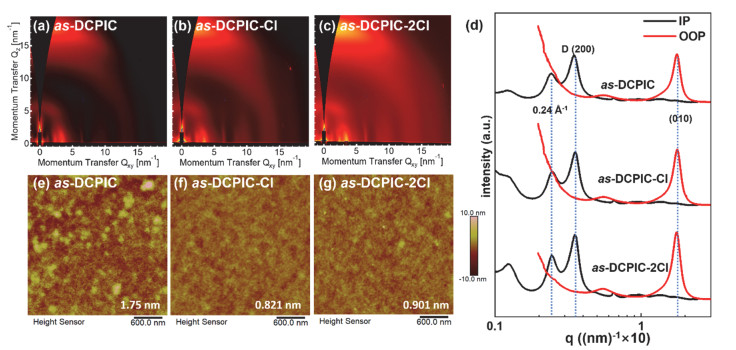

as-DCPIC	3.47	3.62	9.24	17.6	0.357	2.47
as-DCPIC-Cl	3.47	3.62	10.9	17.6	0.357	2.46
as-DCPIC-2Cl	3.47	3.62	10.1	17.6	0.357	2.35

[1]	陈铁金, 薛小矿, 李建, 崔敏辉, 郝永梁, 薛面起, 肖海华, 葛介超, 汪鹏飞. 细胞膜锚定的纳米工程化碳点作为焦亡放大器用于增强的肿瘤光动力免疫治疗[J]. 物理化学学报, 2025, 41(10): 100113 - .
[2]	陈星, 田鹤, 张泽. PbTiO₃/SrTiO₃(010)异质界面上的周期性失配位错及电子富集[J]. 物理化学学报, 2020, 36(11): 1906019 - .
[3]	周士超,冯贵涛,夏冬冬,李诚,武永刚,李韦伟. 萘酰亚胺-卟啉星型电子受体分子的构筑及其在非富勒烯太阳能电池中的应用[J]. 物理化学学报, 2018, 34(4): 344 -347 .
[4]	段园,陈明树,万惠霖. O₂和CO在Ni(111)表面的吸附活化[J]. 物理化学学报, 2018, 34(12): 1358 -1365 .
[5]	邓丹,周二军,魏志祥. 氟化策略：高效有机光伏材料的设计与应用[J]. 物理化学学报, 2018, 34(11): 1239 -1249 .
[6]	蒋奥克,赵雅文,龙重,张雷,胡殷,曾荣光,张延志,肖红,朱康伟,刘柯钊. EXELFS对二氧化铀晶格结构的分析[J]. 物理化学学报, 2017, 33(2): 364 -369 .
[7]	李亚东,邓玉峰,潘智毅,魏印平,赵世玺,干林. LiNi_0.5Mn_1.5O₄正极材料表面的双电子能量损失谱谱学成像[J]. 物理化学学报, 2017, 33(11): 2293 -2300 .
[8]	刘为燕,李亚东,刘甜,干林. 单分散铁氧体纳米颗粒的生长机制与成分偏聚的透射电子显微研究[J]. 物理化学学报, 2017, 33(10): 2106 -2112 .
[9]	尹海峰, 张红, 岳莉. 氮掺杂六角石墨烯纳米结构的近红外等离激元研究[J]. 物理化学学报, 2014, 30(6): 1049 -1054 .
[10]	肖全兰, 孟建新, 谢丽娟, 张蕤. Bi³⁺掺杂对YVO₄:Yb³⁺近红外发光的敏化作用[J]. 物理化学学报, 2011, 27(10): 2427 -2431 .
[11]	吴晓琳, 孙蓉, 朱朋莉, 杜如虚. 有机/无机复合微胶囊相变材料的近红外光谱分析[J]. 物理化学学报, 2011, 27(05): 1039 -1044 .
[12]	温晓南, 张静, 顾文秀, 金赫华, 李红波, 李清文. NaCl 对琼脂糖凝胶电泳法分离单壁碳纳米管的影响[J]. 物理化学学报, 2010, 26(10): 2757 -2762 .
[13]	姜骏;卞江;黎乐民. EuB₆的光电导率和能量损失函数谱的理论指认[J]. 物理化学学报, 2008, 24(01): 1 -7 .
[14]	张寒洁;鲍世宁;何丕模;王穗东;冯明凯;李振声;李述汤. 有或没有Alq₃参与情况下LiF和Al的化学反应[J]. 物理化学学报, 2003, 19(08): 770 -773 .
[15]	冯(言贝)民. 乙腈、苯基氰在Cu(111)与Pd(100)表面上的吸附与反应[J]. 物理化学学报, 1992, 8(03): 313 -320 .

氯取代近红外双缆共轭高分子材料与低能量损失单组分有机太阳能电池

Chlorine-Substituted Double-Cable Conjugated Polymers with Near-Infrared Absorption for Low Energy Loss Single-Component Organic Solar Cells

RichHTML

PDF

赞

补充材料

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 57

相关文章 15

Metrics

推荐阅读 0
