全固态钠离子电池硫系化合物电解质

doi:10.3866/PKU.WHXB201905009

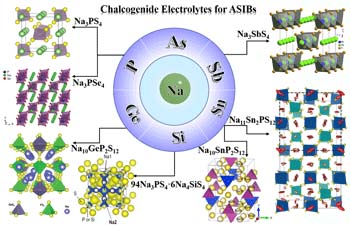

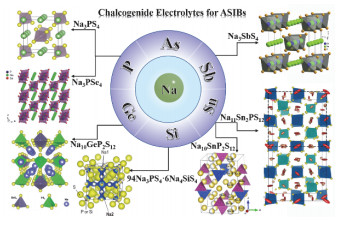

Abstract

Abstract:

All-solid-state sodium ion batteries (ASIBs) are important for future large-scale energy storage applications. ASIBs have come to occupy an important position in research on advanced secondary batteries in recent years owing to their advantages of abundance in resources, low cost, long lifetime, and high safety. As the key to the success of ASIBs, solid-state electrolytes such as polymers, oxide ceramics, and sulfide glass-ceramics have always attracted immense interest. Chalcogenide electrolytes for ASIBs have high room-temperature conductivity, high elastic modulus, and can be easily pressed into a mold at room temperature; hence, they are the research focus in ASIBs. This paper summarized recent studies on the structure and properties of chalcogenide electrolytes for ASIBs. These studies demonstrate the relationship between the phase structure and ionic conductivity of sulfide-based electrolytes and selenide-based electrolytes. Besides, arguments that the sodium vacancy in the crystal structure dominates ionic conduction, and creating a sodium vacancy via cation substitution is the principal strategy to increasing ionic conduction, are discussed. Further, the intrinsic chemical stability and interface stability between the electrode and electrolyte are highlighted. Based on the soft and hard acid and base theory, some studies adopted various anion/cation ion substitution strategies to improve the chemical stability of chalcogenide electrolytes in humid air. Particularly, the inconsistency in the electrochemical stability window of a representative chalcogenide electrode, Na₃PS₄, as measured by a semi-blocking electrode and calculated by first-principles, is compared. Additionally, to develop all-solid-state Na-S and Na-O₂ batteries with high capacity, the nonnegligible interface instability of the sulfide electrode against the sodium metal anode and feasible solutions are summarized. Next, the research progress on ASIBs using chalcogenide electrolytes is reviewed. Chalcogenide electrolytes are restricted by the electrochemical stability window and chemical compatibility with electrode materials; hence, they are expected to only be applicable to ASIBs using sulfur, sulfide, and organic matter as the cathode and Na-Sn alloy as the anode. However, these ASIBs have long cycling life (> 500 cycles), illustrating their potential applications in large-scale energy storage power stations. Finally, we comprehensively evaluate the ionic conductivity, stability against humid air, stability of the interface, electrochemical stability window, and ease of preparation of typical chalcogenide electrolytes, including Na₃PS₄, Na₃PSe₄, Na₃SbS₄, Na₃SbSe₄, Na₁₀SnPS₁₂, and Na₁₁Sn₂PS₁₂. Moreover, we highlight the challenges and propose possible solutions toward the development of chalcogenide electrolytes in future. Advanced technologies in fine synthesis, in situ characterization, and surface/interface modification are essential to overcome existing challenges and promote the development of chalcogenide-electrolyte-based ASIBs.

Key words: All-solid-state sodium ion battery, Chalcogenide electrolyte, Conductivity, Chemical stability, Interface

Guanghai Chen,Ying Bai,Yongsheng Gao,Feng Wu,Chuan Wu. Chalcogenide Electrolytes for All-Solid-State Sodium Ion Batteries[J]. Acta Physico-Chimica Sinica 2020, 36(5), 1905009. doi: 10.3866/PKU.WHXB201905009

Figures/Tables 19

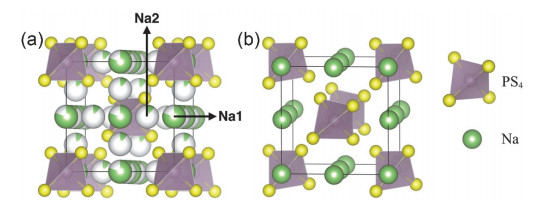

Fig 1

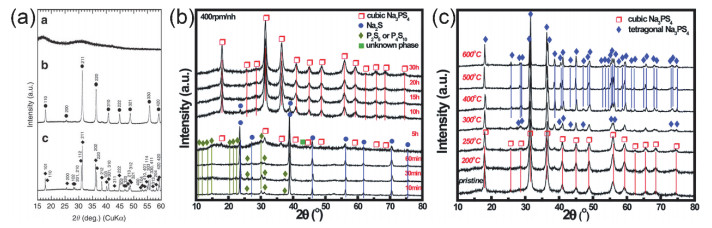

Fig 2

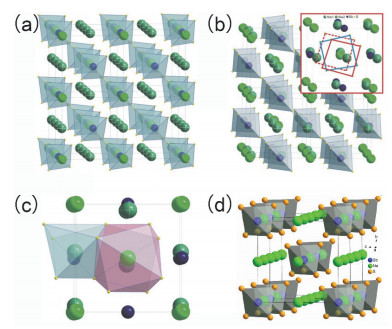

Fig 3

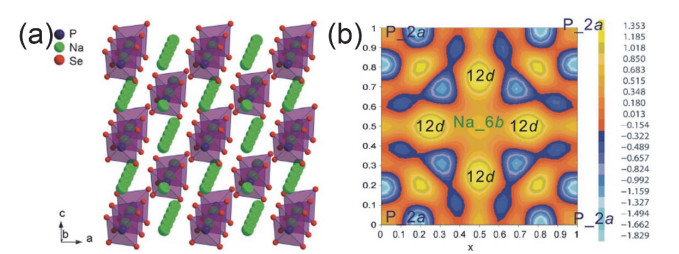

Fig 4

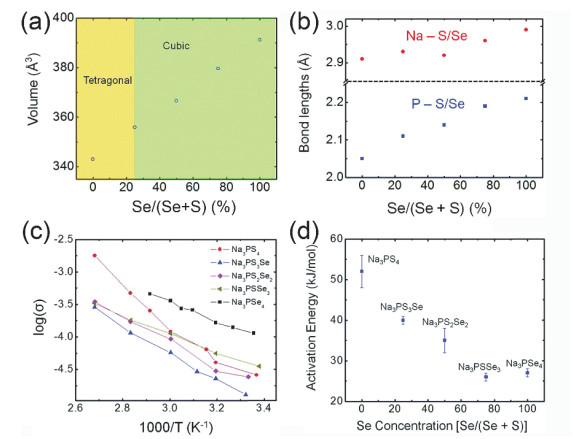

Fig 5

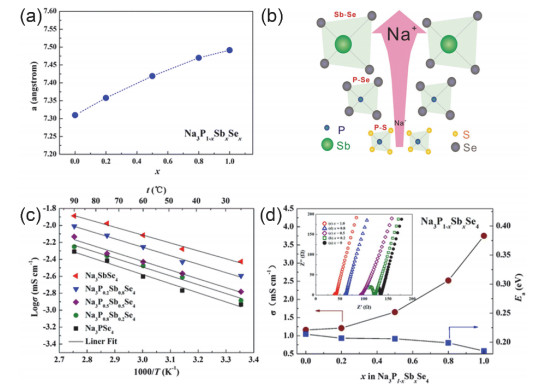

Fig 6

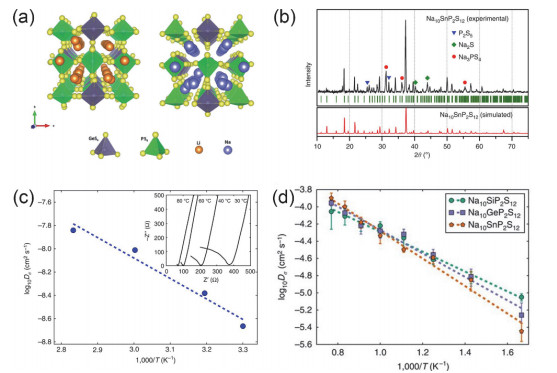

Fig 7

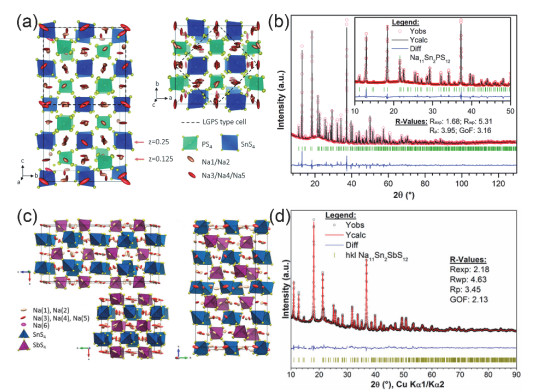

Fig 8

Table 1

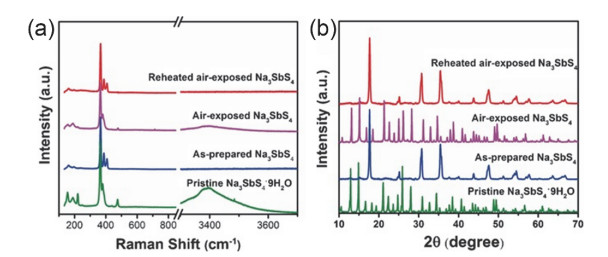

Fig 9

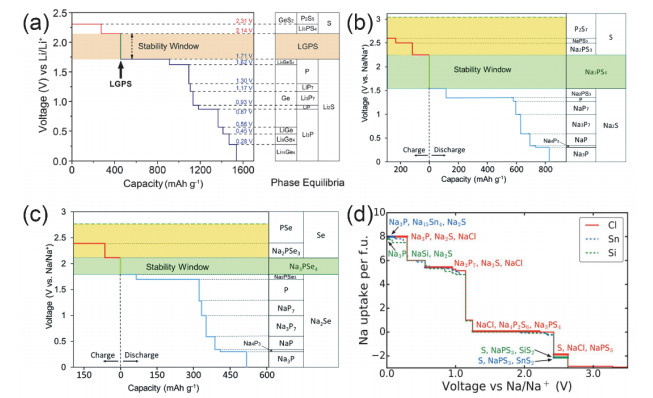

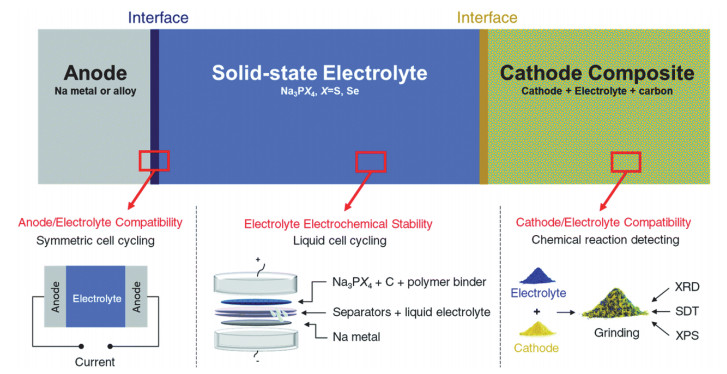

Fig 10

Fig 11

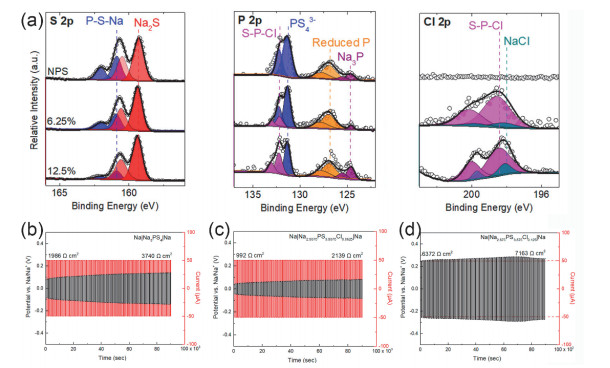

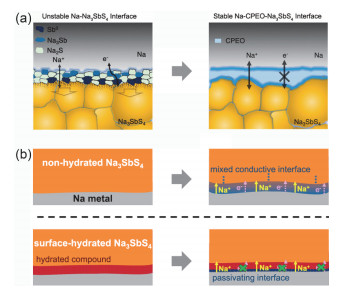

Fig 12

Fig 13

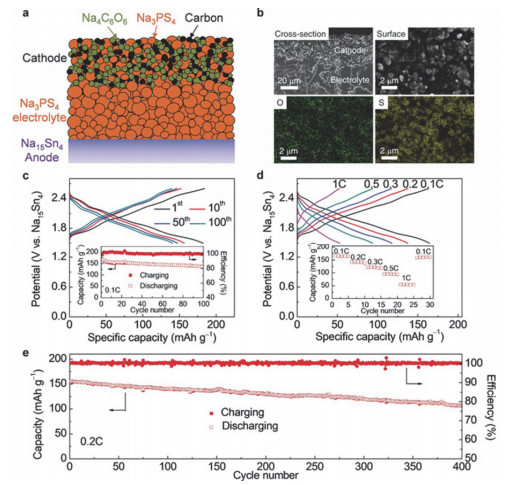

Fig 14

Fig 15

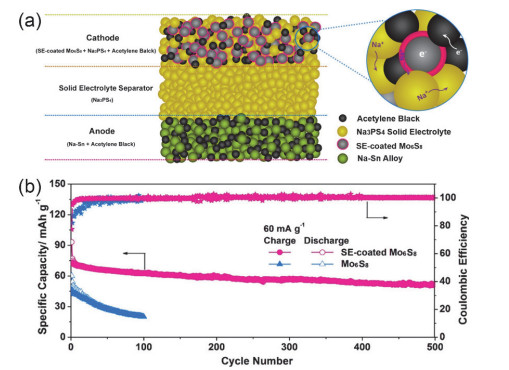

Fig 16

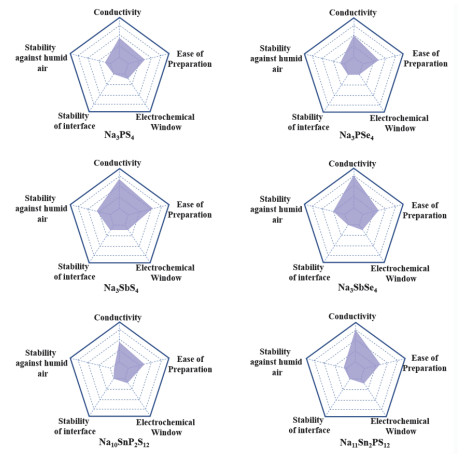

Fig 17

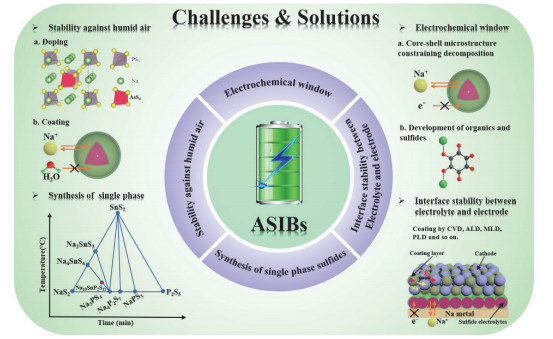

Fig 18

References 106

1	Dunn B. ; Kamath H. ; Tarascon J. M. Science 2011, 334, 928. doi: 10.1126/science.1212741
2	Pan H. ; Hu Y. S. ; Chen L. Q. Energy Environ Sci. 2013, 6, 2338. doi: 10.1039/c3ee40847g
3	Yang Z. ; Zhang W. ; Shen Y. ; Yuan L. X. ; Huang Y. H. Acta Phys. -Chim. Sin. 2016, 32 (5), 1062. doi: 10.3866/PKU.WHXB201603231
	杨泽; 张旺; 沈越; 袁利霞; 黄云辉. 物理化学学报, 2016, 32 (5), 1062. doi: 10.3866/PKU.WHXB201603231
4	Zuo X. ; Cai F. ; Liu X. M. ; Yang H. ; Shen X. D. Acta Phys. -Chim. Sin. 2013, 29 (1), 64. doi: 10.3866/PKU.WHXB201211023
	左翔; 蔡烽; 刘晓敏; 杨晖; 沈晓冬. 物理化学学报, 2013, 29 (1), 64. doi: 10.3866/PKU.WHXB201211023
5	Ma Q. ; Hu Y. S. ; Li H. ; Chen L. Q. ; Huang X. J. ; Zhou Z. B. Acta Phys. -Chim. Sin. 2018, 34 (2), 213. doi: 10.3866/PKU.WHXB201707172
	马强; 胡勇胜; 李泓; 陈立泉; 黄学杰; 周志彬. 物理化学学报, 2018, 34 (2), 213. doi: 10.3866/PKU.WHXB201707172
6	Tel'nova G. B. ; Solntsev K. A. Inorg. Mater. 2015, 51, 305. doi: 10.1134/S0020168515030176
7	Noguchi Y. ; Kobayashi E. ; Plashnitsa L. S. ; Okada S. ; Yamaki J. I. Electrochim Acta 2013, 101, 59. doi: 10.1016/j.electacta.2012.11.038
8	Santhanagopalan D. ; Qian D. ; McGilvray T. ; Wang Z. ; Wang F. ; Camino F. ; Graetz J. ; Dudney N. ; Meng Y. S. J. Phys. Chem. Lett. 2014, 5, 298. doi: 10.1021/jz402467x
9	Wang Y. ; Zhong W. H. ChemElectroChem 2015, 2, 22. doi: 10.1002/celc.201402277
10	Nam Y. J. ; Cho S. J. ; Oh D. Y. ; Lim J. M. ; Kim S. Y. ; Song J. H. ; Lee Y. G. ; Lee S. Y. ; Jung Y. S. Nano Lett. 2015, 15, 3317. doi: 10.1021/acs.nanolett.5b00538
11	Park K. H. ; Oh D. Y. ; Choi Y. E. ; Nam Y. J. ; Han L. ; Kim J. Y. ; Xin H. ; Lin F. ; Oh S. M. ; Jung Y. S. Adv Mater. 2016, 28, 1874. doi: 10.1002/adma.201505008
12	Seino Y. ; Ota T. ; Takada K. ; Hayashi A. ; Tatsumisago M. Energy Environ. Sci. 2014, 7, 627. doi: 10.1039/c3ee41655k
13	Kamaya N. ; Homma K. ; Yamakawa Y. ; Hirayama M. ; Kanno R. ; Yonemura M. ; Kamiyama T. ; Kato Y. ; Hama S. ; Kawamoto K. ; et al Nat. Mater. 2011, 10, 682. doi: 10.1038/NMAT3066
14	Jansen M. ; Henseler U. J. Solid State Chem. 1992, 99, 110. doi: 10.1016/0022-4596(92)90295-7
15	Hayashi A. ; Noi K. ; Sakuda A. ; Tatsumisago M. Nat. Commun. 2012, 3, 1. doi: 10.1038/ncomms1843
16	Zhu Z.Y. ; Chu I. H. ; Deng Z. ; Ong S. P. Chem. Mater. 2015, 27, 8318. doi: 10.1021/acs.chemmater.5b03656
17	Chu I. H. ; Kompella C. S. ; Nguyen H. ; Zhu Z. ; Hy S. ; Deng Z. ; Meng Y. S. ; Ong S. P. Sci. Rep. 2016, 6, 33733. doi: 10.1038/srep33733
18	de Klerk N. J. J. ; Wagemaker M. Chem. Mater. 2016, 28, 3122. doi: 10.1021/acs.chemmater.6b00698
19	Noi K. ; Hayashi A. ; Tatsumisago M. J. Power Sources 2014, 269, 260. doi: 10.1016/j.jpowsour.2014.06.158
20	Yu C. ; Ganapathy S. ; de Klerk N. J. J. ; van Eck E. R. H. ; Wagemaker M. J. Mater. Chem. A 2016, 4, 15095. doi: 10.1039/c6ta05896e
21	Hayashi A. ; Noi K. ; Tanibata N. ; Nagao M. ; Tatsumisago M. J. Power Sources 2014, 258, 420. doi: 10.1016/j.jpowsour.2014.02.054
22	Takeuchi S. ; Suzuki K. ; Hirayama M. ; Kanno R. J. Solid State Chem. 2018, 265, 353. doi: 10.1016/j.jssc.2018.06.023
23	Rao R. P. ; Chen H. ; Wong L. L. ; Adams S. J. Mater. Chem. A 2017, 5, 3377. doi: 10.1039/c6ta09809f
24	Ponrouch A. ; Marchante E. ; Courty M. ; Tarascon J. M. ; Palacín M. R. Energy Environ. Sci. 2012, 5, 8572. doi: 10.1039/c2ee22258b
25	Yu Z. X. ; Shang S. L. ; Seo J. H. ; Wang D. ; Luo X. ; Huang Q. ; Chen S. ; Lu J. ; Li X. ; Liu Z. K. ; et al Adv Mater. 2017, 29, 16. doi: 10.1002/adma.201605561
26	Krebs B. Angew. Chem. Int. Ed. Engl., 1983, 22, 113. doi: 10.1002/anie.198301131\|
27	Kanno R. ; Murayama M. J. Electrochem. Soc. 2001, 148, A742. doi: 10.1149/1.1379028
28	Tanibata N. ; Noi K. ; Hayashi A. ; Tatsumisago M. RSC Adv. 2014, 4, 17120. doi: 10.1039/c4ra00996g
29	Tanibata N. ; Noi K. ; Hayashi A. ; Kitamura N. ; Idemoto Y. ; Tatsumisago M. ChemElectroChem 2014, 1, 1130. doi: 10.1002/celc.201402016
30	Zhang L. ; Zhang D. ; Yang K. ; Yan X. ; Wang L. ; Mi J. ; Xu B. ; Li Y. Adv. Sci. 2016, 1600089. doi: 10.1002/advs.201600089
31	Graf V. H. A. ; Schafer H. Z. Anorg. Allg. Chem. 1976, 425, 67. doi: 10.1002/zaac.19764250109
32	Wang Y. ; Richards W. D. ; Ong S. P. ; Miara L. J. ; Kim J. C. ; Mo Y. F. ; Ceder G. Nat. Mater. 2015, 14, 1026. doi: 10.1038/NMAT4369
33	Zhang D. ; Cao X. ; Xu D. ; Wang N. ; Yu C. ; Hu W. ; Yan X. ; Mi J. ; Wen B. ; Wang L. ; et al Electrochim. Acta 2018, 259, 100. doi: 10.1016/j.electacta.2017.10.173
34	Mikenda A. ; Preisinger. W. Spectrochim. Acta Part A: Mol. Spectroscopy 1980, 36, 365. doi: 10.1016/0584-8539(80)80145-0
35	Wang H. ; Chen Y. ; Hood Z. D. ; Sahu G. ; Pandian A. S. ; Keum J. K. ; An K. ; Liang C. D. Angew Chem. Int. Ed. 2016, 55, 1. doi: 10.1002/anie.201601546
36	Zhang D. C. ; Cao X. T. ; Xu D. ; Wang N. ; Yu C. ; Hu W. T. ; Yan X. L. ; Mi J. L. ; Wen B. ; Wang L. M. ; et al Electrochim. Acta 2018, 259, 100. doi: 10.1016/j.electacta.2017.10.173
37	Heo J. W. ; Banerjee A. ; Park K. H. ; Jung Y. S. ; Hong S. T. Adv. Energy Mater. 2018, 8, 1702716. doi: 10.1002/aenm.201702716
38	Maier J. Nat. Mater. 2005, 4, 805. doi: 10.1038/nmat1513
39	Jia H. H. ; Sun Y. L. ; Zhang Z. R. ; Peng L. F. ; An T. ; Xie J. Energy Storage Mater. 2019, in press. doi: 10.1016/j.ensm.2019.04.011
40	Ong S. P. ; Mo Y. F. ; Richards W. D. ; Miara L. ; Lee H. S. ; Ceder G. Energy Environ. Sci. 2013, 6, 148. doi: 10.1039/c2ee23355j
41	Zhang L. ; Yang K. ; Mi J. ; Lu L. ; Zhao L. ; Wang L. ; Li Y. ; Zeng H. Adv. Energy Mater. 2015, 5, 1501294. doi: 10.1002/aenm.201501294
42	Bo S. H. ; Wang Y. ; Kim J. C. ; Richards W. D. ; Ceder G. Chem. Mat. 2016, 28, 252. doi: 10.1021/acs.chemmater.5b04013
43	Bo S. H. ; Wang Y. ; Ceder G. J. Mater. Chem. A 2016, 4, 9044. doi: 10.1039/c6ta03027k
44	Wang N. ; Yang K. ; Zhang L. ; Yan X. ; Wang L. ; Xu B. J. Mater. Sci. 2017, 53, 1987. doi: 10.1007/s10853-017-1618-0
45	Kato Y. ; Hori S. ; Saito T. ; Suzuki K. ; Hirayama M. ; Mitsui A. ; Yonemura M. ; Iba H. ; Kanno R. Nat. Energy, 2016, 1, 16030. doi: 10.1038/nenergy.2016.30
46	Kandagal V. S. ; Bharadwaj M. D. ; Waghmare U. V. J. Mater. Chem. A 2015, 3, 12992. doi: 10.1039/c5ta01616a
47	Richards W. D. ; Tsujimura T. ; Miara L. J. ; Wang Y. ; Kim J. C. ; Ong S. P. ; Uechi I. ; Suzuki N. ; Ceder G. Nat. Commun. 2016, 7, 11009. doi: 10.1038/ncomms11009
48	Kandagal V. S. ; Bharadwaj M. D. ; Waghmare U. V. J. Mater. Chem. A 2015, 3, 12992. doi: 10.1039/c5ta01616a
49	Tsuji F. ; Tanibata N. ; Sakuda A. ; Hayashi A. ; Tasumisago M. Chem. Lett. 2018, 47, 13. doi: 10.1246/cl.170836
50	Zhang Z. ; Ramos E. ; Lalère F. ; Assoud A. ; Kaup K. ; Hartman P. ; Nazar L. F. Energy Environ. Sci. 2018, 11, 87. doi: 10.1039/c7ee03083e
51	Kuhn A. ; Kohler J. ; Lotsch B. V. Phys. Chem. Chem. Phys. 2013, 15, 11620. doi: 10.1039/c3cp51985f
52	Kuhn A. ; Gerbig O. ; Zhu C. ; Falkenberg F. ; Maier J. ; Lotsch B. V. Phys. Chem. Chem. Phys. 2014, 16, 14669. doi: 10.1039/c4cp02046d
53	Duchardt M. ; Ruschewitz U. ; Adams S. ; Dehnen S. ; Roling B. Angew. Chem. Int. Ed. 2018, 57, 1351. doi: 10.1002/ange.201712769
54	Ramos E. P. ; Zhang Z. Z. ; Assoud A. ; Kaup K. ; Lalere F. ; Nazar L. F. Chem. Mater. 2018, 30, 7413. doi: 10.1021/acs.chemmater.8b02077
55	Yu Z. ; Shang S. L. ; Gao Y. ; Wang D. ; Li X. ; Liu Z. K. ; Wang D. H. Nano Energy 2018, 47, 325. doi: 10.1016/j.nanoen.2018.01.046
56	Yu Z. X. ; Shang S. L. ; Wang D. W. ; Li Y. C. ; Yennawar H. P. ; Li G. X. ; Huang H. ; Gao Y. ; Mallouk T. E. ; Liu Z. K. ; et al Energy Storage Mater 2019, 17, 70. doi: 10.1016/j.ensm.2018.11.027
57	Wang Y. ; Richards W. D. ; Bo S. H. ; Miara L. J. ; Ceder G. Chem. Mat. 2017, 29, 7475. doi: 10.1021/acs.chemmater.7b02476
58	Han F. D. ; Westover A. S. ; Yue J. ; Fan X. L. ; Wang F. ; Chi M. F. ; Leonard D. N. ; Dudney N. J. ; Wang H. ; Wang C. S. Nat. Energy 2019, 4, 187. doi: 10.1038/s41560-018-0312-z
59	Banerjee A. ; Park K. H. ; Heo J. W. ; Nam Y. J. ; Moon C. K. ; Oh S. M. ; Hong S. T. ; Jung Y. S. Angew. Chem. Int. Ed. 2016, 55, 9634. doi: 10.1002/anie.201604158
60	Kim T. W. ; Park K. H. ; Choi Y. E. ; Lee J. Y. ; Jung Y. S. J. Mater. Chem. A 2018, 6, 840. doi: 10.1039/C7TA09242C
61	Moon C. K. ; Lee H. J. ; Park K. H. ; Kwak H. ; Heo J. W. ; Choi K. ; Yang H. ; Kim M. S. ; Hong S. T. ; Lee J. H. ; et al ACS Energy Lett. 2018, 3, 2504. doi: 10.1021/acsenergylett.8b01479
62	Hibi Y. ; Tanibata N. ; Hayashi A. ; Tatsumisago M. Solid State Ion. 2015, 270, 6. doi: 10.1016/j.ssi.2014.11.024
63	Takada K. Acta Mater. 2013, 61, 759. doi: 10.1016/j.actamat.2012.10.034
64	Sahu G. ; Lin Z. ; Li J. ; Liu Z. ; Dudney N. ; Liang C. D. Energy Environ. Sci. 2014, 7, 1053. doi: 10.1039/c3ee43357a
65	Shang S. L. ; Yu Z. ; Wang Y. ; Wang D. ; Liu Z. K. ACS Appl. Mater. Interfaces 2017, 9, 16261. doi: 10.1021/acsami.7b03606
66	Han F. ; Gao T. ; Zhu Y. ; Gaskell K. J. ; Wang C.S. Adv Mater. 2015, 27, 3473. doi: 10.1002/adma.201500180
67	Tian Y. S. ; Shi T. ; Richards W. D. ; Li J. ; Kim J. C. ; Bo S. H. ; Ceder G. Energy Environ. Sci. 2017, 10, 1150. doi: 10.1039/c7ee00534b
68	Han F. ; Zhu Y. ; He X. ; Mo Y. F. ; Wang C. S. Adv. Energy Mater. 2016, 6, 1501590. doi: 10.1002/aenm.201501590
69	Takada K. ; Ohta N. ; Zhang L. ; Xu X. ; Hang B. T. ; Ohnishi T. ; Osada M. ; Sasaki T. Solid State Ion. 2012, 225, 594. doi: 10.1016/j.ssi.2012.01.009
70	Hartmann P. ; Bender C. L. ; Vracar M. ; Durr A. K. ; Garsuch A. ; Janek J. ; Adelhelm P. Nat. Mater. 2013, 12, 228. doi: 10.1038/NMAT3486
71	Das S. K. ; Lau S. ; Archer L. A. J. Mater. Chem. A 2014, 2, 12623. doi: 10.1039/c4ta02176b
72	Manthiram A. ; Yu X. W. Small 2015, 11, 2108. doi: 10.1002/smll.201403257
73	Yu X. W. ; Manthiram A. Adv. Energy Mater. 2015, 5, 1500350. doi: 10.1002/aenm.201500350
74	Wei S. ; Xu S. ; Agrawral A. ; Choudhury S. ; Lu Y. ; Tu Z. ; Ma L. ; Archer L. A. Nat. Commun. 2016, 7, 11722. doi: 10.1038/ncomms11722
75	Wu F. ; Liu L. ; Yuan Y. F. ; Li Y. ; Bai Y. ; Lu J. ; Wu C. ACS Appl. Mater. Interfaces 2018, 10, 32. doi: 10.1021/acsami.8b08380
76	Li Y. ; Yuan Y. F. ; Bai Y. ; Liu Y. C. ; Wang Z. H. ; Li L. M. ; Wu F. ; Khalil A. ; Wu C. ; Lu J. Adv. Energy Mater. 2018, 25, 1702781. doi: 10.1002/aenm.201702781
77	Chen G. H. ; Bai Y. ; Li H. ; Li Y. ; Wang Z. H. ; Ni Q. ; Liu L. ; Wu F. ; Yao Y. G. ; Wu C. ACS Appl. Mater. Interfaces 2017, 9, 8. doi: 10.1021/acsami.6b16186
78	Luo W. ; Hu L. B. ACS Cent. Sci. 2015, 1, 420. doi: 10.1021/acscentsci.5b00357
79	Seh Z. W. ; Sun J. ; Sun Y. ; Cui Y. ACS Cent. Sci. 2015, 1, 449. doi: 10.1021/acscentsci.5b00328
80	Luo W. ; Lin C. F. ; Zhao O. ; Noked M. ; Zhang Y. ; Rubloff G. W. ; Hu L. B. Adv. Energy Mater. 2016, 6, 1601526. doi: 10.1002/aenm.201601526
81	Bertheville B. ; Low H. ; Bill D.F. ; Kubel F. J. Phys. Chem. Solids 1997, 58, 1569. doi: 10.1016/S0022-3697(97)00101-7
82	Yu X. F. ; Giorgi G. ; Ushiyama H. ; Yamashita K. Chem. Phys. Lett. 2014, 612, 129. doi: 10.1016/j.cplett.2014.08.010
83	Wenzel S. ; Leichtweiss T. ; Krüger D. ; Sann J. ; Janek J. Solid State Ion. 2015, 278, 98. doi: 10.1016/j.ssi.2015.06.001
84	Wu E. A. ; Kompella C. S. ; Zhu Z. ; Lee J. Z. ; Lee S. C. ; Chu I. H. ; Nguyen H. ; Ong S. P. ; Banerjee A. ; Meng Y. S. ACS Appl. Mater. Interfaces 2018, 10, 12. doi: 10.1021/acsami.7b19037
85	Hartmann P. ; Leichtweiss T. ; Busche M. R. ; Schneider M. ; Reich M. ; Sann J. ; Adelhelm P. ; Janek J. J. Phys. Chem. C 2013, 117, 21064. doi: 10.1021/jp4051275
86	Hu P. ; Zhang Y. ; Chi X. ; Kumar Rao K. ; Hao F. ; Dong H. ; Guo F. ; Ren Y. ; Grabow L. C. ; Yao Y. ACS Appl. Mater. Interfaces 2019, 11, 9672. doi: 10.1021/acsami.8b19984
87	Tian Y. ; Sun Y. ; Hannah D. C. ; Xiao Y. ; Liu H. ; Chapman K. W. ; Bo S. H. ; Ceder G. Joule 2019, 3, 1. doi: 10.1016/j.joule.2018.12.019
88	Kim J. K. ; Lim Y. J. ; Kim H. J. ; Cho G. B. ; Kim Y. Energy Environ. Sci. 2015, 8, 3589. doi: 10.1016/j.joule.2018.12.019
89	Li H. ; Bai Y. ; Wu F. ; Li Y. ; Wu C. J. Power Sources 2015, 273, 784. doi: 10.1016/j.jpowsour.2014.09.153
90	Li H. ; Yu X. ; Bai Y. ; Wu F. ; Wu C. ; Liu L. Y. ; Yang X. Q. J. Mater. Chem. A 2015, 3, 9578. doi: 10.1039/c5ta00277j
91	Li H. ; Wu C. ; Bai Y. ; Wu F. ; Wang M. Z. J. Power Sources 2016, 326, 14. doi: 10.1016/j.jpowsour.2016.06.096
92	Zhang Z. ; Zhang Q. ; Shi J. ; Chu Y. S. ; Yu X. ; Xu K. ; Ge M. ; Yan H. ; Li W. ; Gu L. ; et al Adv. Energy Mater. 2017, 7, 1601196. doi: 10.1002/aenm.201601196
93	Ni Q. ; Bai Y. ; Li Y. ; Ling L. M. ; Li L. ; Chen G. H. ; Wang Z. H. ; Ren H. X. ; Wu F. ; Wu C. Small 2018, 14, 1702864. doi: 10.1002/smll.201702864
94	Ni'mah Y. L. ; Cheng M. Y. ; Cheng J. H. ; Rick J. ; Hwang B. J. J. Power Sources. 2015, 278, 375. doi: 10.1016/j.jpowsour.2014.11.047
95	Tatsumisago M. ; Hayashi A. Int. J. Appl. Glass Sci. 2014, 5, 226. doi: 10.1111/ijag.12084
96	Wan H. ; Mwizerwa J. P. ; Qi X. ; Liu X. ; Xu X. ; Li H. ; Hu Y. S. ; Yao X. Y. ACS Nano 2018, 12, 2809. doi: 10.1021/acsnano.8b00073
97	Tanibata N. ; Deguchi M. ; Hayashi A. ; Tatsumisago M. Chem. Mat. 2017, 29, 5232. doi: 10.1021/acs.chemmater.7b01116
98	Tanibata N. ; Tsukasaki H. ; Deguchi M. ; Mori S. ; Hayashi A. ; Tatsumisago M. Solid State Ion. 2017, 311, 6. doi: 10.1016/j.ssi.2017.08.022
99	Yue J. ; Han F. D. ; Fan X. L. ; Zhu X. Y. ; Ma Z. H. ; Yang J. ; Wang C. S. ACS Nano 2017, 11, 4885. doi: 10.1021/acsnano.7b01445
100	Chi X. W. ; Liang Y. L. ; Hao F. ; Zhang Y. ; Whiteley J. ; Dong H. ; Hu P. ; Lee S. ; Yao Y. Angew Chem. Int. Ed. 2018, 57, 2630. doi: 10.1002/anie.201712895
101	Sakuda A. ; Hayashi A. ; Tatsumisago M. Sci. Rep. 2013, 3, 2261. doi: 10.1038/srep02261
102	Minami T. ; Hayashi A. ; Tatsumisago M. Solid State Ion. 2006, 177, 2715. doi: 10.1016/j.ssi.2006.07.017
103	Nagao M. ; Hayashi A. ; Tatsumisago M. Electrochimica Acta 2011, 56, 6055. doi: 10.1016/j.electacta.2011.04.084
104	Noi K. ; Nagata Y. ; Hakari T. ; Suzuki K. ; Yubuchi S. ; Ito Y. ; Sakuda A. ; Hayashi A. ; Tatsumisago M. ACS Appl. Mater. Interfaces 2018, 10, 19605. doi: 10.1021/acsami.8b02427
105	Yue J. ; Zhu X. Y. ; Han F. D. ; Fan X. L. ; Wang L. N. ; Yang J. ; Wang C. S. ACS Appl. Mater. Interfaces 2018, 10, 39645. doi: 10.1021/acsami.8b12610
106	Wu F. ; Fitzhugh W. ; Ye L. H. ; Ning J. X. ; Li X. Nat. Commun. 2018, 9, 4037. doi: 10.1038/s41467-018-06123-2

Types	Electrolyte	Structure	Conductivity @RT/(mS·cm^?1)	Activation Energy/eV	Ref.
Na₃MS₄ (M = P, Sb)	Na₃PS₄	Cubic	0.2	0.281	15
	Na₃PS₄	Cubic	0.46	0.198	21
	Na_2.94PS₄ ^[D]	Cubic	170	-	18
	Na₃PS₄	Tetragonal	3.39	0.173	22
	Na₃SbS₄	Cubic	1.05	0.22	35
	Na₃SbS₄	Cubic	2.8	0.061	33
	Na₃SbS₄	Tetragonal	3	0.25	30
	Na₃SbS₄	Tetragonal	1.1	0.2	59
	Na₃SbS₄	Tetragonal	0.1-0.2	0.27-0.35	60
	Na₃SbS₄	Tetragonal	1.77	0.254	33
Doped-Na₃MS₄ (M = P, Sb)	Na_3.125Si_0.125P_0.875S₄ ^[D]	Cubic	2.99	0.241	16
	Na_3.0625Si_0.0625P_0.9375S₄ ^[D]	Cubic	1.66	0.242	16
	Na_3.0625Ge_0.0625P_0.9375S₄^[D]	Cubic	0.54	0.28	16
	Na_3.0625Sn_0.0625P_0.9375S₄^[D]	Cubic	10.7	0.171	16
	Na_2.9375PS_3.9375Cl_0.0625	Tetragonal	1.14	0.249	17
	Na_3.1Ge_0.1P_0.9S₄	Cubic	0.212	0.21	23
	Na_3.1Ti_0.1P_0.9S₄	Cubic	0.23	0.20	23
	Na_3.1Sn_0.1P_0.9S₄	Cubic	0.25	0.18	23
	Na₃P_0.62As_0.38S₄	Tetragonal	1.46	0.256	25
	Na_2.730Ca_0.135PS₄	Cubic	1.4	0.346	61
	Na_4?xSn_1?xSb_xS₄	Tetragonal	0.2-0.5	-	37
	Na₄Sn_0.67Si_0.33S₄	-	0.012	0.56	39
	Na₄[Sn_0.67Si_0.33]_0.75P_0.25S₄	-	1.61	0.26	39
	94Na₃PS₄·6Na₄SiS₄	Cubic	0.74	0.260	28
	71Na₃PS₄?29NaI	Cubic	0.014	-	62
Na₃MSe₄ (M = P, Sb)	Na₃PSe₄	Cubic	1.16	0.21	41
	Na₃PSe₄	Cubic	0.11	0.281	39
	Na₃SbSe₄	Cubic	3.7	0.19	44
Na₇P₃X₁₁ (X = S, Se)	Na₇P₃S₁₁ ^[D]	Triclinic	10.97	0.217	57
Na₇P₃X₁₁ (X = S, Se)	Na₇P₃Se₁₁ ^[D]	Triclinic	12.56	0.213	57
Na₁₀MP₂S₁₂ (M = Si, Ge, Sn)	Na₁₀SiP₂S₁₂ ^[D]	Tetragonal	10.28	0.229	47
	Na₁₀GeP₂S₁₂ ^[D]	Tetragonal	3.5	0.27	47
	Na₁₀SnP₂S₁₂	Tetragonal	0.4	0.356	47
Na₁₁M₂PS₁₂ (M = Si, Ge, Sn)	Na₁₁Sn₂PS₁₂	Tetragonal	3.7	0.383	53
Na₁₁M₂PS₁₂ (M = Si, Ge, Sn)	Na₁₁Sn₂PS₁₂	Tetragonal	1.4	0.25	50
Na₁₁M₂SbS₁₂	Na₁₁Sn₂SbS₁₂	Tetragonal	0.56	0.34	54
Na₁₁M₂PSe₁₂	Na₁₁Sn₂PSe₁₂	Tetragonal	3.04	0.28	56
Others	Na_10.8Sn_1.9PS_11.8	Tetragonal	0.67	0.307	55
