聚吡咯@二氧化锰/碳纳米管薄膜电极的制备及在高性能锌离子电池中的应用

沈晓帆, 王晓娜, 俞能晟, 杨薇, 周雨融, 石艳红, 王玉莲, 董立忠, 邸江涛, 李清文

A Polypyrrole-Coated MnO2/Carbon Nanotube Film Cathode for Rechargeable Aqueous Zn-Ion Batteries

Xiaofan Shen, Xiaona Wang, Nengsheng Yu, Wei Yang, Yurong Zhou, Yanhong Shi, Yulian Wang, Lizhong Dong, Jiangtao Di, Qingwen Li

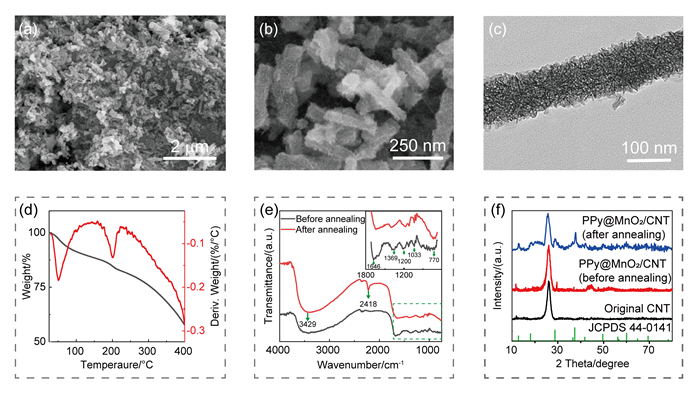

图2 PPy@MnO2/CNT电极结构表征图

Fig 2 Characterization of the PPy@MnO2/CNT cathode. (a) and (b) SEM image of PPy coating on the surface of the MnO2/CNT fiber; (c) TEM image (d) TG patterns (e) IR spectrum of PPy@MnO2/CNT; (f) XRD patterns of the comparison of composite film and pure film.
