低温加氢裂解脱除高硅ZSM-5分子筛内TPAOH模板剂

doi:10.3866/PKU.WHXB201503021

摘要/Abstract

摘要：

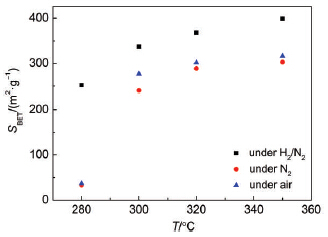

分子筛膜的合成和应用是近年来的研究热点, 特别是具有独特孔道结构的MFI 型分子筛膜. 但由于膜内有机模板剂在高温脱除时会导致膜产生缺陷, 进而影响分子筛膜的应用. 所以分子筛膜及分子筛晶体中有机模板剂的低温脱除工艺一直是研究者们致力解决的问题之一. 本文系统考察了高硅ZSM-5分子筛晶体内有机模板剂(四丙基氢氧化铵, TPAOH)在H₂/N₂气氛下的低温裂解脱除规律, 采用低温加氢裂解工艺, 在350 ℃以下可有效脱除分子筛晶体孔道内的有机模板剂. 通过对裂解后分子筛晶体的比表面积(BET)、热失重(TG)、傅里叶变换红外(FTIR)光谱和拉曼光谱表征证实, 相比于空气和氮气气氛, 含氢还原性气氛更有利于模板剂的低温脱除, 脱除率随温度的升高而增加; 280 ℃时, 加氢裂解后晶体的BET比表面积已达到252 m²·g^-1, 仍有少量有机残余物; 350 ℃时, 加氢裂解后晶体的BET比表面积可达到399 m²·g^-1, 仅有微量无机碳残余物. 此外, 低温加氢裂解后的分子筛表面相对洁净, 且氨气程序升温脱附(NH₃-TPD)结果表明低温加氢裂解后的ZSM-5 分子筛晶体具有相对较多的酸性位.

关键词: ZSM-5分子筛, 脱除模板剂, 低温加氢裂解, 高硅铝比, 四丙基氢氧化铵

Abstract:

Zeolite membranes, especially the MFI-type zeolite membranes, have attracted significant attention for decades because of their special properties. While organic templates such as tetrapropylammonium hydroxide (TPAOH) have typically been used for the synthesis of ZSM-5 zeolite and zeolite membranes, the templates remain trapped in the as-synthesized zeolite crystals. A common method for removing organic templates and generating porous frameworks is calcination; however, during this process, the channel structure may be affected. In particular, for ZSM-5 membranes, membrane defects may be produced and the separation efficiency therefore may decrease to some extent. In this study, the low-temperature hydrocracking of TPAOH in ZSM-5 zeolite crystals was studied under H₂/N₂, while N₂ adsorption, thermogravimetric (TG) analysis, Fourier transform infrared (FTIR) spectroscopy, temperature-programmed desorption of ammonia (NH₃-TPD), and Raman spectroscopy were used to characterize zeolite samples. The results show that the organic template in the pores of ZSM-5 can be effectively removed below 350 ℃ by low-temperature hydrocracking. Characterization analyses by BET specific surface area, TG, FTIR, and Raman spectroscopy demonstrated that a reducing atmosphere containing H₂ was more conducive to template removal at low temperature than atmospheres of air or N₂. The degree of template removal increased with temperature increasing. The BET surface area of the crystal after hydrocracking at 280 ℃ reached 252 m²·g^-1, although a small amount of organic residue remained. Furthermore, after hydrocracking at 350 ℃, the BET surface area reached 399m2·g^-1, and only trace amount of inorganic carbon residue remained. In addition, the introduction of hydrogen at low temperatures could prevent coke deposits on acid sites and thus ZSM-5 zeolite crystals had greater numbers of acidic sites after low-temperature hydrocracking.

Key words: ZSM-5 zeolite, Template removal, Low-temperature hydrocracking, High Si/Al ratio, Tetrapropylammonium hydroxide

赵淑蘅, 郎林, 阴秀丽, 杨文申, 吴创之. 低温加氢裂解脱除高硅ZSM-5分子筛内TPAOH模板剂[J]. 物理化学学报, 2015, 31(4): 793-799.

ZHAO Shu-Heng, LANG Lin, YIN Xiu-Li, YANG Wen-Shen, WU Chuang-Zhi. TPAOH Template Removal from High-Silica ZSM-5 by Low-Temperature Hydrocracking[J]. Acta Phys. -Chim. Sin., 2015, 31(4): 793-799.

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201503021

https://www.whxb.pku.edu.cn/CN/Y2015/V31/I4/793

参考文献

(1) Eslava, S.; Urrutia, J.; Busawon, A. N.; Baklanov, M. R.; Iacopi, F.; Aldea, S.; Maex, K.; Martens, J. A.; Kirschhock, C. E. A. J. Am. Chem. Soc. 2008, 130, 17528. doi: 10.1021/ja8066572
(2) Yordanov, I.; Knoerr, R.; DeWaele, V.; Bazin, P.; Thomas, S.; Rivallan, M.; Lakiss, L.; Metzger, T. H.; Mintova, S. J. Phys. Chem. C 2010, 114, 20974. doi: 10.1021/jp105490g
(3) Wang, Z. X.; Yan, W. F.; Tian, D. Y.; Cao, X. J.; Yu, J. H.; Xu, R. R. Acta Phys. -Chim. Sin. 2010, 26, 2044. [王周翔, 闫文付, 田大勇, 曹学静, 于吉红, 徐如人. 物理化学学报, 2010, 26, 2044.] doi: 10.3866/PKU.WHXB20100714
(4) Zhang, Y. F.; Tokay, B.; Funke, H. H.; Falconer, J. L.; Noble, R. D. J. Membr. Sci. 2010, 363, 29. doi: 10.1016/j.memsci.2010.06.054
(5) Yuan, W. H.; Chang, R. R.; Liu, X. C.; Li, L. Acta Phys. -Chim. Sin. 2011, 27, 2493. [袁文辉, 常然然, 刘晓晨, 李莉. 物理化学学报, 2011, 27, 2493.] doi: 10.3866/PKU.WHXB20110917
(6) Gascon, J.; Kapteijn, F.; Zornoza, B.; Sebastián, V.; Casado, C.; Coronas, J. Chem. Mater. 2012, 24, 2829. doi: 10.1021/cm301435j
(7) Hinkle, K. R.; Jameson, C. J.; Murad, S. J. Phys. Chem. C 2014, 118, 23803. doi: 10.1021/jp507155s
(8) Chen, H. L.; Li, Y. S.; Zhu, G. Q.; Yang, W. S. Sci. China Ser. B -Chem. 2009, 52, 579.
(9) Zhong, Y. J.; Xu, X. H.; Xiao, Q.; Jiang, L.; Zhu, W. D.; Ma, C. A. Acta Phys. -Chim. Sin. 2008, 24, 1875. [钟依均, 许晓华, 肖强, 姜丽, 朱伟东, 马淳安. 物理化学学报, 2008, 24, 1875.] doi: 10.3866/PKU.WHXB20081023
(10) Li, X. M.; Yan, Y. S.; Wang, Z. B. Ind. Eng. Chem. Res. 2010, 49, 5933. doi: 10.1021/ie1000136
(11) Lang, L.; Zhang, C.; Yin, X. L.; Wu, C. Z. Prog. Chem. 2011, 23, 1022. [郎林, 张超, 阴秀丽, 吴创之. 化学进展, 2011, 23, 1022.]
(12) Li, X. M.; Wang, Z. B.; Zheng, J.; Shao, S. Q.; Wang, Y. C.; Yan, Y. S. Chin. J. Catal. 2011, 32, 217. [李显明, 王正宝, 郑洁, 邵世群, 王胤超, 严玉山. 催化学报, 2011, 32, 217.] doi: 10.1016/S1872-206 (10)60167-2
(13) Jin, W. Y.; Cheng, D. G.; Chen, F. Q.; Zhan, X. L. Acta Phys. -Chim. Sin. 2013, 29, 139. [金炜阳, 程党国, 陈丰秋, 詹晓力. 物理化学学报, 2013, 29, 139.] doi: 10.3866/PKU. WHXB201210263
(14) Wang, Z.; Yu, T.; Nian, P.; Zhang, Q. C.; Yao, J. K.; Li, S.; Gao, Z. N.; Yue, X. L. Langmuir 2014, 30, 4531. doi: 10.1021/la500115t
(15) Dong, J. H.; Lin, Y. S.; Hu, M. Z. C.; Peascoe, R. A.; Payzant, E. A. Microporous Mesoporous Mat. 2000, 34, 241. doi: 10.1016/S1387-1811(99)00175-4
(16) Zhang, X. F.; Li, B. M.; Wang, J. Q.; Liu, C. H. Petrochem. Technol. 2002, No. 1, 10. [张雄福, 李邦民, 王金渠, 刘长厚.石油化工, 2002, No. 1, 10.]
(17) Wang, C.; Liu, X. F.; Cui, R. L.; Zhang, B. Q. Prog. Chem. 2008, 20, 1860. [王聪, 刘秀凤, 崔瑞利, 张宝泉. 化学进展, 2008, 20, 1860.]
(18) Hong, Z.; Sun, F.; Chen, D. D.; Zhang, C.; Gu, X. H.; Xu, N. P. Int. J. Hydrog. Energy 2013, 38, 8409. doi: 10.1016/j.ijhydene.2013.04.154
(19) Liu, X. F.; Zhang, B. Q.; Lin, Y. S. J. Chin. J. Inorg. Chem. 2008, 24, 1679. [刘秀凤, 张宝泉, 林跃生. 无机化学学报, 2008, 24, 1679.]
(20) Cheng, Y.; Yang, Y. C.; Li, J. S.; Sun, X. Y.; Wang, L. J. Chin. J. Inorg. Chem. 2005, 21, 796. [成岳, 杨宇川, 李健生, 孙秀云, 王连军. 无机化学学报, 2005, 21, 796.]
(21) Kanezashi, M.; O'Brien, J.; Lin, Y. S. J. Membr. Sci. 2006, 286, 213. doi: 10.1016/j.memsci.2006.09.038
(22) Zhang, B. Q.; Wang, C.; Lang, L.; Cui, R. L.; Liu, X. F. Adv. Funct. Mater. 2008, 18, 3434. doi: 10.1002/adfm.v18:21
(23) Jiang, H. Y.; Zhang, B. Q.; Lin, Y. S.; Li, Y. D. Chin. Sci. Bull. 2004, 49, 2133. [蒋海洋, 张宝泉, 林跃生, 李永丹. 科学通报, 2004, 49, 2133.] doi: 10.1007/BF03185778
(24) Gopalakrishnan, S.; Yamaguchi, T.; Nakao, S. J. Membr. Sci. 2006, 274, 102. doi: 10.1016/j.memsci.2005.08.005
(25) Heng, S.; Lau, P. P. S.; Yeung, K. L.; Djafer, M.; Schrotter, J. C. J. Membr. Sci. 2004, 243, 69. doi: 10.1016/j.memsci.2004.05.025
(26) Jirka, I.; Zikánová, A.; Novák, P.; Ko?i?ík, M.; Weber, J.; Pelouchová, H.; ?erňanský, M. Mater. Chem. Phys. 2005, 90, 116. doi: 10.1016/j.matchemphys.2004.10.019
(27) Jareman, F.; Andersson, C.; Hedlund, J. Microporous Mesoporous Mat. 2005, 79, 1. doi: 10.1016/j.micromeso.2004.10.032
(28) Li, Q. H.; Amweg, M. L.; Yee, C. K.; Navrotsky, A.; Parikh, A. N. Microporous Mesoporous Mat. 2005, 87, 45. doi: 10.1016/j.micromeso.2005.07.048
(29) Patarin, J. Angew. Chem. Int. Edit. 2004, 43, 3878.
(30) Xie, L. L.; Li, Q. H.; Yuan, H.; Wang, L. J.; Tian, Z.; Bing, N. C. Acta Chim. Sin. 2008, 66, 2113. [解丽丽, 李庆华, 袁昊, 王利军, 田震, 邴乃慈. 化学学报, 2008, 66, 2113.]
(31) Su, G. X.; Jin, J. S.; Cui, W. G.; Liu, H. T.; Zhang, Z. T. Chin. J. Process Eng. 2012, No. 1, 64. [苏广训, 金君素, 崔文广, 刘洪涛, 张泽廷. 过程工程学报, 2012, No. 1, 64.]
(32) Wang, Y. H.; Tan, J.; Liu, J.; Chen, Y.; Li, X. Y. Acta Chim. Sin. 2010, 68, 2471. [王业红, 谭涓, 刘靖, 陈颖, 李旭影. 化学学报, 2010, 68, 2471.]
(33) Liu, Y. Template Removal from Molecular SievesUsing Cold Plasma. Ph.D. Dissertation, Tianjin University, Tianjin, 2010. [刘媛. 冷等离子体脱除分子筛模板剂研究[D]. 天津: 天津大学, 2010.]
(34) Serrano, D. P.; García, R. A.; Linares, M.; Gil, B. Catal. Today 2012, 179, 91. doi: 10.1016/j.cattod.2011.06.029
(35) Pachtová, O.; Kocirik, M.; Zikánová, A.; Bernauer, B.; Miachon, S.; Dalmon, J. A. Microporous Mesoporous Mat. 2002, 55, 285. doi: 10.1016/S1387-1811(02)00430-4
(36) Mateo, E.; Paniagua, A.; Güell, C.; Coronas, J.; Santamaría, J. Mater. Res. Bull. 2009, 44, 1280. doi: 10.1016/j.materresbull.2009.01.003
(37) Gao, X. T.; Yeh, C. Y.; Angevine, P. Microporous Mesoporous Mat. 2004, 70, 27. doi: 10.1016/j.micromeso.2004.02.014
(38) Liu, X. G.; Xu, L.; Zhang, B. Q.; Liu, X. F. Microporous Mesoporous Mat. 2014, 193, 127. doi: 10.1016/j.micromeso.2013.12.034
(39) Liu, X. B.; Liu, Z. M.; Chang, F. X.; Qu, L. H.; Sang, S. Y.; Zhang, Y. Y. New Carbon Mater. 2006, 21, 237. [刘献斌, 刘中民, 常福祥, 曲丽红, 桑石云, 张阳阳. 新型炭材料, 2006, 21, 237.]
(40) Karwacki, L.; Weckhuysen, B. M. Phys. Chem. Chem. Phys. 2011, 13, 3681. doi: 10.1039/C0CP02220A
(41) Jirka, I.; Sazama, P.; Zikánová, A.; Hrabánek, P.; Kocirik, M. Microporous Mesoporous Mat. 2011, 137, 8. doi: 10.1016/j.micromeso.2010.08.015
(42) Ivanov, D. P.; Sobolev, V. I.; Panov, G. I. Appl. Catal. A 2003, 241, 113. doi: 10.1016/S0926-860X(02)00462-3
(43) Guisnet, M.; Costa, L.; Ribeiro, F. R. J. Mol. Catal. A: Chem. 2009, 305, 69. doi: 10.1016/j.molcata.2008.11.012
(44) He, J.; Yang, X. B.; Evans, D. G.; Duan, X. Mater. Chem. Phys. 2003, 77, 270. doi: 10.1016/S0254-0584(01)00557-0
(45) Kuhn, J.; Motegh, M.; Gross, J.; Kapteijn, F. Microporous Mesoporous Mat. 2009, 120, 35. doi: 10.1016/j.micromeso.2008.08.061
