具有聚集诱导发光特性的新型铂(Ⅱ)金属配合物及其光激发的自敏化氧化反应

doi:10.3866/PKU.WHXB201902014

Abstract

Abstract:

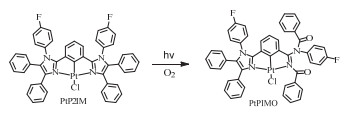

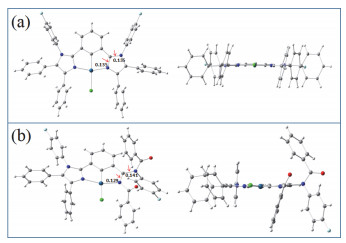

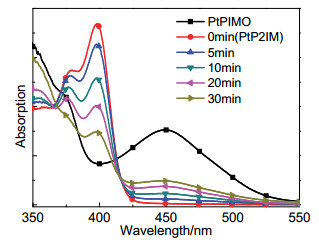

The excited states of transition metal complexes with a wide range of photochemical and photophysical properties have attracted considerable attention recently. However, the luminescence property is affected by concentration quenching in practical applications. Aggregation-induced emission (AIE) is an effective strategy to solve this problem. In this work, a new imidazole-based N^C^N Pt(Ⅱ) metal complex, PtP2IM, with the AIE property was synthesized and characterized according to its single crystal structure. Under visible light, we found that the metal complex undergoes a photo-oxidation reaction with the generation of a new red-emitting, imidazole/benzoylimino-based N^C^N' Pt(Ⅱ) metal complex, PtPIMO, which was also confirmed by the crystal structure. Additional studies on the reaction process and conditions of this photo-oxidation reaction were conducted using different methods, such as NMR, UV-Vis spectroscopy, and so on. The experimental results showed that the change from PtP2IM to PtPIMO gradually occurred, and the new photochemical reaction was finally concluded as the C＝C double bond in either one of the two imidazole rings of the PtP2IM complex was attacked by oxygen to generate a new complex, PtPIMO, under photoirradiation in air. Electron paramagnetic resonance (EPR) measurements demonstrated the production of singlet oxygen, which is an excited state of oxygen with a high energy. Through the density functional theory (DFT) calculations, the electronic transition was determined to be a metal to ligand charge transfer (MLCT) in which more energy could transfer from the triplet excited state of PtP2IM to the ground-state oxygen to generate singlet oxygen (¹O₂) with a high intersystem crossing (ISC) efficiency due to the spin-orbit coupling of Pt heavy atoms. When large amounts of the singlet capture agent, triethylenediamine (TEDA) were added, the previously observed UV-Vis spectra change that corresponded to the photo oxidation reaction was not detected, which means that the photo-oxidation reaction observed in the case of PtP2IM was because of the oxidation by singlet oxygen. When oxygen was removed, excellent photostability and an obvious aggregation-induced emission (AIE) were observed for PtP2IM with the luminescent quantum efficiency of PtP2IM in solution and as a film at ~3% and ~20%, respectively. Based on the packing structure in the crystal, we observed that there were no strong intermolecular interactions, such as π-π or Pt-Pt interactions. Additionally, many intermolecular CH―π bonds between the two adjacent PtP2IM molecules were observed, which could effectively limit the rotation of the peripheral phenyl group linked to the imidazole ring. Thus, the AIE property of PtP2IM was attributed to the restricted intramolecular rotation (RIR) effect of the peripheral flexible phenyl group that was linked to the imidazole ring in the solid state in which the vibration of multiple peripheral benzene rings was effectively suppressed. This decreased the non-radiative transition rate and induced the high luminescent quantum efficiency. In the aggregation state, PtP2IM still demonstrated the photo-oxidation reaction by singlet oxygen. Thus, we report a new Pt(Ⅱ) metal complex, PtP2IM, with the AIE property that can undergo an uncommon photo-oxidation reaction in the photo-excitation state. This work aimed to elucidate the basic photochemical and photophysics of transition metal complexes with the AIE property.

Key words: Pt(Ⅱ) metal complex, Photo-oxidation reaction, Singlet oxygen, MLCT, AIE

Click here to download Supporting Info material in PDF type

Shizhao WANG, Weijun LI, Yue YU, Jin LIU, Cheng ZHANG. Aggregation-Induced Emission Property of a Novel Pt(Ⅱ) Metal Complex and Its Self-Sensitized Oxidation Reaction in Photo-Excitation State[J].Acta Physico-Chimica Sinica, 2019, 35(11): 1276-1281.

Figures/Tables 8

References 29

1	Li K. ; Tong G. S. M. ; Wan Q. Y. ; Cheng G. ; Tog W. Y. ; Ang W. H. ; Kwong W. L. ; Che C. M. Chem. Sci. 2016, 7, 1653. doi: 10.1039/c5sc03766b
2	Zhang S. T. ; Yao L. ; Peng Q. M. ; Li W. J. ; Pan Y. Y. ; Xiao R. ; Gao Y. ; Gu C. ; Wang Z. M. ; Lu P. ; et al Adv. Funct. Mater. 2015, 25, 1755. doi: 10.1002/adfm.201404260
3	Wei C. D. ; Ge G. P. ; Li C. Y. ; Lei K. W. ; Liang H. Z. ; Yu G. ; Liu Z. W. Acta Phys. -Chim. Sin. 2015, 31, 17. doi: 10.3866/PKU.WHXB201411212
	韦传东; 葛国平; 李春艳; 雷克微; 梁洪泽; 禹钢; 刘志伟. 物理化学学报, 2015, 31, 17. doi: 10.3866/PKU.WHXB201411212
4	Wang J. ; Zhang F. J. ; Xu Z. ; Wang Y. S. Acta Phys. -Chim. Sin. 2012, 28, 949. doi: 10.3866/PKU.WHXB201201163
	王健; 张福俊; 徐征; 王永生. 物理化学学报, 2012, 28, 949. doi: 10.3866/PKU.WHXB201201163
5	Zhang J. ; Du P. W. ; Schneider J. ; Jarosz P. ; Eisenberg R. J. Am. Chem. Soc. 2007, 129, 7726. doi: 10.1021/ja071789h
6	Zhong J. J. ; Yang C. ; Chang X. Y. ; Zou C. ; Lu W. ; Che C. M. Chem. Commun. 2017, 53, 8948. doi: 10.1039/c7cc03823b
7	Xiao J. D. ; Shang Q. C. ; Xiong Y. J. ; Zhang Q. ; Luo Y. ; Yu S. H. ; Jiang H. L. Angew. Chem. Int. Ed 2016, 55, 1. doi: 10.1002/anie.201603990
8	Grove L. J. ; Rennekamp J. M. ; Jude H. ; Connick W. B. J. Am. Chem. Soc. 2004, 126, 1594. doi: 10.1021/ja037783j
9	Zhang M. M. ; Saha M. L. ; Wang M. ; Zhou Z. X. ; Song B. ; Lu C. J. ; Yan X. Z. ; Li X. P. ; Huang F. H. ; Yin S. C. ; et al J. Am. Chem. Soc. 2017, 139, 5067. doi: 10.1021/jacs.6b12536
10	Saha M. L. ; Yan X. Z. ; Stang P. J. Acc. Chem. Res. 2006, 49, 2527. doi: 10.1021/acs.accounts.6b00416
11	Garcia-Chocano V. M. ; Sanchez-Dehesa J. Appl. Catal. B 2006, 69, 1. doi: 10.1016/j.apacoust.2012.06.008
12	Zhou J. ; Zhang Y. Z. ; Yu G. C. ; Crawley M. R. ; Fulong C. R. P. ; Friedman A. E. ; Sengupta S. ; Sun J. F. ; Li Q. ; Huang F. H. ; et al J. Am. Chem. Soc. 2018, 140, 7730. doi: 10.1021/jacs.8b04929
13	Nosaka Y. ; Nosaka A. Y. Chem. Rev 2017, 117, 11302. doi: 10.1021/acs.chemrev.7b00161
14	Ge J. C. ; Lan M. H. ; Zhou B. J. ; Liu W. M. ; Guo L. ; Wang H. ; Jia Q. Y. ; Niu G. L. ; Huang X. ; Zhou H. Y. Nat. Commun 2014, 5, 4596. doi: 10.1038/ncomms5596
15	von Kockritz-Blickwede M. ; Goldmann O. ; Thulin P. ; Heinemann K. ; Norrby-Teglund A. ; Rohde M. ; Medina E. Blood 2008, 111, 6. doi: 10.1182/blood-2007-07-104018
16	Yogo T. ; Urano Y. ; Ishitsuka Y. ; Maniwa F. ; Nagano T. J. Am. Chem. Soc. 2005, 127, 12162. doi: 10.1021/ja0528533
17	Zhao J. Z. ; Wu W. H. ; Sun J. F. ; Guo S. Chem. Soc. Rev. 2013, 42, 5323. doi: 10.1039/c3cs35531d
18	Adarsh N. ; Avirah R. R. ; Ramaiah D. Org. Lett. 2010, 12, 5720. doi: 10.1021/ol102562k
19	Zhou C. J. ; Zhang S. T. ; Gao Y. ; Liu H. C. ; Shan T. ; Liang X. M. ; Yang B. ; Ma Y. G. Adv. Funct. Mater 2018, 1802407 doi: 10.1002/adfm.201802407
20	Yin L. ; Liang C. ; Chen K. X. ; Zhao C. X. ; Yao J. ; Li H. R. Acta Phys. -Chim. Sin. 2017, 33, 1390. doi: 10.3866/PKU.WHXB201704111
	尹璐; 梁程; 陈可先; 赵琛烜; 姚加; 李浩然. 物理化学学报, 2017, 33, 1390. doi: 10.3866/PKU.WHXB201704111
21	Shi H. B. ; Liu J. Z. ; Geng J. L. ; Tang B. Z. ; Liu B. J. Am. Chem. Soc. 2012, 134, 9569. doi: 10.1021/ja302369e
22	Chen S. J. ; Hong Y. N. ; Liu Y. ; Liu J. Z. ; Leung C. W. T. ; Li M. ; Kwok R. T. K. ; Zhao E. G. ; Lam J. W. Y. ; Yu Y. J. Am. Chem. Soc 2013, 135, 4926. doi: 10.1021/ja400337p
23	Ding D. ; Goh C. C. ; Feng G. X. ; Zhao Z. J. ; Liu J. ; Liu R. R. ; Tomczak N. ; Geng J. L. ; Tang B. Z. ; Ng L. G. Adv. Mater 2013, 25, 6083. doi: 10.1002/adma.201301938
24	Atkins A. J. ; Talotta F. ; Freitag L. ; Boggio-Pasqua M. ; Gonzalez L. J. Chem. Theory Comput. 2017, 13, 4123. doi: 10.1021/acs.jctc.7b00379
25	White E. H. ; Harding M. J. C. Photochem. Photobiol. 1965, 4, 1129. doi: 10.1111/j.1751-1097.1965.tb09302.x
26	Yu Y. ; Zhao R. Y. ; Zhou C. J. ; Sun X. Y. ; Wang S. Z. ; Gao Y. ; Li W. J. ; Lu P. ; Yang B. ; Zhang C. Chem. Commun 2019, 55, 977. doi: 10.1039/C8CC08558G
27	Baciocchi E. ; Del Giacco T. ; Elisei F. ; Gerini M. F. ; Guerra M. ; Lapi A. ; Liberali P. J. Am. Chem. Soc. 2003, 125, 16444. doi: 10.1021/ja037591
28	Liu J. ; Li W. J. ; Liu M. J. ; Dong Y. J. ; Dai Y. Y. ; Song Q. B. ; Wang J. L. ; Zhang C. Phys. Chem. Chem. Phys 2018, 20, 28279. doi: 10.1039/C8CP05581E
29	Li W. J. ; Wang S. Z. ; Zhang Y. J. ; Gao Y. ; Dong Y. J. ; Zhang X. ; Song Q. B. ; Yang B. ; Ma Y. G. ; Zhang C. J. Mater. Chem. C 2017, 5, 8097. doi: 10.1039/C7TC02474F
