水蒸汽浴FeS2高效Fenton降解甲草胺

doi:10.3866/PKU.WHXB202209033

物理化学学报 >> 2023, Vol. 39 >> Issue (3): 2209033.doi: 10.3866/PKU.WHXB202209033

水蒸汽浴FeS₂高效Fenton降解甲草胺

江吉周¹, 余良浪¹, 李方轶¹, 邓文明¹, 潘聪², 王海涛¹^,*(), 邹菁¹, 丁耀彬², 邓凤霞³, 黄佳¹^,*()

¹ 武汉工程大学, 环境生态与生物工程学院, 化学与环境工程学院, 化工与制药学院, 绿色化工程教育部重点实验室, 磷资源开发利用教育部工程研究中心, 新型催化材料湖北省工程研究中心, 武汉 430205
² 中南民族大学, 资源与环境学院, 武汉 430074
³ 哈尔滨工业大学, 环境学院, 城市水资源与水环境国家重点实验室, 哈尔滨 150090

收稿日期:2022-09-21 录用日期:2022-10-25 发布日期:2022-10-31
通讯作者: 王海涛,黄佳 E-mail:wanghaitao@wit.edu.cn;21070201@wit.edu.cn
基金资助:
国家自然科学基金(62004143);国家自然科学基金(21876209);湖北省重点研发计划(2022BAA084);湖北省自然科学基金(2021CFB133);中央引导地方科技发展专项基金(2020ZYYD033);能量转换与存储材料化学教育部重点实验室开放基金(2021JYBKF05);磷资源开发利用教育部工程研究中心创新项目(LCX2021003);武汉工程大学绿色化工程教育部重点实验室开放基金(GCP202101)

Water Steam Bathed FeS₂ for Highly Efficient Fenton Degradation of Alachlor

Jizhou Jiang¹, Lianglang Yu¹, Fangyi Li¹, Wenming Deng¹, Cong Pan², Haitao Wang¹^,*(), Jing Zou¹, Yaobin Ding², Fengxia Deng³, Jia Huang¹^,*()

¹ School of Environmental Ecology and Biological Engineering, School of Chemistry and Environmental Engineering, School of Chemical Engineering and Pharmacy, Key Laboratory of Green Chemical Engineering Process of Ministry of Education, Engineering Research Center of Phosphorus Resources Development and Utilization of Ministry of Education, Novel Catalytic Materials of Hubei Engineering Research Center, Wuhan Institute of Technology, Wuhan 430205, China
² College of Resources and Environmental Science, South-Central Minzu University, Wuhan 430074, China
³ State Key Laboratory of Urban Water Resources and Environment, School of Environment, Harbin Institute of Technology, Harbin 150090, China

Received:2022-09-21 Accepted:2022-10-25 Published:2022-10-31
Contact: Haitao Wang, Jia Huang E-mail:wanghaitao@wit.edu.cn;21070201@wit.edu.cn
Supported by:
the National Natural Science Foundation of China(62004143);the National Natural Science Foundation of China(21876209);Key R & D Program of Hubei Province, China(2022BAA084);Natural Science Foundation of Hubei Province, China(2021CFB133);the Central Government Guided Local Science and Technology Development Special Fund Project, China(2020ZYYD033);the Open Research Fund of Key Laboratory of Material Chemistry for Energy Conversion and Storage, China (HUST), Ministry of Education, China(2021JYBKF05);the Innovation Project of Engineering Research Center of Phosphorus Resources Development and Utilization of Ministry of Education, China(LCX2021003);the Opening Fund of Key Laboratory for Green Chemical Process of Ministry of Education of Wuhan Institute of Technology, China(GCP202101)

摘要/Abstract

摘要：

由于硫化铁在自然环境中的丰富性，其生成活性氧和降解各种有机污染物的类Fenton活性已被广泛研究。然而，由于表面含铁活性位点的暴露有限，它们的类Fenton活性通常不高。在本研究中，以黄铁矿(FeS₂)为例，基于水蒸汽对FeS₂的热处理，开发了一种提高硫化铁矿物Fenton活性的新策略，研究发现经水蒸汽热处理后的FeS₂ (Heat-FeS₂)对甲草胺(ACL)的非均相Fenton活性比由水热反应制备的母体FeS₂ (Fresh-FeS₂)更高。在初始pH为6.3时，Heat-FeS₂-Fenton体系对ACL的降解速率为0.48 min⁻¹，约为Fresh-FeS₂-Fentton体系的23倍。电子自旋共振分析和苯甲酸探针实验证实，与Fresh-FeS₂-Fenton体系相比，在Heat-FeS₂-Fenton体系中产生更多的羟基自由基(•OH)和超氧自由基(•O₂⁻)。Heat-FeS₂的Fenton活性大幅增强主要可归因于含量增加的高活性表面Fe²⁺/Fe³⁺组份、较高的Fe²⁺浸出量和最佳的反应pH条件。扫描电镜，透射电镜，X射线光电子能谱(XPS)和傅里叶变换红外光谱等一系列表征结果表明，热处理可显著促进晶格Fe²⁺向表面活性Fe²⁺的转化，同时增强表面SO₄²⁻的生成，从而形成高酸性表面。此外，热处理后Fresh-FeS₂表面Fe²⁺在表面总铁中的百分比从13%提高到了Heat-FeS₂的29%，而且Heat-FeS₂的Fe²⁺浸出量(0.23 mmol·L⁻¹)也远高于Fresh-FeS₂的Fe²⁺浸出量(< 0.02 mmol·L⁻¹)。为了进一步阐明Heat-FeS₂材料ACL降解活性增强的机理，我们通过XPS技术监测类Fenton反应前后Heat-FeS₂表面Fe和S物种的变化关系。结果表明，H₂O₂反应后，Fresh-FeS₂和Heat-FeeS₂中Fe²⁺和Fe³⁺的表面含量显著增加，而S₂²⁻物种的表面浓度则相对下降，证实了S₂²⁻物种在Fe³⁺还原为Fe²⁺循环中的关键作用。重要的是，本研究不仅加深了对FeS₂氧化转化、腐蚀及其对天然环境中有毒有机物转化与降解的认识，而且还提供了一种基于硫化铁矿物的高效Fenton氧化方法。

关键词: FeS₂, 水蒸汽处理, Fenton, 表面Fe²⁺, 甲草胺

Abstract:

Fenton-like activity of iron sulfides for the generation of reactive oxygen species and degradation of various organic pollutants has been extensively investigated due to its abundance in the natural environment. However, their Fenton-like activity is usually unsatisfactory due to the limited exposure of surface ferrous reactive sites. In this work, a new strategy to enhance the Fenton-like activity of iron sulfides, using pyrite (FeS₂) as a model, was developed based on the heat treatment of FeS₂ by water steam. It was found that the FeS₂ heat-treated by water steam (Heat-FeS₂) exhibited much higher heterogeneous Fenton activity in the degradation of alachlor (ACL) than its parent FeS₂ prepared from hydrothermal reaction (Fresh-FeS₂). At an initial pH of 6.3, the rate of degradation of ACL by Heat-FeS₂ Fenton system was 0.48 min⁻¹, which is ~23 times higher than that of Fresh-FeS₂ Fenton system. Electron spin resonance analysis and benzoic acid probe experiments confirmed the production of more hydroxyl (•OH) and superoxide radicals (•O₂⁻) in Heat-FeS₂ Fenton system than Fresh-FeS₂ Fenton system. The increased Fenton-like activity of Heat-FeS₂ can be attributed to the increased content of highly reactive surface bonded Fe²⁺/Fe³⁺ species, higher amount of leached Fe²⁺, and optimal reaction pH due to stronger acidification of Heat-FeS₂. Characterization studies by scanning electron microscopy, transmission electron microscopy, X-ray photoelectron spectroscopy (XPS), and Fourier-transform infrared spectroscopy showed that heat treatment remarkably promoted the transformation of lattice Fe²⁺ to surface reactive Fe²⁺, allowing the exposure of more surface reactive Fe²⁺ and leaching of Fe²⁺; simultaneously, heat treatment enhanced the generation of surface SO₄²⁻, creating a highly acidic surface. The surface Fe²⁺ percentage in the surface total iron was raised from 13% in Fresh-FeS₂ to 29% in Heat-FeS₂. Fe²⁺ leaching from Heat-FeS₂ was 0.23 mmol·L⁻¹, much higher than that (< 0.02 mmol·L⁻¹) for Fresh-FeS₂. The change in the surface Fe and S species in the Heat-FeS₂ system during the Fenton-like reaction was monitored by XPS to elucidate the enhanced Fenton oxidation mechanism. The characterization results showed that after Fenton reaction with H₂O₂, the surface contents of Fe²⁺ and Fe³⁺ species on Fresh-FeS₂ and Heat-FeS₂ were remarkably raised, while the surface content of S₂²⁻ species was reduced, confirming the crucial role of S₂²⁻ in the reductive cycle of Fe³⁺ to Fe²⁺. These findings increase understanding of the oxidative transformation and corrosion of iron sulfides and its relevant transformation and degradation of toxic organics in natural environments. The results of this work also provide an efficient Fenton-like oxidation method based on iron sulfides for highly efficient degradation of organic pollutants (e.g. ACL) in aqueous solution.

Key words: FeS₂, Water steam treatment, Fenton, Surface Fe²⁺ species, Alachlor

点击下载补充材料PDF格式文件

江吉周, 余良浪, 李方轶, 邓文明, 潘聪, 王海涛, 邹菁, 丁耀彬, 邓凤霞, 黄佳. 水蒸汽浴FeS₂高效Fenton降解甲草胺[J]. 物理化学学报, 2023, 39(3), 2209033. doi: 10.3866/PKU.WHXB202209033

Jizhou Jiang, Lianglang Yu, Fangyi Li, Wenming Deng, Cong Pan, Haitao Wang, Jing Zou, Yaobin Ding, Fengxia Deng, Jia Huang. Water Steam Bathed FeS₂ for Highly Efficient Fenton Degradation of Alachlor[J]. Acta Phys. -Chim. Sin. 2023, 39(3), 2209033. doi: 10.3866/PKU.WHXB202209033

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202209033

https://www.whxb.pku.edu.cn/CN/Y2023/V39/I3/2209033

图/表 10

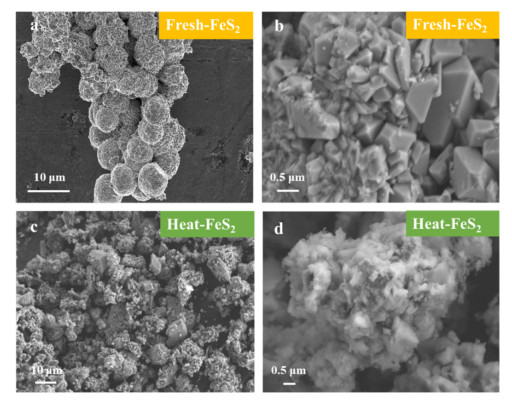

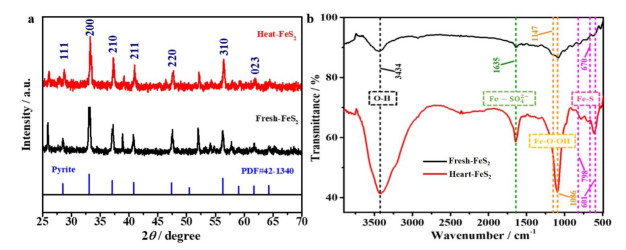

Fig 1

Fig 2

Table 1

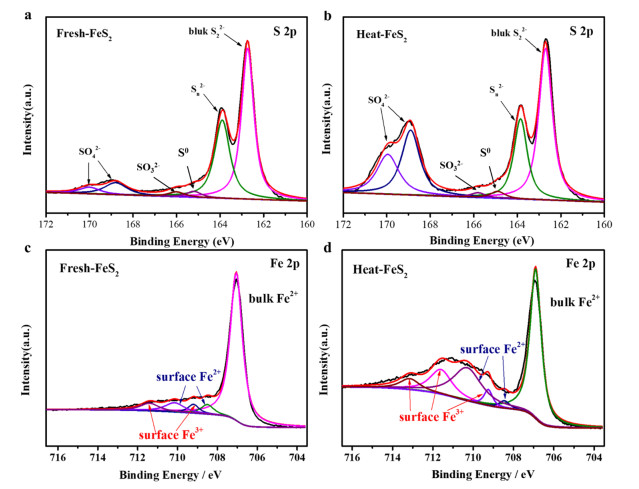

Fig 3

Table 2

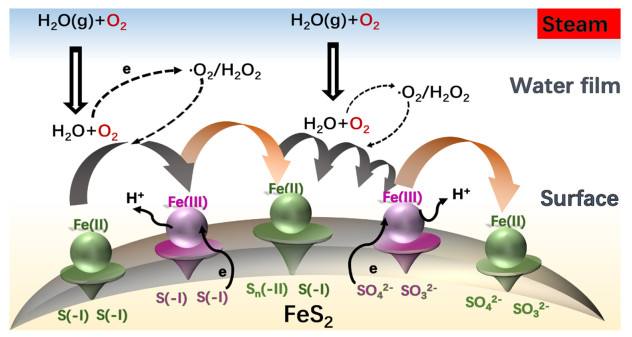

Fig 4

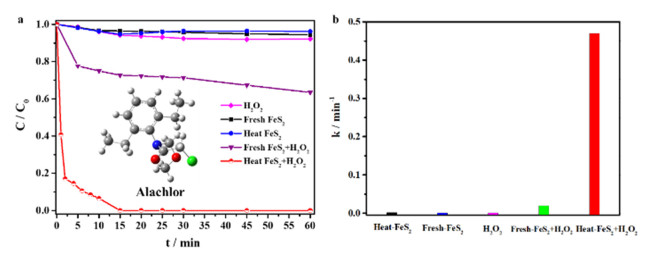

Fig 5

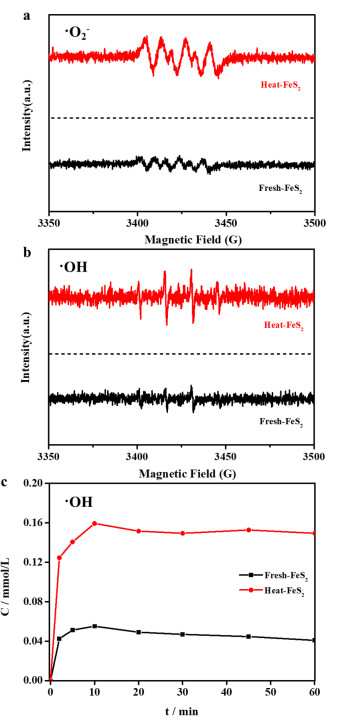

Fig 6

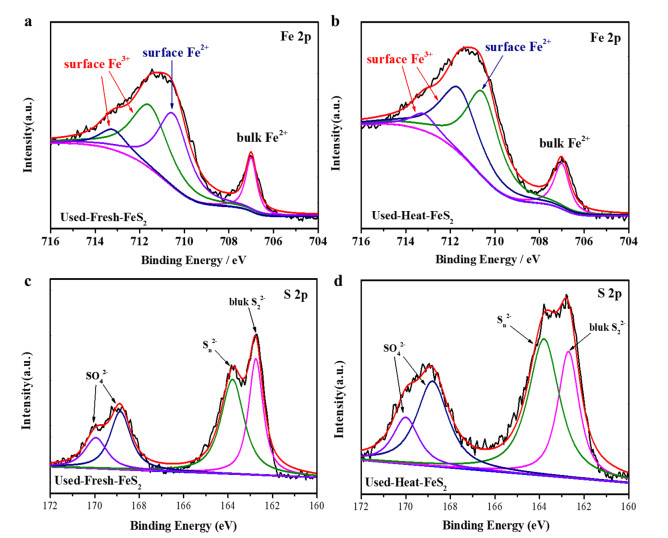

Fig 7

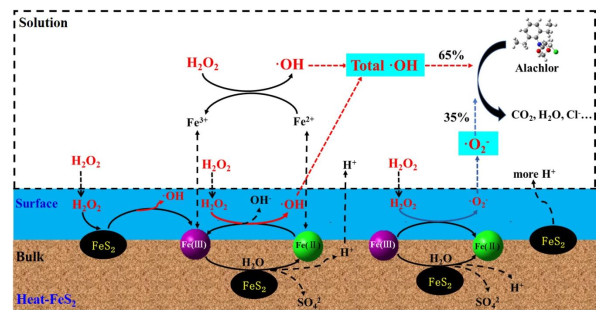

Fig 8

参考文献 39

1	Tyohemba, R. L.; Humphries, M. S.; Schleyer, M. H.; Porter, S. N. Environ. Pollut. 2022, 294, 118665. doi: 10.1016/j.envpol.2021.118665
2	Lou, Y. Y.; Geneste, F.; Soutrel, I.; Amrane, A.; Fourcade, F. Sep. Purif. Technol. 2020, 232, 115936. doi: 10.1016/j.seppur.2019.115936
3	Lerro, C. C.; Andreotti, G.; Koutros, S.; Lee, W. J.; Hofmann, J. N.; Sandler, D. P.; Parks, C. G.; Blair, A.; Lubin, J. H.; Freeman, L. E. B. JNCI-J. Natl. Cancer Inst. 2018, 110, 950. doi: 10.1093/jnci/djy005
4	Pipi, A. R. F.; De Andrade, A. R.; Brillas, E.; Sires, I. Sep. Purif. Technol. 2014, 132, 674. doi: 10.1016/j.seppur.2014.06.022
5	Gil, F. N.; Goncalves, A. C.; Jacinto, M. J.; Becker, J. D.; Viegas, C. A. Environ. Toxicol. Chem. 2011, 30, 2506. doi: 10.1002/etc.640
6	Kidak, R.; Dogan, S. Chem. Eng. Process. 2015, 89, 19. doi: 10.1016/j.cep.2014.12.010
7	Pérez, M. H.; Vega, L. P.; Zúñiga-Benítez, H.; Peñuela, G. A. Water Air Soil Poll. 2018, 229, 346. doi: 10.1007/s11270-018-3996-6
8	Ghosh, A.; Meshram, N. K.; Saha, R. Environ. Sci. Pollut. Res. Int. 2019, 26, 11951. doi: 10.1007/s11356-019-04621-4
9	Vanraes, P.; Wardenier, N.; Surmont, P.; Lynen, F.; Nikiforov, A.; Van Hulle, S. W. H.; Leys, C.; Bogaerts, A. J. Hazard. Mater. 2018, 354, 180. doi: 10.1016/j.jhazmat.2018.05.007
10	De Luna, M. D. G.; Rivera, K. K. P.; Suwannaruang, T.; Wantala, K. Desalin. Water Treat. 2016, 57, 6712. doi: 10.1080/19443994.2015.1011706
11	Paul, B.; Martens, W. N.; Frost, R. L. J. Colloid. Interface Sci. 2011, 360, 132. doi: 10.1016/j.jcis.2011.04.055
12	Palanisamy, B.; Babu, C. M.; Sundaravel, B.; Shanthi, K.; Murugesan, V. Sci. Adv. Mater. 2015, 7, 746. doi: 10.1166/sam.2015.1914
13	Huang, X.; Hou, X.; Jia, F.; Song, F.; Zhao, J.; Zhang, L. ACS Appl. Mater. Interfaces 2017, 9, 8751. doi: 10.1021/acsami.6b16600
14	Xin, Y.; Liu, H.; Han, L.; Zhou, Y. J. Hazard. Mater. 2011, 192, 1812. doi: 10.1016/j.jhazmat.2011.07.005
15	Lauga, B.; Girardin, N.; Karama, S.; Menach, K. L.; Budzinski, H.; Duran, R. Environ. Sci. Pollut. Res. Int. 2013, 20, 1089. doi: 10.1007/s11356-012-0999-5
16	Qiang, Z.; Liu, C.; Dong, B.; Zhang, Y. Chemosphere 2010, 78, 517. doi: 10.1016/j.chemosphere.2009.11.037
17	Cheng, D.; Yuan, S.; Liao, P.; Zhang, P. Environ. Sci. Technol. 2016, 50, 11646. doi: 10.1021/acs.est.6b02833
18	Zhang, P.; Yuan, S. Geochim. Cosmochim. Acta 2017, 218, 153. doi: 10.1016/j.gca.2017.08.032
19	Jia, X.; Bai, X.; Ji, Z.; Li, Y.; Sun, Y.; Mi, X.; Zhan, S. Acta Phys. -Chim. Sin. 2021, 37, 2010042.
	贾晓庆, 白晓宇, 吉喆喆, 李轶, 孙妍, 秘雪岳, 展思辉物理化学学报, 2021, 37, 2010042. doi: 10.3866/PKU.WHXB202010042
20	Tabasum, A.; Bhatti, I. A.; Nadeem, N.; Zahid, M.; Rehan, Z. A.; Hussain, T.; Jilani, A. Water Sci. Technol. 2020, 81, 178. doi: 10.2166/wst.2020.098
21	Shen, W.; Kang, H.; Ai, Z. J. Hazard. Mater. 2018, 357, 408. doi: 10.1016/j.jhazmat.2018.06.029
22	Zheng, J.; Gao, Z.; He, H.; Yang, S.; Sun, C. Chemosphere 2016, 150, 40. doi: 10.1016/j.chemosphere.2016.02.001
23	Yang, X.; Xu, X.; Xu, J.; Han, Y. J. Am. Chem. Soc. 2013, 135, 16058. doi: 10.1021/ja409130c
24	Li, Y.; Hu, X.; Huang, J.; Wang, L.; She, H.; Wang, Q. Acta Phys. -Chim. Sin. 2021, 37, 2009022.
	李艳, 胡星盛, 黄静伟, 王磊, 佘厚德, 王其召物理化学学报, 2021, 37, 2009022. doi: 10.3866/PKU.WHXB202009022
25	Feng, H.; Ju, Y.; Chen, B.; Fang, W.; Zhu, H.; Li, W.; Ju, L.; Qiao, P. J. Nanosci. Nanotechnol. 2021, 21, 246. doi: 10.1166/jnn.2021.18744
26	Kantar, C.; Oral, O.; Urken, O.; Oz, N. A. J. Hazard. Mater. 2019, 373, 160. doi: 10.1016/j.jhazmat.2019.03.065
27	Matta, R.; Hanna, K.; Chiron, S. Sci. Total Environ. 2007, 385, 24. doi: 10.1016/j.scitotenv.2007.06.030
28	Che, H.; Bae, S.; Lee, W. J. Hazard. Mater. 2011, 185, 1355. doi: 10.1016/j.jhazmat.2010.10.055
29	Kantar, C.; Oral, O.; Oz, N. A. Chemosphere 2019, 237, 124440. doi: 10.1016/j.chemosphere.2019.124440
30	Liu, W.; Wang, Y.; Ai, Z.; Zhang, L. ACS Appl. Mater. Interfaces 2015, 7, 28534. doi: 10.1021/acsami.5b09919
31	Sun, L.; Hu, D.; Zhang, Z.; Deng, X. Int. J. Environ. Res. Public Health 2019, 16, 4773. doi: 10.3390/ijerph16234773
32	Ye, Y.; Shan, C.; Zhang, X.; Liu, H.; Wang, D.; Lv, L.; Pan, B. Environ. Sci. Technol. 2018, 52, 10657. doi: 10.1021/acs.est.8b01693
33	Fathinia, S.; Fathinia, M.; Rahmani, A. A.; Khataee, A. Appl. Surf. Sci. 2015, 327, 190. doi: 10.1016/j.apsusc.2014.11.157
34	Nie, W.; Mao, Q.; Ding, Y.; Hu, Y.; Tang, H. J. Hazard. Mater. 2019, 364, 59. doi: 10.1016/j.jhazmat.2018.09.078
35	Zhao, L.; Chen, Y.; Liu, Y.; Luo, C.; Wu, D. Chemosphere 2017, 188, 557. doi: 10.1016/j.chemosphere.2017.09.019
36	Khataee, A.; Gholami, P.; Vahid, B.; Joo, S. W. Ultrason. Sonochem. 2016, 32, 357. doi: 10.1016/j.ultsonch.2016.04.002
37	Kantar, C.; Oral, O.; Urken, O.; Oz, N. A.; Keskin, S. Environ. Pollut. 2019, 247, 349. doi: 10.1016/j.envpol.2019.01.017
38	Atalla, S. L.; Toledo-Pereyra, L. H.; MacKenzie, G. H.; Cederna, J. P. Transplantation 1985, 40, 584. doi: 10.1097/00007890-198512000-00002
39	Phulkar, S.; Rao, B.; Schuchmann, H.; Sonntag, C. Z. für Naturforschung B 1990, 45, 1425. doi: 10.1515/znb-1990-1012

Element	Sample
Element	Fresh-FeS₂	Used-Fresh-FeS₂	Heat-FeS₂	Used-Heat-FeS₂
Fe	27.39%	22.78%	23.54%	13.11%
S	45.9%	39.02%	30.24%	17.87%
O	5.11%	25.31%	27.15%	50.83%
C	21.6%	12.89%	19.07%	18.19%
Fe/S	0.6	0.58	0.78	0.73

Catalyst	$ {\text{Fe}}_{{\text{lattice}}}^{2 + }{\text{/F}}{{\text{e}}_{{\text{total}}}} $	$ {\text{Fe}}_{{\text{surface}}}^{2 + }{\text{/F}}{{\text{e}}_{{\text{total}}}} $	$ {\text{Fe}}_{{\text{lattice}}}^{2 + }{\text{/F}}{{\text{e}}_{{\text{total}}}} $
Fresh-FeS₂	0.76	0.13	0.11
Heat-FeS₂	0.47	0.29	0.24
Used-Fresh-FeS₂	0.11	0.40	0.50
Used-Heat-FeS₂	0.11	0.45	0.44

[1]	赵雪婷, 董永春, 程博闻, 康卫民. 不同直径改性PAN纳米纤维膜与Fe³⁺的配位反应及其配合物对有机染料降解的催化性能[J]. 物理化学学报, 2013, 29(12): 2513 -2522 .
[2]	万栋, 王光华, 李文兵, 陈坤, 舒广. Fe-Al 柱撑膨润土的制备及其非均相Fenton降解橙黄II[J]. 物理化学学报, 2013, 29(11): 2429 -2436 .
[3]	丁志忠, 董永春, 李冰, 李淼. 改性PTFE纤维金属配合物的制备及其光催化降解性能[J]. 物理化学学报, 2013, 29(01): 157 -166 .
[4]	杜玉栋, 赵伟娜, 郭欣, 章永凡, 陈文凯. 甲醇在FeS₂(100)完整表面的吸附和分解[J]. 物理化学学报, 2011, 27(05): 1075 -1080 .
[5]	彭林;喻宁亚;唐群力;邱化玉;尹笃林;银董红. 疏水改性MCM-41对甲草胺缓释性能的影响[J]. 物理化学学报, 2007, 23(10): 1572 -1576 .
[6]	陈艳华;郑毓峰;张校刚;孙言飞;董有忠. pH值对溶剂热合成FeS₂粉体的影响[J]. 物理化学学报, 2005, 21(04): 419 -424 .

水蒸汽浴FeS₂高效Fenton降解甲草胺

Water Steam Bathed FeS₂ for Highly Efficient Fenton Degradation of Alachlor

RichHTML

PDF

赞

可视化

摘要/Abstract

支持信息

引用本文

使用本文

图/表 10

参考文献 39

相关文章 6

Metrics

推荐阅读 0
