基于活性组分微化学状态调控的高性能Rh/CeO2-ZrO2-Al2O3催化剂构筑及三效催化性能

doi:10.3866/PKU.WHXB202302041

摘要/Abstract

摘要：

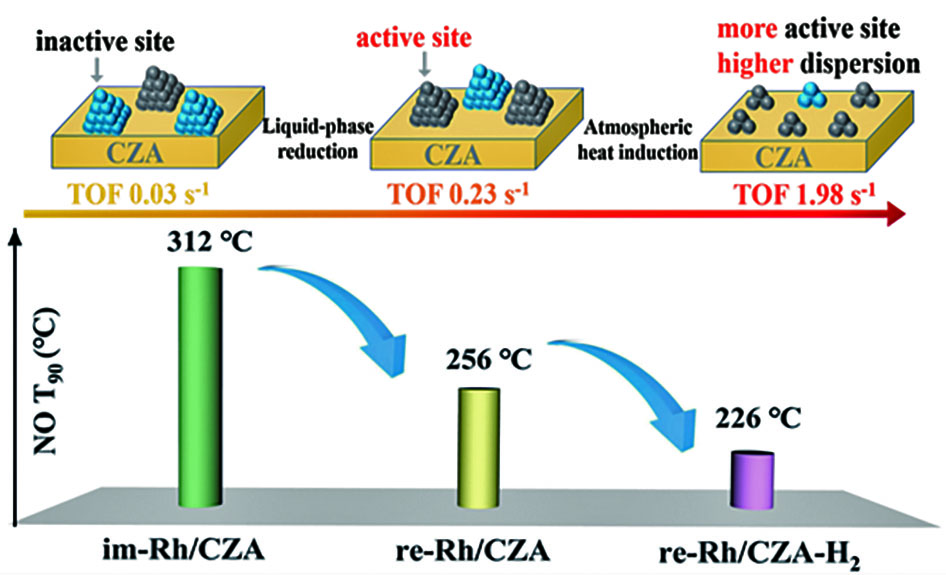

近年来，贵金属Pt、Pd、Rh价格不断攀升，提高贵金属利用效率成为未来汽油车三效催化剂的发展趋势之一。本文协同液相还原和气氛热处理技术精细调控贵金属铑(Rh)的微化学状态，以优化低含量Rh基催化剂的催化性能。同时，采用X射线粉末衍射(XRD)、H₂-程序升温还原(H₂-TPR)、CO化学吸附、X射线光电子能谱(XPS)、CO-漫反射红外(CO-FTIR)、透射电镜(TEM)和原位漫反射傅里叶变换红外吸收光谱(in situ DRIFTS)等催化剂表征方法，详细研究了Rh微化学状态(价态比例、分散性等)与催化性能之间的关系。活性测试结果表明，通过上述协同方法制备的re-Rh/CeO₂-ZrO₂-Al₂O₃-H₂ (re-Rh/CZA-H₂)催化剂表现出最好的催化活性，并且拓宽了空燃比操作窗口，其T₉₀值分别比液相还原法和浸渍法合成的催化剂低30–73 ℃和51–86 ℃。此外，通过协同方法制备的催化剂老化后也表现出优异的催化活性和高温热稳定性，其T₅₀和T₉₀值均低于新鲜样品。构效关系结果表明，re-Rh/CZA-H₂催化剂优异的催化性能归因于Rh物种具有最佳价态比例和高分散性，从而增加了活性位点的数量。同时，re-Rh/CZA-H₂-a催化剂具有相当优异的高温热稳定性，这归因于载体材料的结构稳定性，及活性Rh物种的高含量和高分散，从而暴露出更多的活性位点，促进反应物的吸附和转化。因此，采用本工作提出的协同方法来调整贵金属的微化学状态，可以提高催化剂的催化活性、高温稳定性以及空燃比操作窗口，为设计低负载量Rh基三效催化剂提供一个新思路。

关键词: 微化学状态, 三效催化剂, 液相还原, 价态比例, 气氛热处理技术

Abstract:

With the increasing number of automobile vehicles, the exhaust emitted poses a severe menace to the environment and human health, necessitating the purification of exhaust pollutants. Meanwhile, the high price of noble metals and their limited supply require a decrease in noble metal loading to reduce the costs of three-way catalysts (TWCs). Therefore, improving the utilization efficiency of noble metals and their catalytic behavior is critical for the development of next-generation TWCs with low noble metal loading. Herein, the Rh micro-chemical state was modulated using the liquid-phase reduction method combined with atmospheric heat treatment to enhance the catalytic behavior of Rh-based catalysts with low Rh loading. The catalyst was characterized using X-ray diffraction (XRD), hydrogen temperature programmed reduction (H₂-TPR), CO chemisorption, X-ray photoelectron spectroscopy (XPS), the FTIR spectroscopy of chemisorbed CO (CO-FTIR), transmission electron microscopy (TEM), and in situ diffuse reflectance IR (in-situ DRIFTS) to illustrate the relationship between Rh micro-chemical state (including valence state ratio and dispersion) and catalytic activity. The as-prepared catalyst re-Rh/CeO₂-ZrO₂-Al₂O₃-H₂ (re-Rh/CZA-H₂) exhibited better catalytic activity and a wider air/fuel ratio (λ) operating window with T₉₀ values 30–73 ℃ and 51–86 ℃ lower than those of the catalysts synthesized by liquid-phase reduction and traditional impregnation method, respectively. In addition, aged samples prepared by the combined scheme also exhibited excellent activity and stability, where the T₅₀ and T₉₀ values were lower than the fresh catalyst. Structure-activity relationship results demonstrated that the better catalytic activity of re-Rh/CZA-H₂ could be attributed to the optimal valence state ratio and highly dispersed Rh species, which increased the number of effective active sites. The considerable stability was attributed to the stable structure of the CeO₂-ZrO₂-Al₂O₃ (CZA) support, improved dispersion, and the high contents of active Rh species, which exposed more active sites to promote reactant conversion. In addition, the synergistic effect between the metallic Rh and oxygen vacancies could facilitate the anchoring of Rh nanoparticles to inhibit Rh sintering. Therefore, adjusting the micro-chemical state of noble metals by the combinatorial scheme developed herein provides a novel route for improving the catalytic activity, high-temperature stability, and air/fuel operating window of these catalysts.

Key words: Micro-chemical state, Three-way catalyst, Liquid-phase reduction, Valence state ratio, Atmospheric heat treatment

牟嘉琳, 陈柳伶, 范君, 曾路, 江雪, 焦毅, 王健礼, 陈耀强. 基于活性组分微化学状态调控的高性能Rh/CeO₂-ZrO₂-Al₂O₃催化剂构筑及三效催化性能[J]. 物理化学学报, 2023, 39(12), 2302041. doi: 10.3866/PKU.WHXB202302041

Jialin Mou, Liuling Chen, Jun Fan, Lu Zeng, Xue Jiang, Yi Jiao, Jianli Wang, Yaoqiang Chen. Construction of a Highly Active Rh/CeO₂-ZrO₂-Al₂O₃ Catalyst Based on Rh Micro-Chemical State Regulation and Its Three-Way Catalytic Activity[J]. Acta Phys. -Chim. Sin. 2023, 39(12), 2302041. doi: 10.3866/PKU.WHXB202302041

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202302041

https://www.whxb.pku.edu.cn/CN/Y2023/V39/I12/2302041

图/表 12

Fig 1

Table 1

Fig 2

Fig 3

Fig 4

Table 2

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Fig 10

参考文献 71

1	Joshi A. SAE Tech. Pap. 2022, 45, 1704. doi: 10.4271/2022-01-0540
2	Kaspar J. ; Fornasiero P. ; Hickey N. Catal. Today 2003, 77, 419. doi: 10.1016/s0920-5861(02)00384-x
3	Getsoian A. ; Theis J. R. ; Paxton W. A. ; Lance M. J. ; Lambert C. K. Nat. Catal. 2019, 2, 614. doi: 10.1038/s41929-019-0283-x
4	Goes J. D. A. ; Woo J. W. ; Olsson L. Ind. Eng. Chem. Res. 2020, 59, 10790. doi: 10.1021/acs.iecr.0c00654
5	Hu Z. ; Allen F. M. ; Wan C. Z. ; Heck R. M. ; Steger J. J. ; Lakis R. E. ; Lyman C. E. J. Catal. 1998, 174, 13. doi: 10.1006/jcat.1997.1954
6	Nagao Y. ; Nakahara Y. ; Sato T. ; Iwakura H. ; Takeshita S. ; Minami S. ; Yoshida H. ; Machida M. ACS Catal. 2015, 5, 1986. doi: 10.1021/cs5020157
7	Heo I. ; Yoon D. Y. ; Cho B. K. ; Nam I.-S. ; Choung J. W. ; Yoo S. Appl. Catal. B 2012, 121, 75. doi: 10.1016/j.apcatb.2012.03.032
8	Huang F. ; Zheng Y. ; Li Z. ; Xiao Y. ; Zheng Y. ; Cai G. ; Wei K. Chem. Commun. 2011, 47, 5247. doi: 10.1039/c0cc05670g
9	Morikawa A. ; Suzuki T. ; Kanazawa T. ; Kikuta K. ; Suda A. ; Shinjo H. Appl. Catal. B 2008, 78, 210. doi: 10.1016/j.apcatb.2007.09.013
10	Kim G. J. ; Kwon D. W. ; Hong S. C. J. Phys. Chem. C 2016, 120, 17996. doi: 10.1021/acs.jpcc.6b02945
11	Jeong H. ; Shin D. ; Kim B.-S. ; Bae J. ; Shin S. ; Choe C. ; Han J. W. ; Lee H. Angew. Chem. Int. Ed. 2020, 59, 20691. doi: 10.1002/anie.202009776
12	Ohyama J. ; Nishiyama T. ; Satsuma A. ChemCatChem 2018, 10, 1651. doi: 10.1002/cctc.201701842
13	Gonzalez-Velasco J. R. ; Gutierrez-Ortiz M. A. ; Marc J. L. ; Botas J. A. ; Gonzalez-Marcos M. P. ; Blanchard G. Top. Catal. 2001, 16, 101. doi: 10.1023/a:1016639016156
14	Zheng T. ; He J. ; Zhao Y. ; Xia W. ; He J. J. Rare Earths 2014, 32, 97. doi: 10.1016/s1002-0721(14)60038-7
15	van Deelen T. W. ; Mejia C. H. ; de Jong K. P. Nat. Catal. 2019, 2, 955. doi: 10.1038/s41929-019-0364-x
16	Cao Y. ; Ran R. ; Wu X. ; Wu X. ; Wan J. ; Weng D. Catal. Today 2017, 281, 490. doi: 10.1016/j.cattod.2016.07.001
17	Lee J. ; Ryou Y. ; Chan X. ; Kim T. J. ; Kim D. H. J. Phys. Chem. C 2016, 120, 25870. doi: 10.1021/acs.jpcc.6b08656
18	Wang T. ; Guo X. ; Lin S. ; Zhou R. J. Rare Earths 2019, 37, 706. doi: 10.1016/j.jre.2018.10.017
19	Chen Y. ; Fan J. ; Deng J. ; Jiang X. ; Jiao Y. ; Chen Y. J. Energy Inst. 2020, 93, 2325. doi: 10.1016/j.joei.2020.07.005
20	Jiang X. ; Fan J. ; Xiang S. ; Mou J. ; Yao P. ; Jiao Y. ; Wang J. ; Chen Y. Appl. Surf. Sci. 2022, 578, 151915. doi: 10.1016/j.apsusc.2021.151915
21	Yao P. ; Huang Y. ; Jiao Y. ; Xu H. ; Wang J. ; Chen Y. Fuel. 2023, 334, 126782. doi: 10.1016/j.fuel.2022.126782
22	Fan J. ; Chen L. ; Li S. ; Mou J. ; Zeng L. ; Jiao Y. ; Wang J. ; Chen Y. J. Catal. 2023, 418, 90. doi: 10.1016/j.jcat.2023.01.009
23	He D. ; Ding X. ; Li S. ; Liang Y. ; Liu Y. ; Zhao M. ; Wang J. ; Chen Y. ACS Appl. Mater. Interfaces 2022, 14, 20875. doi: 10.1021/acsami.2c01371
24	Theis J. R. ; Getsoian A. ; Lambert C. SAE Int. J. Fuels Lubr. 2017, 10, 583. doi: 10.4271/2017-01-0918
25	Yoon D. Y. ; Kim Y. J. ; Lim J. H. ; Cho B. K. ; Hong S. B. ; Nam I.-S. ; Choung J. W. J. Catal. 2015, 330, 71. doi: 10.1016/j.jcat.2015.07.013
26	Wu J. ; O'Neill A. E. ; Li C.-H. ; Jinschek J. R. ; Cavataio G. Appl. Catal. B 2021, 280, 119450. doi: 10.1016/j.apcatb.2020.119450
27	Xi Y. ; Ottinger N. ; Liu Z. G. SAE Int. J. Eng. 2018, 11, 1331. doi: 10.4271/2018-01-1270
28	Yang X. ; Yang L. ; Lin S. ; Zhou R. J. Hazard. Mater. 2015, 285, 182. doi: 10.1016/j.jhazmat.2014.10.062
29	Kaspar J. ; Fornasiero P. ; Baiducci G. ; Di Monte R. ; Hickey N. ; Sergo V. Inorg. Chim. Acta 2003, 349, 217. doi: 10.1016/s0020-1693(03)00034-3
30	Yao M. H. ; Baird R. J. ; Kunz F. W. ; Hoost T. E. J. Catal. 1997, 166, 67. doi: 10.1006/jcat.1997.1504
31	Papavasiliou A. ; Tsetsekou A. ; Matsouka V. ; Konsolakis M. ; Yentekakis I. V. ; Boukos N. Appl. Catal. B 2009, 90, 162. doi: 10.1016/j.apcatb.2009.03.006
32	Lan L. ; Chen S. ; Cao Y. ; Gong M. ; Chen Y. Catal. Sci. Technol. 2015, 5, 4488. doi: 10.1039/c5cy00612k
33	Alcala R. ; DeLaRiva A. ; Peterson E. J. ; Benavidez A. ; Garcia-Vargas C. E. ; Jiang D. ; Pereira-Hernandez X. I. ; Brongersma H. H. ; ter Veen R. ; Stanek J. ; et al Appl. Catal. B 2021, 284, 119722. doi: 10.1016/j.apcatb.2020.119722
34	Jones J. ; Xiong H. ; DeLaRiva A. T. ; Peterson E. J. ; Hien P. ; Challa S. R. ; Qi G. ; Oh S. ; Wiebenga M. H. ; Hernandez X. I. P. ; et al Science 2016, 353, 150. doi: 10.1126/science.aaf8800
35	Deng J. ; Li Z. ; Li S. ; Yin X. ; Li M. ; Wang J. ; Chen Y. ; Chen Y. Appl. Catal. A 2022, 646, 118831. doi: 10.1016/j.apcata.2022.118831
36	Zhao B. ; Ran R. ; Cao Y. ; Wu X. ; Weng D. ; Fan J. ; Wu X. Appl. Surf. Sci. 2014, 308, 230. doi: 10.1016/j.apsusc.2014.04.140
37	Zhan Z. ; Song L. ; Liu X. ; Jiao J. ; Li J. ; He H. J. Environ. Sci. 2014, 26, 683. doi: 10.1016/s1001-0742(13)60444-1
38	Guo J. ; Wu D. ; Zhang L. ; Gong M. ; Zhao M. ; Chen Y. J. Alloys Compd. 2008, 460, 485. doi: 10.1016/j.jallcom.2007.05.088
39	Shen M. ; Lv L. ; Wang J. ; Zhu J. ; Huang Y. ; Wang J. Chem. Eng. J. 2014, 255, 40. doi: 10.1016/j.cej.2014.06.058
40	Machida M. ; Uchida Y. ; Ishikawa Y. ; Hinokuma S. ; Yoshida H. ; Ohyama J. ; Nagao Y. ; Endo Y. ; Iwashina K. ; Nakahara Y. J. Phys. Chem. C 2019, 123, 24584. doi: 10.1021/acs.jpcc.9b06657
41	Pu Z. Y. ; Liu X. S. ; Jia A. P. ; Xie Y. L. ; Lu J. Q. ; Luo M. F. J. Phys. Chem. C 2008, 112, 15045. doi: 10.1021/jp805389k
42	Yu X. ; Li J. ; Wei Y. ; Zhao Z. ; Liu J. ; Jin B. ; Duan A. ; Jiang G. Ind. Eng. Chem. Res. 2014, 53, 9653. doi: 10.1021/ie500666m
43	Wang W. ; He J. ; Qiu J. ; Zhao Y. ; Li M. ; Yin X. ; Li S. ; Wang J. ; Chen Y. J. Alloy. Compd. 2021, 879, 160476. doi: 10.1016/j.jallcom.2021.160476
44	WengSieh Z. ; Gronsky R. ; Bell A. T. J. Catal. 1997, 170, 62. doi: 10.1006/jcat.1997.1738
45	Lassi U. ; Polvinen R. ; Suhonen S. ; Kallinen K. ; Savimaki A. ; Harkonen M. ; Valden M. ; Keiski R. L. Appl. Catal. A 2004, 263, 241. doi: 10.1016/j.apcata.2003.12.024
46	Wang S. ; Sun M. ; Huang M. ; Cheng T. ; Wang J. ; Yuan S. ; Chen Y. Mol. Catal. 2017, 433, 162. doi: 10.1016/j.mcat.2017.01.015
47	Lan L. ; Wang J. F. ; Chen S. H. ; Li D. C. ; Li H. M. ; Liu D. Y. ; Wang W. ; Chen Y. Q. J. Ind. Eng. Chem. 2019, 71, 127. doi: 10.1016/j.jiec.2018.11.014
48	Wang T. ; Li Y. ; Zhou R.-X. Environ. Sci. Pollut. Res. 2020, 27, 30352. doi: 10.1007/s11356-020-08569-8
49	Cao Y. ; Ran R. ; Wu X. ; Zhao B. ; Weng D. J. Environ. Sci. (China) 2017, 52, 197. doi: 10.1016/j.jes.2016.04.017
50	Wan J. ; Lin J. ; Guo X. ; Wang T. ; Zhou R. Chem. Eng. J. 2019, 368, 719. doi: 10.1016/j.cej.2019.03.016
51	Huang T. ; Shen M. ; Cheng G. ; Wang Y. ; Wang J. ; Li W. ; Oh S. H. ; Qi G. ; Yang M. ; Wang J. J. Rare Earths 2021, 39, 797. doi: 10.1016/j.jre.2020.04.003
52	Gayen A. ; Priolkar K. R. ; Sarode R. ; Jayaram V. ; Hegde M. S. ; Subbanna G. N. ; Emura S. Chem. Mater. 2004, 16, 2317. doi: 10.1021/cm040126l
53	Varga E. ; Pusztai P. ; Oszko A. ; Baan K. ; Erdohelyi A. ; Konya Z. ; Kiss J. Langmuir 2016, 32, 2761. doi: 10.1021/acs.langmuir.5b04482
54	Lang R. ; Li T. ; Matsumura D. ; Miao S. ; Ren Y. ; Cui Y.-T. ; Tan Y. ; Qiao B. ; Li L. ; Wang A. ; et al Angew. Chem. Int. Ed. 2016, 55, 16054. doi: 10.1002/anie.201607885
55	Schwartz V. ; Campos A. ; Egbebi A. ; Spivey J. J. ; Overbury S. H. ACS Catal. 2011, 1, 1298. doi: 10.1021/cs200281g
56	Mizuno T. Int. J. Hydrog. Energy 2003, 28, 1393. doi: 10.1016/s0360-3199(03)00042-9
57	Kurnatowska M. ; Kepinski L. Mater. Res. Bull. 2013, 48, 852. doi: 10.1016/j.materresbull.2012.11.076
58	Dutta G. ; Waghmare U. V. ; Baidya T. ; Hegde M. S. Chem. Mater. 2007, 19, 6430. doi: 10.1021/cm071330m
59	Gänzler A. M. ; Casapu M. ; Maurer F. ; Störmer H. ; Gerthsen D. ; Ferré G. ; Vernoux P. ; Bornmann B. ; Frahm R. ; Murzin V. ; et al ACS Catal. 2018, 8, 4800. doi: 10.1021/acscatal.8b00330
60	Alayoglu S. ; An K. ; Melaet G. ; Chen S. ; Bernardi F. ; Wang L. W. ; Lindeman A. E. ; Musselwhite N. ; Guo J. ; Liu Z. ; et al J. Phys. Chem. C 2013, 117, 26608. doi: 10.1021/jp407280e
61	Cao L. ; Pan L. ; Ni C. ; Yuan Z. ; Wang S. Fuel Process. Technol. 2010, 91, 306. doi: 10.1016/j.fuproc.2009.11.001
62	Morikawa A. ; Tanabe T. ; Hatanaka M. ; Takahashi N. ; Sato A. ; Kuno O. ; Suzuki H. ; Shinjoh H. Appl. Catal. A 2015, 493, 33. doi: 10.1016/j.apcata.2015.01.003
63	Azambre B. ; Atribak I. ; Bueno-Lopez A. ; Garcia-Garcia A. J. Phys. Chem. C 2010, 114, 13300. doi: 10.1021/jp102949r
64	Kawabata H. ; Koda Y. ; Sumida H. ; Shigetsu M. ; Takami A. ; Inumaru K. Catal. Sci. Technol. 2015, 5, 584. doi: 10.1039/c4cy01032a
65	Wang Y. ; Ge C. ; Zhan L. ; Li C. ; Qiao W. ; Ling L. Ind. Eng. Chem. Res. 2012, 51, 11667. doi: 10.1021/ie300555f
66	Dujardin C. ; Mamede A. S. ; Payen E. ; Sombret B. ; Huvenne J. P. ; Granger P. Top. Catal. 2004, 30-1, 347. doi: 10.1023/B:TOCA.0000029773.89206.0f
67	Haneda M. ; Shinoda K. ; Nagane A. ; Houshito O. ; Takagi H. ; Nakahara Y. ; Hiroe K. ; Fujitani T. ; Hamada H. J. Catal. 2008, 259, 223. doi: 10.1016/j.jcat.2008.08.007
68	Chauvin C. ; Saussey J. ; Lavalley J. C. ; Idriss H. ; Hindermann J. P. ; Kiennemann A. ; Chaumette P. ; Courty P. J. Catal. 1990, 121, 56. doi: 10.1016/0021-9517(90)90216-7
69	Sutton C. C. R. ; da Silva G. ; Franks G. V. Chem. Eur. J. 2015, 21, 6801. doi: 10.1002/chem.201406516
70	Ueda K. ; Tsuji M. ; Ohyama J. ; Satsuma A. ACS Catal. 2019, 9, 2866. doi: 10.1021/acscatal.9b00526
71	Machida M. ; Eidome T. ; Minami S. ; Buwono H. P. ; Hinokuma S. ; Nagao Y. ; Nakahara Y. J. Phys. Chem. C. 2015, 119, 11653. doi: 10.1021/acs.jpcc.5b01846

Sample	CO		NO		C₃H₈		C₃H₆
Sample	T₅₀ (℃)	T₉₀ (℃)	T₅₀ (℃)	T₉₀ (℃)	T₅₀ (℃)	T₉₀ (℃)	T₅₀ (℃)	T₉₀ (℃)
im-Rh/CZA	231	245	253	312	332	390	260	303
re-Rh/CZA	217	229	242	256	297	345	252	267
re-Rh/CZA-H₂	183	194	194	226	262	324	203	227
im-Rh/CZA-a	246	270	270	298	343	433	275	308
re-Rh/CZA-a	215	229	228	249	307	378	236	252
re-Rh/CZA-H₂-a	187	199	197	215	256	305	200	212

Sample	Binding energy (eV)			Rh ratio (%)			Ce ratio (%)	O ratio (%)
Sample	Rh⁰ 3d_5/2	Rh³⁺ 3d_5/2	Rh⁴⁺ 3d_5/2	Rh⁰	Rh³⁺	Rh⁴⁺	Ce³⁺/Ce	O_β/O
Im-Rh/CZA	306.3	308.4	310.2	44.27	11.41	44.87	32.94	35.46
Re-Rh/CZA	306.4	308.5	310.4	48.71	18.26	33.02	33.86	44.70
Re-Rh/CZA-H₂	306.6	308.2	–	68.77	31.23	–	42.29	48.12
Im-Rh/CZA-a	306.2	308.3	310.1	43.91	12.13	43.96	32.13	32.80
Re-Rh/CZA-a	306.2	308.5	310.2	48.22	15.35	36.43	32.61	36.50
Re-Rh/CZA-H₂-a	306.8	308.3	–	64.36	35.64	–	43.31	42.57

[1]	李红梅,兰丽,陈山虎,刘达玉,王卫,龚茂初,陈耀强. 复合沉淀剂制备的CeO₂-ZrO₂-Al₂O₃材料及其负载的单Pd三效催化剂[J]. 物理化学学报, 2016, 32(7): 1734 -1746 .
[2]	高琪,阚彩侠,李俊龙,楼叶珂,魏菁菁. 铜纳米线的液相制备及其表面修饰研究进展[J]. 物理化学学报, 2016, 32(7): 1604 -1622 .
[3]	蔡黎王康才赵明龚茂初陈耀强. 超声波振动在Ce-Zr-La/Al₂O₃及负载型Pd三效催化剂制备中的应用[J]. 物理化学学报, 2009, 25(05): 859 -863 .
[4]	张丽娟;董文萍;郭家秀;袁书华;张磊;龚茂初;陈耀强. 胶溶法制备镧-钡共稳定氧化铝的性能[J]. 物理化学学报, 2007, 23(11): 1738 -1742 .
[5]	郭家秀;袁书华;龚茂初;张磊;吴冬冬;赵明;陈耀强. Ce_0.35Zr_0.55La_0.10O_1.95对低贵金属Pt-Rh型三效催化剂性能的影响[J]. 物理化学学报, 2007, 23(01): 73 -78 .

基于活性组分微化学状态调控的高性能Rh/CeO₂-ZrO₂-Al₂O₃催化剂构筑及三效催化性能

Construction of a Highly Active Rh/CeO₂-ZrO₂-Al₂O₃ Catalyst Based on Rh Micro-Chemical State Regulation and Its Three-Way Catalytic Activity

RichHTML

PDF

赞

补充材料

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 71

相关文章 5

Metrics

推荐阅读 0
