嵌段共聚物L64在1-丁基-3-甲基咪唑四氟硼酸盐离子液体中形成的层状液晶

doi:10.3866/PKU.WHXB201203262

Abstract

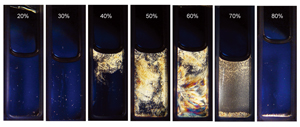

Abstract: The aggregation behavior of the triblock copolymer poly(ethylene oxide)-poly(propylene oxide)-poly(ethylene oxide) (L64, PEO₁₃PPO₃₀PEO₁₃) in the room-temperature ionic liquid 1-butyl-3- methylimidazolium tetrafluoroborate ([Bmim] [BF₄]) was investigated using polarized optical microscopy (POM), small-angle X-ray scattering (SAXS), and Fourier transform infrared (FTIR) spectroscopy. The phase diagram of the L64/[Bmim] [BF₄] system is described, where the micellar phase (L₁), a mixture of lamellar liquid crystalline (L_α) and L₁ phases, the L_α phase, a mixture of L_α and reverse micellar (L₂) phases, and the L₂ phase are sequentially mapped. Among these phases, the behavior of the L_α phase formed in the L64/[Bmim][BF₄] system in the L64 concentration region of 40%-65% (w, mass fraction) was focused on because it forms highly-ordered structures. The Maltese cross texture was found through POM characterization, and was typical for the L_α phase. The SAXS patterns further confirm the formation of the L_α phase. In addition, the lattice spacings of the L_α phase were obtained from the SAXS patterns. The effect of temperature on the microstructure of the L_α phase was also elucidated. As the temperature was increased, the lattice spacing and ordering of the L_α phase increased, while the interfacial area decreased for a certain temperature range. However, the birefringence of the L_α phase disappeared when the temperature reached a certain level, which was attributed to the breakdown of hydrogen bonding between [Bmim] [BF₄] and poly(ethylene oxide) chains, so the ordering of the L_α phase was decreased. The formation mechanism of the L_α phase is also discussed. Hydrogen bonding, electrostatic and solvophobic interactions are believed to be the main driving forces for the formation of L_α phase in the L64/[Bmim][BF₄] system.

Key words: Ionic liquid, Block copolymer, Lamellar liquid crystalline, Aggregation behavior, Formation mechanism

ZHAO Xue-Yan, CAO Yu-Rong, CAO Gui-Rong, XIAO Rui-Jie. Lamellar Liquid Crystalline Phase Formed by Triblock Copolymer L64 in 1-Butyl-3-methylimidazolium Tetrafluoroborate Ionic Liquid[J]. Acta Phys. -Chim. Sin. 2012, 28(06), 1411-1417. doi: 10.3866/PKU.WHXB201203262

References

(1) Bowers, J.; Butts, C. P.; Martin, P. J.; Vergara-Gutierrez, M. C.; Heenan, R. K. Langmuir 2004, 20, 2191.  doi: 10.1021/la035940m
(2) Anderson, J. L.; Pino, V.; Hagberg, E. C.; Sheares, V. V.; Armstrong, D. W. Chem. Commun. 2003, 2444.
(3) Dong, B.; Zhao X. Y.; Zheng, L. Q.; Zhang, J.; Li N.; Inoue, T. Colloids Surface A 2008, 317, 666.  doi: 10.1016/j.colsurfa.2007.12.001
(4) Lei, S.; Zhang, J.; Huang, J. B. Acta Phys. -Chim. Sin. 2007, 23, 1657. [雷声, 张晶, 黄建滨. 物理化学学报, 2007, 23, 1657.]
(5) Wang, J. J.; Zhang, L. M.; Wang, H. Y.; Wu, C. Z. J. Phys. Chem. B 2011, 115, 4955.  doi: 10.1021/jp201604u
(6) Fu, S. Z.; Chen Q. D.; Shen X. H. Acta Phys. -Chim. Sin. 2011, 27, 1913. [付素珍, 陈庆德, 沈兴海. 物理化学学报, 2011, 27, 1913.]
(7) Gao, H. X.; Li, J. C.; Han, B. X.; Chen, W. N.; Zhang, J. L.; Zhang, R.; Yan, D. D. Phys. Chem. Chem. Phys. 2004, 6, 2914.
(8) Gao, Y. A.; Zhang, J.; Xu, H. Y.; Zhao, X. Y.; Zheng, L. Q.; Li, X. W.; Yu, L. ChemPhysChem 2006, 7, 1554.  doi: 10.1002/cphc.200600120
(9) Gao, Y. A.; Zhao, X. Y.; Dong, B.; Zheng, L. Q.; Li, N.; Zhang, S. H. J. Phys. Chem. B 2006, 110, 8576.  doi: 10.1021/jp057478f
(10) Wu, J. P.; Zhang, J.; Zheng, L. Q.; Zhao, X. Y.; Li, N.; Dong, B. Colloids Surf. A 2009, 336, 18.  doi: 10.1016/j.colsurfa.2008.11.011
(11) Wang, L. Y.; Chen, X.; Chai, Y. C.; Hao, J. C.; Sui, Z. M.; Zhuang, W. C. Chem. Commun. 2004, 2840.
(12) Zhang, G. D.; Chen, X.; Zhao, Y. R.; Ma, F. M.; Jing, B.; Qiu, H. Y. J. Phys. Chem. B 2008, 112, 6578.
(13) Ying, A. G.; Ye, W. D.; Liu, L.; Wu, G. F.; Chen, X. Z.; Qian, S.; Zhang, Q. P. Chin. J. Org. Chem. 2008, 28, 2081. [应安国, 叶伟东, 刘泺, 吴国锋, 陈新志, 钱胜, 张秋萍. 有机化学, 2008, 28, 2081.]
(14) Dong, B.; Song, D. F.; Zheng, L. Q.; Xu, J. K.; Li, N. J. Electroanal. Chem. 2009, 633, 63.  doi: 10.1016/j.jelechem.2009.04.032
(15) Jiang, W. Q.; Yu, Bo.; Liu, W. M.; Hao, J. C. Langmuir 2007, 23, 8549.  doi: 10.1021/la700921w
(16) Svensson, B.; Alexandridis, P.; Olsson, U. J. Phys. Chem. B 1998, 102, 7541.
(17) Alexandridis, P.; Zhou, D.; Khan, A. Langmuir 1996, 12, 2690.  doi: 10.1021/la951025s
(18) Zhao, X. Y.; Xu, J.; Zheng, L. Q.; Li, X. W. Colloids Surface A, 2007, 307, 100.  doi: 10.1016/j.colsurfa.2007.05.006
(19) Zhang, S. H.; Li, N.; Zheng, L. Q.; Li, X. W.; Gao, Y. A.; Yu, L. J. Phys. Chem. B 2008, 112, 10228.  doi: 10.1021/jp8035132
(20) Wang, T. F.; Peng, C. J.; Liu, H. L.; Hu, Y. J. Mol. Liq. 2009, 146, 89.  doi: 10.1016/j.molliq.2009.02.007
(21) Dupont, J.; Consorti, C. S.; Suarez, P. A. Z.; Souza, R. F. Org. Synth. 1999, 79, 236.
(22) Borné, J.; Nylander, T.; Khan, A. Langmuir 2000, 16, 10044.  doi: 10.1021/la000619e
(23) Cammarata, L.; Kazarian, S. G.; Salter, P. A.; Welton, T. Phys. Chem. Chem. Phys. 2001, 3, 5192.
(24) López-Pastor, M.; Ayora-Cañada, M. J.; Valcárcel, M.; Lendl, B. J. Phys. Chem. B 2006, 110, 10896.  doi: 10.1021/jp057398b
(25) Dominguez-Vidal, A.; Kaun, N.; Ayora-Cañada, M. J.; Lendl, B. J. Phys. Chem. B 2007, 111, 4446.  doi: 10.1021/jp068777n
(26) Dopont, J. J. Braz. Chem. Soc. 2004, 15, 341.  doi: 10.1590/S0103-50532004000300002
(27) Holmqvist, P.; Alexandridis, P.; Lindman, B. J. Phys. Chem. B 1998, 102, 1149.  doi: 10.1021/jp9730297
(28) Zheng, L. L.; Guo, C.; Wang, J.; Liang, X. F.; Bahadur, P.; Chen S.; Ma J. H.; Liu, H. Z. Vib. Spectrosc. 2005, 39, 157.  doi: 10.1016/j.vibspec.2005.02.007
(29) Mata, J. P.; Majhi, P. R.; Guo, C.; Liu, H. Z.; Bahadur, P. J. Colloid Interface Sci. 2005, 292, 548.  doi: 10.1016/j.jcis.2005.06.013
(30) Alexandridis, P.; Holzwarth, J. F. Langmuir 1997, 13, 6074.  doi: 10.1021/la9703712
