高硅MFI分子筛膜的合成与低温脱除膜内有机模板剂

doi:10.3866/PKU.WHXB201511243

Abstract

Abstract:

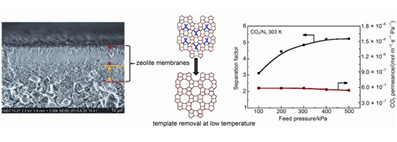

High-silica MFI zeolite membranes supported on porous α-alumina discs were prepared by a seeded secondary growth method, using tetrapropylammonium hydroxide (TPAOH) as organic template. First, nanocrystals were deposited on rough α-Al₂O₃ discs by a spin-on process. Then, based on controlling the H₂O/Si molar ratio of the synthetic solution, a restricting in-plane h0h-oriented growth method with an ultra-dilute precursor was designed to prepare non-defective zeolite membranes that were as thin as possible. Finally, crosslinked and dense MFI zeolite membranes were prepared after the third synthesis step, giving a membrane layer thickness of about 8 μm, including ~5 μm dense layers and ~3 μm intermediate layers. Anovel, two-step method, coupling by low-temperature hydrocracking and oxidation, is proposed for efficient removal of the template from zeolite membranes. Compared with traditional high-temperature calcination, template removal by the two-step method could eliminate the grain boundary defects formed in response to stresses induced by heat treatment. As a result, the membranes treated by the two-step detemplation method displayed a preferable CO₂/N₂ separation factor (about 5.2) and high CO₂ permeance (5.8 × 10^-7 mol·m^-2·s^-11·Pa^-1) at 30 ℃.

Key words: High-silica MFI zeolite membrane, Template removal, Low-temperature hydrocracking, Gas permeation, Support

Shu-Heng ZHAO,Lin LANG,Jun-Fei JIANG,Xiu-Li YIN,Chuang-Zhi WU. Synthesis and Low-Temperature Detemplation of High-Silica MFI Zeolite Membranes[J]. Acta Phys. -Chim. Sin. 2016, 32(2), 519-526. doi: 10.3866/PKU.WHXB201511243

References

1	Caro J. ; Noack M Microporous Mesoporous Mat 2008, 115, 215.
2	Yu M. ; Noble R. D. ; Falconer J. L Accounts Chem. Res 2011, 44, 1196.
3	Pina M. P. ; Mallada R. ; Arruebo M. ; Urbiztondo M. ; Navascues N. ; de la Iglesia O. ; Santamaria J Microporous Mesoporous Mat 2011, 144, 19.
4	Tsapatsis M Science 2011, 334, 767.
5	Jiang H. Y. ; Zhang B. Q. ; Lin Y. S. ; Li Y. D Chin. Sci. Bull 2004, 49, 2133.
5	蒋海洋; 张宝泉; 林跃生; 李永丹. 科学通报, 2004, 49, 2133.
6	Guo Y. L. ; Deng Z. Y. ; Lu G. Z Petrochem. Technol 2008, 37, 865.
6	郭杨龙; 邓志勇; 卢冠忠. 石油化工, 2008, 37, 865.
7	Cheng Y. ; Li J. S. ; Liu M. ; Sun X. Y. ; Wang L. J China Ceram. Ind 2004, 11 (1), 40.
7	成岳; 李健生; 刘媚; 孙秀云; 王连军. 中国陶瓷工业, 2004, 11 (1), 40.
8	Snyder M. A. ; Tsapatsis M Angew. Chem. Int. Edit 2007, 46, 7560.
9	Cheng Y. ; Li J. S. ; Wang L. J. ; Sun X. Y Prog. Chem 2006, 18, 221.
9	成岳; 李健生; 王连军; 孙秀云. 化学进展, 2006, 18, 221.
10	Peng Y. ; Wang Z. B Prog. Chem 2012, 23, 2178.
10	彭勇; 王正宝. 化学进展, 2013, 23, 2178.
11	Lang L. ; Zhang C. ; Yin X. L. ; Wu C. Z Prog. Chem 2011, 23, 1022.
11	郎林; 张超; 阴秀丽; 吴创之. 化学进展, 2011, 23, 1022.
12	Hedlund J. ; Sterte J. ; Anthonis M. ; Bons A. J. ; Carstensen B. ; Corcoran N. ; Cox D. ; Deckman H. ; De Gijnst W. ; deMoor P. P. ; Lai F. ; McHenry J. ; Mortier W. ; Reinoso J Microporous Mesoporous Mat 2002, 52, 179.
13	Sandströ m L. ; Sjö berg E. ; Hedlund J. J Membr. Sci 2011, 380, 232.
14	Zhou H. ; Korelskiy D. ; Sjöberg E. ; Hedlund J Microporous Mesoporous Mat 2014, 192, 76.
15	Wang Z. X. ; Yan W. F. ; Tian D. Y. ; Cao X. J. ; Yu J. H. ; Xu R. R Acta Phys. -Chim. Sin 2010, 26, 2044.
15	王周翔; 闫文付; 田大勇; 曹学静; 于吉红; 徐如人. 物理化学学报, 2010, 26, 2044.
16	Zhang C. ; Yan W. F. ; Yu J. H. ; Xu R. R. Chem. J. Chin. Univ 2012, 33, 1124.
16	张聪; 闫文付; 于吉红; 徐如人. 高等学校化学学报, 2012, 33, 1124.
17	Zhou M. ; Zhang B. Q. ; Liu X. F. Chin. J. Inorg. Chem 2006, 22, 1750.
17	周明; 张宝泉; 刘秀凤. 无机化学学报, 2006, 22, 1750.
18	Chen H. L. ; Li Y. S. ; Zhu G. Q. ; Yang W. S Sci. China Ser. B: Chem 2008, 38, 777.
18	陈红亮; 李砚硕; 朱广奇; 杨维慎. 中国科学(B辑:化学), 2008, 38, 777.
19	Kanezashi M. ; Lin Y. S. J Phys. Chem. C 2009, 113, 3767.
20	Tawalbeh M. ; Tezel F. H. ; Kruczek B. ; Letaief S. ; Detellier C. J Porous Mater 2013, 20, 1407.
21	Kosinov N. ; Auffret C. ; Sripathi V. G. P. ; Gücüyener C. ; Gascon J. ; Kapteijn F. ; Hensen E. J. M Microporous Mesoporous Mat 2014, 197, 268.
22	Lai R. ; Yan Y. S. ; Gavalas G. R Microporous Mesoporous Mat 2000, 37, 9.
23	Chen H. L. ; Li Y. S. ; Yang W. S. J Membr. Sci 2007, 296, 122.
24	Tuan V. A. ; Noble R. D. ; Falconer J. L. Aiche J 2000, 46, 1201.
25	Wey M. Y. ; Tseng H. H. ; Chiang C. K. J Membr. Sci 2013, 446, 220.
26	Wang Z. B. ; Yan Y. S Microporous Mesoporous Mat 2001, 48, 229.
27	Lee J. S. ; Lee Y. J. ; Tae E. L. ; Park Y. S. ; Yoon K. B Science 2003, 301, 818.
28	Wang H. B. ; Dong X. L. ; Lin Y. S. J Membr. Sci 2014, 450, 425.
29	Kim E. ; Choi J. ; Tsapatsis M. Microporous Mesoporous Mat 2013, 170, 1.
30	Kanezashi M. ; O'Brien J. ; Lin Y. S Microporous Mesoporous Mat 2007, 103, 302.
31	Lang L. ; Liu X. F. ; Zhang B. Q Appl. Surf. Sci 2009, 255, 4886.
32	Choi J. ; Jeong H. K. ; Snyder M. A. ; Stoeger J. A. ; Masel R.I. ; Tsapatsis M Science 2009, 325, 590.
33	Dong J. H. ; Lin Y. S. ; Hu M. Z. C. ; Peascoe R. A. ; Payzant E. A Microporous Mesoporous Mat 2000, 34, 241.
34	Li Q. H. ; Amweg M. L. ; Yee C. K. ; Navrotsky A. ; Parikh A. N. Microporous Mesoporous Mat 2005, 87, 45.
35	Motuzas J. ; Heng S. ; Lau P. P. S. Z. ; Yeung K. L. ; Beresnevicius Z. J. ; Julbe A Microporous Mesoporous Mat 2007, 99, 197.
36	Melián-Cabrera I. ; Kapteijn F. ; Moulijn J. A Chem. Commun 2005, NO 21, 2744.
37	Tago T. ; Nakasaka Y. ; Kayoda A. ; Masuda T Microporous Mesoporous Mat 2008, 115, 176.
38	Shen D. ; Yang J. H. ; Xiao W. ; Li T. S. ; Lu J. M. ; Wang J Q. Membr. Sci. Technol 2011, 31 (1), 61.
38	沈东; 杨建华; 肖伟; 李田生; 鲁金明; 王金渠. 膜科学与技术, 2011, 31 (1), 61.
39	Liu X. G. ; Xu L. ; Zhang B. Q. ; Liu X. F Microporous Mesoporous Mat 2014, 193, 127.
40	Zhao S. H. ; Lang L. ; Yin X. L. ; Yang W. S. ; Wu C. Z Acta Phys. -Chim. Sin 2015, 31, 793.
40	赵淑蘅; 郎林; 阴秀丽; 杨文申; 吴创之. 物理化学学报, 2015, 31, 793.
41	Lang L. ; Liu X. F. ; Zhang B. Q Appl. Surf. Sci 2008, 254, 2353.
42	Lin Y. S. ; Burggraaf A. J. J Membr. Sci 1993, 79, 65.
43	Alsyouri H. M. ; Li D. ; Lin Y. S. ; Ye Z. ; Zhu S. P. J Membr. Sci 2006, 282, 266.
44	Xiao W. ; Yang J. H. ; Shen D. ; Lu J. M. ; Wang J. Q Microporous Mesoporous Mat 2010, 129, 22.
