Energetic materials (EMs) are widely used in military, aerospace and civilian. 2, 4, 5, 8, 10, 12-hexanitro-2, 4, 6, 8, 10, 12-hexaazaisowurtzitane (CL-20) ¹ is one of the most promising third-generation energetic compounds due to its high density and excellent detonation performance. However, CL-20 is sensitive to external mechanical and thermal stimuli that are unavoidable during its preparation, storage and usage. It is prone to decompose and release energy that may further result in accidental fire or even explosion. Thermal decomposition is a fundamental process for any energetic materials exposed to external stimuli. It is related not only to the ignition of explosives and the subsequent detonation performance, but also to their sensitivity to various stimuli from mechanical input to direct heating ². A comprehensive understanding of thermal decomposition mechanisms is extremely important for performance and safety of EMs.

Decomposition mechanisms of CL-20 have been widely investigated in abundance by experiments and computational simulations. By isothermal thermogravimetry (TG) experiment and FTIR spectrum, Patil and Brill ³ proposed that the N―NO₂ cleavage to form NO₂ is one dominant pathway of CL-20 decomposition at relatively low temperatures and found that there is a dark residue with an average formula C₄H₄N₄O₂ after exothermic decomposition. They further investigated the characteristics and decomposition of the residue at 700 ℃ and pointed out the existence of amide and azine linkages in the solid products ⁴. Korsounskii and Nedelko ⁵ also observed the formation of condensed residue in both thermolysis and burning of CL-20 and concluded that this solid product is mainly composed of carbon and nitrogen in somewhat a form of network structure. However, the formation mechanisms of this solid products is not clear yet. Naik et al. ⁶ investigated the thermolysis of CL-20 at 800 ℃ by Py-GC/MS technique and observed C₄ products as well as a lot of small fragments from cleavage of C―N bond. Although lots of efforts are made to understand the thermal decomposition of CL-20, the overall chemical mechanisms during thermolysis remain obscure due to the extremely fast and complex reactions involved, which is difficult to be fully captured experimentally.

Quantum mechanics (QM) approach has been employed in reaction mechanisms investigations of the thermal decomposition of CL-20. Okovytyy and coworkers ⁷ calculated the unimolecular decomposition reactions of CL-20 by DFT and proposed several pathways including N―NO₂ bond cleavage, HONO elimination and ring-open reactions. Isayev et al. ⁸ confirmed that the N―NO₂ bond fission is the only distinct initial reaction pathway of CL-20 dissociation in gas phase by ab initio molecular dynamics (AIMD) simulations and provided a reaction scheme of unimolecular CL-20 decomposition. But the mechanisms for condensed phase decomposition of CL-20 still needs more investigations. Xue et al. ⁹ concluded that the dissociation of CL-20 is initiated by either N―NO₂ bond fission or C―N bond rupture in performing the self-consistent charge density-functional tight-binding (SCC-DFTB) molecular dynamics simulations of shocked CL-20. Using ReaxFF force field, the cleavage of N―NO₂ bond has also been confirmed as the initial step in decomposition of CL-20 by reactive molecular dynamics simulations (ReaxFF MD) of CL-20-based co-crystals ¹⁰. Yan et al.¹¹ proposed that the decomposition of CL-20 is triggered by releasing O radicals of nitro groups to form oxygen. The ReaxFF MD approach has been widely used in investigating the complex physical and chemical behaviors of condensed EMs induced by impact ¹², shock ¹³, electric field ¹⁴ and heat ^{11, 15}.

Despite of the many discussions about the decomposition of CL-20, comprehensive reaction mechanisms about the initial decomposition and the subsequent fragmentation process in thermolysis of condensed CL-20 are rarely reported in details, which is essential for the handling and application of CL-20 in practice. This paper focuses on the identification of the varied intermediate structures and investigation of the comprehensive chemical reaction pathways of initiation and fragmentation in thermal decomposition of condensed CL-20. A series of ReaxFF MD simulations of a large-scale CL-20 super cell were performed at isothermal conditions in a wide temperature range from 800 K to 3000 K. The important intermediates and overall reaction pathways were obtained by taking advantage of the unique code VARxMD ¹⁶ for reaction analysis developed in the authors' group. Simulation details including model construction, simulation strategies and reaction analysis methods are presented in Section 2. Discussions about the evolutions of intermediates, products and reaction pathways are presented in Section 3. The conclusions are provided in Section 4.

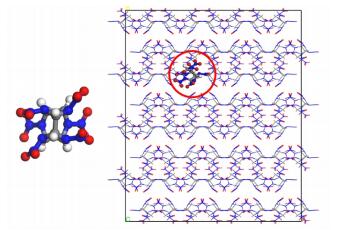

CL-20 has a polycyclic structure with the chemical formula of C₆H₆N₁₂O₁₂ as shown in Fig. 1. There are two five-membered rings and a six-membered ring in the isowurtzitane cage of CL-20. It consists of six N―NO₂ bonds totally, with four within the two five-number rings and the other two belonging to the six-number ring. Under ambient temperatures and pressure, there are four polymorphs of CL-20 crystal (α-, β-, γ-, ε-) ¹⁷. Among these polymorphs, the most stable crystal is ε-CL-20 that has been widely used and well investigated ^{6, 7, 9, 18}. Very limited work on the decomposition of the less stable β-form was reported ^{3, 4}. It worth to be noted that the molecular conformation of β-CL-20 can be found in many of the CL-20 based co-crystals including CL-20/TNT, CL-20/HMX, CL-20/DNB and CL-20/BTF ¹⁹. Understanding the decomposition of β-CL-20 is of interest. Therefore, a model of β-CL-20 was constructed to investigate the thermal decomposition mechanisms of CL-20 using Materials Studio ²⁰. The model contains 128 CL-20 molecules. The initial unit cell of β-CL-20 was obtained from the Cambridge Crystallographic Data Centre ²¹. A super cell of 4 × 4 × 2 was built by expanding along with the corresponding directions respectively as shown in Fig. 1. After energy minimization with conjugate gradient algorithm, the atom coordinates and cell parameters of super cell were relaxed at 300 K and 0 GPa with ReaxFF molecular dynamics, using NPT ensemble with a time step of 0.25 fs to relieve the internal stress. The force field version of ReaxFF-lg ²² optimized for better description of lattice parameters and density of EMs molecule crystals was used. The Nose-Hoover thermostat and barostat were used with damping constants of 25 fs for temperature and 250 fs for pressure. After relaxation of 100 ps, an equilibrium model was obtained with an average density of 1.938 g·cm^-3 calculated from the last 10 ps sampling. The density value predicted by ReaxFF-lg at 300 K is in good agreement with the experimental value 1.989 g·cm^{-3 21}, which suggests that the ReaxFF molecular dynamics simulation can reasonably describe the physical properties and crystal structures of energetic materials.

To understand the thermal decomposition of CL-20, NVT simulations by ReaxFF MD were performed using ReaxFF-lg for 500 ps. The simulation temperatures are 800 K, 1000–2000 K with an internal of 250 K, and 3000 K. Before each of the isothermal simulations, the system was preheated from room temperature 300 K to a targeted temperature at a fast heating rate of 500 K·ps^-1. During these simulations, a time step of 0.1 fs was chosen. Berendsen thermostat with a damping constant of 100 fs was used to control the temperature. Three parallel simulations were performed at each conditions. All the molecular dynamics simulations were performed using the LAMMPS package ²⁴.

It is challenging to obtain a full picture and detailed chemical mechanisms for large molecular systems with complicated and ultrafast reactions during the condensed-phase thermal decompositions of CL-20. VARxMD was employed to identify intermediates, generate the whole reaction list with reaction site details, and investigate the bimolecular reaction pathways. The trajectory internal for analysis is 500 fs. VARxMD was developed to analyze the trajectories from ReaxFF MD simulations automatically by Liu et al. ²⁵, which has played unique roles in investigating the reaction mechanisms of large scale reactive system with complex chemistry, including pyrolysis of coal ²⁶, polyethylene ²⁷, lignin ²⁸, cellulose ²⁹, p-nitrophenol ³⁰ as well as combustion of RP3 ³¹ and bio-oil ³² and soot formation ³³. Therefore, VARxMD was used to obtain the evolutions of different species and a dynamic description of CL-20 decomposition.

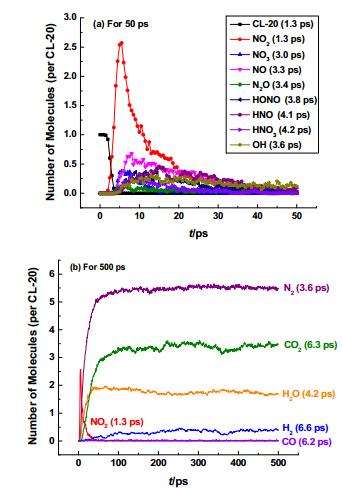

To have an insight into the overall chemical events, the temporal evolutions of CL-20 and major intermediates and products generated during the thermal decomposition at 3000 K are depicted in Fig. 2. It should be noted that all the quantities of species mentioned in this paper are averaged over the initial number of CL-20 to facilitate comparisons of intermediates and products generation. The time for the first consumption or formation of each species is listed in Fig. 2. As shown in Fig. 2a, nitrogen dioxide (NO₂) is produced at 1.3 ps just as CL-20 start to decompose, which agrees with that the homolytic fission of N―NO₂ bond is a trigger of the decomposition of CL-20 ^{3, 8}. With a sharp decrease of CL-20 molecules, a boom of NO₂ molecules are generated extremely fast with its quantity accumulating to 2.54 per CL-20 in a short time of 5.0 ps, which dominates the initiation stage of the thermolysis of CL-20. Following the formation of NO₂, nitrate molecules (NO₃), nitric oxide (NO) and nitrous oxide (N₂O) appear successively. After the formation of these nitrogen oxides (NO_x), many intermediates of hydrogen-abstraction and hydroxide radicals (OH) are produced. Particularly, HONO appears behind NO₂ with small quantity, which plays less significant role than NO₂ in initial decomposition of CL-20. These major intermediates of nitrogen oxides and hydrogen-abstraction participate in the subsequent reactions and decrease gradually. Most of these species are quickly consumed in simulation of 50 ps at 3000 K. As shown in Fig. 2b, nitrogen (N₂) molecule is one of the major products that its formation starts very early at 3.6 ps before all CL-20 molecules dissociate, followed by the formation of other major products. The moments for the first molecule generation of other products are 4.2 ps for H₂O, 6.2 ps for CO, 6.3 ps for CO₂ and 6.6 ps for H₂ respectively. Among these decomposition products NO₂, NO, N₂O, N₂, H₂O, CO₂, CO and H₂ were all observed in experiments ^{6, 34}, and the formation of HONO and OH were reported by ReaxFF MD simulations ^{9, 11}.

It can be concluded from Fig. 2 that the 500 ps simulation at 3000 K can give a scenario close to the end of CL-20 thermolyis, because almost all the major intermediates are run out and the quantities of final products tend to equilibrium values. The numbers of these final gas products averaged over CL-20 molecules at the end of the simulation are listed in Table 1. Surprisingly, the quantities of N₂, H₂O, CO₂ and H₂ generated at 3000 K are in very good agreement with the product quantities of CL-20 detonation in Simpson's experimental work ³⁴, except for the lower quantity of CO obtained in ReaxFF MD. Compared with AIMD simulation of only eight CL-20 molecules at 3000 K by Isayev ⁸, the ReaxFF MD simulations of 128 CL-20 molecules in this work shows better agreement with experiment measurements. The quantity of H₂ obtained in the ReaxFF MD simulation coincides well with experiment value, while none is observed in AIMD simulations. This quantitative consistency provides solid validation for the reasonableness of the ReaxFF MD simulations performed in this work, which gives substantial support for the reaction pathways revealed in section 3.2.

To evaluate the temperature effects on CL-20 decomposition, the time for the decomposition initiation and the time for running out of all CL-20 molecules are summarized in Table 2 for temperature ranges of 800–3000 K. The time of initiation for CL-20 decomposition is defined as the time when the consumption ratio of CL-20 molecules reaches around 2% at different temperatures. It is found that the initiation time is almost the same when temperature is above 1000 K, however the time for CL-20 exhaustion decreases as temperature increases. The total time for the consumption of all CL-20 molecules decreases sharply at temperature of 1000–1500 K, indicating that the decomposition rate of CL-20 increases quickly with temperature. All CL-20 molecules are used up in less than 5 ps when the temperature is at or over 1500 K. The condition of 800 K is a relatively low temperature for CL-20 themolysis simulation that the initiation time is the largest and there are still 29 CL-20 molecules (about 22.7%) left after the same 500 ps simulation.

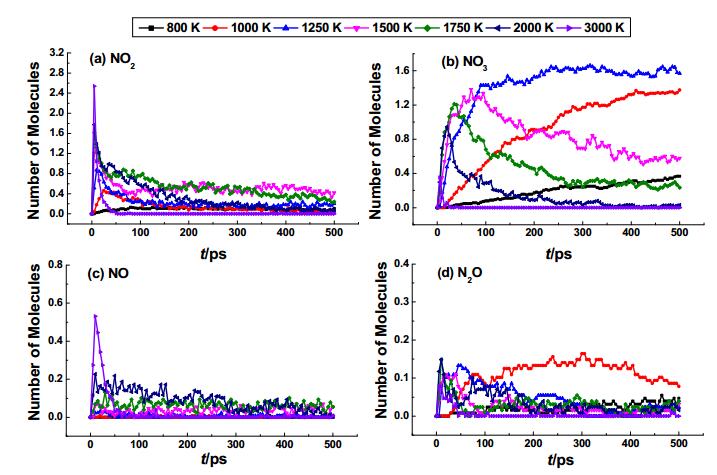

Temperature effects on the temporal evolutions of NO_x intermediates during the CL-20 thermolysis are displayed in Fig. 3. The plots for these intermediates in Fig. 3 are organized in a sequence of their generation. Thus, NO₂ is shown first in Fig. 3a for its very early generation when the CL-20 molecules begin to decompose. The number of NO₂ increases to a peak and then decreases gradually. The higher the temperature is, the earlier the peak appears. NO₂ is the most abundant intermediate observed in the simulations. At 3000 K, the maximal peak value of 2.54 per CL-20 agrees well with the AIMD observation at the same temperature as shown in Table 1 ³⁴.

The evolutions of other nitrogen oxide intermediates are similar to NO₂ during the themolysis simulations, as shown in Fig. 3b–d. The formation of nitrate molecules (NO₃) is right behind NO₂. As described in Fig. 3b, NO₃ is the second abundant intermediate generated during the thermolysis of CL-20. However, the maximum value of NO₃ decreases when temperature increases, which is different from NO₂. This observation suggests that NO₃ is unstable at high temperatures. The generation of NO₃ was also observed in thermal decomposition of HMX ³⁵, and in shocked PETN ³⁶ as well as HMX ³⁷. Although NO₃ has not been detected experimentally in decomposition of nitroamine explosives, it was proposed that the generation of NO₃ is both thermodynamically and kinetically possible drawn from quantum calculations of RDX decomposition ^18b. In our simulation, the possible reaction pathways for generation and consumption of NO₃ have been elucidated, which will be discussed in Section 3.2.3.

The formation of NO and N₂O has been reported experimentally in thermal decomposition of CL-20 ^{5a, 6, 18a}. As shown in Fig. 3c, the quantity of NO is smaller compared with NO₂ and NO₃. When the temperature increases over 2000 K, the speed of generation and the maximum quantity of NO increase a lot, implying that high temperatures favor the generation of NO. It can be observed that NO molecules still exist after the running out of NO₃ at 2000 K, showing high thermal stability. In addition, the generation of laughing gas (N₂O) is observed during the thermolysis simulation of CL-20. As shown in Fig. 3d, the maximum quantity of N₂O is about 0.15 per CL-20 and varies little at temperatures of 1000–2000 K. Despite of small quantity, N₂O is relatively stable and not used up during the simulation at 2000 K. The relatively lower stability of NO₃ compared with NO₂, NO and N₂O at high temperatures of 2000 K and 3000 K may explain its hard detection in experiments.

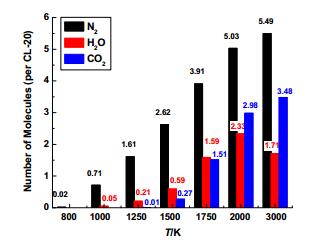

The final products of N₂, H₂O and CO₂ obtained after 500 ps simulations in the thermolysis process of CL-20 at different temperatures of 800–3000 K are described in Fig. 4. Only a few of N₂ molecules are generated at low temperature of 800 K. The H₂O molecules appear when temperature increases to 1000 K, reaching to its maximum quantity at 2000 K and decreasing at 3000 K. The quantity of CO₂ molecules becomes notable until the temperature increases to 1500 K, and keeps increasing at 1500–3000 K. The product distributions obtained from isothermal simulations indicate that the simulation of 500 ps is not long enough to get an equilibrium profile of the final products when the temperature is below 3000 K. It should be noted that some H₂O molecules will dissociate due to the high temperature, leading to a slight reduction of its quantity at 3000 K, as shown in Fig. 2b. The decrease of H₂O quantity caused by dissociation at 3000 K may be related to the fact that no gas can escape away in NVT simulations. The quantity of H₂O at 2000 K is about 2.33 per CL-20, which agrees better with Simpson's measurement of water ³⁴ than the simulation of 3000 K in this work.

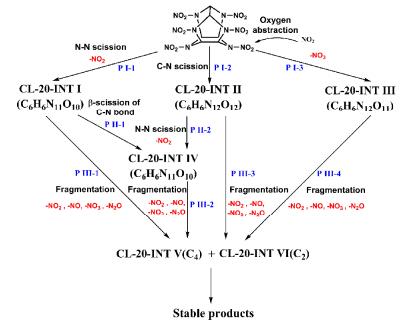

To understand the whole chemical process of CL-20 thermolysis, the simulation trajectories were analyzed systematically with the aid of VARxMD. A skeleton map of initial decomposition pathways for the thermolysis of CL-20 was obtained, which is shown in Fig. 5. The detailed species and chemical structures of these intermediates in Fig. 5 are presented in Table 3. The thermal decomposition of CL-20 starts with the cleavage of N―NO₂ bond to form NO₂ and CL-20-INT I radicals (P Ⅰ-1), which is a unimolecular pathway of many CL-20 molecules dissociating. CL-20-INT I radicals are generated after the departure of nitro groups either in five-membered ring or six-membered ring as shown in Table 3, which is consistent with the QM calculations by Okovytyy ⁷. The quantity of N―NO₂ rupture from five-membered rings is more than that from six-membered ring at all temperatures. This agrees with the conclusion that the N―NO₂ bonds in five-membered ring was a little bit weaker than that in six-membered ring by DFT calculation of gas phase CL-20 ⁷. Subsequently, CL-20-INT I species will undergo β-scission of C―N bond and H-shift to form CL-20-INT Ⅳ (P Ⅱ-1). Alternatively, CL-20-INT I will undergo direct fragmentation (P Ⅲ-1) by cleavage of N―NO₂ bonds, C―N bonds and C―C bonds into C4 (CL-20-INT V) or C2 intermediates (CL-20-INT Ⅵ) and release NO_x (NO₂, NO, NO₃ and N₂O), which is the similar pathway for further conversion of CL-20-INT Ⅳ into CL-20-INT V or CL-20-INT VI (P Ⅲ-2).

Except for the cleavage of N―NO₂ to form CL-20-INT I, some of the CL-20 molecules will dissociate in an alternative unimolecular pathway with scission of C―N bonds, leading to the ring-opening of the CL-20 skeleton and the formation of CL-20-INT Ⅱ radicals (P Ⅰ-2). Since the bond dissociation energy of C―N is larger than that of N―NO₂ bond ⁷, it is less likely to initiate the dissociation of CL-20 molecule through direct ring-opening by cleavage of C―N bonds. However, experimental results indicate that the products in condensed decomposition of nitroamine explosives RDX, HMX and CL-20 are mainly formed from C―N bond cleavage ^{6, 38}, which suggests that the ring-opening reaction by C―N bond cleavage is a dominant pathway in CL-20 thermolysis. More interestingly, ring opening by C―N bond rupture was also observed to trigger the dissociation of CL-20 in shocked CL-20 at all shock velocities of 8 to 11 km·s^-1 from SCC-DFTB MD simulations ⁹. Therefore, the initial pathway of ring-opening by C―N bond cleavage obtained in the ReaxFF MD simulations is reasonable in condensed thermal decomposition of CL-20. Within CL-20-INT Ⅱ, hydrogen of β-carbon tends to transfer to the unsaturated nitrogen atom. Eventually CL-20-INT Ⅱ intermediates convert to CL-20-INT V or CL-20-INT VI by fragmentation (P Ⅲ-3), which is similar to pathway P Ⅲ-1. Alternatively, the N―NO₂ bond in CL-20-INT Ⅱ breaks up to form NO₂ and CL-20-INT IV (P Ⅱ-2) that further undergoes pathway P Ⅲ-2.

In addition to the two unimolecular dissociation pathways (P Ⅰ-1 and P Ⅰ-2) described above, a bimolecular pathway is observed to destroy the CL-20 molecules. At low temperatures, some of the early generated NO₂ will attack the oxygen in the nitro groups of adjacent CL-20 molecules, followed by the break-up of N-O bond in nitro groups to form NO₃ and CL-20-INT Ⅲ (P Ⅰ-3). The pathway of oxygen abstraction to form NO₃ observed in this work has not been reported in previous investigations of CL-20 thermolysis and CL-20 involved thermal decomposition. Interestingly, the pathway was proposed in quantum chemistry calculations of RDX thermal decomposition by Irikura et al. ^18b and in ReaxFF MD simulations of shocked HMX ³⁷. The CL-20-INT Ⅲ intermediates lack of an oxygen atom were observed in Yan's work ¹¹. The CL-20-INT Ⅲ intermediates will break down into C4 and C2 fragments, together with the formation of a lot of small molecules (P Ⅲ-4).

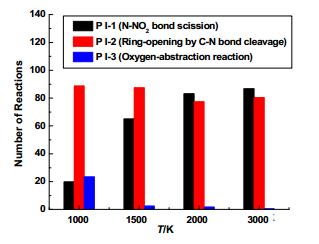

To investigate the temperature effects on the initial reaction pathways of CL-20 thermolysis, the numbers of the initial decomposition reactions of CL-20 (P Ⅰ-1 to P Ⅰ-3) at different temperatures are summarized in Fig. 6. It should be mentioned that multiple bond cleavage will occur simultaneously during the time internal of 500 fs for reaction analysis due to the enhanced reactivity of CL-20 dissociation at high temperatures. A single decomposition reaction of CL-20 with simultaneous cleavage of N―NO₂ bond and C―N bond may be counted into the number of both P Ⅰ-1 and P Ⅰ-2. Thus the total number of the reaction of CL-20 decomposition in Fig. 6 is larger than the initial number of CL-20. As shown in Fig. 6, the unimolecular decomposition pathways of P Ⅰ-1 and P Ⅰ-2 govern the initial dissociation at all conditions. The cleavage of N―NO₂ bond (P Ⅰ-1) dominates at high temperatures. Especially, serial scission of two to four N―NO₂ bonds in a single CL-20 molecule can be observed from the ReaxFF MD simulation at and over 1500 K, which agrees with the reaction pathways proposed in AIMD simulations ⁸. The serial cleavage of more than one N―NO₂ bonds takes place more frequently at elevated temperatures. However, the ring-opening reactions by C―N bond cleavage (P Ⅰ-2) are not as sensitive to temperature as the N―NO₂ bond cleavage in triggering the dissociation of CL-20. It can be found that C―N bond scission is dominant at 1000 K. About 17% of CL-20 molecules are destroyed in the bimolecular pathway P Ⅰ-3 by oxygen-abstraction at 1000 K. But high temperatures are disadvantage to this pathway P Ⅰ-3.

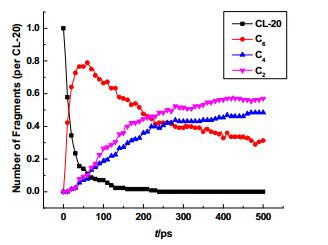

To understand the fragmentation mechanism, the evolution of product in fragmentation process and various ring structures at 1000 K were investigated. The temporal evolutions of CL-20-INT V (C₄), CL-20-INT VI (C₂), fragments with six carbons, as well as CL-20 in the thermolysis simulation at 1000 K are analyzed and shown in Fig. 7. Due to the decomposition of CL-20 molecules, C₆ fragments first appear through the pathways P Ⅰ-1 to P Ⅰ-3. Subsequently C₄ (CL-20-INT V) or C2 (CL-20-INT VI) are generated mainly from the consumption of C₆. At the end of 500 ps simulation, the amounts of C₄ and C₂ fragments are still increasing and about 40% of C₆ remains. The simulation results may suggest that C₄ (CL-20-INT V) fragments can be stable pyrolyzates of CL-20 at 1000 K, which roughly agrees with the detection of C₄ species in CL-20 thermolysis at 800 ℃ by Py-GC/MS ⁶. As listed in Table 3, the chemical structures of CL-20-INT V and CL-20-INT VI intermediates obtained in the simulations mainly consist of single and double bonds of NO, CN and CC, which supports the existence of NO, CN and CC bonds of single or double in solid residues formed in thermolysis of CL-20 at low temperature ³. More interestingly, the pyrazine (C₄N₂H₄) listed as the first in CL-20-INT V of Table 3 should be the prominent fragment product of C₄H₅N₂⁺ detected in thermolysis of CL-20 at 800 ℃ by Py-GC/MS technique ⁶.

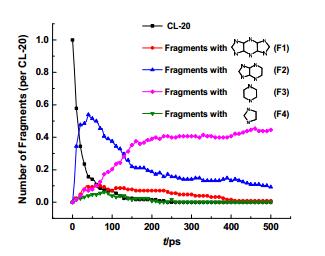

To have a deeper understanding of the fragmentation mechanism, the intermediate fragments with various ring structures are categorized into four groups with the aid of the structure analysis function in VARxMD. The evolutions of ring structures and CL-20 molecules in the thermolysis simulation at 1000 K are summarized in Fig. 8. As shown in Fig. 8, the fragments F1 are fused tricycles pyrazine derivatives with the same skeleton ring structure of CL-20. F1 can be observed very early during the simulations, and its maximal amount accounts for about 10 percent of CL-20 molecules. The F1 fragments can exist for 400 ps and will decompose almost completely at the end of 500 ps simulation. The observation suggests that F1 is an initial intermediate for CL-20 themolysis, which supports the proposed pathway to form an aromatic fragments of 1, 5-dihydrodiimidazo[4, 5-b:4′, 5′-e]pyrazine in the unimolecular decomposition of CL-20 by DFT calculations ⁷ and the explanation for the fast thermolysis experiments of CL-20 at 800 ℃ ⁶.

As shown in Fig. 8, more than half of the CL-20 molecules decompose to form fused bicycles pyrazine derivatives (F2) by C―N bond cleavage of one five-membered ring in the CL-20 structure, which dominates the initial products of fragmentation process. Subsequently, another five-membered ring in the CL-20 structure dissociates to form lots of pyrazine ring fragments (F3), leading to the quantity increase of F3. Such decomposition pathway of CL-20 into fragments F2 and further to fragments F3 roughly agrees with the proposed pathway for CL-20 themolysis in Naik's work ⁶. As presented in Fig. 8, the number of fragments F3 with single pyrazine ring keeps increasing to 0.4 per CL-20, indicating the relatively high stability of pyrazine structure at 1000 K that allows of its detection in Py-GC/MS at 800 ℃ ⁶. Additionally, the fragments with substructure of single imidazole ring (F4) can be generated at the early stage in CL-20 decomposition. But the formed fragments F4 with small amount are run out quickly by ring-opening reactions, which explains the fact that five-membered ring species are not detected in Py-GC/MS experiment at 800 ℃ ⁶. Among these pyrazine derivatives (F1, F2 and F3), the fragments with substructure of single pyrazine ring (F3) are found more stable than the fragments with fused ring structure (F1 and F2).

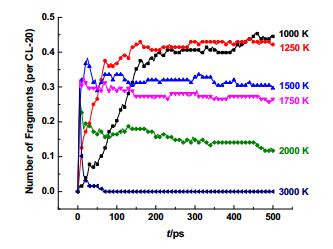

To investigate the stability of the single pyrazine ring (F3) further, the temperature effects on its stability were evaluated. The evolutions of fragments F3 in the thermolysis simulation of CL-20 at 1000–3000 K are shown in Fig. 9. At 1000 K and 1250 K, the single pyrazine ring is stable in a state of continuous accumulation within 500 ps simulation period. It can be observed that some single pyrazine ring will dissociate at the early stage around 1500 K, leading to a quick and slight reduction of quantity. Then the decrease becomes very slow and the amount of F3 tends to a plateau till the end of 500 ps simulation. Similar evolution of single pyrazine ring can be observed at 1750 K and 2000 K, except for 3000 K. These simulation results indicate that the single pyrazine ring structure is very stable. The high stability of fragments F3 may be likely responsible for the formation of the solid residue at low temperature. These simulation results on ring structures of pyrazine derivatives (F1–F3) obtained in the ReaxFF MD simulations of CL-20 themolysis at 1000 K, broadly agree with the proposed intermediate pyrazine structures and pathways in the CL-20 thermolysis at 800 ℃ by Py-GC/MS ⁶. The pyrazine structure evolution obtained in the ReaxFF MD simulations can provide additional insight on the fragmentation mechanism in CL-20 thermolysis.

In addition to the formation of fragments F1–F4 by a series of bond-breaking reactions during the fragmentation process of CL-20, the initial intermediate fragments surrounded by NO₂ radicals prefer to produce NO₃, NO, N₂O, HONO, HNO₃, HNO and OH radicals. By employing VARxMD, the bimolecular reaction pathways related to the formation and interactions of nitrogen oxides and OH radicals were analyzed.

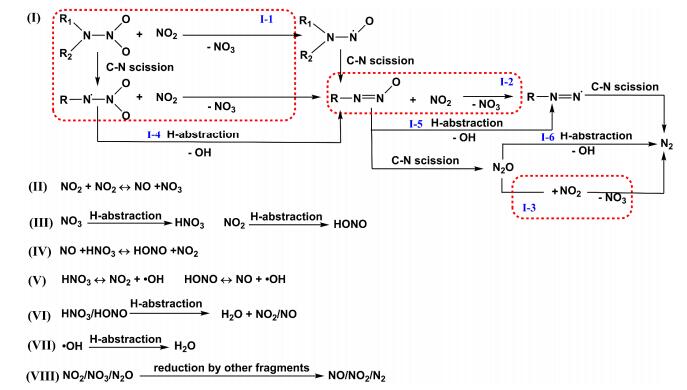

As shown in Fig. 10, four major reaction pathways of Ⅰ-1 to Ⅰ-3 and Ⅱ to produce the important intermediate NO₃ can be found. As shown in the Ⅰ-1 pathway, fragments with initial structure of R₁R₂NNO₂ or RNNO₂ formed by the C―N bond cleavage of R₁R₂NNO₂, tend to interact with NO₂ to produce R₁R₂NNO or RNNO and release NO₃, where the NO₂ radical will serve as reductant by abstracting an oxygen atom from the nitro groups of R₁R₂NNO₂ or RNNO₂. The pathway Ⅰ-1 for generating NO₃ was referred in the decomposition of RDX by DFT calculation ^18b and HMX by ReaxFF MD simulations ³⁷. In addition to the conversion to RNNO by direct interaction with NO₂ (pathway Ⅰ-1), RNNO₂ may convert to RRNO in pathway Ⅰ-4 of hydrogen-abstraction and N―O bond scission to form OH radical. The formed RNNO may further convert to RNN in pathway Ⅰ-2 of oxygen-abstraction by NO₂ forming another NO₃ or in pathway Ⅰ-5 of hydrogen-abstraction and form OH radical. Finally, RNN may produce N₂ by C―N bond scission. Besides, some RNNO can break down directly by the C―N bond rupture to form N₂O. This pathway to form N₂O may provide an explanation for the phenomena that the source of the two nitrogen atoms in N₂O is the same RDX molecule observed in the isotope experiments of RDX ³⁹. Subsequently, the oxygen atom in N₂O will be abstracted by NO₂ or H atoms to form NO₃ (pathway Ⅰ-3) or OH radicals (pathway Ⅰ-6) as well as N₂. It is observed that the N₂ can come from the initial N―N structure of CL-20, which explains the early appearance of N₂ during the thermolysis of CL-20. In addition to these three pathways, combination of two NO₂ radicals will produce a lot of NO and NO₃ (pathway Ⅱ), which was also proposed in the decomposition of single CL-20 by DFT molecular dynamics ⁸ and in the decomposition of RDX by DFT calculations ^18b. But recombination reactions of NO and NO₃ to form NO₂ are so easy that makes a short lifetime of many NO₃ molecules. NO₃ is an active intermediate and will consumed mainly in pathway Ⅲ and Ⅷ, as shown in Fig. 10. NO₃ will convert to HNO₃ by hydrogen abstraction (pathway Ⅲ). The pathway for HNO₃ generation was also found in the ReaxFF MD simulation of HMX decomposition ³⁵. Besides, NO₃ will convert to NO₂ (pathway Ⅷ) by oxidizing the carbon atoms in other early intermediates of CL-20 decomposition.

It should be noted that the pathways on the formation and consumption of NO₃ presented in Fig. 10 can be observed at varied temperatures. To depict the temperature effects, the reaction numbers for the pathways to generate and consume NO₃ at 1000 K, 1500 K and 2000 K are summarized in Table 4. As shown in Table 4, the number of reactions for pathway Ⅰ-1 decreases as temperature increases, while the reaction numbers for pathway Ⅰ-2 and Ⅰ-3 increase at high temperatures. High temperature will favor the pathway Ⅱ, though the high temperature will notably promote both the forward and backward reactions in pathway Ⅱ. However, the reaction numbers for NO₃ conversion to HNO₃ (pathway Ⅲ) increases very rapidly when temperature increases to 1500 K, indicating that high temperature favors the formation of HNO₃. The net number for the reaction of NO₃ oxidizing other intermediates (pathway Ⅷ) increases significantly when temperature increases. The two reaction pathways to consume NO₃ are greatly enhanced at high temperatures, explaining the quick decrease of NO₃ at high temperatures. Considering the relatively large amount of NO₃ at low temperature as shown in Fig. 3b, it may be detectable experimentally that will be useful to validate the pathways on the formation and consumption of NO₃ revealed in this work.

Similar to the generation of HNO₃, most HONO molecules are produced by hydrogen abstraction of NO₂ (pathway Ⅲ), which was proposed in the AIMD simulations of CL-20 decomposition ⁸. This is different from thermolysis of RDX and HMX, where the intramolecular successive elimination of HONO is considered as a competitive pathway of initial N―NO₂ scission to form NO₂ ⁴⁰. Moreover, HNO₃ and NO will produce HONO and NO₂, which is a frequent back-and-forth reaction as shown in pathway Ⅳ. These generated HONO and HNO₃ can further decompose into hydroxyl radicals (pathway Ⅴ), both of which are reversible reactions. HONO or HNO₃ can also convert to H₂O directly by hydrogen abstraction and released NO or NO₂ (pathway Ⅵ). The OH formed in pathway Ⅰ (Ⅰ-4 to Ⅰ-6) and V will convert to H₂O by hydrogen abstraction (pathway Ⅶ). At later stage of thermolysis simulation, the oxidation of carbon atoms in other intermediates by generated nitrogen oxides (NO₂, NO₃ and N₂O) will produce stable gas products of NO, NO₂ and N₂ (pathway Ⅷ) step by step and form CO₂ eventually.

The overall chemical events in thermal decomposition of condensed CL-20 were obtained by ReaxFF MD simulations of a super cell containing 128 CL-20 molecules at different temperatures of 800–3000 K. Comprehensive reaction mechanisms on the initial decomposition, the subsequent fragmentation process in the thermal decomposition of condensed CL-20 were revealed using VARxMD. The reaction pathways about the formation and consumption of nitrogen oxides were analyzed systematically. Nitrogen oxides are the major initial decomposition products formed in a sequence of NO₂, NO₃, NO and N₂O. NO₂ is the most abundant among these nitrogen oxides, while NO₃ is the second abundant. However, NO₃ is unstable that it will be run out completely at 2000 K within the 500 ps simulation while certain amounts of other nitrogen oxides still remain. The major reaction pathway for the generation of NO₃ is oxygen abstraction by NO₂. The final quantities of products N₂, H₂O, CO₂ and H₂ obtained in ReaxFF MD simulation of CL-20 thermolysis at 3000 K are quantitatively consistent with the product distribution in detonation experiment of CL-20. The pathways for the formation and interaction of N₂O, NO, HONO, HNO₃ and OH during the fragmentation process were depicted.

The initial decomposition of condensed CL-20 at all temperatures is dominated by unimolecular pathways of the N―NO₂ bonds cleavage to form NO₂ and ring-opening by C―N bonds scission. The bimolecular pathway of oxygen-abstraction by NO₂ from nitro groups in CL-20 was observed. High temperature favors the cleavage of N―NO₂ bond but the oxygen-abstraction. The evolutions of intermediate fragments with ring structures were analyzed at 1000 K. The early generated pyrazine derivatives of the fused tricycles and bicycles will decompose into fragments of single pyrazine ring. The observed high stability of the pyrazine ring structure supports the intermediates detected in fast pyrolysis experiment of CL-20.

The comprehensive reaction pathways and intermediate structures of CL-20 thermolysis obtained in the ReaxFF MD simulations demonstrate that ReaxFF MD simulations together with VARxMD provides an effective approach to investigate the scenario of the complex chemistry in the thermolysis of condensed energy materials.
