制备如异质核-壳结构等不同结构的镧系离子掺杂的上转换纳米材料对上转换纳米材料的基本性质研究及应用至关重要。在本工作中,我们采用简单的共沉淀方法在NaGdF4:Yb/Tm上转换纳米粒子表面包覆了无定形的Y(OH)CO3壳层。通过透射电子显微镜,X射线衍射,能量色散X射线荧光光谱等物理表征手段研究了所得纳米粒子的结构和形貌,结果表明Y(OH)CO3壳层可以在300 ℃附近转化形成YOF,形成异质核-壳结构。同时,初步研究结果显示该方法也可拓展用于其他无定形壳层的包覆及蛋黄-蛋壳结构纳米粒子的制备。这些结果表明这种方法在制备不同结构的上转换纳米材料方面有良好的应用前景。
刘冬梅,陈秀梅,袁泽,闾敏,殷丽莎,谢小吉,黄岭. 上转换纳米粒子的Y(OH)CO3壳层包覆及壳层转化[J]. 物理化学学报, 2020, 36(7), 1907011. doi: 10.3866/PKU.WHXB201907011
Dongmei Liu,Xiumei Chen,Ze Yuan,Min Lu,Lisha Yin,Xiaoji Xie,Ling Huang. Coating and Transforming the Y(OH)CO3 Shell on Upconversion Nanoparticles[J]. Acta Physico-Chimica Sinica 2020, 36(7), 1907011. doi: 10.3866/PKU.WHXB201907011
Fig 1

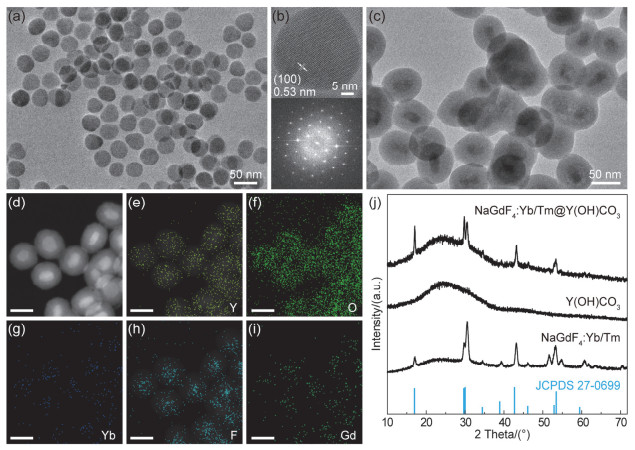

(a) TEM image of the as-synthesized NaGdF4:Yb/Tm (49/1 mol%) upconversion nanoparticles with oleic acid ligands. (b) High resolution TEM image of a NaGdF4:Yb/Tm nanoparticle shown in (a) (upper panel) and corresponding Fourier transform diffraction pattern (lower panel). (c, d) TEM and dark-field STEM images of the NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles, respectively. (e–i) Corresponding elemental mapping of the core-shell nanoparticles shown in (d). Scale bars are 50 nm for panels (d–i). Note that the element maps of (e, h) are overlapped with the STEM image for comparison. (j) XRD patterns of the oleic acid capped NaGdF4:Yb/Tm nanoparticles, Y(OH)CO3, and NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles. Note that the diffraction pattern at the bottom of (j) is the literature reference for hexagonal NaGdF4 crystals (JCPDS 27-0699)."
Fig 2

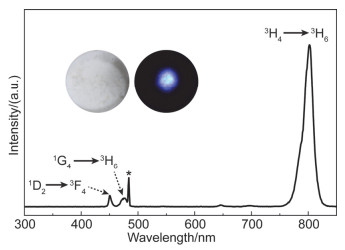

Upconversion luminescence spectrum of the powder of NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles under a 980 nm laser excitation. Note that the peak marked by asterisk at ~490 nm should be due to the scattering of excitation laser. The insets in the figure are photos of the core-shell nanoparticle powder under daylight (left) and the excitation of a 980 nm laser (right)."
Fig 3

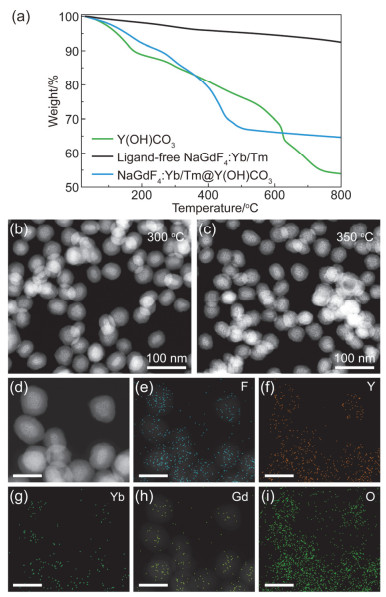

(a) Thermogravimetric analysis curves of Y(OH)CO3, ligand-free NaGdF4:Yb/Tm and NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles. (b–d) Dark-field STEM images of the NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles after heated at (b, d) 300 and (c) 350 ℃, respectively. (e–i) Corresponding elemental mapping of the nanoparticles shown in (d). Scale bars are 50 nm for panels (d–i). Note that the element maps of (e, h) are overlapped with the STEM image for comparison."
Fig 4

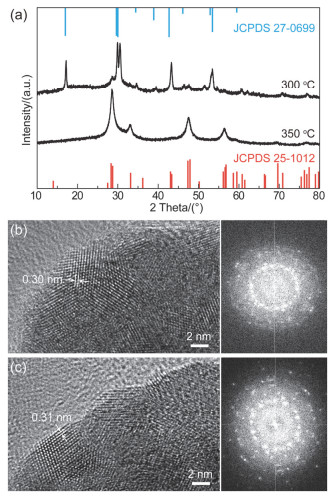

XRD patterns of the NaGdF4:Yb/Tm@Y(OH)CO3 core-shell nanoparticles after heated at 300 and 350 ℃ for 3 h. Note that the diffraction patterns at the top and bottom are the literature references for hexagonal NaGdF4 (JCPDS 27-0699) and YOF (JCPDS 25-1012) crystals, respectively. (b, c) High resolution TEM images (left panel) and corresponding Fourier transform diffraction patterns (right panel) of the shell layer of the core-shell nanoparticles after treated at (b) 300 ℃ and (c) 350 ℃ for 3 h, respectively."
