常见客体分子对笼型水合物晶格常数的影响

doi:10.3866/PKU.WHXB201910010

物理化学学报 >> 2020, Vol. 36 >> Issue (11): 1910010.doi: 10.3866/PKU.WHXB201910010

常见客体分子对笼型水合物晶格常数的影响

孟庆国¹^,²^,³, 刘昌岭¹^,²^,*(), 李承峰¹^,², 郝锡荦¹^,², 胡高伟¹^,², 孙建业¹^,², 吴能友¹^,²

¹ 青岛海洋地质研究所，自然资源部天然气水合物重点实验室，山东青岛 266071
² 青岛海洋科学与技术试点国家实验室海洋矿产资源评价与探测技术功能实验室，山东青岛 266237
³ 中国地质科学院，北京 100037

收稿日期:2019-10-08 录用日期:2019-12-09 发布日期:2019-12-11
通讯作者: 刘昌岭 E-mail:qdliuchangling@163.com
基金资助:
国家海洋地质调查专项项目(DD20190221);国家自然科学基金项目(41876051);国家自然科学基金项目(41976074);国家自然科学基金项目(41302034);国家重点研发计划项目(2017YFC0307600)

Effect of Common Guest Molecules on the Lattice Constants of Clathrate Hydrates

Qingguo Meng¹^,²^,³, Changling Liu¹^,²^,*(), Chengfeng Li¹^,², Xiluo Hao¹^,², Gaowei Hu¹^,², Jianye Sun¹^,², Nengyou Wu¹^,²

¹ The Key Laboratory of Gas Hydrate, Ministry of Natural Resources, Qingdao Institute of Marine Geology, Qingdao 266071, Shandong Province, P. R. China
² Laboratory for Marine Mineral Resources, Pilot National Laboratory for Marine Science and Technology, Qingdao 266237, Shandong Province, P. R. China
³ Chinese Academy of Geological Sciences, Beijing 100037, P. R. China

Received:2019-10-08 Accepted:2019-12-09 Published:2019-12-11
Contact: Changling Liu E-mail:qdliuchangling@163.com
Supported by:
the National Marine Geological Survey projects(DD20190221);National Natural Science Foundation of China(41876051);National Natural Science Foundation of China(41976074);National Natural Science Foundation of China(41302034);National Key R & D Program of China(2017YFC0307600)

摘要/Abstract

摘要：

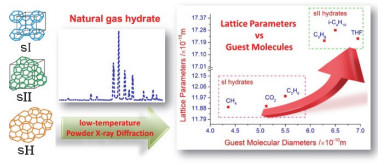

天然气水合物被认为是未来理想替代能源之一，相关基础与应用研究已成为国内外研究热点。客体分子对水合物晶胞参数的影响规律研究是水合物结构特征研究的重要内容，对理解水合物主客体分子间相互作用、形成分解微观机理及其稳定性变化具有重要意义。为考察不同客体分子对水合物微观结构特征的影响，本文合成了系列水合物样品(甲烷、乙烷、丙烷、异丁烷、二氧化碳、四氢呋喃、甲烷+ 2, 2-二甲基丁烷和甲烷+甲基环己烷)，并基于低温X射线衍射技术对样品结构特征进行了分析，探讨了水合物样品晶格常数与客体分子尺寸间的关系。结果表明，(1)低温X射线衍射技术能够有效获取天然气水合物样品的晶格常数及结构类型等特征。(2)甲烷、乙烷、丙烷及异丁烷等烷烃类同系物形成的单一组分水合物样品晶格常数与客体分子的尺寸(范德华直径)呈现正相关关系。同等条件下，分子尺寸越大，相应水合物的晶格常数越大。尺寸较小的甲烷、乙烷生成Ⅰ型结构水合物，而丙烷、异丁烷等相对较大的分子则形成Ⅱ型结构水合物。(3)含氧原子客体分子(如CO₂、THF)水合物样品的结构类型依然受范德华直径的控制，但其晶格常数与客体分子尺寸间的相关性不遵从烷烃类水合物的正相关关系，分析认为该现象是氧原子特殊的电负性致使客体分子与“水笼”间产生异常相互作用所致。(5) H型水合物样品中，大分子与辅助小分子对水合物不同方向晶轴长度影响分别呈现反向趋势特征。与甲烷+ 2, 2-二甲基丁烷水合物样品相比，甲烷+甲基环己烷水合物样品a轴方向长度较短，而c轴方向长度略长。与相同温度下甲烷+ 2, 2-二甲基丁烷水合物样品相比，由小分子氮气辅助形成的H型水合物样品晶胞a轴方向略长，而c轴方向长度较短。

关键词: 天然气水合物, 粉末X射线衍射, 结构特征, 晶格常数, 客体分子尺寸

Abstract:

Natural gas hydrates are considered as ideal alternative energy resources for the future, and the relevant basic and applied research has become more attractive in recent years. The influence of guest molecules on the hydrate crystal lattice parameters is of great significances to the understanding of hydrate structural characteristics, hydrate formation/decomposition mechanisms, and phase stability behaviors. In this study, we test a series of artificial hydrate samples containing different guest molecules (e.g. methane, ethane, propane, iso-butane, carbon dioxide, tetrahydrofuran, methane + 2, 2-dimethylbutane, and methane + methyl cyclohexane) by a low-temperature powder X-ray diffraction (PXRD). Results show that PXRD effectively elucidates structural characteristics of the natural gas hydrate samples, including crystal lattice parameters and structure types. The relationships between guest molecule sizes and crystal lattice parameters reveal that different guest molecules have different controlling behaviors on the hydrate types and crystal lattice constants. First, a positive correlation between the lattice constants and the van der Waals diameters of homologous hydrocarbon gases was observed in the single-guest-component hydrates. Small hydrocarbon homologous gases, such as methane and ethane, tended to form sI hydrates, whereas relatively larger molecules, such as propane and iso-butane, generated sⅡ hydrates. The hydrate crystal lattice constants increased with increasing guest molecule size. The types of hydrates composed of oxygen-containing guest molecules (such as CO₂ and THF) were also controlled by the van der Waals diameters. However, no positive correlation between the lattice constants and the van der Waals diameters of guest molecules in hydrocarbon hydrates was observed for CO₂ hydrate and THF hydrate, probably due to the special interactions between the guest oxygen atoms and hydrate "cages". Furthermore, the influences of the macromolecules and auxiliary small molecules on the lengths of the different crystal axes of the sH hydrates showed inverse trends. Compared to the methane + 2, 2-dimethylbutane hydrate sample, the length of the a-axis direction of the methane + methyl cyclohexane hydrate sample was slightly smaller, whereas the length of the c-axis direction was slightly longer. The crystal a-axis length of the sH hydrate sample formed with nitrogen molecules was slightly longer, whereas the c-axis was shorter than that of the methane + 2, 2-dimethylbutane hydrate sample at the same temperature.

Key words: Natural gas hydrate, PXRD, Structure characteristic, Lattice constant, Guest molecule size

孟庆国, 刘昌岭, 李承峰, 郝锡荦, 胡高伟, 孙建业, 吴能友. 常见客体分子对笼型水合物晶格常数的影响[J]. 物理化学学报, 2020, 36(11), 1910010. doi: 10.3866/PKU.WHXB201910010

Qingguo Meng, Changling Liu, Chengfeng Li, Xiluo Hao, Gaowei Hu, Jianye Sun, Nengyou Wu. Effect of Common Guest Molecules on the Lattice Constants of Clathrate Hydrates[J]. Acta Physico-Chimica Sinica 2020, 36(11), 1910010. doi: 10.3866/PKU.WHXB201910010

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201910010

https://www.whxb.pku.edu.cn/CN/Y2020/V36/I11/1910010

图/表 7

表1

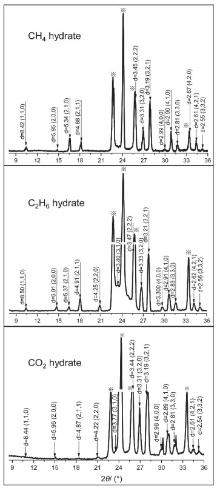

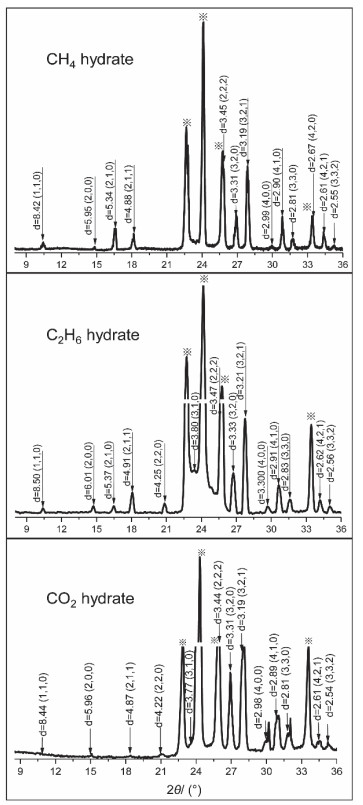

图1

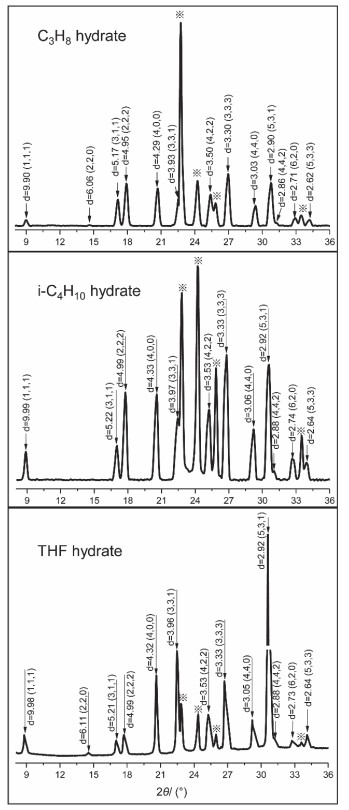

图2

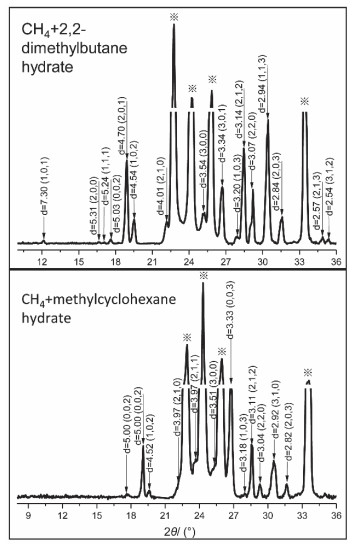

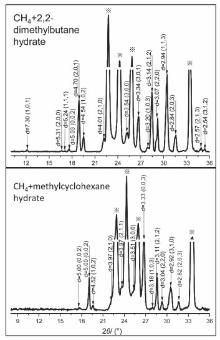

图3

表2

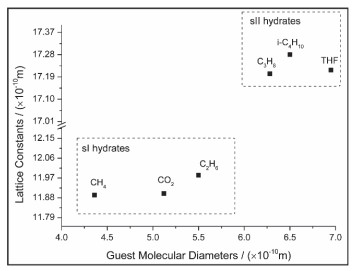

图4

表3

参考文献 29

1	Li J. F. ; Ye J. L. ; Qin X. W. ; Qiu H. J. ; Wu N. Y. ; Lu H. L. ; Xie W. W. ; Lu J. A. ; Peng F. ; Xu Z. Q. ;et al China Geology 2018, 1, 5. doi: 10.31035/cg2018003
2	Meng, Q. G. Research on the Multi-Component Gas Hydrates: Structure Characteristics, Formation and Dissociation Process. Ph.D. Dissertation, Chinese Academy of Geological Sciences, Beijing, 2019.
	孟庆国.多组分气体水合物结构特征及生成分解过程研究[D].北京:中国地质科学院, 2019.
3	Liu C. L. ; Meng Q. G Gas Hydrates Experiment and Testing Technologies Science Press: Beijing, 2016.
	刘昌岭; 孟庆国. 天然气水合物实验测试技术, 北京: 科学出版社, 2016.
4	Chen H. L. ; Wei C. F. ; Tian H. H. ; Wei H. Z Acta Phys. -Chim. Sin. 2017, 33, 1599.
	陈合龙; 韦昌富; 田慧会; 魏厚振. 物理化学学报, 2017, 33, 1599. doi: 10.3866/PKU.WHXB201704194
5	Sloan E. D Nature 2003, 426, 353. doi: 10.1038/nature02135
6	Liu C. L. ; Meng Q. G Rock & Mineral Anal. 2014, 33, 468.
	刘昌岭; 孟庆国. 岩矿测试, 2014, 33, 468. doi: 10.3969/j.issn.0254-5357.2014.04.003
7	Lu H. ; Seo Y. ; Lee J. ; Moudrakovski I. ; Ripmeester J. A. ; Chapman N. R. ; Coffin R. B. ; Gardner G. ; Pohlman J Nature 2007, 445, 303. doi: 10.1038/nature05463
8	Liu C. L. ; Meng Q. G. ; He X. L. ; Li C. F. ; Ye Y. G. ; Zhang G. X. ; Liang J. Q Mar. Pet. Geol. 2015, 61, 14. doi: 10.1016/j.marpetgeo.2014.11.006
9	Kida M. ; Jin Y. ; Yoneda J. ; Oshima M. ; Kato A. ; Konno Y. ; Nagao J. ; Tenma N Mar. Pet. Geol. 2019, 108, 471. doi: 10.1016/j.marpetgeo.2018.10.012
10	Liu C. L. ; Meng Q. G. ; Hu G. W. ; Li C. F. ; Sun J. Y. ; He X. L. ; Wu N. Y. ; Yang S. X. ; Liang J. Q Interpretation 2017, 5, SM13. doi: 10.1190/INT-2016-0211.1
11	Tian M. ; Meng Q. G. ; Liu C. L. ; Li C. F ; Hu G. W. ; Feng J. ; Zhao Q. S Rock Miner. Anal. 2017, 36, 43.
	田苗; 孟庆国; 刘昌岭; 李承峰; 胡高伟; 冯娟; 赵全升. 岩矿测试, 2017, 36, 43. doi: 10.15898/j.enki.11-2131/td.201703160033
12	Chen Y. F. ; Zhou X. B. ; Liang D. Q. ; Wu N. Y Spectrosc. Spect. Anal. 2019, 39, 2889.
	陈玉凤; 周雪冰; 梁德青; 吴能友. 光谱学与光谱分析, 2019, 39, 2889. doi: 10.3964/j.issn.1000-0593(2019)09-2889-05
13	Takeya S. ; Hori A. ; Uchida T. ; Ohmura R J. Phys. Chem. B 2006, 110, 12943. doi: 10.1021/jp060198v
14	Takeya S. ; Nagaya H. ; Matsuyama T. ; Hondoh T. ; Lipenkov V. Y J. Phys. Chem. B 2000, 104, 668. doi: 10.1021/jp993344o
15	Shin K. ; Moudrakovski I. L. ; Davari M. D. ; Alavi S. ; Ratcliffe C. I. ; Ripmeester J. A CrystEngComm 2014, 16, 7209. doi: 10.1039/c3ce41661e
16	Kim D. Y. ; Lee H J. Am. Chem. Soc. 2005, 127, 9996. doi: 10.1021/ja0523183
17	Takeya S. ; Ripmeester J. A Angew. Chem. 2008, 120, 1296. doi: 10.1002/ange.200703718
18	Takeya S. ; Uchida T. ; Kamata Y. ; Nagao J. ; Kida M. ; Minami H. ; Sakagami H. ; Hachikubo A. ; Takahashi N. ; Shoji H. ; et al Angew. Chem. 2005, 117, 7088. doi: 10.1002/anie.200501845
19	Tezuka K. ; Murayama K. ; Takeya S. ; Alavi S. ; Ohmura R J. Phys. Chem. C 2013, 117, 10473. doi: 10.1021/jp4005899
20	Daghash S. M. ; Servio P. ; Rey A. D Mol. Simul. 2019, 45, 1524. doi: 10.1080/08927022.2019.1660326
21	Kondori J. ; Zendehboudi S. ; James L Chem. Eng. Res. Des. 2019, 149, 81. doi: 10.1016/j.cherd.2019.05.048
22	Zhou X. B. ; Liu C. J. ; Luo J. Q. ; Liang D. Q CIESC J. 2019, 70, 1042.
	周雪冰; 刘婵娟; 罗金琼; 梁德清. 化工学报, 2019, 70, 1042. doi: 10.11949/j.issn.0438-1157.20180821
23	Meng Q. G. ; Liu C. L. ; Ye Y. G. ; Li C. F Nat. Gas Ind. 2015, 35, 135.
	孟庆国; 刘昌岭; 业渝光; 李承峰. 天然气工业, 2015, 35, 135. doi: 10.3787/j.issn.1000-0976.2015.03.022
24	Udachin K. A. ; Ratcliffe C. I. ; Ripmeester J. A J. Supramol. Chem. 2002, 2, 405. doi: 10.1016/S1472-7862(03)00049-2
25	Stern L. A. ; Susan C. ; Stephen H. K J. Phys. Chem. B 2001, 105, 1756. doi: 10.1021/jp003061s
26	Jin Y. ; Kida M ; Nagao J J. Phys. Chem. C 2013, 117, 23469. doi: 10.1021/jp403430z
27	Lee J. W. ; Lu H. ; Moudrakovski I. L. ; Ratcliffe C. I. ; Ohmura R. ; Alavi S. ; Ripmeester J. A J. Phys. Chem. A 2011, 115, 1650. doi: 10.1021/jp1118184
28	Udachin K. A. ; Ratcliffe C. I. ; Ripmeester J. A J. Phys. Chem. B 2001, 105, 4200. doi: 10.1021/jp004389o
29	Jin Y. ; Kida M. ; Nagao J J. Phys. Chem. C 2015, 119, 9069. doi: 10.1021/acs.jpcc.5b00529

Hydrate sample	Purity	Source	Synthesis temperature/K	Initial pressure/MPa	Final pressures/MPa
methane	99.999%	Qingdao Dehai Weiye Technology Co., Ltd. (No. 46-1, Shimei An road, Li Cang District, Qingdao City, Shandong Province, China)	268.15–275.15	8.0	6.6
ethane	99.999%			2.4	1.8
propane	99.999%			0.5	0.3
i-butane	99.999%			0.3	0.2
CO₂	99.9%			3.4	2.2
tetrahydrofuran solution (mole ratio 1 : 17)	THF, 99.8%	Tianjin Kemiou Chemical Reagent Co., Ltd. (No. 11, Xingyuan Road, Industrial Zone, Xianshuigu Town, Tianin City, China)		0.1	0.1
methane + 2, 2-dimethylbutane	2, 2-dimethylbutane, GR	TOKYO Chemical Industry		5.8	Releasing methane
methane + methyl cyclohexane	methyl cyclohexane, GR	Co., Ltd. (725 Kashiai, Fukaya City, Saitama 366-0816)		6.2	gas to 4.0 MPa, and removing the sI hydrates

Hydrate sample	van der Waals diameter ⁵ (× 10^-10 m)	Crystal system	Lattice constant (× 10^-10 m)	Space group	Structure type
Hydrate sample	van der Waals diameter ⁵ (× 10^-10 m)	Crystal system	a = b =c	Space group	Structure type
methane	4.36	body-centred cubic	11.8927	Pm3n	sⅠ
CO₂	5.12	body-centred cubic	11.8995	Pm3n	sⅠ
ethane	5.5	body-centred cubic	11.9830	Pm3n	sⅠ
propane	6.28	face-centered cubic	17.2029	Fd3m	sⅡ
i-butane	6.5	face-centered cubic	17.2803	Fd3m	sⅡ
THF (1 : 17)	6.95	face-centered cubic	17.2180	Fd3m	sⅡ

Hydrate samples	Test temperature/K	Lattice constants (×10^-10 m)		Axial ratio	References
Hydrate samples	Test temperature/K	a	c	a/c	References
CH₄ + methyl cyclohexane	100	12.134	10.031	1.2096	19
	153	12.2048	10.0715	1.2118	this work
		12.2100	10.0620	1.2135	26
CH₄ + 2, 2-dimethylbutane	100	12.184	9.971	1.2219	19
	153	12.2136	10.0396	1.2165	this work
		12.2258	10.0490	1.2166	26
N₂ + 2, 2-dimethylbutane	153	12.2342	9.9906	1.2246	27
