Abstract:

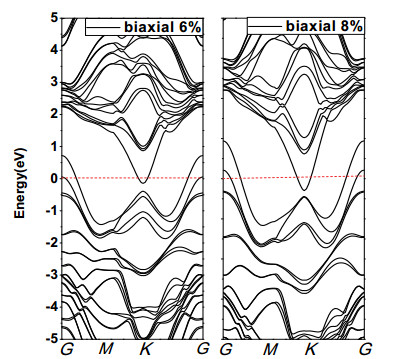

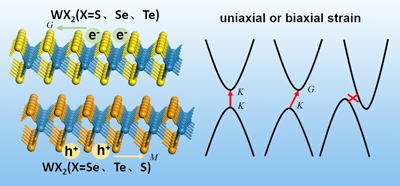

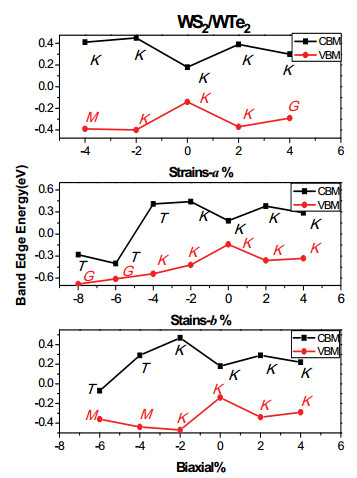

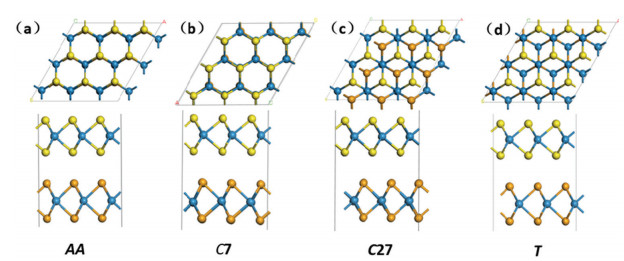

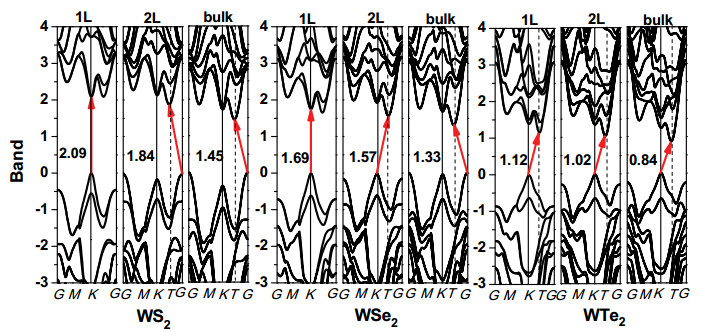

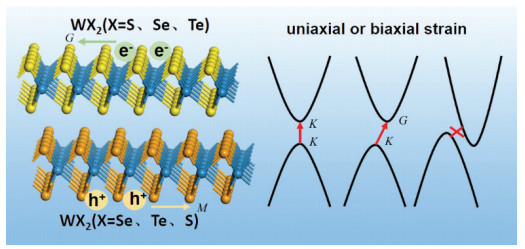

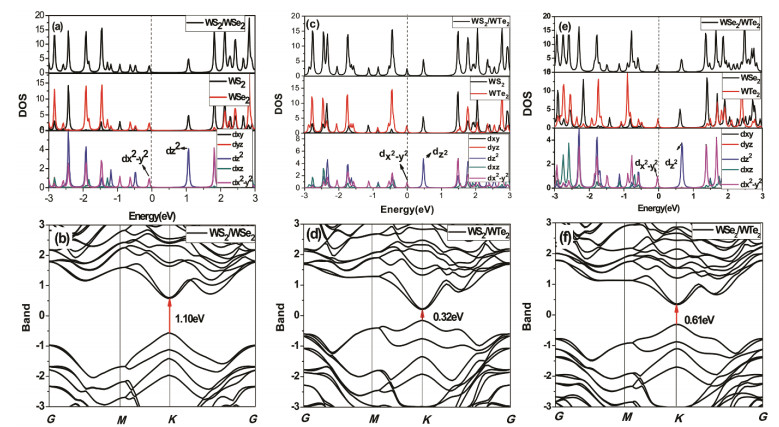

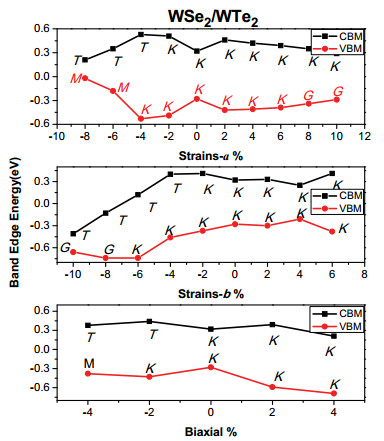

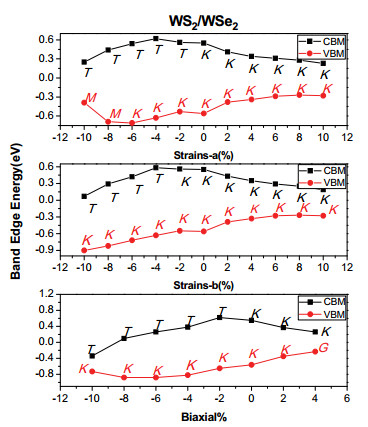

Two-dimensional transition metal dichalcogenides (TMDs) possess the potential to be widely applied in optoelectronic devices, sensors, photocatalysis, and many other fields because of their intrinsic physical, chemical, and mechanical properties. Generally, the van der Waals (vdW) heterostructures fabricated from these TMDs exhibit excellent electronic properties. However, the spectral responses of most vdW heterostructures are limited by the inherent band gaps; it is thus essential to tune the band gaps for specific applications. In this paper, we performed a first-principles theoretical study on the structures and properties of WX₂ (X = S, Se, Te), as well as the vdW heterostructures WS₂/WSe₂, WS₂/WTe₂, and WSe₂/WTe₂. The impacts of the number of layers on the properties of WX₂ and the strain on the band gaps of vdW heterostructures were demonstrated. We found that every monolayer WX₂ (X = S, Se, Te) is a direct gap semiconductor, and as the number of layers increases, their band gaps decrease and they become indirect bandgap semiconductors. The spin-orbit coupling (SOC) effect on their band structures is significant and can decrease the band gap by approximately 300 meV compared with those that do no incorporate SOC effects. The properties of WX₂ can be accurately described by the HSE06 + SOC approach. WS₂/WSe₂, WS₂/WTe₂, and WSe₂/WTe₂ heterostructures are direct gap semiconductors with band gaps of 1.10, 0.32, and 0.61 eV, respectively. These three heterostructures exhibit type-II band alignments, which facilitate photo-induced electron-hole separation. In addition, they have quite small electron and hole effective masses, indicating that the separated electrons and holes can move very quickly to reduce the recombination rate of electrons and holes. There is an explicit red-shift of the optical absorption spectra of the three heterostructures compared with those of the monolayer components, and the most obvious redshift occurs in WSe₂/WTe_2. Both uniaxial and biaxial strains can alter the band gaps of these vdW heterostructures. Once the strain exceeds 4%, a transition from semiconductor to metal characteristics occurs. This work provides a way to tune the electronic properties and band gaps of vdW heterostructures for incorporation in high-performance optoelectronic devices.

Key words: 2D materials, TMDs, van der Waals heterostructure, Strain, Band gap
