甲烷/甲醇光催化转化研究进展

doi:10.3866/PKU.WHXB201810002

Abstract

Abstract:

With the increasing energy demands and the limited petroleum reserves, it is highly desirable to produce fuels and chemicals from non-petroleum feedstocks, such as coal, natural gas and biomass. Catalytic conversion of C₁ resources (CO, CO₂, CH₃OH, CH₄, etc.) affords various products and attracts increasing attention from both academia and industries. Methane and methanol are important C₁ feedstocks in the production of fuels and chemicals. In order to obtain high selectivity for the target product, it is necessary to control the activation of C―H bonds in methane and methanol. However, this remains a great challenge. Although the traditional thermal catalytic conversion of methane and methanol has been developed over decades, there are still some disadvantages associated with the catalytic process, such as harsh reaction conditions, high energy consumption, and low selectivity. Photocatalysis, which is driven by photoenergy, can compensate for the Gibbs free energy. In the photocatalytic reactions, semiconductor photocatalysts absorb photons and generate electrons and holes in their conduction and valence bands, respectively, to accelerate the reaction rate. The position of the conduction band determines the oxidation capacity, and the bandgap determines the light absorption property. Normally, the oxidation capacity of photocatalysts is regulated by choosing semiconductors with a suitable bandgap or anions/cations doping. Fabrication of heterojunction and loading metalsare recognized as effective methods to promote the separation of electron-hole pairs and improve the photocatalytic efficiency. In contrast to thermal catalysis, photocatalysis can be carried out under mild reaction conditions with low energy consumption. Recently, photocatalysis has been considered an attractive route for the efficient conversion of methane and methanol to fuels and chemicals. Partial oxidation of methane, which is necessary to avoid the formation of byproducts, can be achieved by adjusting the wavelength and intensity of the light and the oxidation capacity of the photocatalysts. In addition, light-induced plasmon resonance improves the efficiency of methane conversion by forming an intrinsic high-energy magnetic field that can polarize methane. In methanol conversion, the C―H bond can be selectively activated, instead of the O―H bond, by light irradiation. Therefore, C―C coupling can be realized for the production of various value-added chemicals from methanol. This review summarizes the recent advances in the photocatalytic conversion of methane and methanol including the reactions of reforming, oxidation, and coupling. Perspectives and challenges for further research on the photocatalytic conversion of methane and methanol are also discussed.

Key words: Activation of C―H bond, C₁ chemistry, Methane, Methanol, Photocatalysis

Shuyi ZHANG,Jingxian BAO,Bo WU,Liangshu ZHONG,Yuhan SUN. Research Progress on the Photocatalytic Conversion of Methane and Methanol[J]. Acta Physico-Chimica Sinica 2019, 35(9), 923-939. doi: 10.3866/PKU.WHXB201810002

Figures/Tables 22

Table 1

Fig 1

Fig 2

Fig 3

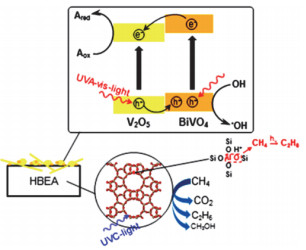

Scheme 1

Fig 4

Scheme 2

Scheme 3

Fig 5

Fig 6

Scheme 4

Table 2

Scheme 5

Scheme 6

Scheme 7

Fig 7

Fig 8

Fig 9

Table 3

Scheme 8

Table 4

Fig 10

References 92

1	Herrerias C. I. ; Yao X. ; Li Z. ; Li C.-J Chem. Rev 2007, 107, 2546. doi: 10.1021/cr050980b
2	Singh M. K. ; Akula H. K. ; Satishkumar S. ; Stahl L. ; Lakshman M. K. ACS Catal 2016, 6, 1921. doi: 10.1021/acscatal.5b02603
3	Yu J.-T. ; Pan C. Chem. Commun. 2016, 52, 2220. doi: 10.1039/c5cc08872k
4	Cook A. K. ; Schimler S. D. ; Matzger A. J. ; Sanford M. S. Science , 2016, 351, 1421. doi: 10.1126/science.aad9289
5	Smith K. T. ; Berritt S. ; Gonzalez-Moreiras M. ; Ahn S. ; Smith M. R. Science 2016, 351, 1424. doi: 10.1126/science.aad9730
6	Takamatsu K. ; Hirano K. ; Satoh T. ; Miura M. J. Org. Chem 2015, 80, 3242. doi: 10.1021/acs.joc.5b00307
7	Warratz S. ; Burns D. J. ; Zhu C. ; Korvorapun K. ; Rogge T. ; Scholz J. ; Jooss C. ; Gelman D. ; Ackermann L. Angew. Chem. Int. Ed 2017, 56, 1557. doi: 10.1002/anie.201609014
8	Zhang F.-L. ; Hong K. ; Li T.-J. ; Park H. ; Yu J.-Q. Science 2016, 351, 252. doi: 10.1126/science.aad7893
9	Liao K. ; Negretti S. ; Musaev D. G. ; Bacsa J. ; Davies H. M. L. Nature 2016, 533, 230. doi: 10.1038/nature17651
10	Liao K. B. ; Pickel T. C. ; Oyarskikh V. B. ; Acsa J. B. ; Usaev D. G. M. ; Davies H. M. L. Nature 2017, 551, 609. doi: 10.1038/nature24641
11	Liao K. ; Yang Y.-F. ; Li Y. ; Sanders J. N. ; Houk K. N. ; Musaev D. G. ; Davies H. M. L Nat. Chem. 2018, 551, 609. doi: 10.1038/s41557-018-0087-7
12	Tzirakis M. D. ; Lykakis I. N. ; Orfanopoulos M. Chem. Soc. Rev 2009, 38, 2609. doi: 10.1039/B812100C
13	Zhang X. ; MacMillan D. W. C. J. Am. Chem. Soc 2017, 139, 11353. doi: 10.1021/jacs.7b07078
14	Capacci A. G. ; Malinowski J. T. ; McAlpine N. J. ; Kuhne J. ; MacMillan D. W. C. Nat. Chem 2017, 9, 1073. doi: 10.1038/nchem.2797
15	Maeda H. ; Takayama H. ; Segi M. Photochem. Photobiol. Sci 2018, 17, 1118. doi: 10.1039/c8pp00239h
16	Jeffrey J. L. ; Terrett J. A. ; MacMillan D. W. C. Science 2015, 349, 1532. doi: 10.1126/science.aac8555
17	Nicewicz D. A. ; MacMillan D. W. C. Science 2008, 322, 77. doi: 10.1126/science.1161976
18	Shaw M. H. ; Shurtleff V. W. ; Terrett J. A. ; Cuthbertson J. D. ; MacMillan D. W. C. Science 2016, 352, 1304. doi: 10.1126/science.aaf6635
19	Zuo Z. ; Ahneman D. T. ; Chu L. ; Terrett J. A. ; Doyle A. G. ; MacMillan D. W. C. Science 2014, 345, 437. doi: 10.1126/science.1255525
20	Xie S. ; Shen Z. ; Deng J. ; Guo P. ; Zhang Q. ; Zhang H. ; Ma C. ; Jiang Z. ; Cheng J. ; Deng D. Nat.Commun. 2018, 9, 1181. doi: 10.1038/s41467-018-03543-y
21	Villa K. ; Murcia-López S. ; Morante J. R. ; Andreu T. Appl. Catal. B 2016, 187, 30. doi: 10.1016/j.apcatb.2016.01.032
22	Nomikos G. N. ; Panagiotopoulou P. ; Kondarides D. I. ; Verykios X. E. Appl. Catal. B 2014, 146, 249. doi: 10.1016/j.apcatb.2013.03.018
23	Chen F. ; Yang Q. ; Li X. ; Zeng G. ; Wang D. ; Niu C. ; Zhao J. ; An H. ; Xie T. ; Deng Y. Appl. Catal. B 2017, 200, 330. doi: 10.1016/j.apcatb.2016.07.021
24	Hammond C. ; Forde M. M. ; Ab Rahim M. H. ; Thetford A. ; He Q. ; Jenkins R. L. ; Dimitratos N. ; Lopez-Sanchez J. A. ; Dummer N. F. ; Murphy D. M. Angew. Chem. Int. Ed. 2012, 51, 5129. doi: 10.1002/anie.201108706
25	Ab Rahim M. H. ; Forde M. M. ; Jenkins R. L. ; Hammond C. ; He Q. ; Dimitratos N. ; Lopez-Sanchez J. A. ; Carley A. F. ; Taylor S. H. ; Willock D. J. Angew. Chem. Int. Ed. 2013, 52, 1280. doi: 10.1002/anie.201207717
26	Forde M. M. ; Armstrong R. D. ; Hammond C. ; He Q. ; Jenkins R. L. ; Kondrat S. A. ; Dimitratos N. ; Lopez-Sanchez J. A. ; Taylor S. H. ; Willock D. J. Am. Chem. Soc. 2013, 135, 11087. doi: 10.1021/ja403060n
27	Agarwal N. ; Freakley S. J. ; McVicker R. U. ; Althahban S. M. ; Dimitratos N. ; He Q. ; Morgan D. J. ; Jenkins R. L. ; Willock D. J. ; Taylor S. H. Science 2017, 358, 223. doi: 10.1126/science.aan6515
28	Liu H. ; Meng X. ; Dao T. D. ; Zhang H. ; Li P. ; Chang K. ; Wang T. ; Li M. ; Nagao T. ; Ye J. Angew. Chem. Int. Ed 2015, 54, 11545. doi: 10.1002/anie.201504933
29	Han B. ; Wei W. ; Chang L. ; Cheng P. ; Hu Y. H. ACS Catal 2015, 6, 494. doi: 10.1021/acscatal.5b02653
30	Liu H. ; Meng X. ; Dao T. D. ; Liu L. ; Li P. ; Zhao G. ; Nagao T. ; Yang L. ; Ye J. J. Mater. Chem. A 2017, 5, 10567. doi: 10.1039/c7ta00704c
31	Pan F. ; Xiang X. ; Deng W. ; Zhao H. ; Feng X. ; Li Y. ChemCatChem 2018, 10, 940. doi: 10.1002/cctc.201701565
32	Liu H. ; Dao T. D. ; Liu L. ; Meng X. ; Nagao T. ; Ye J. Appl. Catal. B 2017, 209, 183. doi: 10.1016/j.apcatb.2017.02.080
33	Murcia-López S. ; Bacariza M. C. ; Villa K. ; Lopes J. M. ; Henriques C. ; Morante J. R. ; Andreu T. ACS Catal 2017, 7, 2878. doi: 10.1021/acscatal.6b03535
34	Sastre F. ; Fornes V. ; Corma A. ; Garcia H. Chemistry 2012, 18, 1820. doi: 10.1002/chem.201102273
35	Hu Y. ; Anpo M. ; Wei C. J. Photochem. Photobiol. A 2013, 264, 48. doi: 10.1016/j.jphotochem.2013.05.005
36	Li L. ; Fan S. ; Mu X. ; Mi Z. ; Li C. J. J. Am. Chem. Soc 2014, 136, 7793. doi: 10.1021/ja5004119
37	Meng L. ; Chen Z. ; Ma Z. ; He S. ; Hou Y. ; Li H.-H. ; Yuan R. ; Huang X.-H. ; Wang X. ; Wang X. Energ. Environ. Sci. 2018, 11, 294. doi: 10.1039/c7ee02951a
38	Li L. ; Li G. D. ; Yan C. ; Mu X. Y. ; Pan X. L. ; Zou X. X. ; Wang K. X. ; Chen J. S. Angew. Chem. Int. Ed 2011, 50, 8299. doi: 10.1002/anie.201102320
39	Li L. ; Cai Y. Y. ; Li G. D. ; Mu X. Y. ; Wang K. X. ; Chen J. S. Angew. Chem. Int. Ed 2012, 51, 4702. doi: 10.1002/anie.201200045
40	Li Z. ; Mo L. ; Kathiraser Y. ; Kawi S. ACS Catal 2014, 4, 1526. doi: 10.1021/cs401027p
41	Zhao Y. ; Kang Y. Q. ; Li H. ; Li H. X. Green Chem 2018, 20, 2781. doi: 10.1039/c8gc00743h
42	Margossian T. ; Larmier K. ; Kim S. M. ; Krumeich F. ; Fedorov A. ; Chen P. ; Muller C. R. ; Coperet C. J. Am. Chem. Soc 2017, 139, 6919. doi: 10.1021/jacs.7b01625
43	Zhang Y. X. ; Dragan A. ; Geddes C. D. J. Phys.Chem. C 2009, 113, 15811. doi: 10.1021/jp900958n
44	Xiong Z. ; Chen X. ; Wang X. ; Peng L. ; Yan D. ; Lei H. ; Fu Y. ; Wu J. ; Li Z. ; An X. Appl. Surf. Sci. 2013, 268, 524. doi: 10.1016/j.apsusc.2012.12.161
45	Nagli L. ; Gaft M. ; Gornushkin I. ; Glaus R. Opt. Commun 2016, 378, 41. doi: 10.1016/j.optcom.2016.05.071
46	Kondratenko V. A. ; Berger-Karin C. ; Kondratenko E. V. ACS Catal 2014, 4, 3136. doi: 10.1021/cs5002465
47	Park J. H. ; Kwon Y.-i. ; Nam G. D. ; Joo J. H. J. Mater. Chem. A 2018, 6, 14246. doi: 10.1039/c8ta03021a
48	Zhu S. ; Lian X. ; Fan T. ; Chen Z. ; Dong Y. ; Weng W. ; Yi X. ; Fang W. Nanoscale 2018, 10, 14031. doi: 10.1039/c8nr02588f
49	Sushkevich V. L. ; Palagin D. ; Ranocchiari M. ; van Bokhoven J. A. Science 2017, 356, 523. doi: 10.1126/science.aam9035
50	Khan N. A. ; Kennedy E. M. ; Dlugogorski B. Z. ; Adesina A. A. ; Stockenhuber M. Catal. Commun 2014, 53, 42. doi: 10.1016/j.catcom.2014.04.012
51	Aslam M. ; Ismail I. M. ; Chandrasekaran S. ; Hameed A. J. Hazard. Mater 2014, 276, 120. doi: 10.1016/j.jhazmat.2014.05.022
52	Tanaka A. ; Hashimoto K. ; Kominami H. J. Am. Chem. Soc 2014, 136, 586. doi: 10.1021/ja410230u
53	Hameed A. ; Ismail I. M. I. ; Aslam M. ; Gondal M. A. Appl. Catal. A 2014, 470, 327. doi: 10.1016/j.apcata.2013.10.045
54	Li R. ; Han H. ; Zhang F. ; Wang D. ; Li C. Energy Environ. Sci 2014, 7, 1369. doi: 10.1039/c3ee43304h
55	Ohkubo K. ; Hirose K. Angew. Chem. Int. Ed 2018, 57, 2126. doi: 10.1002/anie.201710945
56	Keller G. E. ; Bhasin M. M. J. Catal 1982, 73, 9. doi: 10.1016/0021-9517[82]90075-6
57	Brady C. ; Murphy B. ; Xu B. ACS Catal 2017, 7, 3924. doi: 10.1021/acscatal.7b00879
58	Liu Y. ; Li D. ; Wang T. ; Liu Y. ; Xu T. ; Zhang Y. ACS Catal 2016, 6, 5366. doi: 10.1021/acscatal.6b01362
59	Okolie C. ; Lyu Y. ; Kovarik L. ; Stavitski E. ; Sievers C. ChemCatChem 2018, 10, 2700. doi: 10.1002/cctc.201701892
60	Guo J. J. ; Hu A. ; Chen Y. ; Sun J. ; Tang H. ; Zuo Z. Angew. Chem. Int. Ed 2016, 55, 15319. doi: 10.1002/anie.201609035
61	Hu A. ; Guo J. J. ; Pan H. ; Tang H. ; Gao Z. ; Zuo Z. J. Am. Chem. Soc 2018, 140, 1612. doi: 10.1021/jacs.7b13131
62	Hu A. ; Guo J.-J. ; Pan H. ; Zuo Z. Science 2018, 361, 668. doi: 10.1126/science.aat9750
63	Su L.-W. ; Li X.-R. ; Sun Z.-Y. Energ. Policy 2013, 63, 130. doi: 10.1016/j.enpol.2013.08.031
64	Chiarello G. L. ; Aguirre M. H. ; Selli E. J. Catal 2010, 273, 182. doi: 10.1016/j.jcat.2010.05.012
65	Liu Z. ; Yin Z. ; Cox C. ; Bosman M. ; Qian X. ; Li N. ; Zhao H. ; Du Y. ; Li J. ; Nocera D. G. Sci. Adv. 2016, 2, e1501425. doi: 10.1126/sciadv.1501425
66	Liu Y. ; Yang S. ; Yin S.-N. ; Feng L. ; Zang Y. ; Xue H. Chem. Eng. J. 2018, 334, 2401. doi: 10.1016/j.cej.2017.12.016
67	DePuccio D. P. ; Landry C. C. Catal. Sci.Technol 2016, 6, 7512. doi: 10.1039/c6cy01449f
68	Liu J. ; Han C. ; Yang X. ; Gao G. ; Shi Q. ; Tong M. ; Liang X. ; Li C. J. Catal 2016, 333, 162. doi: 10.1016/j.jcat.2015.11.005
69	Liang X. ; Yang X. ; Gao G. ; Li C. ; Li Y. ; Zhang W. ; Chen X. ; Zhang Y. ; Zhang B. ; Lei Y. J. Catal. 2016, 339, 68. doi: 10.1016/j.jcat.2016.03.033
70	Yang X. ; Zhang A. ; Gao G. ; Han D. ; Han C. ; Wang J. ; Lu H. ; Liu J. ; Tong M. Catal. Commun 2014, 43, 192. doi: 10.1016/j.catcom.2013.10.010
71	Han C. H. ; Yang X. Z. ; Gao G. J. ; Wang J. ; Lu H. L. ; Liu J. ; Tong M. ; Liang X. Y. Green Chem 2014, 16, 3603. doi: 10.1039/c4gc00367e
72	Fan Y. H. ; Bao J. X. ; Shi L. ; Li S. G. ; Lu Y. W. ; Liu H. J. ; Wang H. ; Zhong L. S. ; Sun Y. H. Catal. Lett 2018, 148, 2274. doi: 10.1007/s10562-018-2465-6
73	Fan Y. ; Li S. ; Bao J. ; Shi L. ; Yang Y. ; Yu F. ; Gao P. ; Wang H. ; Zhong L. ; Sun Y. Green Chem 2018, 20, 3450. doi: 10.1039/c8gc00971f
74	Chiarello G. L. ; Ferri D. ; Selli E. J. Catal 2011, 280, 168. doi: 10.1016/j.jcat.2011.03.013
75	Highfield J. G. ; Chen M. H. ; Nguyen P. T. ; Chen Z. Energ. Environ. Sci 2009, 2 doi: 10.1039/b907781m
76	Naldoni A. ; D'Arienzo M. ; Altomare M. ; Marelli M. ; Scotti R. ; Morazzoni F. ; Selli E. ; Dal Santo V. Appl. Catal. B 2013, 130- 131, 239. doi: 10.1016/j.apcatb.2012.11.006
77	Guo Q. ; Xu C. ; Ren Z. ; Yang W. ; Ma Z. ; Dai D. ; Fan H. ; Minton T. K. ; Yang X. J. Am. Chem. Soc 2012, 134, 13366. doi: 10.1021/ja304049x
78	Shen M. ; Henderson M. A. J. Phys.Chem. C 2012, 116, 18788. doi: 10.1021/jp3046774
79	Zhang J. ; Peng C. ; Wang H. ; Hu P. ACS Catal 2017, 7, 2374. doi: 10.1021/acscatal.6b03348
80	Iwase Y. ; Kobayashi T. ; Inazu K. ; Miyaji A. ; Baba T. Catal. Lett 2007, 118, 146. doi: 10.1007/s10562-007-9171-0
81	Tang X. C. ; Zeng Z. W. ; Jiang L. H. ; Chen L. A. ; Wang Z. M. ; Jia D. A. Z. Acta Chim. Sin 2010, 68, 2013.
82	Jogunola O. ; Salmi T. ; Kangas M. ; Mikkola J. P. Chem. Eng. J 2012, 203, 469. doi: 10.1016/j.cej.2012.06.085
83	Lu Z. ; Gao D. ; Yin H. ; Wang A. ; Liu S. J. Ind. Eng. Chem 2015, 31, 301. doi: 10.1016/j.jiec.2015.07.002
84	Phillips K. R. ; Jensen S. C. ; Baron M. ; Li S. C. ; Friend C. M. J. Am. Chem. Soc 2013, 135, 574. doi: 10.1021/ja3106797
85	Shen Z. B. ; Xie S. J. ; Fan W. Q. ; Zhang Q. H. ; Xie Z. K. ; Yang W. M. ; Wang Y. D. ; Lin J. C. ; Wu X. J. ; Wan H. L. Catal. Sci.Technol. 2016, 6, 6485. doi: 10.1039/c6cy01468b
86	Xie S. J. ; Shen Z. B. ; Zhang H. M. ; Cheng J. ; Zhang Q. H. ; Wang Y. Catal. Sci. Technol 2017, 7, 923. doi: 10.1039/c6cy02510b
87	Pospech J. ; Fleischer I. ; Franke R. ; Buchholz S. ; Beller M. Angew Chem. Int. Ed 2013, 52, 2852. doi: 10.1002/anie.201208330
88	Chan L. K. M. ; Poole D. L. ; Shen D. ; Healy M. P. ; Donohoe T. J. Angew. Chem. Int. Ed 2014, 53, 761. doi: 10.1002/anie.201307950
89	Liu Z. H. ; Yang Z. Z. ; Yu X. X. ; Zhang H. Y. ; Yu B. ; Zhao Y. F. ; Liu Z. M. Org. Lett 2017, 19, 5228. doi: 10.1021/acs.orglett.7b02462
90	Zhu C. J. ; Zhang Y. F. ; Zhao H. Q. ; Huang S. J. ; Zhang M. ; Su W. P. Adv. Synth. Catal 2015, 357, 331. doi: 10.1002/adsc.201500006
91	Yang J. ; Xie D. ; Zhou H. ; Chen S. ; Duan J. ; Huo C. ; Li Z. Adv. Synth. Catal 2018, 360, 3471. doi: 10.1002/adsc.201800467
92	Griesbeck A. G. ; Reckenthaler M. Beilstein J. Org. Chem 2014, 10, 1143. doi: 10.3762/bjoc.10.114

Entry	Catalyst	Reaction	Reaction conditions				Catalytic performance			Ref.
Entry	Catalyst	Reaction	T/℃	P/MPa	Light source	I/(mW∙cm^-2)	Reaction rate	Conv./%	Sel./%	Ref.
1	Rh-Au/SBA-15	methane to syngas	500	0.1	LA-251Xe-lamp (HA30 filter)	280	1650–1750 μmol_CH₄·g^-1∙s^-1 2150–2200 μmol_CO₂·g^-1∙s^-1	NA	~100	28
2	Pt/black-TiO₂	methane to syngas	650	0.1	sunlight	100	129 mmol_H₂·g^-1∙h^-1 103 mmol_CO·g^-1∙h^-1	NA	NA	29
3	Ni/SiO₂-Im	methane to syngas	550	0.1	LA-251Xe-lamp (HA30 filter)	1070	1270 μmol_H₂·g^-1 Ni∙min^-1 1270 μmol_H₂·g-1 Ni∙min^-1	NA	~100	30
4	Pt-Si-CeO₂	methane to syngas	600	0.1	solar simulator	3000	90 mmol_H₂·g^-1∙h^-1 154 mmol_CO·g^-1∙h^-1	25	NA	31
5	Ni/Al₂O₃	methane to syngas	550	0.1	LA-251Xe-lamp (HA30 filter)	1070	132 μmol_H₂·g^-1∙h^-1 130 μmol_CO·g^-1∙h^-1	NA	~100	32
6	Bi-V/BETA	methane to methanol	70	0.1	Hg lamp	NA	10.7 μmol_CH₃_OH·g^-1∙h^-1	NA	NA	33
7	Beta zeolite	methane to methanol	RT	0.5	deep-UV (185 nm)	NA	NA	6.3	5.4	34
8	V-MCM-41	methane to methanol	300	0.1	Hg lamp UV (> 270 nm)	NA	9.6 μmol_CH₃_OH·g^-1∙h^-1	7.1	88	35
9	n-GaN NWs	methane to benzene	5	0.1	Xe lamp UV (290–380 nm)	7.5	11.39 ×10 μmol_CH₄·g^-1∙h^-1 1.77 × 10^-2 μmol_C₆_H₆·g^-1∙h^-1	NA	96	36
10	Au/ZnO	methane to ethane	RT	0.1	Xe lamp (300–800 nm)	600	11.25 μmol_C₂_H₆·g^-1∙h^-1 10 μmol_H₂·g^-1∙h^-1	NA	NA	37
11	(Zn⁺, Zn²⁺)/ZSM-5	methane to ethane	RT	0.1	Hg lamp (< 270 nm)	100	9.8 mmol_CH₄·g^-1∙h^-1 4.9 mmol_H₂·g^-1∙h^-1	24	99	38
12	Ga³⁺-EST-10	methane to ethane	RT	0.1	Hg lamp (< 370 nm)	100	29.8 μmol_CH₄·g^-1∙h^-1	14.9	NA	39

Entry	Catalyst	Reaction	Reaction conditions				Catalytic performance			Ref.
Entry	Catalyst	Reaction	T/℃	P/MPa	Light source	I/(mW∙cm^-2)	Reaction rate	Conv./%	Sel./%	Ref.
1	0.5% Pt/TiO₂	methanol to hydrogen	RT	0.1	LED (365 nm)	3	66.75 mol_H₂∙g^-1∙min^-1	NA	NA	22
2	1% Pt/TiO₂	methanol to hydrogen	30	0.1	iron halogenide mercury arc lamp	1.67 ×10^-7 Einsteins^-1∙cm^-2	18.6 mmol_H₂∙g^-1∙h^-1 2.88 mmol_CO₂∙g^-1∙h^-1	NA	CO₂: 46.4	64
3	MgO	methanol to formaldehyde	RT	0.1	mercury lamp UV	388	~55 μmol_H₂∙g^-1∙h^-1	NA	no CO_x	65
4	AgNPs/g-C₃N₄ aerogel	methanol to formaldehyde	RT	0.1	Xe lamp (350–780 nm)	NA	152.2 μmol_H₂∙g^-1∙h^-1	NA	no CO_x	66
5	Au/WO₃	methanol to formaldehyde	25	0.1	Xe arc lamp (380–950 nm)	800	120 μmol_MeOH∙g^-1∙min^-1	NA	32–40	67
6	Cu/TiO₂	methanol to methyl formate	15–45	0.1	high pressure mercury lamp UV	18.6	56.4 mmol_MF∙g^-1∙h^-1	65-85	55–65	68
7	CuO/CuZnAl hydrotalcites-ZnO	methanol to methyl formate	26–45	0.1	high pressure mercury lamp UV	25.3	NA	84.5	59.1	69
8	3% Ag/SiO₂	methanol to methyl formate	40	0.1	high pressure mercury lamp UV	NA	23.46 mmol_MF∙g^-1∙h^-1	NA	NA	70
9	Au-Ag alloy/TiO₂	methanol to methyl formate	15–45	0.1	UV	~19	~22 mmol_MF∙g^-1∙h^-1	90	85	71
10	MoS₂ foam/CdS	methanol to ethylene glycol	RT	0.1	300-W Xe lamp (420–780 nm)	NA	11 mmol_EG∙g^-1∙h^-1 12 mmol_H₂∙g^-1∙h^-1	NA	90	20
11	Pt/TiO₂	methanol to ethylene glycol	60	0.1	Xe lamp UV light (320–400 nm)	120	16.8umol_EG∙g^-1∙h^-1	NA	86.4	72
12	Pt/TiO₂	methanol to aliphatic alcohol	60	0.1	Xe lamp irradiation (200–400 nm)	100	TOF of aliphatic alcohol 0.003 h^-1	1.3–8.6	54–87	73


Entry	Substrate	Olefins	Main product	10^-3 TON	10^-3 TOF/h^-1	Selectivity to target product/%	Anti-Markovnikov regioselectivity/%
1				18.0	1.2	87.2	90
2				33.1	2.2	84.0	92
3				34.6	2.3	74.6	93
4				45.3	3.0	62.3	93
5				14.9	1.0	54.4	100
6				59.2	3.9	57.7	100
7				105.2	7.0	77.0	100


Entry	Substrate	Target product	10^-3 TON	10^-3 TOF/h^-1	Selectivity to target product/%	A/(P + A)	Anti-Markovnikov regioselectivity/%
1			45.3	3.0	62.3	0.92	93
2			83.2	5.6	86.8	0.97	100
3			207.9	13.9	79.1	0.93	100
4			282.6	28.3	79.7	0.86	100
