物理化学学报 >> 2015, Vol. 31 >> Issue (3): 441-447.doi: 10.3866/PKU.WHXB201412301

理论与计算化学 上一篇    下一篇

结合第一性原理和热力学计算对HfO2晶体本征点缺陷的预测

刘凤明, 刘廷禹, 刘检, 李海心

  1. 上海理工大学理学院, 上海 200093
  • 收稿日期:2014-10-08 修回日期:2014-12-30 发布日期:2015-03-06
  • 通讯作者: 刘廷禹 E-mail:liutyyxj@163.com
  • 基金资助:

    沪江基金(B14004)资助项目

Prediction of Native Point Defects in HfO2 Crystals Using First Principles and Thermodynamic Calculations

LIU Feng-Ming, LIU Ting-Yu, LIU Jian, LI Hai-Xin

  1. College of Science, University of Shanghai for Science and Technology, Shanghai 200093, P. R. China
  • Received:2014-10-08 Revised:2014-12-30 Published:2015-03-06
  • Contact: LIU Ting-Yu E-mail:liutyyxj@163.com
  • Supported by:

    The project was supported by the Foundation of Hujiang, China (B14004).

PDF

1586

赞

摘要：

基于第一性原理和热动力学方法模拟计算得到了不同温度和氧分压下HfO2晶体本征点缺陷的形成能,并讨论了各种点缺陷的形成能随费米能级变化的规律. 结果表明: 当费米能级在价带顶附近时, 随着温度和氧分压的变化, 出现了不同的最稳定点缺陷(Oi0、VO32+和Hfi4+). 当费米能级大于3.40 eV时, 主要点缺陷是带-4价的Hf 空位. 该晶体除Hf 空位在价带顶附近出现了奇数价态, 其它的点缺陷都只显现偶数价态, 这表明该晶体的点缺陷具有典型的negative-U特性. 本文还计算得到了该晶体可能存在的最稳定点缺陷在温度、氧分压和费米能级三维空间的分布, 这为分析该晶体在不同条件下可能出现的点缺陷类型提供清晰的图像, 为调控晶体点缺陷的形成提供参考.

关键词: 密度泛函理论, 点缺陷, 热力学, 二氧化铪晶体

Abstract:

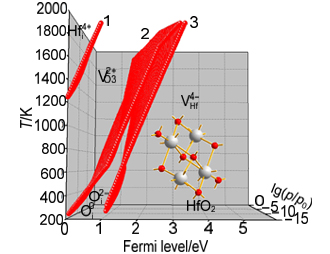

Based on first principles and thermodynamics the intrinsic point defect formation energy was calculated at different temperatures and oxygen partial pressures in HfO2 crystals. The stability of all kinds of point defects as well as the formation of charged point defects and their sensitivity to the Fermi energy was analyzed. We also discuss rules that govern the formation of various point defects that vary with Fermi level. The results show that with a change in temperature and oxygen partial pressure the most stable point defects are obtained (Oi0, VO32+ and Hfi4+) when the Fermi level is close to the valence band. The main point defect was the Hf vacancy at a -4 charge when the Fermi level was higher than 3.40 eV. Apart from the Hf vacancy almost no other point defect had an odd charge and they showed negative-U behavior. Using the most stable intrinsic defect as a function of the Fermi level, the oxygen partial pressure and the temperature were determined using three-dimensional defect formation enthalpy diagrams. This diagram provides information that allows for the control of point defects in the crystal.

Key words: Density functional theory, Point defect, Thermodynamics, HfO2 crystal
