反蛋白石结构的g-C3N4可控合成及其优异的光催化产氢性能

doi:10.3866/PKU.WHXB202009080

物理化学学报 >> 2021, Vol. 37 >> Issue (6): 2009080.doi: 10.3866/PKU.WHXB202009080

所属专题：先进光催化剂设计与制备

反蛋白石结构的g-C₃N₄可控合成及其优异的光催化产氢性能

陈一文¹, 李铃铃², 徐全龙³^,*(), Tina Düren⁴, 范佳杰¹^,⁴^,*(), 马德琨⁵^,*()

¹ 郑州大学，材料科学与工程学院，郑州 450002
² 广东工业大学，材料与能源学院，广州 510006
³ 温州大学，化学与材料工程学院，浙江省碳材料重点实验室，浙江温州 325027
⁴ Centre for Advanced Separations Engineering, Department of Chemical Engineering, University of Bath, Bath BA2 7AY, UK
⁵ 绍兴文理学院，浙江省精细化学品传统工艺替代技术研究重点实验室，浙江绍兴 312000

收稿日期:2020-09-25 录用日期:2020-10-16 发布日期:2020-10-22
通讯作者: 徐全龙,范佳杰,马德琨 E-mail:xuql@wzu.edu.cn;fanjiajie@zzu.edu.cn;dkma@wzu.edu.cn
作者简介:第一联系人：
^†These authors contribute equally.
基金资助:
国家自然科学基金(21905209);国家自然科学基金(21673160);国家自然科学基金(52073263);浙江省自然科学基金(LR16B010002);国家留学基金(201907045030)

Controllable Synthesis of g-C₃N₄ Inverse Opal Photocatalysts for Superior Hydrogen Evolution

Yiwen Chen¹, Lingling Li², Quanlong Xu³^,*(), Düren Tina⁴, Jiajie Fan¹^,⁴^,*(), Dekun Ma⁵^,*()

¹ School of Materials Science and Engineering, Zhengzhou University, Zhengzhou 450002, China
² School of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
³ Key laboratory of Carbon Materials of Zhejiang Province, College of Chemistry and Materials Engineering, Wenzhou University, Wenzhou 325027, Zhejiang Province, China
⁴ Centre for Advanced Separations Engineering, Department of Chemical Engineering, University of Bath, Bath BA2 7AY, UK
⁵ Zhejiang Key Laboratory of Alternative Technologies for Fine Chemicals Process, Shaoxing University, Shaoxing 312000, Zhejiang Province, China

Received:2020-09-25 Accepted:2020-10-16 Published:2020-10-22
Contact: Quanlong Xu,Jiajie Fan,Dekun Ma E-mail:xuql@wzu.edu.cn;fanjiajie@zzu.edu.cn;dkma@wzu.edu.cn
About author:Dekun Ma, Email: dkma@wzu.edu.cn
Jiajie Fan, Email: fanjiajie@zzu.edu.cn
Quanlong Xu, Email: xuql@wzu.edu.cn; Tel.: +86-15271854312 (Q.X.)
Supported by:
the Foundation of National Nature Science Foundation of China(21905209);the Foundation of National Nature Science Foundation of China(21673160);the Foundation of National Nature Science Foundation of China(52073263);Zhejiang Provincial Natural Science Foundation of China for Distinguished Young Scholars(LR16B010002);China Scholarship Council(201907045030)

摘要/Abstract

摘要：

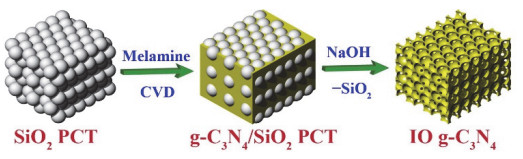

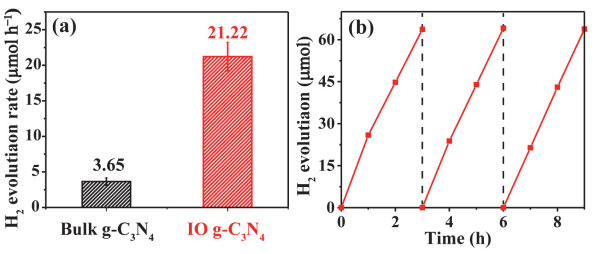

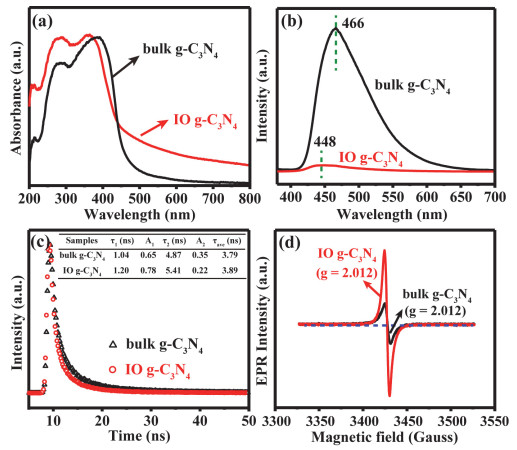

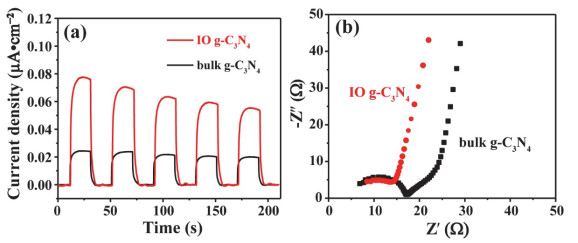

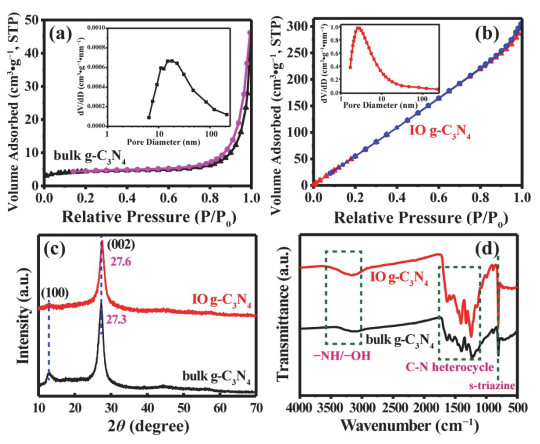

日渐严重的能源短缺和环境失衡问题已经阻碍了人类社会的进一步和长远可持续发展。能够将太阳能转化为可储存化学能的半导体基光催化技术被广泛的理解为一种经济和清洁的解决方式，比如光催化分解水。虽然被认为是有前途的光催化剂，g-C₃N₄低的比表面积极大地限制了其光催化性能。大孔-介孔结构可以为物质的传输和光的充分利用提供有效通道，从而提高光催化反应效率。本文中，具有反蛋白石(IO)结构的g-C₃N₄合理地通过紧密堆积的SiO₂作为模板来制备得到。并且显示出超高比表面积(450.2 m²·g^-1)，表现出更好的光催化产氢速率(21.22 μmol·h^-1)，约为体相g-C₃N₄ (3.65 μmol·h^-1)的六倍。相对于体相g-C₃N₄，IO g-C₃N₄表现了更好的可见光吸收能力, 这得益于3D多孔结构的多重光散射效应。同时，较低的荧光强度、更长的荧光寿命、更小的Nyquist半圆环和更强的光电流响应协同地抑制了光生载流子的复合，降低了界面电荷传输的电阻，促进了光生电子的形成。此外，氮空位的存在能够增强局部电子密度，氮气吸-脱附测试揭示了IO g-C₃N₄中存在丰富的中孔和大孔，高比表面积暴露更多的活性边界和催化中心。正如光学性质、电子顺磁共振和电化学表征结果所揭示的那样，那些有利因素，包括增强的光利用率、提高的光生电荷的分离、延长的荧光寿命都赋予具有反蛋白石结构的IO g-C₃N₄优越的光催化性能。这项工作为结构设计和光催化性能调制做出了重要贡献。

关键词: g-C₃N₄, 反蛋白(IO), 光催化, 产氢

Abstract:

The growing frustration from facing energy shortages and unbalanced environmental issues has obstructed the long-term development of human society. Semiconductor-based photocatalysis, such as water splitting, transfers solar energy to storable chemical energy and is widely considered an economic and clean solution. Although regarded as a promising photocatalyst, the low specific surface area of g-C₃N₄ crucially restrains its photocatalytic performance. The macro-mesoporous architecture provides effective channels for mass transfer and full-light utilization and improved the efficiency of the photocatalytic reaction. Herein, g-C₃N₄ with an inverse opal (IO) structure was rationally fabricated using a well-packed SiO₂ template, which displayed an ultrahigh surface area (450.2 m²·g^-1) and exhibited a higher photocatalytic H₂ evolution rate (21.22 μmol·h^-1), almost six times higher than that of bulk g-C₃N₄ (3.65 μmol·h^-1). The IO g-C₃N₄ demonstrates better light absorption capacity than bulk g-C₃N₄, primarily in the visible spectra range, owing to the multiple light scattering effect of the three-dimensional (3D) porous structure. Meanwhile, a lower PL intensity, longer emission lifetime, smaller Nyquist semicircle, and stronger photocurrent response (which synergistically give rise to the suppressed recombination of charge carriers) decrease the interfacial charge transfer resistance and boost the formation of photogenerated electron-hole pairs. Moreover, the existing N vacancies intensify the local electron density, helping increase the number of photoexcitons. The N₂ adsorption-desorption test revealed the existence of ample mesopores and macropores and high specific surface area in IO g-C₃N₄, which exposes more active edges and catalytic sites. Optical behavior, electron paramagnetic resonance, and electrochemical characterization results revealed positive factors, including enhanced light utilization, improved photogenerated charge separation, prolonged lifetime, and fortified IO g-C₃N₄ with excellent photocatalytic performance. This work provides an important contribution to the structural design and property modulation of photocatalysts.

Key words: g-C₃N₄, Inverse opal (IO), Photocatalysis, H₂ evolution

陈一文, 李铃铃, 徐全龙, Tina Düren, 范佳杰, 马德琨. 反蛋白石结构的g-C₃N₄可控合成及其优异的光催化产氢性能[J]. 物理化学学报, 2021, 37(6): 2009080.

Yiwen Chen, Lingling Li, Quanlong Xu, Düren Tina, Jiajie Fan, Dekun Ma. Controllable Synthesis of g-C₃N₄ Inverse Opal Photocatalysts for Superior Hydrogen Evolution[J]. Acta Phys. -Chim. Sin., 2021, 37(6): 2009080.

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202009080

https://www.whxb.pku.edu.cn/CN/Y2021/V37/I6/2009080

图/表 10

Scheme 1

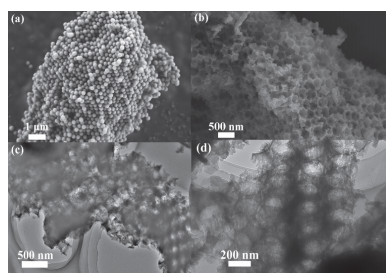

Fig 1

Fig 2

Table 1

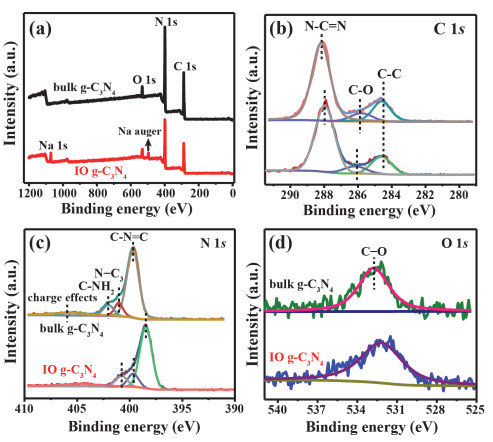

Fig 3

Fig 4

Fig 5

Fig 6

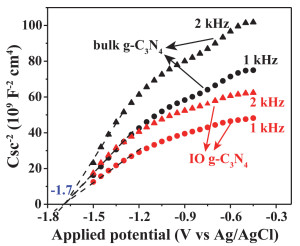

Fig 7

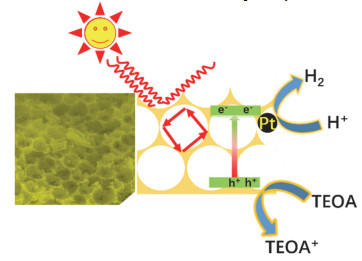

Fig 8

参考文献 57

1	Meng A. ; Zhang L. ; Cheng B. ; Yu J. Adv. Mater. 2019, 31, 1807660. doi: 10.1002/adma.201807660
2	Xu Q. ; Zhang L. ; Yu J. ; Wageh S. ; Al-Ghamdi A.A. ; Jaroniec M. Mater. Today 2018, 21, 1042. doi: 10.1016/j.mattod.2018.04.008
3	Xu Q. ; Zhang L. ; Cheng B. ; Fan J. ; Yu J. Chem 2020, 6, 1543. doi: 10.1016/j.chempr.2020.06.010
4	Cui L. ; Song J. ; McGuire A.F. ; Kang S. ; Fang X. ; Wang J. ; Yin C. ; Li X. ; Wang Y. ; Cui B. ACS Nano 2018, 12, 5551. doi: 10.1021/acsnano.8b01271
5	Li J. ; Wu D. ; Iocozzia J. ; Du H. ; Liu X. ; Yuan Y. ; Zhou W. ; Li Z. ; Xue Z. ; Lin Z. Angew. Chem. Int. Ed. 2019, 58, 1985. doi: 10.1002/anie.201813117
6	Zhu B. ; Zhang L. ; Cheng B. ; Yu Y. ; Yu J. Chin. J. Catal. 2021, 42, 115. doi: 10.1016/S1872-2067(20)63598-7
7	Zhu B. ; Cheng B. ; Zhang L. ; Yu J. Carbon Energy 2019, 1, 32. doi: 10.1002/cey2.1
8	Xia P. ; Liu M. ; Cheng B. ; Yu J. ; Zhang L. ACS Sustain. Chem. Eng. 2018, 6, 8945. doi: 10.1021/acssuschemeng.8b01300
9	Ong W. J. ; Tan L. L. ; Ng Y. H. ; Yong S. T. ; Chai S. P. Chem. Rev. 2016, 116, 7159. doi: 10.1021/acs.chemrev.6b00075
10	Xiang Q. ; Li F. ; Zhang D. ; Liao Y. ; Zhou H. Appl. Surf. Sci. 2019, 495, 143520. doi: 10.1016/j.apsusc.2019.07.262
11	Li Y. ; Zhou M. ; Cheng B. ; Shao Y. J. Mater. Sci. Technol. 2020, 56, 1. doi: 10.1016/j.jmst.2020.04.028
12	Wen J. ; Xie J. ; Chen X. ; Li X. Appl. Surf. Sci. 2017, 391, 72. doi: 10.1016/j.apsusc.2016.07.030
13	Li Y. ; Jin Z. ; Zhang L. Chin. J. Catal. 2019, 40, 90. doi: 10.1016/S1872-2067(18)63173-0
14	Tian B. ; Wu Y. ; Lu G. Appl. Catal. B. 2021, 280, 119410. doi: 10.1016/j.apcatb.2020.119410
15	Gao Y. ; Chen F. ; Chen Z. J. Mater. Sci. Technol. 2020, 56, 227. doi: 10.1016/j.jmst.2020.02.050
16	Li Y. ; Li X. ; Zhang H. J. Mater. Sci. Technol. 2020, 56, 69. doi: 10.1016/j.jmst.2020.03.033
17	Wang Y. ; Shen S. Acta Phys. -Chim. Sin. 2020, 36, 1905080.
	王亦清; 沈少华; 物理化学学报, 2020, 36, 1905080. doi: 10.3866/PKU.WHXB201905080
18	Huang J. ; Du J. ; Du H. ; Xu G. ; Yuan Y. Acta Phys. -Chim. Sin. 2020, 36, 1905056.
	黄娟娟; 杜建梅; 杜海威; 徐更生; 袁玉鹏; 物理化学学报, 2020, 36, 1905056. doi: 10.3866/PKU.WHXB201905056
19	Man L. ; Xu Q. ; Li W. ; Chen W. ; Zheng W. ; Ma D. Appl. Surf. Sci. 2020, 512, 145647. doi: 10.1016/j.apsusc.2020.145647
20	Sun K. ; Shen J. ; Liu Q. Chin. J. Catal. 2020, 41, 72. doi: 10.1016/S1872-2067(19)63430-3
21	Xiao N. ; Li S. ; Liu S. Chin. J. Catal. 2019, 40, 352. doi: 10.1016/S1872-2067(18)63180-8
22	Liu M. ; Xia P. ; Zhang L. ; Cheng B. ; Yu J. ACS Sustain. Chem. Eng. 2018, 6, 10472. doi: 10.1021/acssuschemeng.8b01835
23	Luo J. ; Lin Z. ; Zhao Y. Chin. J. Catal. 2020, 41, 122. doi: 10.1016/S1872-2067(19)63490-X
24	Li Y. ; Zhou M. ; Cheng B. J. Mater. Sci. Technol. 2020, 56, 1. doi: 10.1016/j.jmst.2020.04.028
25	Wang L. ; Zhu C. ; Yin L. ; Huang W. Acta Phys. -Chim. Sin. 2020, 36, 1907001.
	王梁; 朱澄鹭; 殷丽莎; 黄维; 物理化学学报, 2020, 36, 1907001. doi: 10.3866/PKU.WHXB201907001
26	Chang W. ; Xue W. ; Liu E. ; Fan J. ; Zhao B. Chem. Eng. J. 2019, 362, 392. doi: 10.1016/j.cej.2019.01.021
27	Li Y. ; Zhang D. ; Feng X. Chin. J. Catal. 2020, 41, 21. doi: 10.1016/S1872-2067(19)63427-3
28	Liu M. ; Wageh S. ; Al-Ghamdi A. ; Xia P. ; Cheng B. ; Zhang L. ; Yu J. Chem. Commun. 2019, 55, 14023. doi: 10.1039/c9cc07647f
29	Yang Y. ; Wang S. ; Li Y. ; Wang J. ; Wang L. Chem. Asian J. 2017, 12, 1421. doi: 10.1002/asia.201700540
30	Li Y. ; Li X. ; Zhang H. ; Fan J. ; Xiang Q. J. Mater. Sci. Technol. 2020, 56, 69. doi: 10.1016/j.jmst.2020.03.033
31	Curti M. ; Schneider J. ; Bahnemann D. W. ; Mendive C. B. J. Phys. Chem. Lett. 2015, 6, 3903. doi: 10.1021/acs.jpclett.5b01353
32	Chen B. ; Zhou L. ; Tian Y. ; Yu J. ; Lei J. ; Wang L. ; Liu Y. ; Zhang J. Phys. Chem. Chem. Phys. 2019, 21, 12818. doi: 10.1039/c9cp01495k
33	Armstrong E. ; O'Dwyer C. J. Mater. Chem. C 2015, 3, 6109. doi: 10.1039/c5tc01083g
34	Low J. ; Zhang L. ; Zhu B. ; Liu Z. ; Yu J. ACS Sustain. Chem. Eng. 2018, 6, 15653. doi: 10.1021/acssuschemeng.8b04150
35	Jiao J. ; Wei Y. ; Zhao Z. ; Liu J. ; Li J. ; Duan A. ; Jiang G. Ind. Eng. Chem. Res. 2014, 53, 17345. doi: 10.1021/ie503333b
36	Xiao M. ; Wang Z. ; Lyu M. ; Luo B. ; Wang S. ; Liu G. ; Cheng H. ; Wang L. Adv. Mater. 2019, 31, 1801369. doi: 10.1002/adma.201801369
37	Hwang S. ; Lee S. ; Yu J. Appl. Surf. Sci. 2007, 253, 5656. doi: 10.1016/j.apsusc.2006.12.032
38	Lin B. ; Li J. ; Xu B. ; Yan X. ; Yang B. ; Wei J. ; Yang G. Appl. Catal. B 2019, 243, 94. doi: 10.1016/j.apcatb.2018.10.029
39	Lin B. ; Yang G. ; Wang L. Angew. Chem. Int. Ed. 2019, 58, 4587. doi: 10.1002/anie.201814360
40	Sun L. ; Yang M. ; Huang J. ; Yu D. ; Hong W. ; Chen X. Adv. Funct. Mater. 2016, 26, 4943. doi: 10.1002/adfm.201600894
41	Lei J. ; Chen B. ; Lv W. ; Zhou L. ; Wang L. ; Liu Y. ; Zhang J. ACS Sustain. Chem. Eng. 2019, 7, 16467. doi: 10.1021/acssuschemeng.9b03678
42	Xu Q. ; Zhu B. ; Cheng B. ; Yu J. ; Zhou M. ; Ho W. Appl. Catal. B 2019, 255, 117770. doi: 10.1016/j.apcatb.2019.117770
43	Xu Q. ; Ma D. ; Yang S. ; Tian Z. ; Cheng B. ; Fan J. Appl. Surf. Sci. 2019, 495, 143555. doi: 10.1016/j.apsusc.2019.143555
44	Tian N. ; Huang H. ; Liu C. ; Dong F. ; Zhang T. ; Du X. ; Yu S. ; Zhang Y. J. Mater. Chem. A 2015, 3, 17120. doi: 10.1039/c5ta03669k
45	Zhao H. ; Hu Z. ; Liu J. ; Li Y. ; Wu M. ; Van Tendeloo G. ; Su B. Nano Energy 2018, 47, 266. doi: 10.1016/j.nanoen.2018.02.052
46	Wang H. ; Sun X. ; Li D. ; Zhang X. ; Chen S. ; Shao W. ; Tian Y. ; Xie Y. J. Am. Chem. Soc. 2017, 139, 2468. doi: 10.1021/jacs.6b12878
47	Li X. ; Wang B. ; Yin W. ; Di J. ; Xia J. ; Zhu W. ; Li H. Acta Phys. -Chim. Sin. 2020, 36, 1902001.
	李小为; 王彬; 尹文轩; 狄俊; 夏杰祥; 朱文帅; 李华明; 物理化学学报, 2020, 36, 1902001. doi: 10.3866/PKU.WHXB201902001
48	Niu P. ; Liu G. ; Cheng H. J. Phys. Chem. C 2012, 116, 11013. doi: 10.1021/jp301026y
49	Xiong T. ; Cen W. ; Zhang Y. ; Dong F. ACS Catal. 2016, 6, 2462. doi: 10.1021/acscatal.5b02922
50	Cho Y. ; Kim S. ; Park B. ; Lee C. L. ; Kim J. K. ; Lee K. S. ; Choi I. Y. ; Kim J. K. ; Zhang K. ; Oh S. H. ; et al Nano Lett. 2018, 18, 4257. doi: 10.1021/acs.nanolett.8b01245
51	Zhong Y. ; Djurisic A. B. ; Hsu Y. ; Wong K. ; Brauer G. ; Ling C. ; Chan W. J. Phys. Chem. C 2008, 112, 16286. doi: 10.1021/jp804132u
52	Yu Y. ; Tang Y. ; Yuan J. ; Wu Q. ; Zheng W. ; Cao Y. J. Phys. Chem. C 2014, 118, 13545. doi: 10.1021/jp412375z
53	Zheng Y. ; Lin L. ; Ye X. ; Guo F. ; Wang X. Angew. Chem. Int. Ed. 2014, 53, 11926. doi: 10.1002/anie.201407319
54	Xia P. ; Cheng B. ; Jiang J. ; Tang H. Appl. Surf. Sci. 2019, 487, 335. doi: 10.1016/j.apsusc.2019.05.064
55	Li Y. ; Jin R. ; Xing Y. ; Li J. ; Song S. ; Liu X. ; Li M. ; Jin R. Adv. Energy Mater. 2016, 6, 1601273. doi: 10.1002/aenm.201601273
56	Tu W. ; Xu Y. ; Wang J. ; Zhang B. ; Zhou T. ; Yin S. ; Wu S. ; Li C. ; Huang Y. ; Zhou Y. ; et al ACS Sustain. Chem. Eng. 2017, 5, 7260. doi: 10.1021/acssuschemeng.7b01477
57	Yu L. ; Li G. ; Zhang X. ; Ba X. ; Shi G. ; Li Y. ; Wong P. ; Yu J. ; Yu Y. ACS Catal. 2016, 6, 6444. doi: 10.1021/acscatal.6b01455

Position (cm^-1)	Assignments
809	C-N stretching vibration triazine cycles
892	cross-linked heptazine deformation
1241/1320	stretching vibrations of connected C=N-C units
1800 to 1400	skeletal vibrations of the CN aromatic heterocycles
