在气液界面上压缩诱导聚(L-乳酸)膜的结构变化

doi:10.3866/PKU.WHXB201504013

Abstract

Abstract:

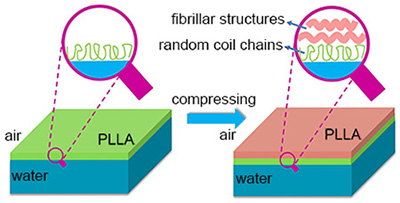

Poly(lactic acid) (PLA) has attracted considerable interest as an environmentally friendly and biodegradable polymer. The properties of poly(L-lactic acid) (PLLA) at an air/water interface were studied based on the Langmuir-Blodgett (LB) film balance and atomic force microscopy (AFM). The surface pressure-area (π-A) isotherm indicated that the surface pressure of PLLA initially increased as the interfacial film was compressed; at π=9.0 mN·m^-1, a plateau was observed in the π-A isotherm, in which the area of the repeat unit was in the approximate range 0.11-0.17 nm². The AFM results showed that there is a clear structural transition in the PLLA film during the compression: (i) at the beginning of the plateau, a number of fibrils are present at the air/water interface and (ii) multilayer structures (at least bilayer, i.e., the underlying layer and top layer consisting of fibrils) is formed in the plateau region. In particular, when π=20.0 mN·m^-1, a thin film of PLLA of thickness about 6.0 nm was fabricated. Our findings suggest that the plateau in the PLLA π-A isotherm is closely related to a change in the film structure from monolayer to multilayer at the air/water interface. This is significantly different from the behavior of conventional amphiphiles, because the plateau in amphiphiles π-A isotherm is equivalent to a phase transition of monolayers derived from amphiphiles in a two-dimensional plane.

Key words: Poly(L-lactic acid), Interface, Monomolecular film, Phase transition, Structure characteristic

Click here to download Supporting Info material in PDF type

WANG Li, JI Shan, CHEN Qi-Bin, LIU Hong-Lai. Structural Transition of Poly(L-lactic acid) Film Induced by Compression at Air/Water Interface[J].Acta Phys. -Chim. Sin., 2015, 31(6): 1162-1168.

References

(1) Langer, R.; Tirrell, D. A. Nature 2004, 428, 487. doi: 10.1038/nature02388
(2) Ha, C.; Gardella, J. A., Jr. Chem. Rev. 2005, 105, 4205. doi: 10.1021/cr040419y
(3) Lee, W.; Iwata, T.; Gardella, J. A., Jr. Langmuir 2005, 21, 11180. doi: 10.1021/la051137b
(4) Fischer, A. M.; Frey, H. Macromolecules 2010, 43, 8539. doi: 10.1021/ma101710t
(5) Kawalec, M.; Adamus, G.; Kurcok, P.; Kowalczuk, M.; Foltran, I.; Focarete, M. L.; Scandola, M. Biomacromolecules 2007, 8, 1054. doi: 10.1021/bm061155n
(6) Kulinski, Z.; Piorkowska, E. Polymer 2005, 46, 10290. doi: 10.1016/j.polymer.2005.07.101
(7) Urayama, H.; Kanamori, T.; Fukushima, K.; Kimura, Y. Polymer 2003, 44, 5635. doi: 10.1016/S0032-3861(03)00583-4
(8) Hu, J.; Sun, X.; Ma, H.; Xie, C.; Chen, Y. E.; Ma, P. X. Biomaterials 2010, 31, 7971. doi: 10.1016/j.biomaterials.2010.07.028
(9) Shao, J.; Wang, Y.; Chen, X.; Hu, X.; Du, C. Colloids Surf. B 2014, 120, 97. doi: 10.1016/j.colsurfb.2014.05.021
(10) Ni, S.; Lee, W.; Li, B.; Esker, A. R. Langmuir 2006, 22, 3672. doi: 10.1021/la060084a
(11) Fukuhira, Y.; Kitazono, E.; Hayashi, T.; Kaneko, H.; Tanaka, M.; Shimomura, M.; Sumi, Y. Biomaterials 2006, 27, 1797. doi: 10.1016/j.biomaterials.2005.10.019
(12) Petty, M. C. Langmuir-Blodgett Films: An Introduction; Cambridge University Press: Cambridge, 1996; pp 1-37.
(13) Gaines, G. L.; Roberts, G. Insoluble Monolayers at Liquid-Gas Interfaces; JohnWiley & Sons, Inc.: New York, 1966; pp 136-202.
(14) Ulman, A. An Introduction to Ultrathin Organic Films: From Langmuir-Blodgett to Self-Assembly; Academic Press: Boston, 1991; pp 101-105.
(15) Penner, T. L.; Motschmann, H. R.; Armstrong, N. J.; Ezenyilimba, M. C.; Williams, D. J. Nature 1994, 367, 49. doi: 10.1038/367049a0
(16) Allen, D.; Westerblad, H. Science 2004, 305, 1112. doi: 10.1126/science.1103078
(17) Wijekoon, W. M. K. P.; Wijaya, S. K.; Bhawalkar, J. D.; Prasad, P. N.; Penner, T. L.; Armstrong, N. J.; Ezenyilimba, M. C.; Williams, D. J. J. Am. Chem. Soc. 1996, 118, 4480. doi: 10.1021/ja953974d
(18) Pelletier, I.; Pézolet, M. Macromolecules 2004, 37, 4967. doi: 10.1021/ma035949v
(19) Bourque, H.; Laurin, I.; Pézolet, M.; Klass, J. M.; Lennox, R. B.; Brown, G. R. Langmuir 2001, 17, 5842. doi: 10.1021/la0009792
(20) Klass, J. M.; Lennox, R. B.; Brown, G. R.; Bourque, H.; Pézolet, M. Langmuir 2003, 19, 333. doi: 10.1021/la020606w
(21) Sato, G.; Nishitsuji, S.; Kumaki, J. J. Phys. Chem. B 2013, 117, 9067. doi: 10.1021/jp403195g
(22) Gurarslan, A.; Tonelli, A. E. Macromolecules 2011, 44, 3856. doi: 10.1021/ma200530w
(23) Bjørnholm, T.; Greve, D. R.; Reitzel, N.; Hassenkam, T.; Kjaer, K.; Howes, P. B.; Larsen, N. B.; Bøgelund, J.; Jayaraman, M.; Ewbank, P. C.; McCullough, R. D. J. Am. Chem. Soc. 1998, 120, 7643. doi: 10.1021/ja981077e
(24) Casillas-Ituarte, N. N.; Chen, X.; Castada, H.; Allen, H. C. J. Phys. Chem. B 2010, 114, 9485. doi: 10.1021/jp1022357
(25) Picas, L.; Suárez-Germà, C.; Teresa Montero, M.; Domènech, Ò.; Hernández-Borrell, J. Langmuir 2012, 28, 701. doi: 10.1021/la203795t
(26) Romão, R. I. S.; Ferreira, Q.; Morgado, J.; Martinho, J. M. G.; Gonçalves da Silva, A. M. P. S. Langmuir 2010, 26, 17165. doi: 10.1021/la103029d
(27) Genson, K. L.; Vaknin, D.; Villacencio, O.; McGrath, D. V.; Tsukruk, V. V. J. Phys. Chem. B 2002, 106, 11277. doi: 10.1021/jp026244i
(28) Fang, J.; Knobler, C. M.; Gingery, M.; Eiserling, F. A. J. Phys. Chem. B 1997, 101, 8692. doi: 10.1021/jp971057j
(29) Wang, M. H.; Janout, V.; Regen, S. L. Langmuir 2012, 28, 4614. doi: 10.1021/la204985d
(30) Perepichka, I. I.; Borozenko, K.; Badia, A.; Bazuin, C. G. J. Am. Chem. Soc. 2011, 133, 19702. doi: 10.1021/ja209502d
(31) De Santis, P.; Kovacs, A. J. Biopolymers 1968, 6, 299. doi: 10.1002/bip.1968.360060305
(32) Okihara, T.; Tsuji, M.; Kawaguchi, A.; Katayama, K. I.; Tsuju, H.; Hyon, S. H.; Ikada, Y. J. Macromol. Sci. Phys. B 1991, 30, 119. doi: 10.1080/00222349108245788
