电解液调控策略提升水系锌离子电池正极材料电化学性能

doi:10.3866/PKU.WHXB202205045

Abstract

Abstract:

The ever-worsening world-wide energy crisis and environmental issues are encouraging the development of green and renewable energy. Thus, rechargeable batteries are being developed and employed for energy storage and conversion in various electronic equipment. When compared with metal lithium batteries, aqueous rechargeable batteries have gained significant attention due to their advantages of high safety, low cost, and environmental friendliness. Among the various known rechargeable batteries (Li⁺, Na⁺, K⁺, NH₄⁺, Mg²⁺, Ca²⁺, and Al³⁺), aqueous zinc-ion batteries (ZIBs) are considered as promising energy storage devices because the zinc electrode exhibits high capacity (820 mAh∙g⁻¹) and low potential (−0.76 V vs. Standard hydrogen electrode (SHE)). To date, various ZIBs cathode materials with excellent performance have been developed, such as manganese- and vanadium-based oxides, Prussian blue and its analogues, and organic compounds. Unfortunately, some of these materials, especially manganese- and vanadium-based oxides, suffer from critical structural collapse, dissolution, and cathode/electrolyte interfacial side reactions, which lead to low Coulombic efficiency and poor cycle performance. The poor cycle performance is one of the main obstacles hindering the large-scale application of manganese- and vanadium-based oxides. Therefore, the structural design of cathodes and electrolyte regulation strategies have been extensively investigated to solve these problems and improve electrochemical performance. In comparison, electrolyte regulation is an important and effective strategy for improving the performance of ZIBs cathodes. It is well known that a strong interaction force exists between Zn²⁺ and H₂O, therefore, Zn²⁺ can coordinate with six H₂O molecules to form [Zn(H₂O)₆]²⁺ in the dilute aqueous electrolyte, while forming numerous hydrogen bonds between the H₂O molecules. The Zn²⁺-solvation structure and hydrogen bonds can be destructed and restructured by changing the anion, and using highly concentrated electrolyte and/or organic solvent, thereby decreasing the number of H₂O molecules in the solvated structure and the activity of free water. Furthermore, additives can change the pH value of the aqueous electrolyte and build a dissolution equilibrium between the cathode and electrolyte. Hence, an appropriate electrolyte regulation strategy can broaden the electrochemical stability window of electrolytes, improve the working potential, suppress the occurrence of interfacial side reactions, and prevent the dissolution of the active materials, thereby improving the electrochemical performance of ZIBs. Herein, we review the possible electrolyte regulation strategies for enhancing the electrochemical performance of ZIBs cathodes and classify regulation strategy into two main categories: 1) Solute (including different zinc salts, additive, and water-in-salt) and 2) Solvent (composite of organic/inorganic hybrid electrolytes). We then discuss the advantages and challenges of each strategy, and finally predict the possible future direction of electrolyte development.

Key words: Aqueous zinc-ion battery, Electrolyte, Cathode materials, Zn²⁺-solvation structure, Electrochemical performance

Yae Qi, Yongyao Xia. Electrolyte Regulation Strategies for Improving the Electrochemical Performance of Aqueous Zinc-Ion Battery Cathodes[J]. Acta Phys. -Chim. Sin. 2023, 39(2), 2205045. doi: 10.3866/PKU.WHXB202205045

Figures/Tables 14

Fig 1

Fig 2

Table 1

Fig 3

Fig 4

Fig 5

Fig 6

Fig 7

Fig 8

Fig 9

Table 2

The affection of solute regulation on electrochemical performance of cathode materials."

Type	Electrolytes	Cathodes	Potential window	Capacity/(mAh?g^?1)	Cycle performance	Ref.
Zinc salt	3 mol?L^?1 ZnSO₄	V⁵⁺-rich V₆O₁₃	0.2–1.4	520 at 0.5 A?g^?1	85% (1000/2 A?g^?1)	26
	3 mol?L^?1 Zn(CF₃SO₃)₂	(NH₄)_xV₂O₅?nH₂O	0.3–1.6	372 at 0.1 A?g^?1	80% (2000/5 A?g^?1)	49
	4 mol?L^?1 Zn(TFSI)₂	P(4VC₈₆-stat-SS₁₄)	0.25–2.0	324 at 1C	83% (48000/30C)	55
	1 mol?kg^?1 Zn(ClO₄)₂	VO₂	0.2–1.4	240 at 0.5 A?g^?1	500/2 A?g^?1	54
	1 mol?kg^?1 ZnCl₂	Ca_0.2V₂O₅?0.80H₂O	0.25–2.0	296 at 0.05 A?g^?1	8.4% (150/0.05 A?g^?1)	97
	0.5 mol?L^?1 Zn(CH₃COO)₂	Na₃V₂(PO₄)₃	0.8–1.7	97 at 0.05 A?g^?1	74% (100/0.05 A?g^?1)	106
Additives	1 mol?L^?1 ZnSO₄/1 mol?L^?1 Na₂SO₄	NaV₃O₈?1.5H₂O	0.3–1.25	380 at 0.1 A?g^?1	82% (1000/4 A?g^?1)	48
	0.5 mol?L^?1 ZnSO₄/0.25 mol?L^?1 K₂SO₄	ZnHCF	0.8–2.1	69.1 at 2C	74.1% (500/20C)	23
	3 mol?L^?1 ZnSO₄/0.5 mol?L^?1 Na₂SO₄	Na_0.56V₂O₅	0.4–1.5	317 at 0.1 A?g^?1	87% (1000/1 A?g^?1)	66
	1 mol?L^?1 ZnSO₄/1 mol?L^?1 MgSO₄	Mg_xV₂O₅?nH₂O	0.2–1.4	374 at 0.1 A?g^?1	90.3% (200/1 A?g^?1)	63
	2 mol?L^?1 ZnSO₄/0.2 mol?L^?1 CoSO₄	Co(III)rich-Co₃O₄	0.8–2.2	205 at 0.5 A?g^?1	92% (5000/4 A?g^?1)	73
	1 mol?L^?1 Zn(CF₃SO₃)₂/ 0.025 mol?L^?1 Zn(H₂PO₄)₂	V₂O₅	0.2–1.6	203 at 0.1 A?g^?1	88.1% (1000/0.8 A?g^?1)	77
	1 mol?L^?1 ZnSO₄/0.1 mol?L^?1 MnSO₄	ZnMn₂O₄	0.6–1.9	172 at 0.1 A?g^?1	79% (1000/2 A?g^?1)	107
	1 mol?L^?1 ZnSO₄/1 mol?L^?1 MnSO₄/ 0.1 mol?L^?1 H₂SO₄	MnO₂	0.8–2.2	570	92% (1800/0.03 A?cm^?2)	68
	1 mol?L^?1 ZnSO₄/1 mol?L^?1 urea (1 : 3)	Na_0.1MnO₂?0.5H₂O	1.0–1.8	270 at 0.1C	100 mAh?g^?1 (5000/10C)	76
	2 mol?L^?1 ZnSO₄/0.1 mol?L^?1 MnSO₄/ 0.5 mol?L^?1 Na₂SO₄	Na_0.55Mn₂O₄?1.5H₂O	0.8–1.9	367.5 at 0.65C	70% (10000/6.5C)	75
WiSE	21 mol?kg^?1 LiTFSI/1 mol?kg^?1 Zn(CF₃SO₃)₂	LiMn₂O₄	0.8–2.1	66 at 0.2C	80% (4000/4C)	80
	13 mol?kg^?1 ZnCl₂/0.8 mol?kg^?1 H₃PO₄	VOPO₄?xH₂O		170 at 0.1 A?g^?1	90 mAh?g^?1 (500/2 A?g^?1)	69
	1 mol?L^?1 HCl/20 mol?kg^?1 ZnCl₂	K₂NiFe(CN)₆	0.2–1.6	62.6 at 0.5 A?g^?1	76.1% (400/1 A?g^?1)	100
	30 mol?kg^?1 ZnCl₂	Ca_0.2V₂O₅?0.80H₂O	0.25–2.0	496 at 0.05 A?g^?1	51.1% (100/0.2C)	97
	30 mol?kg^?1 ZnCl₂	MoO₃	0.2–1.8	349 at 0.1 A?g^?1	73% (100/0.1 A?g^?1)	102
	15 mol?kg^?1 NaClO₄/1 mol?kg^?1 Zn(CF₃SO₃)₂	C-NaVPO₄F	0.6–1.8	87.4 at 0.1 A?g^?1	89.3% (4000/1 A?g^?1)	98
	2 mol?L^?1 Zn(OTf)₂/8 mol?kg^?1 LiOTf	VO₂	0.3–1.3	260 at 0.1 A?g^?1	89.7% (10000/10 A?g^?1)	85
	67% (w) Malt /2 mol?kg^?1 ZnSO₄	NH₄V₄O₁₀	0.4–1.4	400 at 0.05 A?g^?1	100% (4000 /5A?g^?1)	103

Table 2

Fig 10

Fig 11

Table 3

References 124

1	Choi J. W. ; Aurbach D. Nat. Rev. Mater. 2016, 1 (4), 16013. doi: 10.1038/natrevmats.2016.13
2	Dunn B. ; Kamath H. ; Tarascon J. M. Science 2011, 334 (6058), 928. doi: 10.1126/science.1212741
3	Luo J. Y. ; Xia Y. Y. Adv. Funct. Mater. 2007, 17 (18), 3877. doi: 10.1002/adfm.200700638
4	Yan L. ; Qi Y. E. ; Dong X. L. ; Wang Y. G. ; Xia Y. Y. eScience 2021, 1, 212. doi: 10.1016/j.esci.2021.12.002
5	Li H. ; Liu S. Y. ; Yuan T. C. ; Wang B. ; Sheng P. ; Xu L. ; Zhao G. Y. ; Bai H. T. ; Chen X. ; Chen Z. X. ; Cao Y. L. Acta Phys. -Chim. Sin. 2020, 36 (5), 1905027.
	李慧; 刘双宇; 袁天赐; 王博; 盛鹏; 徐丽; 赵广耀; 白会涛; 陈新; 陈重学; 曹余良. 物理化学学报, 2020, 36 (5), 1905027. doi: 10.3866/PKU.WHXB201905027
6	Jiang L. W. ; Lu Y. X. ; Zhao C. L. ; Liu L. L. ; Zhang J. N. ; Zhang Q. Q. ; Shen X. ; Zhao J. M. ; Yu X. Q. ; Li H. ; et al Nano Energy 2019, 4 (6), 495. doi: 10.1038/s41560-019-0388-0
7	Lang J. H. ; Jiang C. L. ; Fang Y. ; Shi L. ; Miao S. J. ; Tang Y. B. Adv. Energy Mater. 2019, 9 (29), 1901099. doi: 10.1002/aenm.201901099
8	Xu Y. N. ; Deng X. W. ; Li Q. D. ; Zhang G. B. ; Xiong F. Y. ; Tan S. S. ; Wei Q. L. ; Lu J. ; Li J. T. ; An Q. Y. ; et al Chem 2019, 5 (5), 1194. doi: 10.1016/j.chempr.2019.02.014
9	Chen H. D. ; Huang J. J. ; Tian S. H. ; Liu L. ; Qin T. F. ; Song L. ; Liu Y. P. ; Zhang Y. N. ; Wu X. G. ; Lei S. L. ; et al Adv. Sci. 2021, 8 (14), 2004924. doi: 10.1002/advs.202004924
10	Kim D. J. ; Yoo D. J. ; Otley M. T. ; Prokofjevs A. ; Pezzato C. ; Owczarek M. ; Lee S. J. ; Choi J. W. ; Stoddart J. F. Nat. Energy 2019, 4 (1), 51. doi: 10.1038/s41560-018-0291-0
11	Zhao Z. Q. ; Fan X. Y. ; Ding J. ; Hu W. B. ; Zhong C. ; Lu J. ACS Energy Lett. 2019, 4 (9), 2259. doi: 10.1021/acsenergylett.9b01541
12	Hao J. N. ; Li X. L. ; Zeng X. H. ; Li D. ; Mao J. F. ; Guo Z. P. Energy Environ. Sci. 2020, 13 (11), 3917. doi: 10.1039/d0ee02162h
13	Song J. H. ; Xu K. ; Liu N. ; Reed D. ; Li X. L. Mater. Today 2021, 45, 191. doi: 10.1016/j.mattod.2020.12.003
14	Wang D. H. ; Li H. F. ; Liu Z. X. ; Tang Z. J. ; Liang G. J. ; Mo F. N. ; Yang Q. ; Ma L. T. ; Zhi C. Y. Small 2018, 14 (51), 1803978. doi: 10.1002/smll.201803978
15	McLarnon F. R. ; Cairns E. J. J. Electrochem. Soc. 1991, 138 (2), 645. doi: 10.1149/1.2085653
16	Yan J. ; Wang J. ; Liu H. ; Bakenov Z. ; Gosselink D. ; Chen P. J. Power Sources 2012, 216, 222. doi: 10.1016/j.jpowsour.2012.05.063
17	Yesibolati N. ; Umirov N. ; Koishybay A. ; Omarova M. ; Kurmanbayeva I. ; Zhang Y. G. ; Zhao Y. ; Bakenov Z. Electrochim. Acta 2015, 152, 505. doi: 10.1016/j.electacta.2014.11.168
18	Shoji T. ; Hishinuma M. ; Yamamoto T. J. Appl. Electrochem. 1988, 18 (4), 521. doi: 10.1007/BF01022245
19	Xu C. J. ; Li B. H. ; Du H. D. ; Kang F. Y. Angew. Chem. Int. Ed. 2012, 51 (4), 933. doi: 10.1002/anie.201106307
20	Wang D. H. ; Wang L. F. ; Liang G. J. ; Li H. F. ; Liu Z. X. ; Tang Z. J. ; Liang J. B. ; Zhi C. Y. ACS Nano 2019, 13 (9), 10643. doi: 10.1021/acsnano.9b04916
21	Alfaruqi M. H. ; Mathew V. ; Gim J. ; Kim S. J. ; Song J. J. ; Baboo J. P. ; Choi S. H. ; Kim J. Chem. Mater. 2015, 27 (10), 3609. doi: 10.1021/cm504717p
22	Huang J. H. ; Wang Z. ; Hou M. Y. ; Dong X. L. ; Liu Y. ; Wang Y. G. ; Xia Y. Y. Nat. Commun. 2018, 9, 2906. doi: 10.1038/s41467-018-04949-4
23	Huang M. ; Meng J. S. ; Huang Z. H. ; Wang X. P. ; Mai L. Q. J. Mater. Chem. A. 2020, 8 (14), 6631. doi: 10.1039/c9ta13497b
24	Ma L. T. ; Chen S. M. ; Long C. B. ; Li X. L. ; Zhao Y. W. ; Liu Z. X. ; Huang Z. D. ; Dong B. B. ; Zapien J. A. ; Zhi C. Y. Adv. Energy Mater. 2019, 9 (45), 1902446. doi: 10.1002/aenm.201902446
25	Wang Z. Q. ; Zhou M. ; Qin L. P. ; Chen M. H. ; Chen Z. X. ; Guo S. ; Wang L. B. ; Fang G. Z. ; Liang S. Q. eScience 2022, 2, 209. doi: 10.1016/j.esci.2022.03.002
26	He P. G. ; Liu J. H. ; Zhao X. D. ; Ding Z. P. ; Gao P. ; Fan L. Z. J. Mater. Chem. A. 2020, 8 (20), 10370. doi: 10.1039/d0ta03165h
27	Heng Y. L. ; Gu Z. Y. ; Guo J. Z. ; Wu X. L. Acta Phys. -Chim. Sin. 2021, 37 (3), 2005013.
	衡永丽; 谷振一; 郭晋芝; 吴兴隆. 物理化学学报, 2021, 37 (3), 2005013. doi: 10.3866/PKU.WHXB202005013
28	Sun T. J. ; Zheng S. B. ; Du H. H. ; Tao Z. L. Nano-Micro Lett. 2021, 13 (1), 204. doi: 10.1007/s40820-021-00733-0
29	Guo S. ; Qin L. P. ; Zhang T. S. ; Zhou M. ; Zhou J. ; Fang G. Z. ; Liang S. Q. Energy Storage Mater. 2021, 34, 545. doi: 10.1016/j.ensm.2020.10.019
30	Poyraz A. S. ; Laughlin J. ; Zec Z. Electrochim. Acta 2019, 305, 423. doi: 10.1016/j.electacta.2019.03.093
31	Wang L. L. ; Huang K. W. ; Chen J. T. ; Zheng J. R. Sci. Adv. 2019, 5 (10), eaax4279. doi: 10.1126/sciadv.aax4279
32	Yang G. Z. ; Li Q. ; Ma K. X. ; Hong C. ; Wang C. X. J. Mater. Chem. A. 2020, 8 (16), 8084. doi: 10.1039/d0ta00615g
33	Yang K. ; Hu Y. Y. ; Li L. Y. ; Cui L. L. ; He L. ; Wang S. J. ; Zhao J. W. ; Song Y. F. Nano Energy 2020, 74, 104851. doi: 10.1016/j.nanoen.2020.104851
34	Qi Y. E. ; Huang J. H. ; Yan L. ; Cao Y. J. ; Xu J. ; Bin D. ; Liao M. C. ; Xia Y. Y. Chem. Eng. J. 2022, 442, 136349. doi: 10.1016/j.cej.2022.136349
35	Huang J. T. ; Zhuo J. ; Liang S. Q. Acta Phys. -Chim. Sin. 2021, 37 (3), 2005020.
	黄江涛; 周江; 梁叔全. 物理化学学报, 2021, 37 (3), 2005020. doi: 10.3866/PKU.WHXB202005020
36	Zhang N. ; Chen X. Y. ; Yu M. ; Niu Z. Q. ; Cheng F. Y. ; Chen J. Chem. Soc. Rev. 2020, 49 (13), 4203. doi: 10.1039/c9cs00349e
37	Zhang T. S. ; Tang Y. ; Guo S. ; Cao X. X. ; Pan A. Q. ; Fang G. Z. ; Zhou J. ; Liang S. Q. Energy Environ. Sci. 2020, 13 (12), 4625. doi: 10.1039/d0ee02620d
38	Liu S. L. ; Mao J. F. ; Pang W. K. ; Vongsvivut J. ; Zeng X. H. ; Thomsen L. ; Wang Y. Y. ; Liu J. W. ; Li D. ; Guo Z. P. Adv. Funct. Mater. 2021, 31 (38), 2104281. doi: 10.1002/adfm.202104281
39	Sun Y. M. ; Ji X. L. Chem. Rev. 2021, 121 (11), 6654. doi: 10.1021/acs.chemrev.1c00191
40	Chen S. G. ; Zhang M. F. ; Zou P. M. ; Sun B. Y. ; Tao S. W. Energy Environ. Sci. 2022, 15 (5), 1805. doi: 10.1039/d2ee00004k
41	Manalastas W. ; Kumar S. ; Verma W. ; Zhang L. P. ; Yuan D. ; Srinivasan M. ChemSusChem 2019, 12 (2), 379. doi: 10.1002/cssc.201801523
42	Wang D. H. ; Li Q. ; Zhao Y. W. ; Hong H. ; Li H. F. ; Huang Z. D. ; Liang G. J. ; Yang Q. ; Zhi C. Y. Adv. Energy Mater. 2022, 12 (9), 2102707. doi: 10.1002/aenm.202102707
43	Li M. ; Li Z. L. ; Wang X. P. ; Meng J. S. ; Liu X. ; Wu B. K. ; Han C. H. ; Mai L. Q. Energy Environ. Sci. 2021, 14 (7), 3796. doi: 10.1039/d1ee00030f
44	Liu C. X. ; Xie X. S. ; Lu B. G. ; Zhou J. ; Liang S. Q. ACS Energy Lett. 2021, 6 (3), 1015. doi: 10.1021/acsenergylett.0c02684
45	Wang C. ; Pei Z. X. ; Meng Q. Q. ; Zhang C. M. ; Sui X. ; Yuan Z. W. ; Wang S. J. ; Chen Y. Angew. Chem. Int. Ed. 2021, 60 (2), 990. doi: 10.1002/anie.202012030
46	Zhang N. ; Cheng F. Y. ; Liu Y. C. ; Zhao Q. ; Lei K. X. ; Chen C. C. ; Liu X. S. ; Chen J. J. Am. Chem. Soc. 2016, 138 (39), 12894. doi: 10.1021/jacs.6b05958
47	Kasiri G. ; Trócoli R. ; Hashemi A. B. ; La Mantia F. Electrochim. Acta 2016, 222, 74. doi: 10.1016/j.electacta.2016.10.155
48	Wan F. ; Zhang L. L. ; Dai X. ; Wang X. Y. ; Niu Z. Q. ; Chen J. Nat. Commun. 2018, 9, 1656. doi: 10.1038/s41467-018-04060-8
49	Xu L. ; Zhang Y. ; Zheng J. ; Jiang H. ; Hu T. ; Meng C. Mater. Today Energy 2020, 18, 100509. doi: 10.1016/j.mtener.2020.100509
50	Wang P. J. ; Shi X. D. ; Wu Z. X. ; Guo S. ; Zhou J. ; Liang S. Q. Carbon Energy 2020, 2 (2), 294. doi: 10.1002/cey2.39
51	Zhang Q. ; Xia K. X. ; Ma Y. L. ; Lu Y. ; Li L. ; Liang J. ; Chou S. L. ; Chen J. ACS Energy Lett. 2021, 6 (8), 2704. doi: 10.1021/acsenergylett.1c01054
52	Yang G. S. ; Huang J. L. ; Wan X. H. ; Liu B. B. ; Zhu Y. C. ; Wang J. W. ; Fontaine O. ; Luo S. Q. ; Hiralal P. ; Guo Y. Z. ; et al EcoMat 2022, 4 (2), e12165. doi: 10.1002/eom2.12165
53	Sun Y. L. ; Ma H. Y. ; Zhang X. Q. ; Liu B. ; Liu L. Y. ; Zhang X. ; Feng J. Z. ; Zhang Q. N. ; Ding Y. X. ; Yang B. J. ; et al Adv. Funct. Mater. 2021, 31 (28), 2101277. doi: 10.1002/adfm.202101277
54	Wang L. J. ; Zhang Y. ; Hu H.L. ; Shi H. Y. ; Song Y. ; Guo D. ; Liu X. X. ; Sun X. Q. ACS Appl. Mater. Interfaces 2019, 11 (45), 42000. doi: 10.1021/acsami.9b10905
55	Patil N. ; de la Cruz C. ; Ciurduc D. ; Mavrandonakis A. ; Palma J. ; Marcilla R. Adv. Energy Mater. 2021, 11 (26), 2100939. doi: 10.1002/aenm.202100939
56	Wu D. ; Housel L. M. ; Kim S. J. ; Sadique N. ; Quilty C. D. ; Wu L. J. ; Tappero R. ; Nicholas S. L. ; Ehrlich S. ; Zhu Y. M. ; et al Energy Environ. Sci. 2020, 13 (11), 4322. doi: 10.1039/D0EE02168G
57	Lee B. ; Yoon C. S. ; Lee H. R. ; Chung K. Y. ; Cho B. W. ; Oh S. H. Sci. Rep. 2014, 4, 6066. doi: 10.1038/srep06066
58	Pan H. L. ; Shao Y. Y. ; Yan P. F. ; Cheng Y. W. ; Han K. S. ; Nie Z. M. ; Wang C. M. ; Yang J. H. ; Li X. L. ; Bhattacharya P. ; et al Nat. Energy 2016, 1, 16039. doi: 10.1038/NENERGY.2016.39
59	Zhang N. ; Cheng F. Y. ; Liu J. X. ; Wang L. B. ; Long X. H. ; Liu X. S. ; Li F. J. ; Chen J. Nat. Commun. 2017, 8, 405. doi: 10.1038/s41467-017-00467-x
60	Zhang T. S. ; Tang Y. ; Fang G. Z. ; Zhang C. Y. ; Zhang H. L. ; Guo X. ; Cao X. X. ; Zhou J. ; Pan A. Q. ; Liang S. Q. Adv. Funct. Mater. 2020, 30 (30), 2002711. doi: 10.1002/adfm.202002711
61	Chamoun M. ; Brant W. R. ; Tai C. W. ; Karlsson G. ; Noréus D. Energy Storage Mater. 2018, 15, 351. doi: 10.1016/j.ensm.2018.06.019
62	Li G. Z. ; Huang Z. X. ; Chen J. B. ; Yao F. ; Liu J. P. ; Li O. L. ; Sun S. H. ; Shi Z. C. J. Mater. Chem. A 2020, 8 (4), 1975. doi: 10.1039/c9ta11985j
63	Li J. W. ; McColl K. ; Lu X. K. ; Sathasivam S. ; Dong H. B. ; Kang L. Q. ; Li Z. N. ; Zhao S. Y. ; Kafizas A. G. ; Wang R. ; et al Adv. Energy Mater. 2020, 10 (15), 2000058. doi: 10.1002/aenm.202000058
64	Liu Y. Y. ; Li Q. ; Ma K. X. ; Yang G. Z. ; Wang C. X. ACS Nano 2019, 13 (10), 12081. doi: 10.1021/acsnano.9b06484
65	Ming F. W. ; Liang H. F. ; Lei Y. J. ; Kandambeth S. ; Eddaoudi M. ; Alshareef H. N. ACS Energy Lett. 2018, 3 (10), 2602. doi: 10.1021/acsenergylett.8b0142
66	Gao P. ; Ru Q. ; Yan H. L. ; Cheng S. K. ; Liu Y. ; Hou X. H. ; Wei L. ; Ling F. C. C. ChemElectroChem 2020, 7 (1), 283. doi: 10.1002/celc.201901851
67	Zhang Y. M. ; Li H. N. ; Huang S. Z. ; Fan S. ; Sun L. N. ; Tian B. B. ; Chen F. M. ; Wang Y. ; Shi Y. M. ; Yang H. Y. Nano-Micro Lett. 2020, 12 (1), 60. doi: 10.1007/s40820-020-0385-7
68	Chao D. L. ; Zhou W. H. ; Ye C. ; Zhang Q. H. ; Chen Y. G. ; Gu L. ; Davey K. ; Qiao S. Z. Angew. Chem. Int. Ed. 2019, 58 (23), 7823. doi: 10.1002/anie.201904174
69	Shi H. Y. ; Song Y. ; Qin Z. M. ; Li C. C. ; Guo Di. ; Liu X. X. ; Sun X. Q. Angew. Chem. Int. Ed. 2019, 58 (45), 16057. doi: 10.1002/anie.201908853
70	Liu Y. Z. ; Qin Z. M. ; Yang X. P. ; Liu J. ; Liu X. X. ; Sun X. Q. ACS Energy Lett. 2022, 7, 1814. doi: 10.1021/acsenergylett.2c00777
71	Li N. ; Li G. Q. ; Li C. J. ; Yang H. C. ; Qin G. W. ; Sun X. D. ; Li F. ; Cheng H. M. ACS Appl. Mater. Interfaces 2020, 12 (12), 13790. doi: 10.1021/acsami.9b20531
72	Wu C. ; Gu S. C. ; Zhang Q. H. ; Bai Y. ; Li M. ; Yuan Y. F. ; Wang H. L. ; Liu X. Y. ; Yuan Y. X. ; Zhu N. ; et al Nat. Commun. 2019, 10, 73. doi: 10.1038/s41467-018-07980-7
73	Ma L. T. ; Chen S. M. ; Li H. F. ; Ruan Z. H. ; Tang Z. J. ; Liu Z. X. ; Wang Z. F. ; Huang Y. ; Pei Z. X. ; Zapien J. A. ; et al Energy Environ. Sci. 2018, 11 (9), 2521. doi: 10.1039/c8ee01415a
74	Hou Z. G. ; Zhang X. Q. ; Li X. N. ; Zhu Y. C. ; Liang J. W. ; Qian Y. T. J. Mater. Chem. A 2017, 5 (2), 730. doi: 10.1039/c6ta08736a
75	Xu Y. T. ; Zhu J. J. ; Feng J. Z. ; Wang Y. ; Wu X. X. ; Ma P. J. ; Zhang X. ; Wang G. Z. ; Yan X. B. Energy Storage Mater. 2021, 38, 299. doi: 10.1016/j.ensm.2021.03.019
76	Hou Z. G. ; Dong M. F. ; Xiong Y. L. ; Zhang X. Q. ; Ao H. S. ; Liu M. K. ; Zhu Y. C. ; Qian Y. T. Small 2020, 16 (26), 2001228. doi: 10.1002/smll.202001228
77	Zeng X. H. ; Mao J. F. ; Hao J. N. ; Liu J. T. ; Liu S. L. ; Wang Z. J. ; Wang Y. Y. ; Zhang S. L. ; Zheng T. ; Liu J. W. ; et al Adv. Mater. 2021, 33 (11), 2007416. doi: 10.1002/adma.202007416
78	Yamada Y. ; Furukawa K. ; Sodeyama K. ; Kikuchi K. ; Yaegashi M. ; Tateyama Y. ; Yamada A. J. Am. Chem. Soc. 2014, 136 (13), 5039. doi: 10.1021/ja412807w
79	Suo L. M. ; Borodin O. ; Gao T. ; Olguin M. ; Ho J. ; Fan X. L. ; Luo C. ; Wang C. S. ; Xu K. Science 2015, 350 (6263), 938. doi: 10.1126/science.aab1595
80	Wang F. ; Borodin O. ; Gao T. ; Fan X.L. ; Sun W. ; Han F. D. ; Faraone A. ; Dura J. A. ; Xu K. ; Wang C. S. Nat. Mater. 2018, 17 (6), 543. doi: 10.1038/s41563-018-0063-z
81	Zhang Q. ; Ma Y. L. ; Lu Y. ; Li L. ; Wan F. ; Zhang K. ; Chen J. Nat. Commun. 2020, 11 (1), 4463. doi: 10.1038/s41467-020-18284-0
82	Cai S. Y. ; Chu X. Y. ; Liu C. ; Lai H. W. ; Chen H. ; Jiang Y. Q. ; Guo F. ; Xu Z. K. ; Wang C. S. ; Gao C. Adv. Mater. 2021, 33 (13), 2007470. doi: 10.1002/adma.202007470
83	Ejigu A. ; Fevre L. W. L ; Dryfe R. A.W. ACS Appl. Mater. Interfaces 2021, 13 (12), 14112. doi: 10.1021/acsami.0c20622
84	Chen S. G. ; Lan R. ; Humphreys J. ; Tao S. W. Energy Storage Mater. 2020, 28, 205. doi: 10.1016/j.ensm.2020.03.011
85	Liu S. C. ; He J. F. ; Liu D. S. ; Ye M. H. ; Zhang Y. F. ; Qin Y. L. ; Li C. C. Energy Storage Mater. 2022, 49, 93. doi: 10.1016/j.ensm.2022.03.038
86	Li W. ; Wang K. L. ; Zhou M. ; Zhan H. C. ; Cheng S. J. ; Jiang K. ACS Appl. Mater. Interfaces 2018, 10 (26), 22059. doi: 10.1021/acsami.8b04085
87	Suo L. M. ; Borodin O. ; Sun W. ; Fan X. L. ; Yang C. Y. ; Wang F. ; Gao T. ; Ma Z. H. ; Schroeder M. ; Cresce A. ; et al Angew. Chem. Int. Ed. 2016, 55 (25), 7136. doi: 10.1002/anie.201602397
88	Gambou-Bosca A. ; Belanger D. J. Power Sources 2016, 326, 595. doi: 10.1016/j.jpowsour.2016.04.088
89	Kühnel R. S ; Reber D. ; Remhof A. ; Figi R. ; Bleiner D. ; Battaglia C. Chem. Commun. 2016, 52 (68), 10435. doi: 10.1039/c6cc03969c
90	Hu P. ; Yan M. Y. ; Zhu T. ; Wang X. P. ; Wei X. J. ; Li J. T. ; Zhou L. ; Li Z. H. ; Chen L. N. ; Mai L. Q. ACS Appl. Mater. Interfaces 2017, 9 (49), 42717. doi: 10.1021/acsami.7b13110
91	Yamada Y. ; Usui K. ; Sodeyama K. ; Ko S. ; Tateyama Y. ; Yamada A. Nat. Energy 2016, 1, 16129. doi: 10.1038/NENERGY.2016.129
92	Yang C. Y. ; Suo L. M. ; Borodin O. ; Wang F. ; Sun W. ; Gao T. ; Fan X. L. ; Hou S. Y. ; Ma Z. H. ; Amine K. ; et al Proc. Natl. Acad. Sci. USA 2017, 114 (24), 6197. doi: 10.1073/pnas.1703937114
93	Wu X. Y. ; Xu Y. K. ; Zhang C. ; Leonard D. P. ; Markir A. ; Lu J. ; Ji X. L. J. Am. Chem. Soc. 2019, 141 (15), 6338. doi: 10.1021/jacs.9b00617
94	Zhao J. W. ; Li Y. Q. ; Peng X. ; Dong S. M. ; Ma J. ; Cui G. L. ; Chen L. Q. Electrochem. Commun. 2016, 69, 6. doi: 10.1016/j.elecom.2016.05.014
95	Wan F. ; Zhang Y. ; Zhang L. L. ; Liu D. B. ; Wang C. D. ; Song L. ; Niu Z. Q. ; Chen J. Angew. Chem. Int. Ed. 2019, 58 (21), 7062. doi: 10.1002/anie.201902679
96	Zhang L. Y. ; Chen L. ; Zhou X. F. ; Liu Z. P. Adv. Energy Mater. 2015, 5 (2), 1400930. doi: 10.1002/aenm.201400930
97	Zhang L. ; Rodríguez-Pérez I. A. ; Jiang H. ; Zhang C. ; Leonard D. P. ; Guo Q. B. ; Wang W. F. ; Han S. M. ; Wang L. M. ; Ji X. L. Adv. Funct. Mater. 2019, 29 (30), 1902653. doi: 10.1002/adfm.201902653
98	Bin D. ; Wang Y. R. ; Tamirat A. G. ; Zhu P. ; Yang B. B. ; Wang J. ; Huang J. H. ; Xia Y. Y. ACS Sustain. Chem. Eng. 2021, 9 (8), 3223. doi: 10.1021/acssuschemeng.0c08651
99	Li L. P. ; Liu S. L. ; Liu W. C. ; Ba D. L. ; Liu W. L. ; Gui Q. Y. ; Chen Y. ; Hu Z. Q. ; Li Y. Y. ; Liu J. P. Nano-Micro Lett. 2021, 13 (1), 34. doi: 10.1007/s40820-020-00554-7
100	Yang B. B. ; Qin T. ; Du Y. Y. ; Zhang Y. L. ; Wang J. ; Chen T. T. ; Ge M. ; Bin D. ; Ge C. W. ; Lu H. B. Chem. Commun. 2022, 58 (10), 1550. doi: 10.1039/d1cc06325a
101	Tang X. Y. ; Wang P. ; Bai M. ; Wang Z. Q. ; Wang H. L. ; Zhang M. ; Ma Y. Adv. Sci. 2021, 8 (23), 2102053. doi: 10.1002/advs.202102053
102	Wang L. ; Yan S. ; Quilty C. D. ; Kuang J. ; Dunkin M. R. ; Ehrlich S. N. ; Ma L. ; Takeuchi K. J. ; Takeuchi E. S. ; Marschilok A. C. Adv. Mater. Interfaces 2021, 8 (9), 2002080. doi: 10.1002/admi.202002080
103	Chen W. Y. ; Guo S. ; Qin L. P. ; Li L. Y. ; Cao X. X. ; Zhou J. ; Luo Z. G. ; Fang G. Z. ; Liang S. Q. Adv. Funct. Mater. 2022, 32 (20), 2112609. doi: 10.1002/adfm.202112609
104	Liu X. ; Luo Y. ; Ma H. ; Zhang S. J. ; Che P. H. ; Zhang M. Y. ; Gao J. ; Xu J. Angew. Chem. Int. Ed. 2021, 60 (48), 18103. doi: 10.1002/anie.202113265
105	Chang N. N. ; Li T. Y. ; Li R. ; Wang S. N. ; Yin Y. B. ; Zhang H. M. ; Li X. F. Energy Environ. Sci. 2020, 13 (10), 3527. doi: 10.1039/d0ee01538e
106	Li G. L. ; Yang Z. ; Jiang Y. ; Jin C. H. ; Huang W. ; Ding X. L. ; Huang Y. H. Nano Energy 2016, 25, 211. doi: 10.1016/j.nanoen.2016.04.051
107	Soundharrajan V. ; Sambandam B. ; Kim S. ; Islam S. ; Jo J. ; Kim S. ; Mathew V. ; Sun Y. K. ; Kim J. Energy Storage Mater. 2020, 28, 407. doi: 10.1016/j.ensm.2019.12.021
108	Shi J. Q. ; Xia K. X. ; Liu L. J. ; Liu C. ; Zhang Q. ; Li L. ; Zhou X. Z. ; Liang J. ; Tao Z. L. Electrochim. Acta 2020, 358, 136937. doi: 10.1016/j.electacta.2020.136937
109	Cao L. S. ; Li D. ; Hu E. Y. ; Xu J. J. ; Deng T. ; Ma L. ; Wang Y. ; Yang X. Q. ; Wang C. S. J. Am. Chem. Soc. 2020, 142 (51), 21404. doi: 10.1021/jacs.0c09794
110	Nian Q. S. ; Wang J. Y. ; Liu S. ; Sun T. J. ; Zheng S. B. ; Zhang Y. ; Tao Z. L. ; Chen J. Angew. Chem. Int. Ed. 2019, 58 (47), 16994. doi: 10.1002/anie.201908913
111	Xu W. N. ; Zhao K. N. ; Huo W. C. ; Wang Y. Z. ; Yao G. ; Gu X. ; Cheng H. W. ; Mai L. Q. ; Hu C. G. ; Wang X. D. Nano Energy 2019, 62, 275. doi: 10.1016/j.nanoen.2019.05.042
112	Hao J. N. ; Yuan L. B. ; Ye C. ; Chao D. L. ; Davey K. ; Guo Z. P. ; Qiao S. Z. Angew. Chem. Int. Ed. 2021, 60 (13), 7366. doi: 10.1002/anie.202016531
113	Huang Z. D. ; Wang T. R. ; Li X. L. ; Cui H. L. ; Liang G. J. ; Yang Q. ; Chen Z. ; Chen A. ; Guo Y. ; Fan J. ; et al Adv. Mater. 2022, 34 (4), 2106180. doi: 10.1002/adma.202106180
114	Zhang Y. J. ; Zhu M. ; Wu K. ; Yu F. F. ; Wang G. Y. ; Xu G. ; Wu M. H. ; Liu H. K. ; Dou S. X. ; Wu C. J. Mater. Chem. A 2021, 9 (7), 4253. doi: 10.1039/d0ta11668h
115	Wang N. ; Yang Y. ; Qiu Q. ; Dong X. L. ; Wang Y. G. ; Xia Y. Y. ChemSusChem 2020, 13 (20), 5556. doi: 10.1002/cssc.202001750
116	Sun Y. P. ; Xu Z. ; Xu X. W. ; Nie Y. ; Tu T. ; Zhou A. J. ; Zhang J. ; Qiu L. C. ; Chen F. ; Xie J. ; et al Energy Storage Mater. 2022, 48, 192. doi: 10.1016/j.ensm.2022.03.023
117	Ma G. Q. ; Miao L. S. ; Dong Y. ; Yuan W. T. ; Nie X. Y. ; Di S. L. ; Wang Y. Y. ; Wang L. B. ; Zhang N. Energy Storage Mater. 2022, 47, 203. doi: 10.1016/j.ensm.2022.02.019
118	Wu S. L. ; Su B. Z. ; Sun M. Z. ; Gu S. ; Lu Z. G. ; Zhang K. L. ; Yu D. Y. W. ; Huang B. L. ; Wang P. F. ; Lee C. S. ; et al Adv. Mater. 2021, 33 (41), 2102390. doi: 10.1002/adma.202102390
119	Naveed A. ; Yang H. J. ; Yang J. ; Nuli Y. N. ; Wang J. L. Angew. Chem. Int. Ed. 2019, 58 (9), 2760. doi: 10.1002/anie.201813223
120	Chen Y. ; Guo S. ; Qin L. P. ; Wan Q. W. ; Pan Y. C. ; Zhou M. ; Long M. Q. ; Fang G. Z. ; Liang S. Q. Batteries Supercaps 2022, 5 (5), e202200001. doi: 10.1002/batt.202200001
121	Wang F. ; Blanc L. E. ; Li Q. ; Faraone A. ; Ji X. ; Chen-Mayer H. H. ; Paul R. L. ; Dura J. A. ; Hu E. Y. ; Xu K. ; et al Adv. Energy Mater. 2021, 11 (41), 2102016. doi: 10.1002/aenm.202102016
122	Li C. C. ; Wu W. L. ; Shi H. Y. ; Qin Z. M. ; Yang D. ; Yang X. P. ; Song Y. ; Guo D. ; Liu X. X. ; Sun X. Q. Chem. Commun. 2021, 57 (51), 6253. doi: 10.1039/d1cc00584g
123	Ming F. W. ; Zhu Y. P. ; Huang G. ; Emwas A. H. ; Liang H. F. ; Cui Y. ; Alshareef H. N. J. Am. Chem. Soc. 2022, 144 (16), 7160. doi: 10.1021/jacs.1c12764
124	Liu Z. X. ; Luo X. B. ; Qin L. P. ; Fang G. Z. ; Liang S. Q. Adv. Power. Mater. 2022, 1 (2), 100011. doi: 10.1016/j.apmate.2021.10.002

Electrolyte	Ionic conductivity/(mS?cm^?1)	pH	Cost	Feature and function	Ref.
2 mol?L^?1 ZnSO₄	56.9	4.9	Low	High stability, the most common electrolyte	54
2 mol?L^?1 Zn(CF₃SO₃)₂	58.6 ³⁸	3.6	High	Large volume, high capacity and fast reaction kinetics	49
4 mol?L^?1 Zn(TFSI)₂	90	3.5	High	Weak solvation，can suppress side reaction and improve coulombic efficiency	55

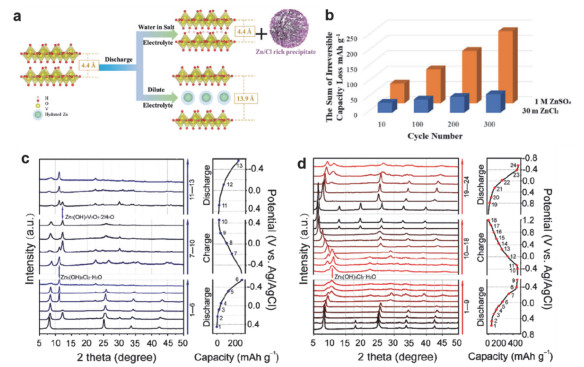

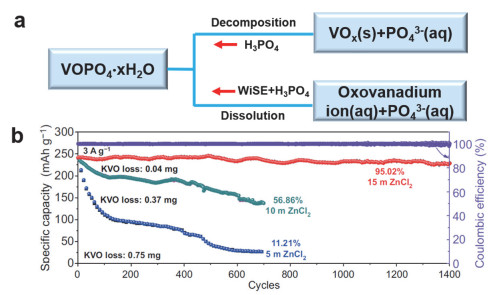

2 mol?kg^?1 ZnCl₂	84.2	4.2	High	Low decomposition voltage, high solubility, common WiSE	45
2 mol?kg^?1 Zn(CH₃COO)₂	10.9 ³⁸	5.7	Low	pH near neutral, friendly to Zn electrode	54
2 mol?kg^?1 Zn(NO₃)₂	115.6 ³⁸		Low	NO₃^? processes strong oxidation	47
1 mol?kg^?1 Zn(ClO₄)₂	48	4.9	Low	Chaotropic salt, excellent electrochemical performance at low-temperature	52, 53

Organic agent	(H₂O : organic)	Roles	Freezing point (℃)	Boiling point (℃)	Flash point (℃)	Dielectric constant	Viscosity (mPa?s)	Ref.
ACN	3 : 1	Shielding free water, building stable phase interface and suppressing HER and Zn dendrites.	?45.7	81.6	5.6	37.5	0.441	106
DMSO	4.3 : 1	Reconstruct Zn²⁺-sheath, forming SEI in situ, inhibiting decomposition of H₂O.	19	189	89	47.2	1.996	107
Diethyl ether	98 : 2	Acting electrostatic shield layer, leading to uniform deposition.	?116.2	34.5	?45	4.2	0.233	109

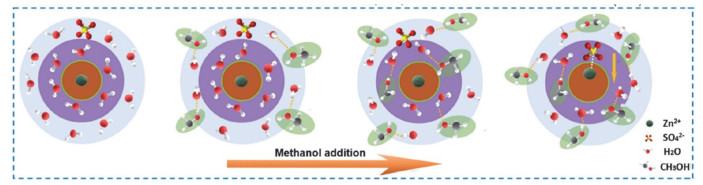

Methyl alcohol	1 : 1	Reducing water activity, weaken Zn²⁺ solvation structure.	?98	64.8	11	33	0.545	110
Ethyl alcohol	5 : 95	Suppressing dissolution of cathode, Zn dendrite and HER.	?114	78.3	21	25.7	1.074	114
Ethylene glycol	3 : 2	Hydrogen bonding of EG-H₂O, excellent performance at low temperature	?12.9	197.3	111	37	16.1	103
Glycerol	1 : 1	Glycerol has strong binding interaction with Zn metal, take part in Zn²⁺ solvation sheath structure.	18.2	290	177	19.9	800	112
DME	3 : 2	Forming organic/inorganic hybrid ZnF₂-ZnS-rich interphase in situ.	?58	85	?2	5.5		115

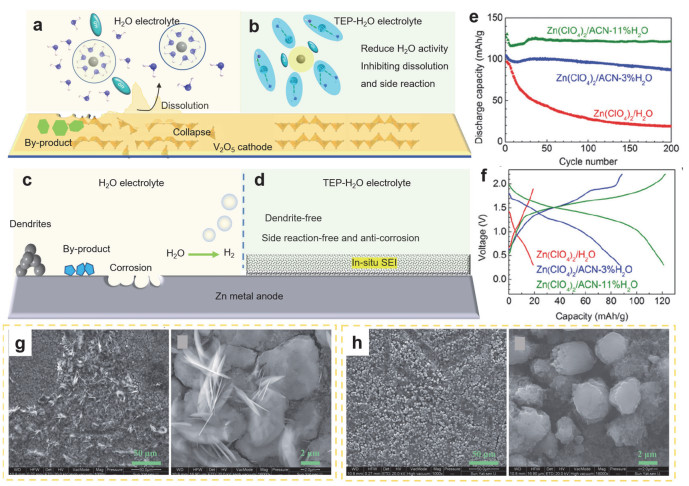

TEP	1 : 1	Occupying Zn²⁺-solvation sheath, SEI in situ.	?56.5	215	117	13.2	1.46	38
PC	4 : 1	Have a good stability at high voltage	?48.8	242	132	65	1.2	118

[1]	Xintong Zhu, Bin Cao, Chong Yan, Cheng Tang, Aibing Chen, Qiang Zhang. Advances in coating strategies for graphite anodes in lithium-ion batteries [J]. Acta Phys. -Chim. Sin., 2025, 41(9): 100096-.
[2]	Liangliang Song, Haoyan Liang, Shunqing Li, Bao Qiu, Zhaoping Liu. Challenges and strategies on high-manganese Li-rich layered oxide cathodes for ultrahigh-energy-density batteries [J]. Acta Phys. -Chim. Sin., 2025, 41(8): 100085-.
[3]	Yu Peng, Jiawei Chen, Yue Yin, Yongjie Cao, Mochou Liao, Congxiao Wang, Xiaoli Dong, Yongyao Xia. Tailored cathode electrolyte interphase via ethylene carbonate-free electrolytes enabling stable and wide-temperature operation of high-voltage LiCoO₂ [J]. Acta Phys. -Chim. Sin., 2025, 41(8): 100087-.
[4]	Xueting Cao, Shuangshuang Cha, Ming Gong. Interfacial Electrical Double Layer in Electrocatalytic Reactions: Fundamentals, Characterizations and Applications [J]. Acta Phys. -Chim. Sin., 2025, 41(5): 100041-.
[5]	Aoyu Huang, Jun Xu, Yu Huang, Gui Chu, Mao Wang, Lili Wang, Yongqi Sun, Zhen Jiang, Xiaobo Zhu. Tailoring Electrode-Electrolyte Interfaces via a Simple Slurry Additive for Stable High-Voltage Lithium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2025, 41(4): 100037-.
[6]	Jiandong Liu, Zhijia Zhang, Mikhail Kamenskii, Filipp Volkov, Svetlana Svetlana, Jianmin Ma. Research Progress on Cathode Electrolyte Interphase in High-Voltage Lithium Batteries [J]. Acta Phys. -Chim. Sin., 2025, 41(2): 100011-.
[7]	Pengcheng Yan, Peng Wang, Jing Huang, Zhao Mo, Li Xu, Yun Chen, Yu Zhang, Zhichong Qi, Hui Xu, Henan Li. Engineering Multiple Optimization Strategy on Bismuth Oxyhalide Photoactive Materials for Efficient Photoelectrochemical Applications [J]. Acta Phys. -Chim. Sin., 2025, 41(2): 100014-.
[8]	Kangjuan Cheng, Chunxiao Liu, Youpeng Wang, Qiu Jiang, Tingting Zheng, Xu Li, Chuan Xia. Design of noble metal catalysts and reactors for the electrosynthesis of hydrogen peroxide [J]. Acta Phys. -Chim. Sin., 2025, 41(10): 100112-.
[9]	Mingyang Men, Jinghua Wu, Gaozhan Liu, Jing Zhang, Nini Zhang, Xiayin Yao. Sulfide Solid Electrolyte Synthesized by Liquid Phase Approach and Application in All-Solid-State Lithium Batteries [J]. Acta Phys. -Chim. Sin., 2025, 41(1): 100004-.
[10]	Zhuo Han, Danfeng Zhang, Haixian Wang, Guorui Zheng, Ming Liu, Yanbing He. Research Progress and Prospect on Electrolyte Additives for Interface Reconstruction of Long-Life Ni-Rich Lithium Batteries [J]. Acta Phys. -Chim. Sin., 2024, 40(9): 2307034-.
[11]	Rui Yang, Hui Li, Qingfei Meng, Wenjie Li, Jiliang Wu, Yongjin Fang, Chi Huang, Yuliang Cao. Influence of PC-based Electrolyte on High-Rate Performance in Li/CrO_x Primary Battery [J]. Acta Phys. -Chim. Sin., 2024, 40(9): 2308053-.
[12]	Hao Chen, Dongyue Yang, Gang Huang, Xinbo Zhang. Progress on Liquid Organic Electrolytes of Li-O₂ Batteries [J]. Acta Phys. -Chim. Sin., 2024, 40(7): 2305059-.
[13]	Da Wang, Xiaobin Yin, Jianfang Wu, Yaqiao Luo, Siqi Shi. All-Solid-State Lithium Cathode/Electrolyte Interfacial Resistance: From Space-Charge Layer Model to Characterization and Simulation [J]. Acta Phys. -Chim. Sin., 2024, 40(7): 2307029-.
[14]	Jiandong Liu, Xin Li, Daxiong Wu, Huaping Wang, Junda Huang, Jianmin Ma. Anion-Acceptor Electrolyte Additive Strategy for Optimizing Electrolyte Solvation Characteristics and Electrode Electrolyte Interphases for Li\|\|NCM811 Battery [J]. Acta Phys. -Chim. Sin., 2024, 40(6): 2306039-.
[15]	Ke Qiu, Fengmei Wang, Mochou Liao, Kerun Zhu, Jiawei Chen, Wei Zhang, Yongyao Xia, Xiaoli Dong, Fei Wang. A Fumed SiO₂-based Composite Hydrogel Polymer Electrolyte for Near-Neutral Zinc-Air Batteries [J]. Acta Phys. -Chim. Sin., 2024, 40(3): 2304036-.

Electrolyte Regulation Strategies for Improving the Electrochemical Performance of Aqueous Zinc-Ion Battery Cathodes

RichHTML

PDF

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 14

References 124

Related Articles 15

Metrics

Recommended 0
