三维还原氧化石墨烯/聚苯胺复合材料的制备及其超级电容性能

doi:10.3866/PKU.WHXB201411202

物理化学学报 >> 2015, Vol. 31 >> Issue (1): 90-98.doi: 10.3866/PKU.WHXB201411202

三维还原氧化石墨烯/聚苯胺复合材料的制备及其超级电容性能

汪建德¹, 彭同江^2,3, 鲜海洋³, 孙红娟³

1. 西南科技大学材料科学与工程学院, 四川绵阳 621000;
2. 西南科技大学分析测试中心, 四川绵阳 621010;
3. 西南科技大学矿物材料及应用研究所, 四川绵阳 621000

收稿日期:2014-10-20 修回日期:2014-11-19 发布日期:2014-12-25
通讯作者: 彭同江 E-mail:tjpeng@swust.edu.cn
基金资助:
国家自然科学基金(41272051), 西南科技大学博士基金(11ZX7135), 西南科技大学研究生创新基金(14ycx003)和绵阳科技城大学生创新创业俱乐部示范点建设苗子工程项目子课题(2014RZ0038-15)项目资助

Preparation and Supercapacitive Performance of Three-Dimensional Reduced Graphene Oxide/Polyaniline Composite

WANG Jian-De¹, PENG Tong-Jiang^2,3, XIAN Hai-Yang³, SUN Hong-Juan³

1. School of Materials Science and Engineering, Southwest University of Science and Technology, Mianyang 621000, Sichuan Province, P. R. China;
2. Center of Forecasting and Analysis, Southwest University of Science and Technology, Mianyang 621010, Sichuan Province, P. R. China;
3. Institute of Mineral Materials & Application, Southwest University of Science and Technology, Mianyang 621000, Sichuan Province, P. R. China

Received:2014-10-20 Revised:2014-11-19 Published:2014-12-25
Contact: PENG Tong-Jiang E-mail:tjpeng@swust.edu.cn
Supported by:
The project was supported by the National Natural Science Foundation of China (41272051), Doctor Fund Project by Southwest University of Science and Technology, China (11ZX7135), Postgraduate Innovation Fund Project by Southwest University of Science and Technology, China (14ycx003), and Miaozi Subtopic Project for the Construction of Mianyang Sci-Tech City University Students' Innovative Undertaking Club Demonstration Site, China (2014RZ0038-15).

摘要/Abstract

摘要：

以制备的氧化石墨凝胶和聚苯胺纳米线为原料, 将二者按一定的质量比进行混合超声分散, 再以混合分散液为前驱体采用一步水热法制备得到三维还原氧化石墨烯(RGO)/聚苯胺(PANI) (RGP)复合材料, 采用扫描电镜(SEM), 透射电镜(TEM), X射线衍射(XRD), 傅里叶变换红外(FT-IR)光谱, X射线光电子能谱(XPS)和电化学测试等分析研究了复合材料的形貌、结构和超级电容性能. 结果表明, 复合材料既保持了还原氧化石墨烯的基本形貌, 又能使聚苯胺较好地镶嵌在还原氧化石墨烯的网状结构中; 且当氧化石墨与聚苯胺的质量比为1:1时复合材料在0.5 A·g^-1电流密度下比电容可高达758 F·g^-1, 即使在大电流密度(30 A·g^-1)下其比容量仍高达400 F·g^-1,在1A·g^-1电流密度下循环1000次后比容量保持率为86%, 表现出了良好的倍率性能和循环稳定性, 其超级电容性能远优于单纯的还原氧化石墨烯和聚苯胺, 其优异的超级电容性能可归咎于二者的相互协同作用.

关键词: 氧化石墨凝胶, 聚苯胺, 水热法, 三维还原氧化石墨烯/聚苯胺, 超级电容性能

Abstract:

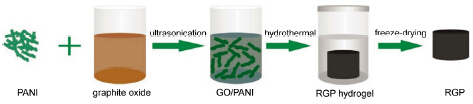

Three-dimensional reduced graphene oxide (RGO)/polyaniline (PANI) composite has been prepared in a single step by the ultrasonic irradiation of a suspension of graphite oxide gels and PANI nanowire using a hydrothermal method. Scanning electronic microscopy (SEM), transmission electron microscope (TEM), X-ray diffraction (XRD), Fourier transform infrared spectra (FT-IR), X-ray photoelectron spectra (XPS), and electrochemical measurements were performed to investigate the morphology, structure, and supercapacitive performance of the composite. The result showed that the composite maintained the basic morphology of RGO, and that the PANI was inlayed inside the RGO network. An outstanding supercapacitive performance was obtained when the mass ratio of graphite oxide and PANI was 1:1. Furthermore, the capacities reached 758 and 400 F·g^-1 at 0.5 and 30A·g^-1, respectively. The retention rate was found to be 86% after 1000 cycles at 1 A·g^-1. These results therefore indicate that this new composite possesses good rate capability and cycle stability, and that its supercapacitive performance is better than that of pure RGO or PANI. The excellent supercapacitive performance of this composite can be attributed to the mutual synergy of RGO and PANI.

Key words: Graphite oxide gel, Polyaniline, Hydrothermal method, Three-dimensional reduced graphene oxide/polyaniline, Supercapacitive performance

汪建德, 彭同江, 鲜海洋, 孙红娟. 三维还原氧化石墨烯/聚苯胺复合材料的制备及其超级电容性能[J]. 物理化学学报, 2015, 31(1), 90-98. doi: 10.3866/PKU.WHXB201411202

WANG Jian-De, PENG Tong-Jiang, XIAN Hai-Yang, SUN Hong-Juan. Preparation and Supercapacitive Performance of Three-Dimensional Reduced Graphene Oxide/Polyaniline Composite[J]. Acta Phys. -Chim. Sin. 2015, 31(1), 90-98. doi: 10.3866/PKU.WHXB201411202

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201411202

https://www.whxb.pku.edu.cn/CN/Y2015/V31/I1/90

参考文献

(1) Snook, G.; Kao, P.; Best, A. S. J. Power Sources 2011, 196, 1.
(2) Xu, G.; Wang, N.; Wei, J.; Lv, L.; Zhang, J.; Chen, Z.; Xu, Q. Ind. Eng. Chem. Fundam. 2012, 51, 14390. doi: 10.1021/ie301734f
(3) Jin, Y.; Chen, H. Y.; Chen, M. H.; Liu, N.; LI, Q. W. Acta Phys. -Chim. Sin. 2012, 28 (3), 609. [靳瑜,陈宏源, 陈名海,刘宁,李清文.物理化学学报, 2012, 28 (3), 609.] doi: 10.3866/PKU.WHXB201201162
(4) Zhang, H.; Cao, G.; Wang, Z.; Yang, Y.; Shi, Z.; Gu, Z. Electrochem. Commun. 2008, 10 (7), 1056. doi: 10.1016/j.elecom.2008.05.007
(5) Bai, S.; Shen, X. RSC Adv. 2012, 2, 64. doi: 10.1039/c1ra00260k
(6) Nemzer, L. R.; Schwartz, A.; Epstein, A. J. Macromolecules 2010, 43 (9), 4324. doi: 10.1021/ma100112g
(7) Zhang, L. Y.; He, S. J.; Chen, S. L.; Guo, Q. H.; Hou, H. Q. Acta Phys. -Chim. Sin. 2010, 26 (12), 3181. [张雷勇, 何水剑, 陈水亮,郭乔辉, 侯豪情.物理化学学报, 2010, 26 (12), 3181.] doi: 10.3866/PKU.WHXB20101135
(8) Yan, X. B.; Chen, J. T.; Yang, J.; Xue, Q. J. ACS Appl. Mater. Interfaces 2010, 2 (9), 2521. doi: 10.1021/am100293r
(9) Liu, H.; Zhang, W.; Song, H.; Chen, X.; Zhou, J.; Ma, Z. Electrochim. Acta 2014, 146, 511. doi: 10.1016/j.electacta.2014.09.083
(10) Sun, Y. Q.; Shi, G. Q. J. Polym. Sci. Part B: Polym. Phys. 2013, 51, 231. doi: 10.1002/polb.23226
(11) Zhou, S. P.; Zhang, H. M.; Zhao, Q.; Wang, X. H.; Liu, J.; Wang, F. S. Carbon 2013, 5, 440.
(12) Li, Z. F.; Zhang, H. Y.; Liu, Q.; Sun, L. L.; Xie, J. ACS Appl. Mater. Interfaces 2013, 5, 2685. doi: 10.1021/am4001634
(13) Wang, H. Z.; Gao, C. X.; Zhang, P.; Yao, S. W.; Zhang, W. G. Acta Phys. -Chim. Sin. 2013, 29 (1), 117. [王宏智, 高翠侠, 张鹏,姚素薇, 张卫国.物理化学学报, 2013, 29 (1), 117.] doi: 10.3866/PKU.WHXB201210234
(14) Gao, Z.; Yang, W. L.; Wang, J.; Yan, H. J.; Yao, Y.; Ma, J.; Wang, B.; Zhang, M. L.; Liu, L. H. Electrochim. Acta 2013, 91, 182.
(15) Zhang, K.; Zhang, L. L.; Zhang, X. S.; Wu, J. S. J. Mater. Chem. 2010, 22, 1392. doi: 10.1021/cm902876u
(16) Li, J.; Xie, H. Q.; Li, Y.; Liu, J.; Li, Z. X. J. Power Sources 2011, 196, 10775. doi: 10.1016/j.jpowsour.2011.08.105
(17) Kumar, N. A.; Choi, H. J.; Shin, Y. R.; Chang, D. W.; Dai, L.; Baek, J. B. ACS Nano 2012, 6 (2), 1715. doi: 10.1021/nn204688c
(18) An, J.; Liu, J.; Zhou, Y.; Zhao, H.; Ma, Y.; Li, M.; Li, S. J. Phys. Chem. C 2012, 116 (37), 19699. doi: 10.1021/jp306274n
(19) Xu, R.; Tang, Z. L.; Li, J. R.; Zhang, Z. T. Prog. Chem. 2009, 21 (1), 235. [徐睿,唐子龙,李俊荣, 张中太.化学进展, 2009, 21 (1), 235.]
(20) Fan, W.; Zhang, C.; Tjiu, W. W.; Pramoda, K. P.; He, C. B.; Liu, T. X. ACS Appl. Mater. Interfaces 2013, 5, 3382. doi: 10.1021/am4003827
(21) Liu, J. H.; An, J. W.; Zhou, Y. C.; Ma, Y. X.; Li, M. L.; Yu, M. ACS Appl. Mater. Interfaces 2012, 4, 2870. doi: 10.1021/am300640y
(22) Wang, J. D.; Peng, T. J.; Sun, H. J.; Hou, Y. D. Acta Phys. -Chim. Sin. 2014, 30 (11), 2077. [汪建德,彭同江, 孙红娟,侯云丹. 物理化学学报, 2014, 30 (11), 2077.] doi: 10.3866/PKU.WHXB201409152
(23) Dreyer, D. R.; Park, S.; Bielawski, C. W.; Ruoff, R. S. Chem. Soc. Rev. 2010, 39 (1), 228. doi: 10.1039/b917103g
(24) Niu, Z.; Liu, L.; Zhang, L.; Shao, Q.; Zhou, W.; Chen, X.; Xie, S. Adv. Mater. 2014, 26 (22), 3681. doi: 10.1002/adma.201400143.
(25) Yang, Y. H.; Sun, H. J.; Peng, T. J.; Huang, Q. Acta Phys. -Chim. Sin. 2011, 27 (3), 736. [杨勇辉,孙红娟, 彭同江, 黄桥. 物理化学学报, 2011, 27 (3), 736.] doi: 10.3866/PKU.WHXB20110320
(26) Pouget, J.; Jozefowicz, M.; Epstein, A.; Tang, X.; MacDiarmid, A. Macromolecules 1991, 24, 779. doi: 10.1021/ma00003a022
(27) Kumar, M.; Singh, K.; Dhawan, S. K.; Tharanikkarasu, K.; Chung, J. S.; Kong, B. S.; Kim, E. J.; Hur, S. H. Biochem. Eng. J. 2013, 231, 397.
(28) Lu, X. J.; Dou, H.; Yang, S. D.; Hao, L.; Zhang, L. J.; Shen, L. F.; Zhang, F.; Zhang, X. G.; Electrochim. Acta 2011, 56, 9224. doi: 10.1016/j.electacta.2011.07.142
(29) Acevedo, D. F.; Rivarola, C. R.; Miras, M. C.; Barbero, C. A. Electrochim. Acta 2011, 56 (10), 3468. doi: 10.1016/j.electacta.2011.01.041
(30) Rozlivkova, Z.; Trchova, M.; Exnerova, M.; Stejskal, J. Synth. Met. 2011, 161 (11), 1122.
(31) Laslau, C.; Zujovic, Z.; Travas-Sejdic, J. Prog. Polym. Sci. 2010, 35 (12), 1403. doi: 10.1016/j.progpolymsci.2010.08.002
(32) Zhu, C.; Guo, S.; Fang, Y.; Dong, S. ACS Nano 2010, 4, 2429. doi: 10.1021/nn1002387
(33) Golczak, S.; Kanciurzewska, A.; Fahlman, M.; Langer, K.; Langer, J. Solid State Ionics 2008, 179 (39), 2234. doi: 10.1016/j.ssi.2008.08.004
(34) Al-Mashat, L.; Shin, K.; Kalantar-zadeh, K.; Plessis, J. D.; Han, S. H.; Kojima, R. W. J. Phys. Chem. C 2010, 114 (39), 16168. doi: 10.1021/jp103134u
(35) Zhang, L. L.; Zhao, X. S. Chem. Soc. Rev. 2009, 38, 2520. doi: 10.1039/b813846j
(36) Ding, M. N.; Tang, Y. F.; Gou, P. P.; Reber, M. J.; Star, A. A. Adv. Mater. 2011, 23 (4), 536. doi: 10.1002/adma.v23.4
(37) Yang, F.; Xu, M.; Bao, S. J.; Wei, H.; Chai, H. Electrochim. Acta 2014, 137, 381. doi: 10.1016/j.electacta.2014.06.017
(38) Wang, K. Y.; Xia, Y. Y. J. Electrochem. Soc. 2006, 153, A450.
(39) Ning, G.; Li, T.; Yan, J.; Xu, C.; Wei, T.; Fan, Z. Carbon 2013, 54, 241. doi: 10.1016/j.carbon.2012.11.035
(40) Park, S.; Ruoff, R. S. Nat. Nanotech. 2009, 4, 217. doi: 10.1038/nnano.2009.58
(41) Wang, K.; Huang, J. Y.; Wei, Z. X. J. Phys. Chem. C 2010, 114 (17), 8062. doi: 10.1021/jp9113255
