不同磺酸掺杂聚苯胺的制备及在超级电容器中的应用

doi:10.3866/PKU.WHXB201511104

物理化学学报 >> 2016, Vol. 32 >> Issue (2): 474-480.doi: 10.3866/PKU.WHXB201511104

不同磺酸掺杂聚苯胺的制备及在超级电容器中的应用

林有铖,钟新仙*(),黄寒星,王红强,冯崎鹏,李庆余*()

广西师范大学化学与药学学院, 药用资源化学与药物分子工程教育部重点实验室, 广西低碳能源材料重点实验室, 广西桂林 541004

收稿日期:2015-07-20 发布日期:2016-01-30
通讯作者: 钟新仙,李庆余 E-mail:zhongxx2004@163.com;liqingyu62@126.com
基金资助:
中国博士后科学基金(2014M562499XB);国家自然科学基金(U1401246, 51474110)

Preparation and Application of Polyaniline Doped with Different Sulfonic Acids for Supercapacitor

You-Cheng LIN,Xin-Xian ZHONG*(),Han-Xing HUANG,Hong-Qiang WANG,Qi-Peng FENG,Qing-Yu LI*()

Key Laboratory for the Chemistry and Molecular Engineering of Medicinal Resources, Ministry of Education, Guangxi Key Laboratory of Low Carbon Energy Materials, School of Chemistry and Pharmaceutial Sciences, Guangxi Normal University, Guilin 541004, Guangxi Zhuang Autonomous Region, P. R. China

Received:2015-07-20 Published:2016-01-30
Contact: Xin-Xian ZHONG,Qing-Yu LI E-mail:zhongxx2004@163.com;liqingyu62@126.com
Supported by:
the China Postdoctoral Science Foundation(2014M562499XB);National Natural Science Foundation of China(U1401246, 51474110)

摘要/Abstract

摘要：

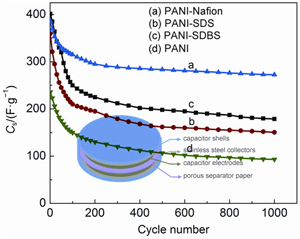

以MnO₂为氧化剂,采用乳液聚合法,用三种不同的磺酸型表面活性剂制备掺杂聚苯胺(PANI)。通过扫描电子显微镜(SEM)、傅里叶变换红外(FTIR)光谱以及X射线衍射(XRD)等手段对其结构及形貌进行表征;用所得的掺杂聚苯胺制作电极,组装成对称扣式超级电容器,用循环伏安法(CV)、电化学阻抗(EIS)和恒电流充放电技术进行电化学性能研究。结果表明,磺酸表面活性剂的引入有利于PANI纳米纤维的形成和分散,掺杂Nafion的PANI纤维直径在30-40 nm之间,纤维交织成多孔的疏松结构;当放电电流为0.1 A·g^-1时,以PANI-Nafion、PANI-SDS(十二烷基磺酸钠)、PANI-SDBS(十二烷基苯磺酸钠)为电极材料的超级电容器比容量分别为385.3、359.7、401.6 F·g^-1,均高于未掺杂PANI的比容量(235.8 F·g^-1);其中, PANINafion的循环稳定性最好, 1000次循环后其比容量保持率高达70.7%。

关键词: 聚苯胺, 有机磺酸, 乳液聚合, 纳米纤维, 超级电容器

Abstract:

Polyaniline (PANI) nanomaterials doped with three different sulfonic acid surfactants (perfluorinated sulfonic acid ion exchange resin (Nafion), sodium dodecyl sulfate (SDS), and sodium dodecyl benzene sulfonate (SDBS)) were prepared using an emulsion polymerization method with manganese dioxide (MnO₂) as the oxidant. The structure and morphology of the products were studied by scanning electron microscopy (SEM), Fourier transform infrared (FTIR) spectroscopy, and X-ray diffraction (XRD). Symmetric redox supercapacitor was assembled with doped PANI as the active electrode material. The electrochemical performances of the materials were evaluated by cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and galvanostatic charge-discharge tests. These results suggest that the introduction of surfactant is beneficial for the formation of a fiber structure and increases the dispersion of PANI. A PANI-Nafion network with distributed porosity and average diameters of 30-40 nm is obtained. The specific capacitances of PANI-Nafion, PANI-SDS, and PANI-SDBS electrodes at 0.1 A·g^-1 are 385.3, 359.7, and 401.6 F·g^-1, respectively. Among these electrodes PANI-Nafion delivers the best cycle performance, maintaining 70.7% of its initial capacitance after 1000 cycles.

Key words: Polyaniline, Organic sulfonic acid, Emulsion polymerization, Nanofiber, Supercapacitor

林有铖,钟新仙,黄寒星,王红强,冯崎鹏,李庆余. 不同磺酸掺杂聚苯胺的制备及在超级电容器中的应用[J]. 物理化学学报, 2016, 32(2), 474-480. doi: 10.3866/PKU.WHXB201511104

You-Cheng LIN,Xin-Xian ZHONG,Han-Xing HUANG,Hong-Qiang WANG,Qi-Peng FENG,Qing-Yu LI. Preparation and Application of Polyaniline Doped with Different Sulfonic Acids for Supercapacitor[J]. Acta Phys. -Chim. Sin. 2016, 32(2), 474-480. doi: 10.3866/PKU.WHXB201511104

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201511104

https://www.whxb.pku.edu.cn/CN/Y2016/V32/I2/474

参考文献

1	Wang L. L. ; Xing R. G. ; Zhang B. W. ; Hou Y Acta Phys. -Chim. Sin 2014, 30 (9), 1659.
1	汪丽丽; 邢瑞光; 张邦文; 侯渊. 物理化学学报, 2014, 30 (9), 1659.
2	Fan T. J. ; Tong S. Z. ; Zeng W. J. ; Niu Q. L. ; Liu Y. D. ; Kao C. H. ; Li J. Y. ; Huang W. ; Min Y. ; Arthur J. E Synth. Met 2015, 199, 79.
3	Simon P. ; Gogotsi Y Nat. Mater 2008, 7, 845.
4	Zhang Y. ; Feng H. ; Wu X. B. ; Wang L. Z. ; Zhang A. Q. ; Xia T. C. ; Dong H. C. ; Li X. F. ; Zhang L. S. Int. J. Hydrog. Energy 2009, 34, 4889.
5	Brownson D. A. C. ; Kampouris D. K. ; Banks C. E. J Power Sources 2011, 196, 4873.
6	Tapan K. D. ; Smita P Polym. Plast. Technol. Eng 2012, 51, 1487.
7	Wang J. D. ; Peng T. J. ; Xian H. Y. ; Sun H. J Acta Phys. -Chim. Sin 2015, 31 (1), 90.
7	汪建德; 彭同江; 鲜海洋; 孙红娟. 物理化学学报, 2015, 31 (1), 90.
8	Yang S. ; Xu G. Y. ; Han J. P. ; Bing H. ; Dou H. ; Zhang X. G Acta Phys. -Chim. Sin 2015, 31 (4), 685.
8	杨硕; 徐桂银; 韩金鹏; 邴欢; 窦辉; 张校刚. 物理化学学报, 2015, 31 (4), 685.
9	Gnanakan S. R. P. ; Murugananthem N. ; Subramania A Polym. Adv. Technol 2011, 22 (6), 788.
10	Liao Y. ; Gao L. ; Zhang X. H. ; Chen J. H Mater. Res. Bull 2012, 47 (7), 1625.
11	Peng H. ; Ma G. F. ; Ying W. M. ; Wang A. D. ; Huang H. H. ; Lei Z. Q. J Power Sources 2012, 211, 40.
12	Gao L. ; Liao Y. ; Zhang X. H. ; Chen J. H. Chem. J. Chin. Univ 2013, 34 (2), 2845.
12	高磊; 廖奕; 张小华; 陈金华. 高等学校化学学报, 2013, 34 (2), 2845.
13	Cong H. P. ; Ren X. C. ; Wang P. ; Yu S. R Energy Environ. Sci 2013, 6, 1185.
14	Graeme A. S. ; Pon K. ; Adam S. B. J. Power Sources 2011, 196, 1.
15	David V. ; Pavel L. ; Kimberly A. S. ; Fred W. ; Alan J. H Adv. Mater 2014, 26 (30), 5095.
16	Xin G. X. ; Wang Y. H. ; Liu X. X. ; Zhang J. H. ; Wang Y. F. ; Huang J. J. ; Zang J. B Electrochim. Acta 2015, 167, 254.
17	Mohd K. ; Milton A. T. ; Iuri S. B. ; Vinicius C. Z. ; Jose J. S. A. ; Andre A. P. Indian J. Mater. Sci 2013, 2013, 7.
18	Salma B. ; Salma G. ; Khurshid A. ; Shah A. A Synth. Met 2012, 162, 2259.
19	Girija T. C. ; Sangaranarayanan M. V Synth. Met 2006, 156, 244.
20	Jan P. ; Jaroslav S Polym. Degrad. Stab 2004, 86, 187.
21	Gaikwad P. D. ; Shirale D. J. ; Gade V. K. ; Savale P. A. ; Kharat H. J. ; Kakde K. P. ; Hussaini S. S. ; Dhumane N. R. ; Shirsat M. D Bull. Mater. Sci 2006, 29 (2), 169.
22	Chen T. ; Dong C. F. ; Li X. G. ; Gao J Polym. Degrad. Stab 2009, 94 (10), 1788.
23	Chen W. ; Rakhi R. B. ; Alshareef H. N. J Mater. Chem. A 2013, 1, 3315.
24	Xie H. G. ; Ma Y. M. ; Guo J. S Polymer 1999, 40 (1), 261.
25	Smitha B. ; Sridhar S. ; Animesh K. J Membr. Sci 2005, 259, 10.
26	Birgit S. ; Soowhan K. ; Vijayakumar M. ; Yang Z. G. ; Liu J J. Membr. Sci 2011, 372, 11.
27	Kim B. C. ; Ko J. M. ; Wallace G. G. J Power Sources 2008, 177, 665.
28	Huang Y. G. ; Zhong X. X. ; Huang H. X. ; Li Q. Y. ; Wang Z.H. ; Feng Q. P. ; Wang H. Q. Int. J Hydrog. Energy 2014, 39 (28), 16132.
29	Sudipta C. ; Fabien S. ; Christine C. ; Suzy V. ; Alexandre B Carbohydr. Polym 2012, 90 (2), 967.
30	Yang M. ; Li J. X. ; Li H. H. ; Su L.W. ; Wei J. P. ; Zhou Z Phys. Chem. Chem. Phys 2012, 14, 11048.
31	Qiu Y. ; Lu L. ; Wang S. S. ; Zhang X. H. ; He S. T. ; He T Power Sources 2014, 253, 300.
32	Gu Y. S. ; Tsai J. Y Synth. Met 2012, 161 (23-24), 2743.
33	Zhou D. H. ; Li Y. H. ; Wang J. Y. ; Xu P. ; Han X. J Mater. Lett 2011, 65 (23-24), 3601.
34	Zhang L. Y. ; He S. J. ; Chen S. L. ; Guo Q. H. ; Hou H. Q Acta Phys. -Chim. Sin 2010, 26 (12), 3181.
34	张雷勇; 何水剑; 陈水亮; 郭乔辉; 侯豪情. 物理化学学报, 2010, 26 (12), 3181.
35	Trchová M. ; Sédeňková I. ; Tobolková E. ; Stejskal J Polym. Degrad. Stab 2004, 86 (1), 179.
36	Lu X. H. ; Ng H. Y. ; Xu J. Y. ; He H. B Synth. Met 2002, 128, 167.
37	Liu W. ; Ashok L. C. ; Ramaswamy N. ; Jayant K. ; Sukant T. ; Ferdinando F. B. ; Lynne S. J Am. Chem. Soc 1999, 121 (49), 11345.
38	David E. S. ; Su-Moon P. J Electrochem. Soc 1988, 135 (9), 2254.
39	Mi H. Y. ; Zhang X. G. ; Yang S. D. ; Ye X. G. ; Luo J. M Mater. Chem. Phys 2008, 112 (1), 127.
40	Yan J. ; Wei T. ; Fan A. J. ; Qian W. Z. ; Zhang M. L. ; Shen X.D. ; Wei F. J Power Sources 2010, 195, 3041.
41	Kima B. C. ; Too C. O. ; Kwon J. S. ; Ko J. M. ; Wallace G. G Synth. Met 2011, 161, 1130.
