蜂巢状多孔明胶制备高性能超级电容器用活性炭

doi:10.3866/PKU.WHXB201705241

摘要/Abstract

摘要：

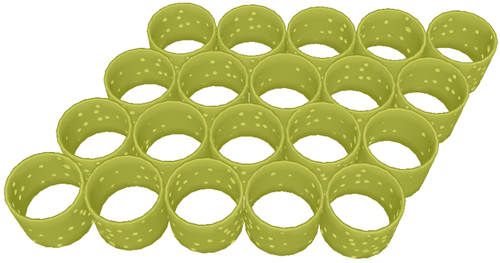

近年来，以生物质为前驱体来制备碳材料因其资源丰富、廉价易得、无污染且可再生等优点而引起人们的广泛关注。本文将生物质明胶制备成呈蜂巢状的多孔结构，并以此为前驱体经碳化、活化制备活性炭。研究表明，与商品化明胶相比，由多孔明胶所制备的活性炭其比表面积（可高达3692 m²·g^-1）及超级电容器性能均有明显提升。在6 mol·L^-1 KOH水溶液中，由多孔明胶经600℃碳化、700℃ KOH活化所制备的活性炭，在1 A·g^-1的放电容量为357 F·g^-1，即使在100 A·g^-1的大电流密度下，其比电容仍可维持在227 F·g^-1。活性炭样品也表现出优异的循环稳定性，在10 A·g^-1下经7500圈循环稳定性测试后，其初始容量保持率高达93.0%。而且，以该活性炭组装的对称型超级电容器，在250、2500及25000 W·kg^-1的功率密度下，其能量密度分别为10.3、9.7和8.2 Wh·kg^-1；在10 A·g^-1下经10000次循环后，容量保持率高达97.6%。这些研究结果表明由蜂巢状多孔明胶所制备的活性炭在高性能超级电容器中具有巨大的应用潜力。

关键词: 多孔明胶, 蜂巢状, 活性炭, 超级电容器

Abstract:

Recently, preparation of carbon materials using biomass as precursors has received much attention owning to their merits of low cost, abundance, renewability, and environmental benignity. In this study, honeycomb-like porous gelatin was synthesized and subsequently used as the precursor to prepare activated carbon through carbonization followed by activation. The prepared activated carbon had a higher specific surface area (up to 3692 m²·g^-1) and supercapacitor performance than that of activated carbon derived from commercial gelatin. In a 6 mol·L^-1 KOH solution, the activated carbon prepared from porous gelatin through 600℃ carbonization and 700℃ activation delivered high specific capacitances of 357 and 227 F·g^-1 at current densities of 1 and 100 A·g^-1, respectively. In addition, after 7500 charge/discharge cycles at a current density of 10 A·g^-1, it showed 93.0% retention of the initial capacitance, demonstrating excellent cycling stability. Moreover, a symmetric supercapacitor was assembled, which delivered an energy density of 10.3, 9.7, and 8.2 Wh·kg^-1 at power densities of 250, 2500, and 25000 W·kg^-1, respectively. Furthermore, a capacity retention as high as 97.6% was achieved after 10000 cycles at 10 A·g^-1 using this symmetric supercapacitor. This work has demonstrated that the activated carbon derived from honeycomb-like porous gelatin has great potential for application in high-performance supercapacitors.

Key words: Porous gelatin, Honeycomb-like, Activated carbon, Supercapacitor

李道琰,张基琛,王志勇,金先波. 蜂巢状多孔明胶制备高性能超级电容器用活性炭[J]. 物理化学学报, 2017, 33(11), 2245-2252. doi: 10.3866/PKU.WHXB201705241

Dao-Yan LI,Ji-Chen ZHANG,Zhi-Yong WANG,Xian-Bo JIN. Preparation of Activated Carbon from Honeycomb-Like Porous Gelatin for High-Performance Supercapacitors[J]. Acta Phys. -Chim. Sin. 2017, 33(11), 2245-2252. doi: 10.3866/PKU.WHXB201705241

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201705241

https://www.whxb.pku.edu.cn/CN/Y2017/V33/I11/2245

参考文献

1	Miller J. R. ; Simon P. Science 2008, 321, 651.
2	Simon P. ; Gogotsi Y. Nat. Mater. 2008, 7, 845.
3	Zhai Y. ; Dou Y. ; Zhao D. ; Fulvio P. F. ; Mayes R. T. ; Dai S. Adv. Mater. 2011, 23, 4828.
4	Zhang L. L. ; Zhao X. S. Chem. Soc. Rev. 2009, 38, 2520.
5	Frackowiak E. Phys. Chem. Chem. Phys. 2007, 9, 1774.
6	Li X. Q. ; Chang L. ; Zhao S. L. ; Hao C. L. ; Lu C. G. ; Zhu Y.H. ; Tang Z. Y. Acta Phys. -Chim. Sin. 2017, 33, 130.
6	李雪芹; 常琳; 赵慎龙; 郝昌龙; 陆晨光; 朱以华; 唐智勇. 物理化学学报, 2017, 33, 130.
7	Wu X. ; Xing W. ; Florek J. ; Zhou J. ; Wang G. ; Zhuo S. ; Xue Q. ; Yan Z. ; Kleitz F. J. Mater. Chem. A 2014, 2, 18998.
8	Raymundo-Pi?ero E. ; Cadek M. ; Béguin F. Adv. Funct. Mater. 2009, 19, 1032.
9	Madhu R. ; Sankar K. V. ; Chen S. M. ; Selvan R. K RSC Adv. 2014, 4, 1225.
10	Biswal M. ; Banerjee A. ; Deo M. ; Ogale S. Energy Environ. Sci. 2013, 6, 1249.
11	Liu H. J. ; Wang X. M. ; Cui W. J. ; Dou Y. Q. ; Zhao D. Y. ; Xia Y. Y. J. Mater. Chem. 2010, 20, 4223.
12	Huang W. ; Zhang H. ; Huang Y. ; Wang W. ; Wei S. Carbon 2011, 49, 838.
13	Yun Y. S. ; Cho S. Y. ; Shim J. ; Kim B. H. ; Chang S. J. ; Baek S.J. ; Huh Y. S. ; Tak Y. ; Park Y. W. ; Park S. ; Jin H. J. Adv. Mater. 2013, 25, 1993.
14	Hou J. ; Cao C. ; Idrees F. ; Ma X. ACS Nano 2015, 9, 2556.
15	Li Z. ; Xu Z. ; Tan X. ; Wang H. ; Holt C. M. B. ; Stephenson T. ; Olsen B. C. ; Mitlin D. Energy Environ. Sci. 2013, 6, 871.
16	Zhao L. ; Fan L. Z. ; Zhou M. Q. ; Guan H. ; Qiao S. ; Antonietti M. ; Titirici M. M. Adv. Mater. 2010, 22, 5202.
17	Mao Y. ; Duan H. ; Xu B. ; Zhang L. ; Hu Y. ; Zhao C. ; Wang Z. ; Chen L. ; Yang Y. Energy Environ. Sci. 2012, 5, 7950.
18	Gao S. ; Geng K. ; Liu H. ; Wei X. ; Zhang M. ; Wang P. ; Wang J. Energy Environ. Sci. 2015, 8, 221.
19	Xu B. ; Hou S. ; Cao G. ; Wu F. ; Yang Y. J. Mater. Chem. 2012, 22, 19088.
20	Mane G. P. ; Talapaneni S. N. ; Anand C. ; Varghese S. ; Iwai H. ; Ji Q. ; Ariga K. ; Mori T. ; Vinu A. Adv. Funct. Mater. 2012, 22, 3596.
21	Xu B. ; Hou S. ; Zhang F. ; Cao G. ; Chu M. ; Yang Y. J. Electroanal. Chem. 2014, 712, 146.
22	Dhawale D. S. ; Mane G. P. ; Joseph S. ; Anand C. ; Ariga K. ; Vinu A. ChemPhysChem 2013, 14, 1563.
23	Olejniczak A. ; Le?ańska M. ; Pacu?a A. ; Nowak P. ; W?och J. ; ?ukaszewicz J. P. Carbon 2015, 91, 200.
24	Guan Z. ; Liu H. ; Xu B. ; Hao X. ; Wang Z. ; Chen L. J. Mater. Chem. A 2015, 3, 7849.
25	Nam G. ; Park J. ; Kim S. T. ; Shin D. ; Park N. ; Kim Y. ; Lee J.S. ; Cho J. Nano Lett. 2014, 14, 1870.
26	Yi B. ; Chen X. ; Zeng B. ; Guo K. ; Wan Z. ; Qian Q. ; Yan H. ; Chen J. J. Porous Mater. 2012, 19, 37.
27	Zhang X. ; Jiao Y. ; Sun L. ; Wang L. ; Wu A. ; Yan H. ; Meng M. ; Tian C. ; Jiang B. ; Fu H. Nanoscale 2016, 8, 2418.
28	Bigi A. ; Cojazzi G. ; Panzavolta S. ; Rubini K. ; Roveri N. Biomaterials 2001, 22, 763.
29	Olde Damink L. H. H. ; Dijkstra P. J. ; Van Luyn M. J. A. ; VanWachem P. B. ; Nieuwenhuis P. ; Feijen J. J. Mater. Sci. Mater. Med. 1995, 6, 460.
30	Sing K. S. W. ; Everett D. H. ; Haul R. A. W. ; Moscou L. ; Pierotti R. A. ; Rouquérol J. ; Siemieniewska T. Pure Appl. Chem. 1985, 57, 603.
31	Zhang C. ; Lin S. ; Peng J. ; Hong Y. ; Wang Z. ; Jin X. RSC Adv. 2017, 7, 6486.
32	Jurewicz K. ; Babe? K. ; ?ió?kowski A. ; Wachowska H. Electrochim. Acta 2003, 48, 1491.
33	Frackowiak E. ; Béguin F. Carbon 2001, 39, 937.
34	Wang D. W. ; Li F. ; Chen Z. G. ; Lu G. Q. ; Cheng H. M. Chem. Mater. 2008, 20, 7195.
35	Shi C. ; Hu L. ; Guo K. ; Li H. ; Zhai T. Adv. Sustainable Syst. 2017, 1600011
