咪唑类离子液体与酪氨酸相互作用及机理的密度泛函理论研究

doi:10.3866/PKU.WHXB202002021

物理化学学报 >> 2021, Vol. 37 >> Issue (10): 2002021.doi: 10.3866/PKU.WHXB202002021

咪唑类离子液体与酪氨酸相互作用及机理的密度泛函理论研究

吴智伟¹^,², 丁伟璐¹, 张雅琴¹, 王艳磊¹, 何宏艳¹^,³^,*()

¹ 中国科学院过程工程研究所离子液体清洁过程北京市重点实验室，北京 100190
² 中国科学院大学中丹学院，北京 100049
³ 郑州中科新兴产业技术研究院，郑州 450000

收稿日期:2020-02-19 录用日期:2020-04-06 发布日期:2020-04-10
通讯作者: 何宏艳 E-mail:hyhe@ipe.ac.cn
基金资助:
国家自然科学基金优秀青年科学基金(21922813);国家自然科学基金重点项目(21834006);国家自然科学基金面上项目(21978027);中国科学院前沿科学重点研究计划(QYZDB-SSW-SLH022);中国科学院青年创新促进会(2017066)

Interaction and Mechanism between Imidazolium Ionic Liquids and the Zwitterionic Amino Acid Tyr: a DFT Study

Zhiwei Wu¹^,², Weilu Ding¹, Yaqin Zhang¹, Yanlei Wang¹, Hongyan He¹^,³^,*()

¹ Beijing Key Laboratory of Ionic Liquids Clean Process, Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China
² Sino-Danish College, University of Chinese Academy of Sciences, Beijing 100049, China
³ Zhengzhou Institute of Emerging Industrial Technology, Zhengzhou 450000, China

Received:2020-02-19 Accepted:2020-04-06 Published:2020-04-10
Contact: Hongyan He E-mail:hyhe@ipe.ac.cn
About author:Hongyan He, Email: hyhe@ipe.ac.cn; Tel.: +86-10-82544875
Supported by:
the National Science Fund for Excellent Young Scholars, China(21922813);Key Program of National Natural Science Foundation of China(21834006);General program of National Natural Science Foundation of China(21978027);Key Research Program of Frontier Sciences of CAS(QYZDB-SSW-SLH022);Youth Innovation Promotion Association of CAS(2017066)

摘要/Abstract

摘要：

离子液体的物理化学性质稳定且结构可调，被认为是潜在的新一代绿色高效生物分子溶剂。本文通过密度泛函理论研究了系列咪唑基离子液体与两性离子型氨基酸(酪氨酸)的相互作用及机理。利用对称微扰理论(SAPT)、分子中的原子理论(AIM)及约化密度梯度函数(RDG)，分析了氢键作用、静电力、诱导力和色散力对离子液体-氨基酸体系相互作用的贡献。计算结果表明静电作用对于阴、阳离子与酪氨酸的相互作用占主导地位。对于系列阳离子而言，具有不同的甲基取代位点和烷基侧链长度对不同的相互作用模式会产生显著影响。其中，当甲基位于咪唑环的C2位点时，诱导力与色散力占比差别较小;当甲基取代位于咪唑环的N3位点时，诱导力与色散力占比差别较大。产生这一差异的原因在于当甲基位于C2位时，氢键、咪唑环与苯环之间的π⁺-π作用为主要作用模式，而甲基取代位为N3位时，氢键和烷基链与苯环之间的C_Alkyl-H…π作用则成为主导。进一步获得离子对-酪氨酸的相互作用能变化趋势与阳离子-酪氨酸的变化趋势一致，阴阳离子的共同作用使其与酪氨酸结合更稳定。该研究结果阐明了离子液体中阳离子氢键位点及侧链长度差异对于离子液体-酪氨酸体系的相互作用模式的影响机制，为高效分离氨基酸的功能性离子液体的设计和筛选提供了新思路。

关键词: 离子液体, 两性离子型氨基酸, 相互作用机理, 氢键作用, 范德华相互作用

Abstract:

Ionic liquids (ILs) are thermally and chemically stable and have adjustable structures, which gives them the potential to be used as green, efficient biomolecular solvents. Given the critical role of ILs in dissolving biomolecules, the mechanism of interaction between them deserves further study. Herein, density functional theory (DFT) calculations, using the SMD implicit water solvent model, were employed to study the interaction and mechanism between a hydrophobic zwitterionic amino acid (Tyr) and a series of imidazolium ILs with different alkyl chain lengths and methylation sites. The contributions of hydrogen bonding (H-bonding), electrostatic effects, induction, and dispersion to the intermolecular interactions were determined by combining the symmetry-adapted perturbation theory (SAPT), the atoms in molecules (AIM) theory, and reduced density gradient (RDG) analysis. The results indicate that the H-bonding between the IL cation and Tyr is stronger than that between the IL anion and Tyr; however, the binding between either ion and Tyr is dominated by electrostatic effects. By contrast, the difference between the induction and dispersion forces is small when methylation occurs on the C2 site of the imidazolium cation; whereas, it is significantly large when methylation takes place on the N3 site. This is rationalized by the interaction patterns that vary based on the methylation site. H-bonding and π⁺-π stacking interactions between the imidazole and benzene rings are dominant during C2-methylation, while H-bonding and C_Alkyl-H…π interactions between the alkyl chain and benzene ring are dominant during N3-methylation. Increasing the side alkyl chain length has different effects on the interaction energy to cations with different methylation sites. During N3-methylation, when the side alkyl chain length increases from 4 to 12, there are significant van der Waals interactions between the Tyr benzene and the side alkyl chain. However, these van der Waals interactions are inapparent when methylation takes place on the C2 site. Finally, the synergetic effect of the H-bonding and the interaction between the benzene and the side alkyl chain for C2-methylation is greater than the H-bonding and the interaction between the imidazole and benzene rings for N3-methylation, when the side alkyl chain length n > 9. Therefore, the interaction strength and mechanism in these imidazolium-Tyr complexes can be regulated by changing the methylation site and the side alkyl chain length of the cation. Further study of ion-pair and Tyr reveals that the change tendency of the interaction energy of IL-Tyr systems is consistent with that of cation-Tyr cases, and the ion pair further stabilizes the binding with Tyr. These results illustrate the interaction mechanism of IL-Tyr systems and provide a novel strategy for the design and screening of functional ILs for amino acid extraction and separation in the future.

Key words: Ionic liquids, Zwitterionic amino acid, Interaction and mechanism, Hydrogen bond effect, Van der Waals effect

点击下载补充材料PDF格式文件

吴智伟, 丁伟璐, 张雅琴, 王艳磊, 何宏艳. 咪唑类离子液体与酪氨酸相互作用及机理的密度泛函理论研究[J]. 物理化学学报, 2021, 37(10), 2002021. doi: 10.3866/PKU.WHXB202002021

Zhiwei Wu, Weilu Ding, Yaqin Zhang, Yanlei Wang, Hongyan He. Interaction and Mechanism between Imidazolium Ionic Liquids and the Zwitterionic Amino Acid Tyr: a DFT Study[J]. Acta Phys. -Chim. Sin. 2021, 37(10), 2002021. doi: 10.3866/PKU.WHXB202002021

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB202002021

https://www.whxb.pku.edu.cn/CN/Y2021/V37/I10/2002021

图/表 12

Fig 1

Fig 2

Table 1

Fig 3

Table 2

Fig 4

Fig 5

Table 3

Fig 6

Fig 7

Fig 8

Table 4

参考文献 47

1	Dong K. ; Liu X. M. ; Dong H. F. ; Zhang X. P. ; Zhang S. J. Chem. Rev. 2017, 117, 6636. doi: 10.1021/acs.chemrev.6b00776
2	Berthod A. ; Ruiz-Ángel M. J. ; Carda-Broch S. J. Chromatogr. A 2018, 1559, 2. doi: 10.1016/j.chroma.2017.09.044
3	Rogers R. D. ; Seddon K. R. Science 2003, 302, 792. doi: 10.1126/science.1090313
4	Wei J. ; Dong H. X. ; Chen X. ; Yang Y. X. ; Fang D. W. ; Guan W. ; Yang J. Z. Acta Phys. -Chim. Sin. 2018, 34, 927.
	魏杰; 董贺新; 陈霞; 杨宇轩; 房大维; 关伟; 杨家振. 物理化学学报, 2018, 34, 927. doi: 10.3866/PKU.WHXB201801112
5	Caminiti, R.; Gontrani, L. The Structure of Ionic Liquids; Springer: Cham, Switzerland; 2013, pp. 127-148.
6	Zhang, S. J.; Wang, J. J.; Lu, X. M.; Zhou, Q. Structures and Interactions of Ionic Liquids; Springer: Berlin, Germany; 2013, pp. 1-38.
7	Wang B. S. ; Qin L. ; Mu T. C. ; Xue Z. M. ; Gao G. H. Chem. Rev. 2017, 117, 7113. doi: 10.1021/acs.chemrev.6b00594
8	Chen Y. ; Mu T. C. Green Energy Environ. 2019, 4, 95. doi: 10.1016/j.gee.2019.01.012
9	Zhao Q. ; Chu H. W. ; Zhao B. F. ; Liang Z. ; Zhang L. H. ; Zhang Y. K. Trac-Trend. Anal. Chem. 2018, 108, 239. doi: 10.1016/j.trac.2018.09.008
10	Kumar A. ; Venkatesu P. Biophys. Rev. 2018, 10, 841. doi: 10.1007/s12551-018-0411-x
11	Tome L. I. ; Jorge M. ; Gomes J. R. ; Coutinho J. A. J. Phys. Chem. B 2012, 116, 1831. doi: 10.1021/jp209625e
12	Yang H. P. ; Chen L. ; Zhou C. S. ; Yu X. J. ; Yagoub A. E. A. ; Ma H. L. Food Chem. 2018, 245, 346. doi: 10.1016/j.foodchem.2017.10.110
13	Pei Y. C. ; Li L. ; Li Z. Y. ; Wu C. Z. ; Wang J. J. Sep. Sci. Technol. 2012, 47, 277. doi: 10.1080/01496395.2011.609241
14	Fang F. ; Zhao Q. ; Li X. ; Liang Z. ; Zhang L. H. ; Zhang Y. Q. Anal. Chim. Acta 2016, 945, 39. doi: 10.1016/j.aca.2016.09.032
15	Schröder C. Top. Curr. Chem. 2017, 375, 25. doi: 10.1007/s41061-017-0110-2
16	Kumar A. ; Bisht M. ; Venkatesu P. Int. J. Biol. Macromol. 2017, 96, 611. doi: 10.1016/j.ijbiomac.2016.12.005
17	Hunt P. A. Top. Curr. Chem. 2017, 375, 59. doi: 10.1007/s41061-017-0142-7
18	Scheiner S. ; Kar T. ; Gu Y. J. Biol. Chem. 2001, 276, 9832. doi: 10.1074/jbc.M010770200
19	Dong K. ; Zhang S. J. Chem. -Eur. J. 2012, 18, 2748. doi: 10.1002/chem.201101645
20	Kim H. S. ; Ha S. H. ; Sethaphong L. ; Koo Y. M. ; Yingling Y. G. Phys. Chem. Chem. Phys. 2014, 16, 2944. doi: 10.1039/C3CP52516C
21	Yan H. ; Wu J. Y. ; Dai G. L. ; Zhong A. G. ; Chen H. ; Yang J. G. ; Han D. M. J. Lumin. 2012, 132, 622. doi: 10.1016/j.jlumin.2011.10.026
22	Nandi S. ; Parui S. ; Halder R. ; Jana B. ; Bhattacharyya K. Biophys. Rev. 2018, 10, 757. doi: 10.1007/s12551-017-0331-1
23	Bai S. ; Chang Y. ; Liu X. J. ; Liu F. F. Acta Phys. -Chim. Sin. 2014, 30, 1239.
	白姝; 常颖; 刘小娟; 刘夫锋. 物理化学学报, 2014, 30, 1239. doi: 10.3866/PKU.WHXB201405151
24	Kumar A. ; Bisht M. ; Venkatesu P. RSC Adv. 2016, 6, 18763. doi: 10.1039/c5ra26690d
25	Klähn M. ; Lim G. S. ; Seduraman A. ; Wu P. Phys. Chem. Chem. Phys. 2011, 13, 1649. doi: 10.1039/c0cp01509a
26	Mendonca C. M. N. ; Balogh D. T. ; Barbosa S. C. ; Sintra T. E. ; Ventura S. P. M. ; Martins L. F. G. ; Morgado P. ; Filipe E. J. M. ; Coutinho J. A. P. ; Oliveira O.N. ; et al Phys. Chem. Chem. Phys. 2018, 20, 29764. doi: 10.1039/c8cp05035j
27	Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman, J. R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. A.; et al. Gaussian 09, Revision D. 01; Gaussian Inc.; Wallingford, CT, USA, 2013.
28	Gill P. M. W. ; Johnson B. G. ; Pople J. A. ; Frisch M. Chem. Phys. Lett. 1992, 197, 499. doi: 10.1016/0009-2614(92)85807-M
29	Zhao Y. ; Truhlar D. G. Theor. Chem. Acc. 2008, 120, 215. doi: 10.1007/s00214-007-0310-x
30	Grimme S. ; Antony J. ; Ehrlich S. ; Krieg H. J. Chem. Phys. 2010, 132, 154104. doi: 10.1063/1.3382344
31	Marenich A. V. ; Cramer C. J. ; Truhlar D. G. J. Phys. Chem. B 2009, 113, 6378. doi: 10.1021/jp810292n
32	Kessler J. ; Jakubek M. ; Dolenský B. ; Bouř P. J. Comput. Chem. 2012, 33, 2310. doi: 10.1002/jcc.23063
33	Jeziorski B. ; Moszynski R. ; Szalewicz K. Chem. Rev. 1994, 94, 1887. doi: 10.1021/cr00031a008
34	Parrish R. M. ; Burns L. A. ; Smith D. G. A. ; Simmonett A. C. ; DePrince A. E. ; Hohenstein E. G. ; Bozkaya U. ; Sokolov A. Y. ; Di Remigio R. ; Richard R.M. ; et al J. Chem. Theory Comput. 2017, 13, 3185. doi: 10.1021/acs.jctc.7b00174
35	Saleh G. ; Gatti C. ; Presti L. Comput. Theor. Chem. 2012, 998, 148. doi: 10.1016/j.comptc.2012.07.014
36	Johnson E. R. ; Keinan S. ; Mori-Sánchez P. ; Contreras-García J. ; Cohen A. J. ; Yang W. T. J. Am. Chem. Soc. 2010, 132, 6498. doi: 10.1021/ja100936w
37	Lu T. ; Chen F. W. J. Comput. Chem. 2012, 33, 580. doi: 10.1002/jcc.22885
38	Heßelmann A. ; Jansen G. Phys. Chem. Chem. Phys. 2003, 5, 5010. doi: 10.1039/B310529F
39	Hohenstein E. G. ; Sherrill C. D. Wiley Interdiscip. Rev.: Comput. Mol. Sci. 2012, 2, 304. doi: 10.1002/wcms.84
40	Emamian S. ; Lu T. ; Kruse H. ; Emamian H. J. Comput. Chem. 2019, 40, 2868. doi: 10.1002/jcc.26068
41	Cremer D. ; Kraka E. Angew. Chem., Int. Ed. Engl. 1984, 23, 627. doi: 10.1002/anie.198406271
42	Bader R. F. W. ; Beddall P. M. J. Chem. Phys. 1972, 56, 3320. doi: 10.1063/1.1677699
43	Zhang Y. Q. ; He H. Y. ; Dong K. ; Fan M. H. ; Zhang S. J. RSC Adv. 2017, 7, 12670. doi: 10.1039/c6ra27059j
44	He H. Y. ; Zhang S. J. ; Liu X. M. ; Wang J. Q. ; Yao X. Q. ; Zhang X. P. Fluid Phase Equilib. 2013, 360, 169. doi: 10.1016/j.fluid.2013.09.007
45	Rao S. S. ; Gejji S. P. J. Phys. Chem. A 2016, 120, 5665. doi: 10.1021/acs.jpca.6b03985
46	Matthews R. P. ; Welton T. ; Hunt P. A. Phys. Chem. Chem. Phys. 2014, 16, 3238. doi: 10.1039/c3cp54672a
47	Ju Z. Y. ; Yao X. Q. ; Luo Z. F. ; Cao M. J. ; Xiao W. H. Carbohydr. Res. 2020, 487, 107882. doi: 10.1016/j.carres.2019.107882

R-H	C₄-3mim	C₄-2mim	C₁₂-3mim	C₁₂-2mim
-C2-H	0.271	N/A	0.271	N/A
-N3-H	N/A	0.478	N/A	0.478
-C4-H	0.267	0.267	0.266	0.267
-C5-H	0.267	0.266	0.267	0.266
-CH₃-H1	0.230	0.258	0.230	0.257
-CH₃-H2	0.232	0.260	0.232	0.259
-CH₃-H3	0.235	0.257	0.235	0.257

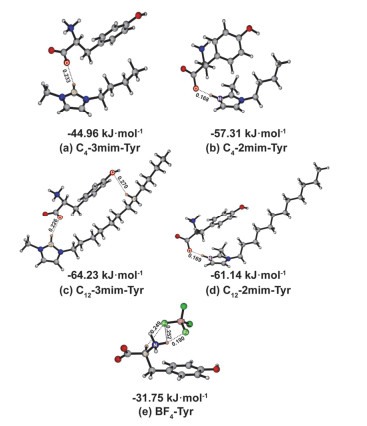

Complex	H-bond	Distance/nm	Angle/(°)	ΔE_Ion-Tyr/(kJ·mol^-1)
C₄-3mim-Tyr	C2-H…O_COO	0.233	155.0	-44.96
C₄-2mim-Tyr	N3-H…O_COO	0.168	174.7	-57.31
C₁₂-3mim-Tyr	C2-H…O_COO	0.226	151.3	-64.23
	C_Alkyl-H…O_OH	0.270	132.7	N/A
C₁₂-2mim-Tyr	N3-H…O_COO	0.169	168.9	-61.14
BF₄-Tyr	N_Tyr-H…F1	0.252	106.9	-31.75
	N_Tyr-H…F2	0.190	161.8	N/A
	C_Amino-H…F1	0.249	124.6	N/A

Ion-Tyr	H-bond	ρ_BCP/(a.u.)	▽²ρ_BCP/(a.u.)	H_BCP/(10^-3 a.u.)
C₄-3mim-Tyr	C2-H…O_COO	0.011	0.039	1.437
C₄-2mim-Tyr	N3-H…O_COO	0.047	0.137	-5.634
C₁₂-3mim-Tyr	C2-H…O_COO	0.014	0.047	1.626
	C_Alkyl-H…O_OH	0.007	0.021	0.491
C₁₂-2mim-Tyr	N3-H…O_COO	0.045	0.138	-4.675
BF₄-Tyr	N_Tyr-H…F1	N/A	N/A	N/A
	N_Tyr-H…F2	0.023	0.098	2.025
	C_Amino-H…F1	0.008	0.031	1.049

ILs-Tyr	H-bond	ρ_BCP/(a.u.)	▽²ρ_BCP/ (a.u.)	H_BCP/(10^-3 a.u.)
[C₄-3mim][BF₄]-Ty	C2-H…O_COO	0.011	0.035	1.300
	N_Tyr-H…F1	0.011	0.045	1.462
	N_Tyr-H…F1	N/A	N/A	N/A
	N_Tyr-H…F2	0.022	0.093	2.007
[C₄-2mim][BF₄]-Tyr	N3-H…O_COO	0.050	0.141	-7.241
	N_Tyr-H…F1	0.027	0.115	1.922
	C_Ben-H…F2	0.006	0.022	0.867
	C_Ben-H…F3	0.008	0.030	0.995
[C₁₂-3mim][BF₄]-Tyr	C2-H…Ocoo	0.007	0.023	0.556
	C_Alkyl-H…O_OH	0.013	0.043	1.455
	N_Tyr-H…F2	0.022	0.091	2.022
	N_Tyr-H…F1	N/A	N/A	N/A
	N_Tyr-H…F1	N/A	N/A	N/A
	C_Ben-H…F1	0.007	0.028	1.015
[C₁₂-2mim][BF₄]-Tyr	N3-H…O_COO	0.047	0.137	-5.678
	N_Tyr-H…F1	0.024	0.100	1.959
	N_Tyr-H…F2	N/A	N/A	N/A
