脉冲激光氮化改性对金属铀表面形貌的影响

doi:10.3866/PKU.WHXB2014Ac04

摘要/Abstract

摘要：

脉冲激光氮化是一种非常有效的铀表面抗腐蚀改性方法, 它与离子氮化相比具有基体升温小、改性层氮含量高、处理快速、真空室简单和精确定位等优点. 而且, 激光处理后样品表面犁沟、机械损伤消除, 粗糙度下降. 但样品表面也会出现裂纹, 在腐蚀环境中,裂纹处容易发生腐蚀, 降低氮化层抗腐蚀性能. 因此需对激光氮化工艺进行优化, 减少裂纹的产生. 本文通过纳秒脉冲激光对金属铀表面进行激光氮化, 并通过扫描电子显微镜(SEM)和X射线衍射(XRD)研究了激光能量密度、氮气压和激光扫描速率对氮化改性样品表面微裂纹的影响; 同时, 研究单点作用激光能量、脉冲重复次数对铀表面形貌的影响. 结果表明: 能量、气压过高, 扫描速率过低引起开裂, 扫描速率的影响更为显著, 开裂与扫描速率以及氮化物含量有关.

关键词: 脉冲激光, 氮化, 铀, 表面形貌, 裂纹, 耐腐蚀

Abstract:

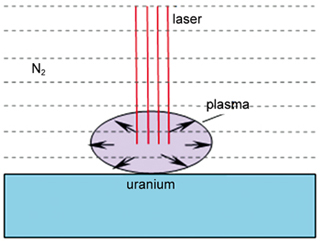

Pulsed laser nitriding offers several advantages such as a high nitrogen concentration, low matrix temperature, fast treatment, use of a simple vacuum chamber, and precise position control compared with ion implantation; it is an effective method for anticorrosion modification of uranium. Furrows on, and mechanical damage to, the surface are eliminated and the surface is smooth after modification. However, cracks appear on the surface during the process. In corrosive environments, the uranium is easily corroded around the cracks, and this weakens the corrosion resistance of the nitride layer. It is therefore necessary to optimize the laser nitriding process to inhibit crack formation. In this study, the uranium surface was modified using nanosecond pulsed laser nitriding.The nitride layers were characterized using scanning electron microscopy (SEM) and Xray diffraction (XRD). The effects on microcracks of the laser energy density, nitrogen pressure, and laser scanning speed were studied. The changes in surface morphology with changes in the laser energy and repetition time of the laser pulse interacting with the uranium surface without surface scanning were also studied. The results suggest that cracks are more likely to appear at high laser energy densities or nitrogen pressures, or low scanning speeds; the scanning speed plays a more decisive role. The appearance of cracks is related to the nitrogen concentration and the scanning speed.

Key words: Pulsed laser, Nitriding, Uranium, Surface morphology, Crack, Corrosion resistance

陈志磊, 张永彬, 胡殷, 罗丽珠, 刘柯钊. 脉冲激光氮化改性对金属铀表面形貌的影响[J]. 物理化学学报, 2015, 31(Suppl): 111-116.

CHEN Zhi-Lei, ZHANG Yong-Bin, HU Yin, LUO Li-Zhu, LIU Ke-Zhao. Influence on Surface Morphology of Uranium by Modification of Pulsed Laser Nitriding[J]. Acta Phys. -Chim. Sin., 2015, 31(Suppl): 111-116.

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB2014Ac04

https://www.whxb.pku.edu.cn/CN/Y2015/V31/ISuppl/111

参考文献

(1) Chen, Z. L.; Shuai, M. B.; Wang, L. D. J. Solid State Electrochem. 2013, 17, 2661. doi: 10.1007/s10008-013-2141-0
(2) Zhong, J. R.; Xiao, S.; Chu, M. F.; Xiao, J. Q.; Zou, L. X. China Measurement & Test 2009, 35 (2), 112. [仲敬荣, 肖洒, 褚明福, 肖吉群, 邹乐西. 中国测试, 2009, 35 (2), 112.]
(3) Lü, X. C.; Wang, X. L.; Xian, X. B. Material Review 2003, 17 (2), 23. [吕学超, 汪小琳, 鲜晓斌. 材料导报, 2003, 17 (2), 23.]
(4) Chang, F.; Levy, M.; Jacikman, B. Surf. Coat. Technol. 1989, 39-40, 721.
(5) Kattanis, T. Z.; Chang, F.; Levy, M. Surf. Coat. Technol. 1990, 43-44, 390.
(6) Zhang, Y. S.; Xie, Z. Q.; Wang, Q. F.; Yin, X. F.; Qin, Z. J. Material Review 2005, 19 (8), 43. [张友寿, 谢志强, 王庆富, 殷雪峰, 秦祖军. 材料导报, 2005, 19 (8), 43.]
(7) Wang, X. Y.; Liu, T.W.; Gou, Y. N.; Wang, Q. G. Surface Technology 2002, 3 (1), 12. [王小英, 刘天伟, 沟引宁, 王勤国. 表面技术, 2002, 3 (1), 12.]
(8) Mattox, D. M.; Bland, R. D. J. Nucl. Mater 1967, 21, 349. doi: 10.1016/0022-3115(67)90189-4
(9) Egert, C. M.; Scott, D. G. J. Vac. Sci. Technol. A 1987, 5, 2724. doi: 10.1116/1.574728
(10) Arkush, R.; Mintz, M. H.; Shamir, N. J. Nucl. Mater. 2000, 281, 182. doi: 10.1016/S0022-3115(00)00335-4
(11) Crusset, D.; Bernard, F.; Sciora, E.; Gérard, N. J. Alloy. Compd. 1994, 204, 71. doi: 10.1016/0925-8388(94)90073-6
(12) Meng, Q. N.; Wen, M.; Qu, C. Q.; Hu, C. Q.; Zheng, W. T. Surf. Coat. Technol. 2011, 205, 2865. doi: 10.1016/j.surfcoat.2010.10.060
(13) Medjani, F.; Sanjinés, R.; Allidi, G.; Karimi, A. Thin Solid Films 2006, 515, 260. doi: 10.1016/j.tsf.2005.12.145
(14) Song, Z. X.; Xu, K.W.; Chen, H. Thin Solid Films 2004, 468, 203. doi: 10.1016/j.tsf.2004.04.037
(15) Gerbig, Y. B.; Spassov, V.; Savan, A.; Chetwynd, D. G. Thin Solid Films 2007, 515, 2903. doi: 10.1016/j.tsf.2006.08.031
(16) Schell, N.; Andreasen, K. P.; Bottiger, J.; Chevallierb, J. Thin Solid Films 2005, 476, 280. doi: 10.1016/j.tsf.2004.09.033
(17) Reddy, A. S.; Rao, G. V.; Uthanna, S.; Reddy, P. S. Physica B 2005, 370, 29. doi: 10.1016/j.physb.2005.08.041
(18) Li, S. Q.; Liu, L.; Tian, H. F.; Hu, J. B. Acta Phys. -Chim. Sin. 2011, 27, 2671. [李硕琦, 刘璐, 田辉凤, 胡劲波. 物理化学学报, 2011, 27, 2671.] doi: 10.3866/PKU.WHXB20111135
(19) Zhai, X. H.; Zhao, J. Y.; Chao, H.; Cao, Y. A. Acta Phys. -Chim. Sin. 2010, 26, 1617. [翟晓辉, 赵俊岩, 巢晖, 曹亚安. 物理化学学报, 2010, 26, 1617.] doi: 10.3866/PKU.WHXB20100635
(20) Wu, Z. D.; Li, S. M.; Lin, W. L.; Ding, X. J. Acta Phys. -Chim. Sin. 1992, 8 (3), 401. [吴仲达, 李松梅, 林文廉, 丁晓纪. 物理化学学报, 1992, 8 (3), 401.] doi: 10.3866/PKU.WHXB19920322
(21) Leborgne, C. B.; Thomann, A. L.; Hermann, J. Proc. SPIE 1994, 2207, 513. doi: 10.1117/12.184757
(22) Yue, T. M.; Yu, J. K.; Man, H. C. Surf. Coat. Technol. 2001, 137, 65. doi: 10.1016/S0257-8972(00)01104-X
(23) Zhang, Y. B.; Meng, D. Q.; Xu, Q. Y.; Zhang, Y. S. J. Nucl. Mater. 2010, 397, 31. doi: 10.1016/j.jnucmat.2009.12.002
(24) Schaaf, P. Proc. SPIE 2003, 5147, 405.
(25) Bereznai, M.; Pelsoczi, I.; Toth, Z.; Turzo, K.; Radnai, M.; Bor, Z.; Fazekas, A. Biomaterials 2003, 24, 4197. doi: 10.1016/S0142-9612(03)00318-1
(26) Shao, T. M.; Hua, M.; Tam, H. Y.; Cheung, E. H. M. Surf. Coat. Technol. 2005, 197, 77. doi: 10.1016/j.surfcoat.2005.01.010
