聚阴离子型钠离子电池正极材料的研究进展

doi:10.3866/PKU.WHXB201905017

Abstract

Abstract:

Because of their high energy density and long cycle life, lithium-ion batteries (LIBs) have dominated the portable electronics market for over 20 years. However, with the increasing demand for large-scale energy storage systems for grid applications, the price of Li resources has increased owing to the low abundance of Li in Earth's crust and non-uniform distribution on the planet. Because Na has similar physical and chemical properties as Li and is an abundant natural resource, room-temperature sodium-ion batteries (SIBs) are expected to be among the most promising next-generation large grid energy storage devices. It is known that the cathode, anode, separator and electrolyte materials are the main components of batteries. Among these, Na-containing cathode materials are of critical importance. As a cathode material for SIBs, polyanion-type compounds have become a hot research topic owing to their versatile structural frameworks, high thermal stabilities, high ambient stabilities even in the charging state, small volume changes, tunable operating voltage by tuning the chemical environment of the polyanions, and high operating voltages owing to the inductive effects of the polyanionic groups (PO₄³⁻, SO₄²⁻, SiO₄⁴⁻, etc.). In particular, for Earth's abundant resources and inherent stability, polyanion-based compounds are suitable for large-scale stationary energy storage. Taking grid balancing into account, batteries with fast charge rates are in demand, which requires cathodes having high rate capability. However, despite the presence of ion diffusion channels in polyanion compounds, the electronic transport channels are blocked owing to the separation of the metal polyhedral and the strong electronegativity of the anions, leading to poor electron conductivity, which largely limits the rate capability of polyanion compounds. Therefore, it is crucial to understand the inherent limitation of the kinetics in terms of the structural aspects and to determine strategies for improving the rate capability. This review discusses the intrinsic reasons for the factors impacting ion diffusion based on the different structures of polyanion-type cathodes. From the perspectives of surface modification and morphology, strategies for enhancing the transport of sodium ions and electrons at the surface and interface are summarized and discussed. Then, from the standpoint of the hierarchical structures of materials to the design of a structural framework, which have been rarely reported, this review proposes schemes that intrinsically enhance the rate capability of polyanion compounds and provides a perspective on developments that can further improve the rate capability of cathode materials. This review provides suggestions for designing and optimizing high-rate polyanion-type and other kinds of cathodes from both academic and practical viewpoints.

Key words: Sodium-ion battery, Polyanion-type cathode, High rate capability, Ion diffusion, Electron transport

Wenli Pan,Wenhao Guan,Yinzhu Jiang. Research Advances in Polyanion-Type Cathodes for Sodium-Ion Batteries[J]. Acta Physico-Chimica Sinica 2020, 36(5), 1905017. doi: 10.3866/PKU.WHXB201905017

Figures/Tables 10

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

Table 1

Table 2

Rate performance of polyanion cathodes for sodium ion batteries."

Chemical formula	Theoretical Capacity/(mAh?g^?1)	Materials and ways to improve rate performance	Electrochemical data	Ref.
Maricite-NaFePO₄	150	Nano-NaFePO₄ (50 nm)/C	142 mAh?g^?1 at C/20 and 60 mAh?g^?1 at 2C	20
		Nano-NaFePO₄ (40–140 nm)/C/graphene	142 mAh?g^?1 at C/20 and 51 mAh?g^?1 at 5C	62
		Nano-NaFePO₄ (1.6 nm) @ porous N-doped carbon nanofibers	145 mAh?g^?1 at 0.2C and 61 mAh?g^?1 at 50C	53
Oviline-NaFePO₄	150	Bare NaFePO₄	125 mAh?g^?1 at 7.5 mA?g^?1	17
Oviline-NaFePO₄	150	Polythiophene-Wrapped NaFePO₄	141 mAh?g^?1 at 10 mA?g^?1 and 42 mAh?g^?1 at 300 mA?g^?1	64
Na₂FeP₂O₇	97	Na₂FeP₂O₇ (300-500 nm)/C	82 mAh?g^?1 at C/20 and 50 mAh?g^?1 at 10C	65
Na₂FeP₂O₇	97	Na₂FeP₂O₇/MWCNT	86 mAh?g^?1 at 1C and 68 mAh?g^?1 at 10C	57
Na₃V₂(PO₄)₃	118	Na₃V₂(PO₄)₃/C	93 mAh?g^?1 at C/20 and 29 mAh?g^?1 at 1C	66
		Na₃V₂(PO₄)₃ (20-40 nm) @ Porous Carbon Matrix	102 mAh?g^?1 at 20C and 44 mAh?g^?1 at 200C	28
		Na₃V₂(PO₄)₃ (50-200 nm) @C@rGO	115 mAh?g^?1 at 20C and 86 mAh?g^?1 at 100C	67
Na₃V₂(PO₄)₂F₃	128	Core/double-shell structured Na₃V₂(PO₄)₂F₃@C	120 mAh?g^?1 at 1C and 63 mAh?g^?1 at 100C	68
Na₃(VO)₂(PO₄)₂F	130	Na₃(VO)₂(PO₄)₂F /C	102 mAh?g^?1 at 20C and 68 mAh?g^?1 at 1C	69
Na₃(VO)₂(PO₄)₂F	130	Graphene quantum dots-shielded Na₃(VO)₂(PO₄)₂F @C nanocuboids	102 mAh?g^?1 at 20C and 70 mAh?g^?1 at 45C	60
Na₂Fe(SO₄)₂· 2H₂O	82	Bare- Na₂Fe(SO₄)₂·2H₂O	70 mAh?g^?1 at C/20	42
Na₂Fe(SO₄)₂· 2H₂O	82	Na₂Fe(SO₄)₂·2H₂O@ zero-, one and two-dimensional carbon matrix (activated carbon, single wall carbon nanotubes and graphene)	60 mAh?g^?1 at 5C	44
Na_2+2xFe_2-x(SO₄)₃ (x = 0–0.4)	120	Bare Na_2+2xFe_2?x(SO₄)₃	102 mAh?g^?1 at C/20 and 58 mAh?g^?1 at 20C	49
Na_2+2xFe_2-x(SO₄)₃ (x = 0–0.4)	120	Na_2+2xFe_2?x(SO₄)₃/SWNT	60 mAh?g^?1 at 40C	51
Na₂FeSiO₄	276	Na₂FeSiO₄ (30–50 nm)/C	106 mAh?g^?1 at 10 mA?g^?1 and 40 mAh?g^?1 at 200 mA?g^?1	34
		Na₂FeSiO₄ (20–50 nm)/C	106 mAh?g^?1 at 27.6 mA g^?1 (0.1C) and 100 mAh?g^?1 at 276 mA?g^?1 (1C)	35
		mesoporous Na₂FeSiO₄ nanospheres @ carbon nanotubes	173 mAh?g^?1 at 0.1C and 109 mAh?g^?1 at 20C	70
Na₂MnSiO₄	280	Na₂MnSiO₄ with 5% (volume percent) VC electrolyte additive	210 mAh?g^?1 at 0.1C and 100 mAh?g^?1 at 5C	37
Na₂MnSiO₄	280	three-dimensionally ordered macroporous Na₂MnSiO₄/C	207 mAh?g^?1 at 0.1C and 76 mAh?g^?1 at 5C	38

Table 2

Fig 7

Fig 8

References 83

1	Evans A. ; Strezov V. ; Evans T. J. Renew. Sust. Energ. Rev. 2012, 16, 4141. doi: 10.1016/j.rser.2012.03.048
2	Liu J. ; Zhang J. G. ; Yang Z. ; Lemmon J. P. ; Imhoff C. ; Graff G. L. ; Li L. ; Hu J. ; Wang C. ; Xiao J. Adv. Funct. Mater. 2013, 23, 929. doi: 10.1002/adfm.201200690
3	Ellis B. L. ; Nazar L. F. Curr. Opin. Solid State Mat. Sci. 2012, 16, 168. doi: 10.1016/j.cossms.2012.04.002
4	Xiang X. ; Zhang K. ; Chen J. Adv. Mater. 2015, 27, 5343. doi: 10.1002/adma.201501527
5	Guo S. P. ; Li J. C. ; Xu Q. T. ; Ma Z. ; Xue H. G. J. Power Sources 2017, 361, 285. doi: 10.1016/j.jpowsour.2017.07.002
6	Wang P. F. ; You Y. ; Yin Y. X. ; Guo Y. G. Adv. Energy Mater. 2018, 8. doi: 10.1002/aenm.201701912
7	Jiang Y. ; Yu S. ; Wang B. ; Li Y. ; Sun W. ; Lu Y. ; Yan M. ; Song B. ; Dou S. Adv. Funct. Mater. 2016, 26, 5315. doi: 10.1002/adfm.201600747
8	Wang B. ; Han Y. ; Wang X. ; Bahlawane N. ; Pan H. ; Yan M. ; Jiang Y. iScience 2018, 3, 110. doi: 10.1016/j.isci.2018.04.008
9	Barpanda P. ; Lander L. ; Nishimura S. I. ; Yamada A. Adv. Energy Mater. 2018, 8, 1703055. doi: 10.1002/aenm.201703055
10	Masquelier C. ; Croguennec L. Chem. Rev. 2013, 113, 6552. doi: 10.1021/cr3001862
11	Yabuuchi N. ; Kubota K. ; Dahbi M. ; Komaba S. Chem. Rev. 2014, 114, 11636. doi: 10.1021/cr500192f
12	Ouyang X. ; Lei M. ; Shi S. ; Luo C. ; Liu D. ; Jiang D. ; Ye Z. ; Lei M. J. Alloy. Compd. 2009, 476, 462. doi: 10.1016/j.jallcom.2008.09.028
13	Balke N. ; Jesse S. ; Morozovska A. ; Eliseev E. ; Chung D. ; Kim Y. ; Adamczyk L. ; Garcia R. ; Dudney N. ; Kalinin S. Nat. Nanotechnol. 2010, 5, 749. doi: 10.1038/nnano.2010.174
14	Padhi A. K. ; Nanjundaswamy K. S. ; Goodenough J. B. J. Electrochem. Soc. 1997, 144, 1188. doi: 10.1149/1.1837571
15	Yamada A. ; Chung S. C. ; Hinokuma K. J. Electrochem. Soc. 2001, 148, A224. doi: 10.1149/1.1348257
16	Huang H. ; Yin S. C. ; Nazar L. S. Electrochem. Solid State Lett. 2001, 4, A170. doi: 10.1149/1.1396695
17	Oh S. M. ; Myung S. T. ; Hassoun J. ; Scrosati B. ; Sun Y. K. Electrochem. Commun. 2012, 22, 149. doi: 10.1016/j.elecom.2012.06.014
18	Zhu Y. ; Xu Y. ; Liu Y. ; Luo C. ; Wang C. Nanoscale 2013, 5, 780. doi: 10.1039/C2NR32758A
19	Casas-Cabanas M. ; Roddatis V. V. ; Saurel D. ; Kubiak P. ; Carretero-González J. ; Palomares V. ; Serras P. ; Rojo T. J. Mater. Chem. 2012, 22, 17421. doi: 10.1039/C2JM33639A
20	Kim J. ; Seo D. H. ; Kim H. ; Park I. ; Yoo J. K. ; Jung S. K. ; Park Y. U. ; Goddard III W. A. ; Kang K. Energy Environ. Sci. 2015, 8, 540. doi: 10.1039/C4EE03215B
21	Barpanda P. ; Ye T. ; Lu J. ; Yamada Y. ; Chung S. C. ; Nishimura S. ; Okubo M. ; Zhou H. ; Yamada A. ECS Trans. 2013, 50, 71. doi: 10.1149/05024.0071ecst
22	Barpanda P. ; Liu G. ; Ling C. D. ; Tamaru M. ; Avdeev M. ; Chung S. C. ; Yamada Y. ; Yamada A. Chem. Mat. 2013, 25, 3480. doi: 10.1021/cm401657c
23	Kim H. ; Park C. S. ; Choi J. W. ; Jung Y. Angew. Chem. Int. Edit. 2016, 55, 6662. doi: 10.1002/anie.201601022
24	Gopalakrishnan J. ; Rangan K. K. Chem. Mat. 1992, 4, 745. doi: 10.1021/cm00022a001
25	Lim S. Y. ; Kim H. ; Shakoor R. ; Jung Y. ; Choi J. W. J. Electrochem. Soc. 2012, 159, A1393. doi: 10.1149/2.015209jes
26	Jian Z. ; Yuan C. ; Han W. ; Lu X. ; Gu L. ; Xi X. ; Hu Y. S. ; Li H. ; Chen W. ; Chen D. Adv. Funct. Mater. 2014, 24, 4265. doi: 10.1002/adfm.201400173
27	Zhu C. ; Song K. ; van Aken P. A. ; Maier J. ; Yu Y. Nano Lett. 2014, 14, 2175. doi: 10.1021/nl500548a
28	Zhou W. ; Xue L. ; Lü X. ; Gao H. ; Li Y. ; Xin S. ; Fu G. ; Cui Z. ; Zhu Y. ; Goodenough J. B. Nano Lett. 2016, 16, 7836. doi: 10.1021/acs.nanolett.6b04044
29	Gao H. ; Seymour I. D. ; Xin S. ; Xue L. ; Henkelman G. ; Goodenough J. B. J. Am. Chem. Soc. 2018, 140, 18192. doi: 10.1021/jacs.8b11388
30	Gover R. ; Bryan A. ; Burns P. ; Barker J. Solid State Ion. 2006, 177, 1495. doi: 10.1016/j.ssi.2006.07.028
31	Serras P. ; Palomares V. ; Goñi A. ; de Muro I. G. ; Kubiak P. ; Lezama L. ; Rojo T. J. Mater. Chem. 2012, 22, 22301. doi: 10.1039/c2jm35293a
32	Chen M. ; Hua W. ; Xiao J. ; Cortie D. ; Chen W. ; Wang E. ; Hu Z. ; Gu Q. ; Wang X. ; Indris S. Nat. Commun. 2019, 10, 1480. doi: 10.1038/s41467-019-09170-5
33	Kee Y. ; Dimov N. ; Staykov A. ; Okada S. Mater. Chem. Phys. 2016, 171, 45. doi: 10.1016/j.matchemphys.2016.01.033
34	Li S. ; Guo J. ; Ye Z. ; Zhao X. ; Wu S. ; Mi J. X. ; Wang C. Z. ; Gong Z. ; McDonald M. J. ; Zhu Z. ACS Appl. Mater. Interfaces 2016, 8, 17233. doi: 10.1021/acsami.6b03969
35	Guan W. ; Pan B. ; Zhou P. ; Mi J. ; Zhang D. ; Xu J. ; Jiang Y. ACS Appl. Mater. Interfaces 2017, 9, 22369. doi: 10.1021/acsami.7b02385
36	Chen C. Y. ; Matsumoto K. ; Nohira T. ; Hagiwara R. Electrochem. Commun. 2014, 45, 63. doi: 10.1016/j.elecom.2014.05.017
37	Law M. ; Ramar V. ; Balaya P. J. Power Sources 2017, 359, 277. doi: 10.1016/j.jpowsour.2017.05.069
38	Zhang D. ; Ding Z. ; Yang Y. ; Zhao S. ; Huang Q. ; Chen C. ; Chen L. ; Wei W. Electrochim. Acta 2018, 269, 694. doi: 10.1016/j.electacta.2018.03.045
39	Treacher J. C. ; Wood S. M. ; Islam M. S. ; Kendrick E. Phys. Chem. Chem. Phys. 2016, 18, 32744. doi: 10.1039/c6cp06777h
40	Rangasamy V. S. ; Thayumanasundaram S. ; Locquet J. P. Electrochim. Acta 2018, 276, 102. doi: 10.1016/j.electacta.2018.04.166
41	Reynaud M. ; Ati M. ; Boulineau S. ; Sougrati M. T. ; Melot B. C. ; Rousse G. ; Chotard J. N. ; Tarascon J. M. ECS Trans. 2013, 50, 11. doi: 10.1149/05024.0011ecst
42	Barpanda P. ; Oyama G. ; Ling C. D. ; Yamada A. Chem. Mat. 2014, 26, 1297. doi: 10.1021/cm4033226
43	Meng Y. ; Zhang S. ; Deng C. J. Mater. Chem. A 2015, 3, 4484. doi: 10.1039/c4ta06711h
44	Meng Y. ; Li Q. ; Yu T. ; Zhang S. ; Deng C. CrystEngComm 2016, 18, 1645. doi: 10.1039/c5ce02046h
45	Reynaud M. ; Rousse G. ; Abakumov A. M. ; Sougrati M. T. ; Van Tendeloo G. ; Chotard J. N. ; Tarascon J. M. J. Mater. Chem. A 2014, 2, 2671. doi: 10.1039/c3ta13648e
46	Singh P. ; Shiva K. ; Celio H. ; Goodenough J. B. Energy Environ. Sci. 2015, 8, 3000. doi: 10.1039/c5ee02274f
47	Yu C. J. ; Choe S. H. ; Ri G. C. ; Kim S. C. ; Ryo H. S. ; Kim Y. J. Phys. Rev. Appl. 2017, 8, 024029. doi: 10.1103/PhysRevApplied.8.024029
48	Chong X. Y. ; Jiang Y. ; Feng J. J. Micromech. Mol. Phys. 2017, 2, 1750002. doi: 10.1142/S2424913017500023
49	Barpanda P. ; Oyama G. ; Nishimura S. I. ; Chung S. C. ; Yamada A. Nat. Commun. 2014, 5, 4358. doi: 10.1038/ncomms5358
50	Oyama G. ; Nishimura S. I. ; Suzuki Y. ; Okubo M. ; Yamada A. ChemElectroChem 2015, 2, 1019. doi: 10.1002/celc.201500036
51	Meng Y. ; Yu T. ; Zhang S. ; Deng C. J. Mater. Chem. A 2016, 4, 1624. doi: 10.1039/c5ta07696j
52	Dwibedi D. ; Ling C. D. ; Araujo R. B. ; Chakraborty S. ; Duraisamy S. ; Munichandraiah N. ; Ahuja R. ; Barpanda P. ACS Appl. Mater. Interfaces 2016, 8, 6982. doi: 10.1021/acsami.5b11302
53	Prosini P. P. ; Lisi M. ; Zane D. ; Pasquali M. Solid State Ion. 2002, 148, 45. doi: 10.1016/S0167-2738(02)00134-0
54	Deiss E. Electrochim. Acta 2005, 50, 2927. doi: 10.1016/j.electacta.2004.11.042
55	Yang Z. ; Feng Y. ; Li Z. ; Sang S. ; Zhou Y. ; Zeng L. J. Electroanal. Chem. 2005, 580, 340. doi: 10.1016/j.jelechem.2005.04.004
56	Das S. ; Majumder S. ; Katiyar R. J. Power Sources 2005, 139, 261. doi: 10.1016/j.jpowsour.2004.06.056
57	Longoni G. ; Wang J. E. ; Jung Y. H. ; Kim D. K. ; Mari C. M. ; Ruffo R. J. Power Sources 2016, 302, 61. doi: 10.1016/j.jpowsour.2015.10.033
58	Li G. ; Jiang D. ; Wang H. ; Lan X. ; Zhong H. ; Jiang Y. J. Power Sources 2014, 265, 325. doi: 10.1016/j.jpowsour.2014.04.054
59	Song W. ; Ji X. ; Wu Z. ; Yang Y. ; Zhou Z. ; Li F. ; Chen Q. ; Banks C. E. J. Power Sources 2014, 256, 258. doi: 10.1016/j.jpowsour.2014.01.025
60	Deng G. ; Chao D. ; Guo Y. ; Chen Z. ; Wang H. ; Savilov S. V. ; Lin J. ; Shen Z. X. Energy Storage Mater. 2016, 5, 198. doi: 10.1016/j.ensm.2016.07.007
61	Lu J. ; Yamada A. ChemElectroChem 2016, 3, 902. doi: 10.1002/celc.201500535
62	Rahman M. M. ; Sultana I. ; Mateti S. ; Liu J. ; Sharma N. ; Chen Y. J. Mater. Chem. A 2017, 5, 16616. doi: 10.1039/C7TA04946C
63	Liu Y. ; Zhang N. ; Wang F. ; Liu X. ; Jiao L. ; Fan L. Z. Adv. Funct. Mater. 2018, 28, 1801917. doi: 10.1002/adfm.201801917
64	Ali G. ; Lee J. H. ; Susanto D. ; Choi S. W. ; Cho B. W. ; Nam K. W. ; Chung K. Y. ACS Appl. Mater. Interfaces 2016, 8, 15422. doi: 10.1016/j.elecom.2012.06.014
65	Barpanda P. ; Ye T. ; Nishimura S. I. ; Chung S. C. ; Yamada Y. ; Okubo M. ; Zhou H. ; Yamada A. Electrochem. Commun. 2012, 24, 116. doi: 10.1021/acsami.6b04014
66	Jian Z. ; Zhao L. ; Pan H. ; Hu Y. S. ; Li H. ; Chen W. ; Chen L. Electrochem. Commun. 2012, 14, 86. doi: 10.1016/j.elecom.2011.11.009
67	Rui X. ; Sun W. ; Wu C. ; Yu Y. ; Yan Q. Adv. Mater. 2015, 27, 6670. doi: 10.1002/adma.201502864
68	Liu Q. ; Meng X. ; Wei Z. ; Wang D. ; Gao Y. ; Wei Y. ; Du F. ; Chen G. ACS Appl. Mater. Interfaces 2016, 8, 31709. doi: 10.1021/acsami.6b11372
69	Serras P. ; Palomares V. ; Kubiak P. ; Lezama L. ; Rojo T. Electrochem. Commun. 2013, 34, 344. doi: 10.1016/j.elecom.2013.07.010
70	Ali B. ; Ghafoor F. ; Shahzad M. I. ; Shah S. K. ; Abbas S. M. J. Power Sources 2018, 396, 467. doi: 10.1016/j.jpowsour.2018.06.049
71	Pan W. ; Guan W. ; Liu S. ; Xu B. B. ; Liang C. ; Pan H. ; Yan M. ; Jiang Y. J. Mater. Chem. A 2019, 7, 13197. doi: 10.1039/C9TA02188D
72	Zhang Y. ; Xia X. ; Liu B. ; Deng S. ; Xie D. ; Liu Q. ; Wang Y. ; Wu J. ; Wang X. ; Tu J. Adv. Energy Mater. 2019, 9, 1803342. doi: 10.1002/aenm.201803342
73	Jung Y. H. ; Lim C. H. ; Kim D. K. J. Mater. Chem. A 2013, 1, 11350. doi: 10.1039/c3ta12116j
74	Zhang J. ; Yuan T. ; Wan H. ; Qian J. ; Ai X. ; Yang H. ; Cao Y. Sci. China Chem. 2017, 60, 1546. doi: 10.1007/s11426-017-9125-y
75	Li S. ; Dong Y. ; Xu L. ; Xu X. ; He L. ; Mai L. Adv. Mater. 2014, 26, 3545. doi: 10.1002/adma.201305522
76	Xu Y. ; Wei Q. ; Xu C. ; Li Q. ; An Q. ; Zhang P. ; Sheng J. ; Zhou L. ; Mai L. Adv. Energy Mater. 2016, 6, 1600389. doi: 10.1002/aenm.201600389
77	An Q. ; Xiong F. ; Wei Q. ; Sheng J. ; He L. ; Ma D. ; Yao Y. ; Mai L. Adv. Energy Mater. 2015, 5, 1401963. doi: 10.1002/aenm.201401963
78	Fang Y. ; Xiao L. ; Ai X. ; Cao Y. ; Yang H. Adv. Mater. 2015, 27, 5895. doi: 10.1002/adma.201502018
79	Jiang T. ; Wei Y. ; Pan W. ; Li Z. ; Ming X. ; Chen G. ; Wang C. J. Alloy. Compd. 2009, 488, L26. doi: 10.1016/j.jallcom.2009.08.134
80	Ni J. ; Zhang L. ; Fu S. ; Savilov S. ; Aldoshin S. ; Lu L. Carbon 2015, 92, 15. doi: 10.1016/j.carbon.2015.02.047
81	Li Y. D. ; Deng Y. F. ; Pan Z. Y. ; Wei Y. P. ; Zhao S. X. ; Gan L. Acta Phys. -Chim. Sin. 2017, 33, 2293. doi: 10.3866/PKU.WHXB201705294
	李亚东; 邓玉峰; 潘智毅; 魏印平; 赵世玺; 干林. 物理化学学报, 2017, 33, 2293. doi: 10.3866/PKU.WHXB201705294
82	Zhang S. ; Gu H. ; Pan H. ; Yang S. ; Du W. ; Li X. ; Gao M. ; Liu Y. ; Zhu M. ; Ouyang L. Adv. Energy Mater. 2017, 7, 1601066. doi: 10.1002/aenm.201601066
83	Zhang S. ; Chen J. ; Tang T. ; Jiang Y. ; Chen G. ; Shao Q. ; Yan C. ; Zhu T. ; Gao M. ; Liu Y. J. Mater. Chem. A 2018, 6, 3610. doi: 10.1039/C7TA10887G

[1]	Mingli Xu, Mengchuang Liu, Zezhou Yang, Chen Wu, Jiangfeng Qian. Research Progress on Presodiation Strategies for High Energy Sodium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2023, 39(3): 2210043-0.
[2]	Peiquan Song, Liqiang Xie, Lina Shen, Kaikai Liu, Yuming Liang, Kebin Lin, Jianxun Lu, Chengbo Tian, Zhanhua Wei. Stable Perovskite Solar Cells Using Compact Tin Oxide Layer Deposited through Electrophoresis [J]. Acta Phys. -Chim. Sin., 2021, 37(4): 2004038-.
[3]	Chuanli Wu, Wenhui Liang, Jingjing Fan, Yuxian Cao, Ping Wu, Chenxin Cai. Regulating Electron Transport Band Gaps of Bovine Serum Albumin by Binding Hemin [J]. Acta Phys. -Chim. Sin., 2021, 37(3): 1912050-.
[4]	Yao Chen, Haoyang Dong, Yuanyuan Li, Jinping Liu. Recent Advances in 3D Array Anode Materials for Sodium-Ion Batteries [J]. Acta Phys. -Chim. Sin., 2021, 37(12): 2007075-.
[5]	Haixia Li,Jiwei Wang,Lifang Jiao,Zhanliang Tao,Jing Liang. Spherical Nano-SnSb/C Composite as a High-Performance Anode Material for Sodium Ion Batteries [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1904017-.
[6]	Guifang Zeng,Yining Liu,Chunyan Gu,Kai Zhang,Yongling An,Chuanliang Wei,Jinkui Feng,Jiangfeng Ni. A Nonflammable Fluorinated Carbonate Electrolyte for Sodium-Ion Batteries [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1905006-.
[7]	Laiqiang Xu,Jiayang Li,Cheng Liu,Guoqiang Zou,Hongshuai Hou,Xiaobo Ji. Research Progress in Inorganic Solid-State Electrolytes for Sodium-Ion Batteries [J]. Acta Physico-Chimica Sinica, 2020, 36(5): 1905013-.
[8]	Chao Li, Ming Shen, Bingwen Hu. Solid-State NMR and EPR Methods for Metal Ion Battery Research [J]. Acta Physico-Chimica Sinica, 2020, 36(4): 1902019-.
[9]	Rui CHEN,Wei WANG,Tongle BU,Zhiliang KU,Jie ZHONG,Yong PENG,Shengqiang XIAO,Wei YOU,Fuzhi HUANG,Yibing CHENG,Zhengyi FU. Low-Cost Fullerene Derivative as an Efficient Electron Transport Layer for Planar Perovskite Solar Cells [J]. Acta Phys. -Chim. Sin., 2019, 35(4): 401-407.
[10]	Hui LI,Shuangyu LIU,Huiming WANG,Bo WANG,Peng SHENG,Li XU,Guangyao ZHAO,Huitao BAI,Xin CHEN,Yuliang CAO,Zhongxue CHEN. Improved Sodium Storage Performance of Na_0.44MnO₂ Cathode at a High Temperature by Al₂O₃ Coating [J]. Acta Physico-Chimica Sinica, 2019, 35(12): 1357-1364.
[11]	Nanshu LIU,Si ZHOU,Jijun ZHAO. Electrical Conductance of Graphene with Point Defects [J]. Acta Physico-Chimica Sinica, 2019, 35(10): 1142-1149.
[12]	Ze YANG,Wang ZHANG,Yue SHEN,Li-Xia YUAN,Yun-Hui HUANG. Next-Generation Energy Storage Technologies and Their Key Electrode Materials [J]. Acta Phys. -Chim. Sin., 2016, 32(5): 1062-1071.
[13]	Mei-Lin. BAI,Ming-Lang. WANG,Shi-Min. HOU. Theoretical Investigation of the Transition Voltages of Cu-Vacuum-Cu Tunneling Junctions [J]. Acta Phys. -Chim. Sin., 2015, 31(8): 1474-1482.
[14]	MIAO Yan-Qin, GAO Zhi-Xiang, WU Yu-Ling, DU Xiao-Gang, LI Yuan-Hao, LIU Hui-Hui, JIA Hu-Sheng, WANG Hua, LIU Xu-Guang. Antimicrobial Drug Levofloxacin Applied to an Organic Light-Emitting Diode [J]. Acta Phys. -Chim. Sin., 2015, 31(3): 552-558.
[15]	OUYANG Mi, HUANG Sen-Biao, HAN Yan-Gang, Lü Xiao-Jing, YANG Yuan, DAI Yu-Yu, Lü Yao-Kang, ZHANG Cheng. Enhanced Electrochromic Performance of Ordered Porous Monolayer PBTB Film Using Amine-Modified Polystyrene Spheres as a Template [J]. Acta Phys. -Chim. Sin., 2015, 31(3): 476-482.

Research Advances in Polyanion-Type Cathodes for Sodium-Ion Batteries

RichHTML

PDF

Like

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 10

References 83

Related Articles 15

Metrics

Recommended 0

	Chemical formula	Space group	Dimensions of ion channels	Sodium diffusion coefficient/(cm²·s^?1)	Ref.
Phosphates	Maricite-NaFePO₄	Pnma	none	4.79 × 10^?11 (nano amorphous particles)	20
	Olivine-NaFePO₄	Pnma	one	8.63 × 10^?17	18
	Na₂FeP₂O₇	P${\rm{\bar 1}}$	three	(2.79–8.45) × 10^?13	57
	Na₂CoP₂O₇	P${\rm{\bar 1}}$	three	/	23
		P21cn	two	/	23
		P42/mnm	three	/	23
	Na₃V₂(PO₄)₃	R${\rm{\bar 3}}$cH	three	4.59 × 10^?13–2.45 × 10^?10	58
	Na₃V₂(PO₄)₂F₃	P42/mnm	three	2.68 × 10^?12	59
	Na₃(VO)₂(PO₄)₂F	P42/mnm	three	(1–3) × 10^?10	60

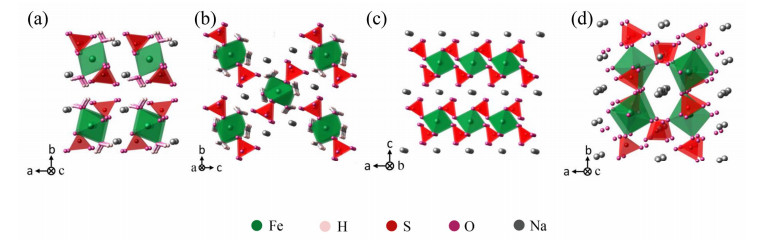

Sulfates	Na₂Fe(SO₄)₂·2H₂O	P21/c	two	10^?14	44
	Na₂Fe(SO₄)₂·4H₂O	P21/c	one	/	45
	NaFe(SO₄)₂	C12/m1	two	9.01 × 10^?10 (1273 K)	47
	Na_2+2xFe_2?x(SO₄)₃	P21/c	three	1 × 10^?7	61

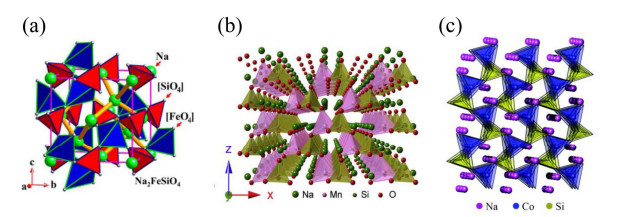

Orthosilicate	Na₂FeSiO₄	P${\rm{\bar 1}}$	three	(1.92–2.53) × 10^?13	35
	Na₂MnSiO₄	Pn	one	2.37 × 10^?15–8.62 × 10^?14	38
	Na₂CoSiO₄	Pn2a	Three	1.29 × 10^?13–1.06 × 10^?12	40
