锂金属电池用高浓度电解液体系研究进展

doi:10.3866/PKU.WHXB202008044

Abstract

Abstract:

Improvement in the energy density of conventional lithium-ion batteries (LIBs), based on the intercalation-extraction chemistry of graphite and transition metal layered oxides, has apparently lagged behind the advances in consumer electronics and electric vehicles. Secondary Li-metal batteries (LMBs), utilizing metallic Li as the anode material, have incomparable advantages in terms of energy density due to their high specific capacity (3860 mAh·g^-1) and low redox potential (-3.04 V vs. standard hydrogen electrode) of Li metal. Irrespective of whether Li anodes are coupled with intercalation-type cathodes (e.g. LiFePO₄, LiCoO₂, LiNi_xCo_yMn_zO₂, etc.) or conversion-type cathodes (S, O₂), the energy density of LMBs is much higher than that of traditional LIBs, which should solve the range concern of electric vehicles. However, the intrinsically high reactivity between metallic Li and organic electrolytes could induce the formation of a solid electrolyte interface (SEI). The heterogeneous SEI, consisting of a flexible organic outer layer and a brittle inorganic inner layer, suffers from repeated rupture and regeneration due to infinite volume expansions associated with Li deposition and dissolution reactions. Meanwhile, Li is preferentially deposited on the "hot sites" and is stripped from the root of sediments, resulting in uncontrolled dendrite growth during charging and formation of electrochemically isolated Li ("dead" Li) during discharging. Thus, the Columbic efficiency of Li metal full cells is greatly limited by interfacial side effects and continuous loss of active Li, especially in conventional carbonate-based electrolyte, viz. 1 mol·L^-1 LiPF₆-EC/DEC (ethylene carbonate/diethyl carbonate), which impedes the large-scale employment of Li metal batteries. Recently, novel electrolytes with high or localized-high salt concentrations have attracted considerable attention because of their unique physiochemical properties and excellent electrochemical performance. In high-concentration electrolytes, the reduction in the population of free solvent molecules inhibits irreversible electrolyte decomposition at the electrode-electrolyte interface. In localized-high-concentration electrolytes, the introduction of a dilute reagent retains the desired solvation structure, while improving the physicochemical properties (conductivity and viscosity) of the electrolyte. Herein, we systemically review the latest progress in high-concentration and localized-high-concentration electrolytes for use in Li metal batteries. The solvation chemistry structure, physicochemical properties, and interfacial-stabilizing mechanisms are analyzed in detail, and special attention is devoted to their superior interfacial compatibility with Li metal anodes. Finally, we briefly clarify the current problems associated with the research of high-concentration and localized-high-concentration electrolytes from the viewpoints of basic scientific research and practical applications, and some possible solutions are provided to further pave the way to practical Li metal batteries.

Key words: Li metal battery, High concentration electrolyte, Localized high concentration electrolyte, Electrolyte solvation structure, Interfacial property

Chen Wu, Ying Zhou, Xiaolong Zhu, Minzhi Zhan, Hanxi Yang, Jiangfeng Qian. Research Progress on High Concentration Electrolytes for Li Metal Batteries[J]. Acta Phys. -Chim. Sin. 2021, 37(2), 2008044. doi: 10.3866/PKU.WHXB202008044

Figures/Tables 9

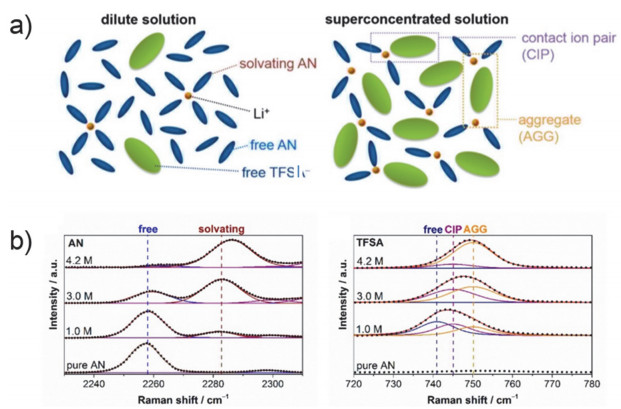

Fig 1

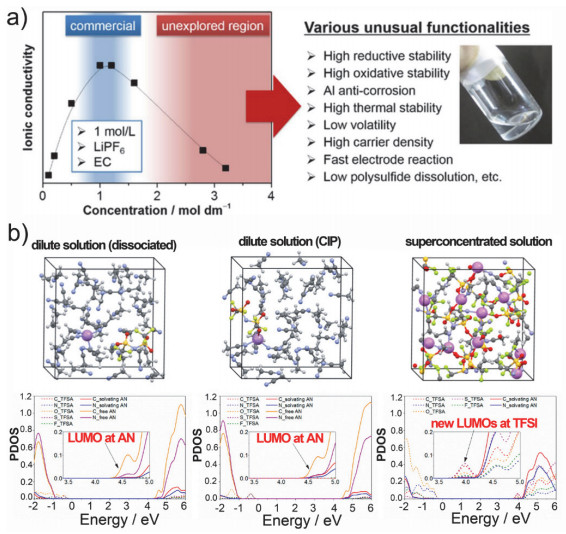

Fig 2

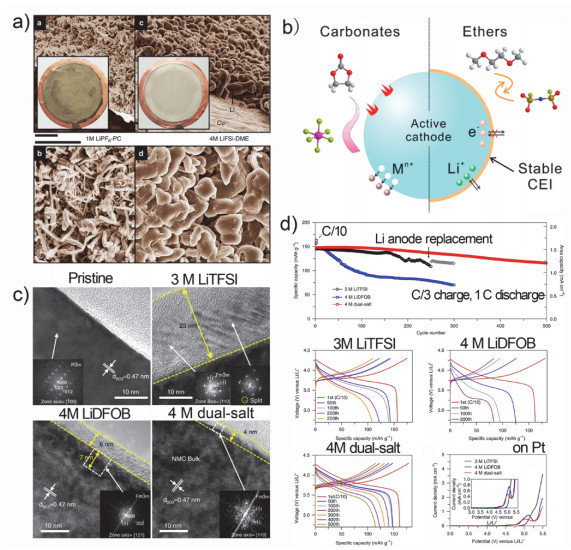

Fig 3

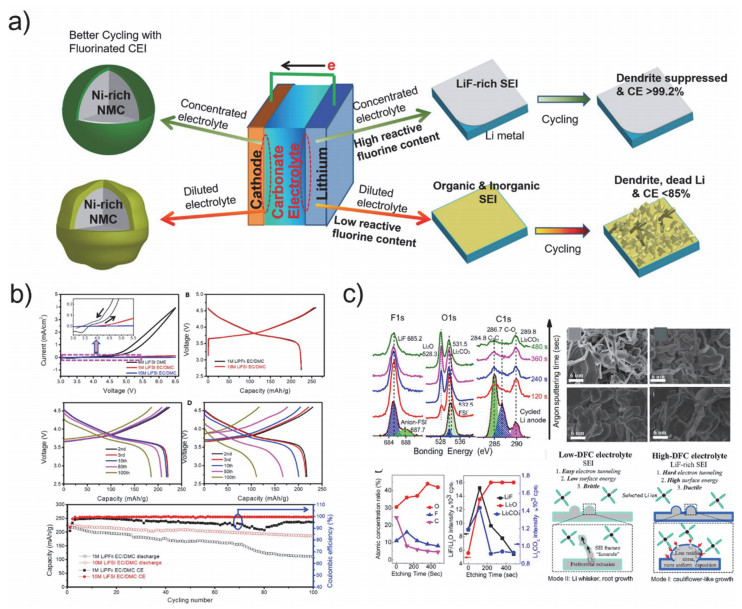

Fig 4

Table 1

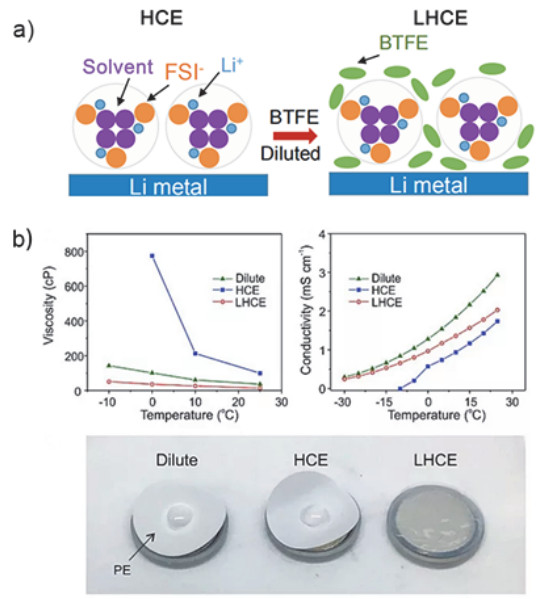

Fig 5

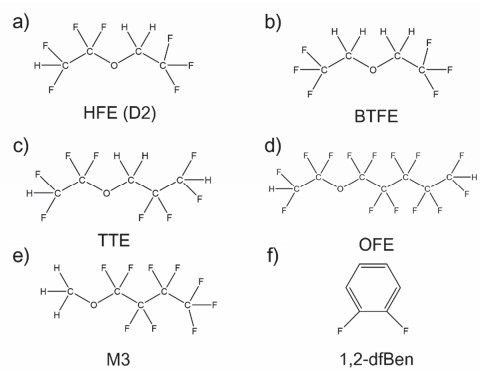

Fig 6

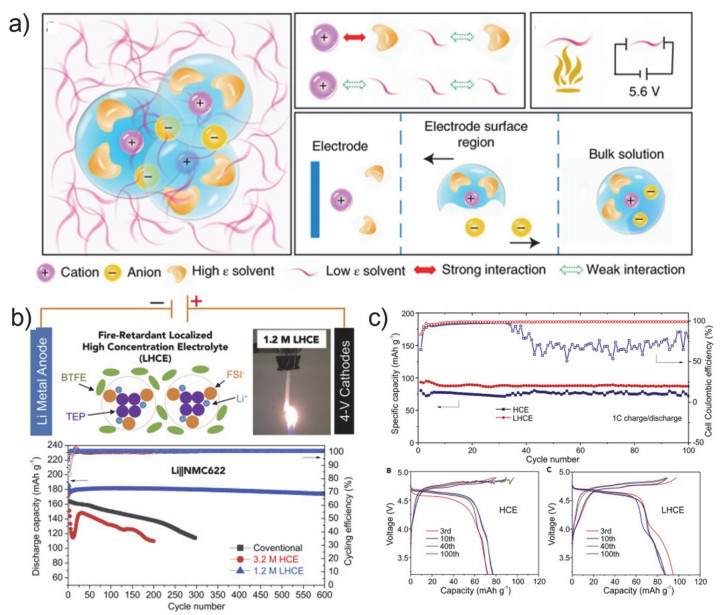

Fig 7

Table 2

References 63

1	Yang Z. ; Zhang J. ; Kintner-Meyer M. C. W. ; Lu X. ; Choi D. ; Lemmon J. P. ; Liu J. Chem. Rev. 2011, 111, 3577. doi: 10.1021/cr100290v
2	Cheng X. B. ; Zhang R. ; Zhao C. Z. ; Zhang Q. Chem. Rev. 2017, 117, 10403. doi: 10.1021/acs.chemrev.7b00115
3	Xu W. ; Wang J. ; Ding F. ; Chen X. ; Nasybulin E. ; Zhang Y. ; Zhang J. G. Energy Environ. Sci. 2014, 7, 513. doi: 10.1039/c3ee40795k
4	Zhang Y. ; Zuo T. T. ; Popovic J. ; Lim K. ; Yin Y. X. ; Maier J. ; Guo Y. G. Mater. Today 2020, 33, 56. doi: 10.1016/j.mattod.2019.09.018
5	Bruce P. G. ; Freunberger S. A. ; Hardwick L. J. ; Tarascon J. M. Nat. Mater. 2012, 11, 19. doi: 10.1038/NMAT3191
6	Zhang Y. T. ; Liu Z. J. ; Wang J. W. ; Wang L. ; Peng Z. Q. Acta Phys. -Chim. Sin. 2017, 33, 486.
	张彦涛; 刘圳杰; 王佳伟; 王亮; 彭章泉. 物理化学学报, 2017, 33, 486. doi: 10.3866/PKU.WHXB201611181
7	Zhang X. ; Wang A. ; Liu X. ; Luo J. Acc. Chem. Res. 2019, 52, 3223. doi: 10.1021/acs.accounts.9b00437
8	Cheng X. B. ; Zhang Q. Prog. Chem. 2018, 30, 51.
	程新兵;张强. 化学进展, 2018, 30, 51. doi: 10.7536/PC170704
9	Zhang X. Q. ; Chen X. ; Cheng X. B. ; Li B. Q. ; Shen X. ; Yan C. ; Huang J. Q. ; Zhang Q. Angew. Chem. Int. Ed. 2018, 57, 5301. doi: 10.1002/anie.201801513
10	Jie Y. ; Ren X. ; Cao R. ; Cai W. ; Jiao S. Adv. Funct. Mater. 2020, 30, 1910777. doi: 10.1002/adfm.201910777
11	Wang C. ; Fu K. ; Kammampata S. P. ; McOwen D. W. ; Samson A. J. ; Zhang L. ; Hitz G. T. ; Nolan A. M. ; Wachsman E. D. ; Mo Y. ; et al Chem. Rev. 2020, 120, 4257. doi: 10.1021/acs.chemrev.9b00427
12	Jin F. ; Li J. ; Hu C. J. ; Dong H. C. ; Chen P. ; Shen Y. B. ; Chen L. W. Acta Phys. -Chim. Sin. 2019, 35, 1399.
	金锋; 李静; 胡晨吉; 董厚才; 陈鹏; 沈炎宾; 陈立桅. 物理化学学报, 2019, 35, 1399. doi: 10.3866/PKU.WHXB201904085
13	Cheng X. B. ; Zhang R. ; Zhao C. Z. ; Wei F. ; Zhang J. G. ; Zhang Q. Adv. Sci. 2016, 3, 1500213. doi: 10.1002/advs.201500213
14	Wu C. ; Guo F. ; Zhuang L. ; Ai X. ; Zhong F. ; Yang H. ; Qian J. ACS Energy Lett. 2020, 5, 1644. doi: 10.1021/acsenergylett.0c00804
15	Zhang R. ; Li N. W. ; Cheng X. B. ; Yin Y. X. ; Zhang Q. ; Guo Y. G. Adv. Sci. 2017, 4, 1600445. doi: 10.1002/advs.201600445
16	Guo F. ; Wu C. ; Chen S. ; Ai X. ; Zhong F. ; Yang H. ; Qian J. ACS Mater. Lett. 2020, 2, 358. doi: 10.1021/acsmaterialslett.0c00001
17	Li S. ; Jiang M. ; Xie Y. ; Xu H. ; Jia J. ; Li J. Adv. Mater. 2018, 30, e1706375. doi: 10.1002/adma.201706375
18	Wan G. ; Guo F. ; Li H. ; Cao Y. ; Ai X. ; Qian J. ; Li Y. ; Yang H. ACS Appl. Mater. Interfaces 2018, 10, 593. doi: 10.1021/acsami.7b14662
19	Qian J. ; Xu W. ; Bhattacharya P. ; Engelhard M. ; Henderson W. A. ; Zhang Y. ; Zhang J. G. Nano Energy 2015, 15, 135. doi: 10.1016/j.nanoen.2015.04.009
20	Yamada Y. ; Wang J. ; Ko S. ; Watanabe E. ; Yamada A. Nat. Energy 2019, 4, 1. doi: 10.1038/s41560-019-0336-z
21	Chang Z. ; Wang J. ; Wu Z. ; Zhao J. ; Lu S. Prog. Chem. 2018, 30, 170.
	常增花; 王建涛; 武兆辉; 赵金玲; 卢世刚. 化学进展, 2018, 30, 170. doi: 10.7536/PC180344
22	Yu Z. ; Zhang J. ; Liu T. ; Tang B. ; Yang X. ; Zhou X. ; Cui G. Acta Chim. Sin. 2020, 78, 114. doi: 10.6023/a19100385
23	Alia J. M. ; Edwards H. G. M. ; Moore J. J. Raman. Spectrosc. 1995, 26, 715. doi: 10.1002/jrs.1250260819
24	Seo D. M. ; Boyle P. D. ; Sommer R. D. ; Daubert J. S. ; Borodin O. ; Henderson W. A. J. Phys. Chem. B 2014, 118, 13601. doi: 10.1021/jp505006x
25	Cazzanelli E. ; Mustarelli P. ; Benevelli F. ; Appetecchi G. B. ; Croce F. Solid State Ionics 1996, 86–88, 379. doi: 10.1016/0167-2738(96)00154-3
26	Suo L. ; Zheng F. ; Hu Y. S. ; Chen L. Chin. Phys. B 2016, 25, 016101. doi: 10.1088/1674-1056/25/1/016101
27	Yamada Y. ; Furukawa K. ; Sodeyama K. ; Kikuchi K. ; Yaegashi M. ; Tateyama Y. ; Yamada A. J. Am. Chem. Soc. 2014, 136, 5039. doi: 10.1021/ja412807w
28	Ugata Y. ; Tatara R. ; Ueno K. ; Dokko K. ; Watanabe M. J. Chem. Phys. 2020, 152, 104502. doi: 10.1063/1.5145340
29	Yoshida K. ; Tsuchiya M. ; Tachikawa N. ; Dokko K. ; Watanabe M. J. Phys. Chem. C 2011, 115, 18384. doi: 10.1021/jp206881t
30	Suo L. ; Hu Y. S. ; Li H. ; Armand M. ; Chen L. Nat. Commun. 2013, 4, 1481. doi: 10.1038/ncomms2513
31	Qian J. ; Henderson W. A. ; Xu W. ; Bhattacharya P. ; Engelhard M. ; Borodin O. ; Zhang J. G. Nat. Commun. 2015, 6, 6362. doi: 10.1038/ncomms7362
32	Yoshida K. ; Nakamura M. ; Kazue Y. ; Tachikawa N. ; Tsuzuki S. ; Seki S. ; Dokko K. ; Watanabe M. J. Am. Chem. Soc. 2011, 133, 13121. doi: 10.1021/ja203983r
33	McOwen D. W. ; Seo D. M. ; Borodin O. ; Vatamanu J. ; Boyle P. D. ; Henderson W. A. Energy Environ. Sci. 2014, 7, 416. doi: 10.1039/C3EE42351D
34	Matsumoto K. ; Inoue K. ; Nakahara K. ; Yuge R. ; Noguchi T. ; Utsugi K. J. Power Sources 2013, 231, 234. doi: 10.1016/j.jpowsour.2012.12.028
35	Yamada Y. ; Yamada A. J. Electrochem. Soc. 2015, 162, A2406. doi: 10.1149/2.0041514jes
36	Moon H. ; Mandai T. ; Tatara R. ; Ueno K. ; Yamazaki A. ; Yoshida K. ; Seki S. ; Dokko K. ; Watanabe M. J. Phys. Chem. C 2015, 119, 3957. doi: 10.1021/jp5128578
37	Fang Z. ; Ma Q. ; Liu P. ; Ma J. ; Hu Y. S. ; Zhou Z. ; Li H. ; Huang X. ; Chen L. ACS Appl. Mater. Inter. 2017, 9, 4282. doi: 10.1021/acsami.6b03857
38	Jiao S. ; Ren X. ; Cao R. ; Engelhard M. H. ; Liu Y. ; Hu D. ; Mei D. ; Zheng J. ; Zhao W. ; Li Q. Nat. Energy 2018, 3, 739. doi: 10.1038/s41560-018-0199-8
39	Liu B. ; Xu W. ; Yan P. ; Sun X. ; Bowden M. E. ; Read J. ; Qian J. ; Mei D. ; Wang C. ; Zhang J. Adv. Funct. Mater. 2016, 26, 605. doi: 10.1002/adfm.201503697
40	Ren X. ; Zou L. ; Jiao S. ; Mei D. ; Engelhard M. H. ; Li Q. ; Lee H. ; Niu C. ; Adams B. D. ; Wang C. ; et al ACS Energy Lett. 2019, 4, 896. doi: 10.1021/acsenergylett.9b00381
41	Fan X. ; Chen L. ; Ji X. ; Deng T. ; Hou S. ; Chen J. ; Zheng J. ; Wang F. ; Jiang J. ; Xu K. ; Wang C. Chem 2018, 4, 174. doi: 10.1016/j.chempr.2017.10.017
42	Suo L. ; Xue W. ; Gobet M. ; Greenbaum S. G. ; Wang C. ; Chen Y. ; Yang W. ; Li Y. ; Li J. Proc. Natl. Acad. Sci. U. S. A. 2018, 115, 1156. doi: 10.1073/pnas.1712895115
43	Wang W. ; Zhang J. ; Yang Q. ; Wang S. ; Wang W. ; Li B. ACS Appl. Mater. Inter. 2020, 12, 22901. doi: 10.1021/acsami.0c03952
44	Dokko K. ; Watanabe D. ; Ugata Y. ; Thomas M. L. ; Tsuzuki S. ; Shinoda W. ; Hashimoto K. ; Ueno K. ; Umebayashi Y. ; Watanabe M. J. Phys. Chem. B 2018, 122, 10736. doi: 10.1021/acs.jpcb.8b09439
45	Maeyoshi Y. ; Ding D. ; Kubota M. ; Ueda H. ; Abe K. ; Kanamura K. ; Abe H. ACS Appl. Mater. Inter. 2019, 11, 25833. doi: 10.1021/acsami.9b05257
46	Togasaki N. ; Momma T. ; Osaka T. J. Power Sources 2016, 307, 98. doi: 10.1016/j.jpowsour.2015.12.123
47	Liu B. ; Xu W. ; Yan P. ; Kim S. T. ; Engelhard M. H. ; Sun X. ; Mei D. ; Cho J. ; Wang C. M. ; Zhang J. G. Adv. Energy Mater. 2017, 7, 1602605. doi: 10.1002/aenm.201602605
48	Qi X. ; Yang Y. ; Jin Q. ; Yang F. ; Xie Y. ; Sang P. ; Liu K. ; Zhao W. ; Xu X. ; Fu Y. ; et al Angew. Chem. Int. Ed. 2020, 59, 13908. doi: 10.1002/anie.202004424
49	Xiao L. ; Zeng Z. ; Liu X. ; Fang Y. ; Jiang X. ; Shao Y. ; Zhuang L. ; Ai X. ; Yang H. ; Cao Y. ; Liu J. ACS Energy Lett. 2019, 4, 483. doi: 10.1021/acsenergylett.8b02527
50	Sun H. ; Zhu G. ; Zhu Y. ; Lin M. C. ; Chen H. ; Li Y. Y. ; Hung W. H. ; Zhou B. ; Wang X. ; Bai Y. ; et al Adv. Mater. 2020, 32, e2001741. doi: 10.1002/adma.202001741
51	Dokko K. ; Tachikawa N. ; Yamauchi K. ; Tsuchiya M. ; Yamazaki A. ; Takashima E. ; Park J. W. ; Ueno K. ; Seki S. ; Serizawa N. ; Watanabe M. J. Electrochem. Soc. 2013, 160, A1304. doi: 10.1149/2.111308jes
52	Chen S. ; Zheng J. ; Mei D. ; Han K. S. ; Engelhard M. H. ; Zhao W. ; Xu W. ; Liu J. ; Zhang J. G. Adv. Mater. 2018, 30, e1706102. doi: 10.1002/adma.201706102
53	Chen S. ; Zheng J. ; Yu L. ; Ren X. ; Engelhard M. H. ; Niu C. ; Lee H. ; Xu W. ; Xiao J. ; Liu J. Joule 2018, 2, 1548. doi: 10.1016/j.joule.2018.05.002
54	Zheng Y. ; Soto F. A. ; Ponce V. ; Seminario J. M. ; Cao X. ; Zhang J. ; Balbuena P. B. J. Mater. Chem. 2019, 7, 25047. doi: 10.1039/c9ta08935g
55	Ren X. ; Chen S. ; Lee H. ; Mei D. ; Engelhard M. H. ; Burton S. D. ; Zhao W. ; Zheng J. ; Li Q. ; Ding M. S. ; et al Chem 2018, 4, 1877. doi: 10.1016/j.chempr.2018.05.002
56	Fan X. ; Chen L. ; Borodin O. ; Ji X. ; Chen J. ; Hou S. ; Deng T. ; Zheng J. ; Yang C. ; Liou S. C. ; et al Nat. Nanotechnol. 2018, 13, 715. doi: 10.1038/s41565-018-0183-2
57	Deng T. ; Fan X. ; Cao L. ; Chen J. ; Hou S. ; Ji X. ; Chen L. ; Li S. ; Zhou X. ; Hu E. ; et al Joule 2019, 3, 2550. doi: 10.1016/j.joule.2019.08.004
58	Chen L. ; Fan X. ; Hu E. ; Ji X. ; Chen J. ; Hou S. ; Deng T. ; Li J. ; Su D. ; Yang X. ; Wang C. Chem 2019, 5, 896. doi: 10.1016/j.chempr.2019.02.003
59	Lin S. ; Zhao J. ACS Appl. Mater. Inter. 2020, 12, 8316. doi: 10.1021/acsami.9b21679
60	Fan X. ; Ji X. ; Chen L. ; Chen J. ; Deng T. ; Han F. ; Yue J. ; Piao N. ; Wang R. ; Zhou X. ; et al Nat. Energy 2019, 4, 882. doi: 10.1038/s41560-019-0474-3
61	Ren X. ; Zou L. ; Cao X. ; Engelhard M. H. ; Liu W. ; Burton S. D. ; Lee H. ; Niu C. ; Matthews B. E. ; Zhu Z. ; et al Joule 2019, 3, 1662. doi: 10.1016/j.joule.2019.05.006
62	Zheng J. ; Ji G. ; Fan X. ; Chen J. ; Li Q. ; Wang H. ; Yang Y. ; DeMella K. C. ; Raghavan S. R. ; Wang C. Adv. Energy Mater. 2019, 9, 1803774. doi: 10.1002/aenm.201803774
63	Yoo D. J. ; Yang S. ; Kim K. J. ; Choi J. W. Angew. Chem. Int. Ed. 2020. doi: 10.1002/anie.202003663

Classification	Electrolyte	Li metal batteries	Cycling Performance	Ref.
ether-based HCE	7 mol·L^-1 LiTFSI /DOL-DME	Li//S	74% @ 100^th	30
	4 mol·L^-1 LiFSI-DME	Li//Cu	CE = 99.2% for 1000 cycles	31
	3 mol·L^-1 LiFNFSI-DOL/DME	Li//LiFePO₄	98.5% @ 200^th	37
	2 mol·L^-1 LiDFOB + 2 mol·L^-1 LiTFSI -DME	Li//NCM333	80% @ 500^th	38
	3 mol·L^-1 LiTFSI-DME	Li//O₂	cycle life of 40^th	39
ester-based HCE	10 mol·L^-1 LiFSI-EC/DMC	Li//NCM622	86% @ 100^th	41
	7 mol·kg-1 LiFSI-FEC	Li//LiNi_0.5Mn_1.5O₄	94.26% @ 150^th	42
	4 mol·L^-1 LiTFSI+0.5 mol·L^-1 LiDFOB-FEC/DMC	Li//LiNi_0.5Mn_1.5O₄	88.5% @ 500^th	43
sulfone-based HCE	LiFSI-SL = 1: 2.5	Li//Cu	CE = 99.2% for 400 cycles	45
	4 mol·L^-1 LiNO₃-DMSO	Li//Cu	CE > 80% for 90 cycles	46
	LiTFSI-DMSO = 1 : 3	Li//O₂	cycle life of 90^th	47
nitrile-based HCE	LiTFSI-AN = 1 : 2	Li//Se	86% @ 200^th	48
phosphate-based HCE	LiFSI-TEP = 1 : 1.5	Li//Cu	CE > 80% for 90 cycles	49
ionic liquid-based HCE	5 mol·L^-1 LiFSI + 0.16 mol·L^-1 NaTFSI-[EMIm]FSI	Li//LiCoO₂	81% @ 1200^th	50

Dilute	Electrolyte	Li metal battery	Cycling Performance	Ref.
HFE	LiTFSI-G4/HFE(1 : 1 : 4)	Li//S	85% @ 100^th	51
	1 mol·L^-1 LiPF₆ FEC/FEMC/HFE	Li//NMC811	90% @ 400^th	56
	1 mol·L^-1 LiPF₆ FEC/FEMC/HFE	Li// LiCoPO₄	93% @ 1000^th	56
	1 mol·L^-1 LiPF₆ FEC/FEMC/HFE + 2% LiDFOB	Li//LiNiO₂	80% @ 400^th	57
	1 mol·L^-1 LiPF₆ + 0.02 mol·L^-1 LiDFOB-FEC/FDEC/HFE	Li //LiCoMnO₄	80% @ 1000^th	58
	1.2 mol·L^-1 LiPF₆ FEC/DMC/HFE + 0.15 mol·L^-1 LiDFOB	Li//LiCoO₂	84% @ 300^th	59
	1.28 mol·L^-1 LiFSI-FEC/FEMC/HFE	Li //NCA	90% @4 50^th (-20 ℃)	60
BTFE	1.2 mol·L^-1 LiFSI-DMC/BTFE	Li//NCM333	80% @ 700^th	52
	1.2 mol·L^-1 LiFSI-TEP/BTFE	Li//NCM622	97% @ 600^th	53
TTE	LiFSI-1.2 DME/3TTE	Li//NCM811	90% @ 250^th	61
	LiFSI-3TMS/3TTE	Li//NCM111	80% @ 150^th	55
OFE	1 mol·L^-1 LiFSI-95OFE/5DME	Li//S	60% @ 150^th	62
1, 2-dfBen	2 mol·L^-1 LiFSI-DMC/1, 2-dfBen	Li//NCM523	82% @ 140^th	63
