花瓣状WS2/MnFe2O4/GNs复合材料展现出高效电磁波吸收性能

doi:10.1016/j.actphy.2026.100273

物理化学学报 >> 2026, Vol. 42 >> Issue (9): 100273.doi: 10.1016/j.actphy.2026.100273

花瓣状WS₂/MnFe₂O₄/GNs复合材料展现出高效电磁波吸收性能

朱耿素²^,³, 马媛媛², 孙承志², 李梦婷², 王春雨¹^,²^,*(), 钟博²^,*(), 夏龙²^,*()

¹ 哈尔滨工业大学(威海)材料结构精密焊接与连接全国重点实验室, 山东威海 264209
² 哈尔滨工业大学(威海)材料科学与工程学院, 山东威海 264209
³ 西北工业大学化学与化工学院, 陕西西安 710072

收稿日期:2026-01-25 修回日期:2026-02-26 录用日期:2026-03-01 发布日期:2026-07-03
通讯作者: Email: wcyadam@126.com (王春雨)zhongbo@hit.edu.cn (钟博)xialong@hit.edu.cn (夏龙)

Preparation and absorption properties of petal-clustered WS₂/MnFe₂/O₄/GNs composite materials

Gengsu Zhu²^,³, Yuanyuan Ma², Chengzhi Sun², Mengting Li², Chunyu Wang¹^,²^,*(), Bo Zhong²^,*(), Long Xia²^,*()

¹ State Key Laboratory of Precision Welding & Joining of Materials and Structures, Harbin Institute of Technology (Weihai), Weihai 264209, Shandong Province, China
² School of Materials Science and Engineering, Harbin Institute of Technology (Weihai), Weihai 264209, Shandong Province, China
³ School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi'an 710072, Shaanxi Province, China

Received:2026-01-25 Revised:2026-02-26 Accepted:2026-03-01 Published:2026-07-03
Contact: Email: wcyadam@126.com (Chunyu Wang)zhongbo@hit.edu.cn (Bo Zhong)xialong@hit.edu.cn (Long Xia)

摘要/Abstract

摘要：

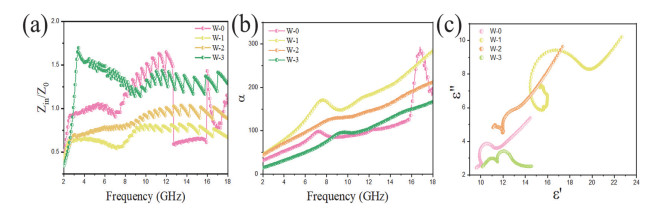

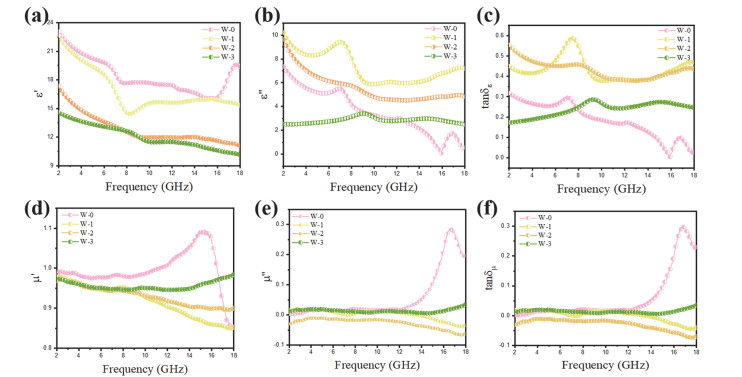

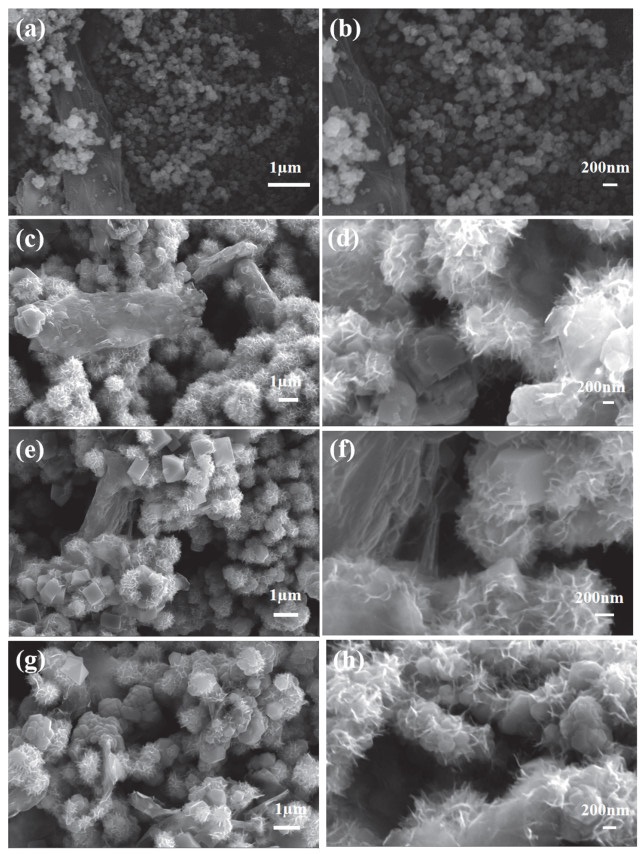

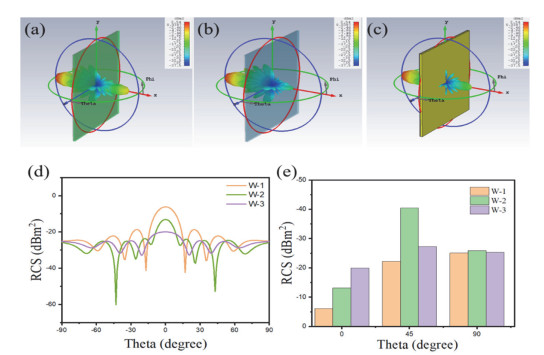

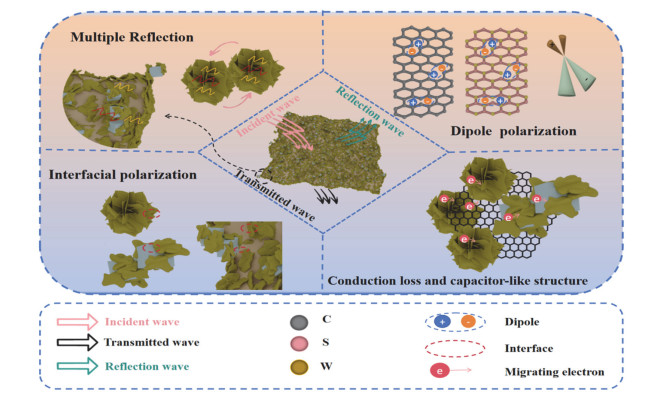

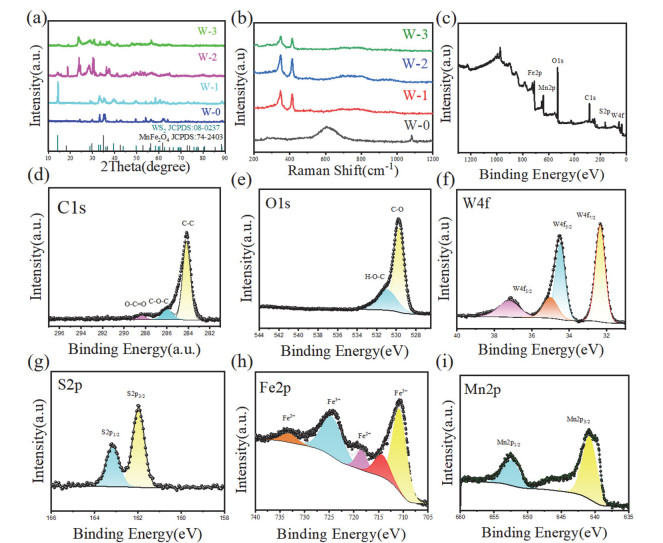

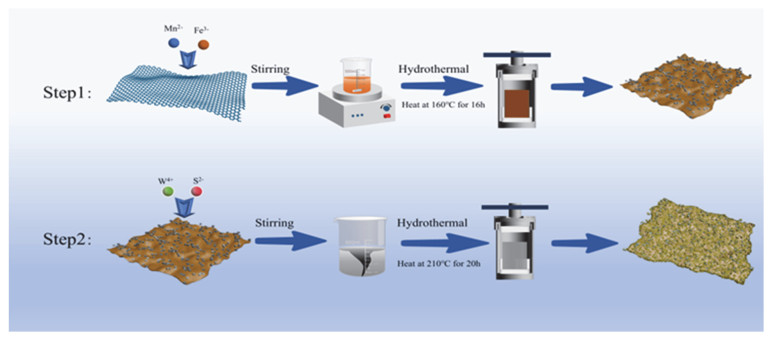

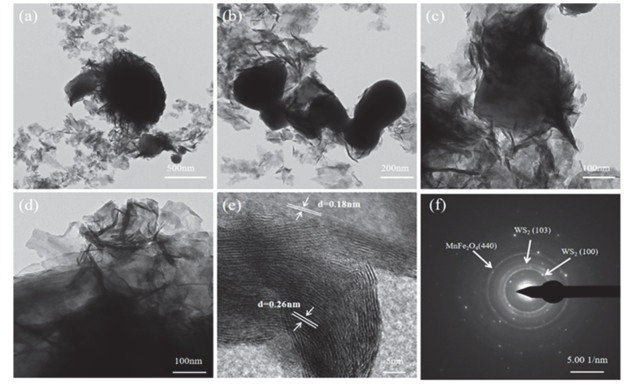

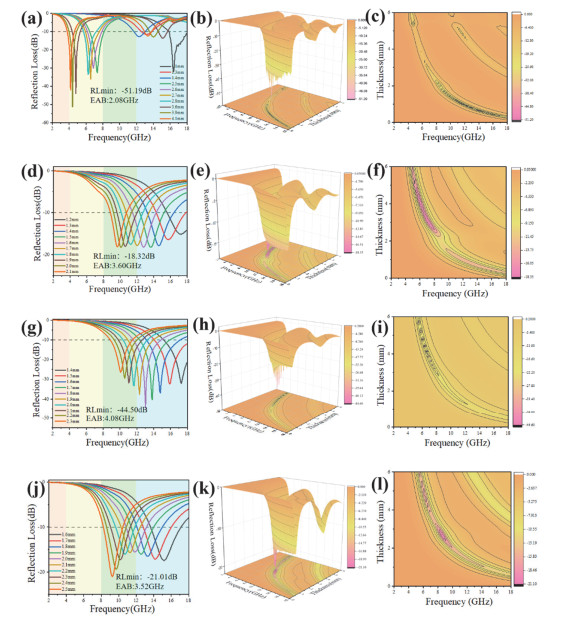

异质界面的合理构造是改善材料吸波性能一种有效的方法。本研究采用简便的两步水热法合成花瓣状WS₂/MnFe₂O₄/GNs复合材料(其中GNs为石墨烯)。WS₂均匀包覆在多面体MnFe₂O₄颗粒上附着于GNs表面，形成多层三维异质结构。通过调节MnFe₂O₄/GNs的负载量，可有效调控三元复合材料的电磁波吸收特性。当负载量为20%时，RL_min达−44.50 dB，最大有效吸收带宽达4.08 GHz。这归功于花状WS₂、多面体MnFe₂O₄与GNs共同构成的多级微结构，多层结构的存在使得电磁波的反射路径更加丰富，通过多次反射增强能量耗散，另一方面，它改善了材料的阻抗匹配，并强化了磁损耗与介质损耗的协同效应。

关键词: WS₂, 三维网状传导, 微波吸收, MnFe₂O₄/GNs

Abstract:

Rational construction of heterointerfaces represents an effective strategy for exploring high-performance electromagnetic wave absorption. This study employs a simple two-step hydrothermal method to synthesize petal-clustered WS₂/MnFe₂O₄/GNs (where GNs denotes graphene) hybrid materials. WS₂ uniformly coats the polyhedral MnFe₂O₄ particles attached to the GNs surface, forming a multi-layer three-dimensional hetero-structure. By adjusting the MnFe₂O₄/GNs loading, the electromagnetic wave absorption properties of the ternary hybrid material can be effectively tuned. At a MnFe₂O₄/GNs loading of 20%, the minimum reflection loss reaches −44.50 dB, with a maximum effective absorption bandwidth of 4.08 GHz. This is attributed to the multilevel microstructure formed by flower-like WS₂, polyhedral MnFe₂O₄, and GNs.

Key words: WS₂, 3D mesh conduction, Microwave absorption, MnFe₂O₄/GNs

朱耿素, 马媛媛, 孙承志, 李梦婷, 王春雨, 钟博, 夏龙. 花瓣状WS₂/MnFe₂O₄/GNs复合材料展现出高效电磁波吸收性能[J]. 物理化学学报, 2026, 42(9), 100273. doi: 10.1016/j.actphy.2026.100273

Gengsu Zhu, Yuanyuan Ma, Chengzhi Sun, Mengting Li, Chunyu Wang, Bo Zhong, Long Xia. Preparation and absorption properties of petal-clustered WS₂/MnFe₂/O₄/GNs composite materials[J]. Acta Phys. -Chim. Sin. 2026, 42(9), 100273. doi: 10.1016/j.actphy.2026.100273

链接本文: https://www.whxb.pku.edu.cn/CN/10.1016/j.actphy.2026.100273

https://www.whxb.pku.edu.cn/CN/Y2026/V42/I9/100273

图/表 9

图1

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 52

1	J. Wen, Y. Liu, S. Hui, L. Deng, L. Zhang, X. Fan, Q. Chen, X. Liu, X. Li, N. Yan; et al.. Matter 2025, 8(9), 12. doi: 10.1016/j.matt.2025.102151
2	Y. Miao, A. Cui, C. Wang, Z. Tian, T. Wang, J. Liu, Q. Jia, Z. Li, M. Zhang. Adv. Funct. Mater. 2025, 35(33), 11. doi: 10.1002/adfm.202503394
3	H. Xu, Y. Wang, M. Liu, Y. Zhai. ACS Appl. Mater. Interfaces 2025, 17(33), 47679. doi: 10.1021/acsami.5c09658
4	Q. Zhang, D. Lan, S. Deng, J. Gu, Y. Wang, J. Ren, G. Wu, Z. Jia. Carbon 2024, 226, 10. doi: 10.1016/j.carbon.2024.119233
5	M. Shi, Z. Jia, D. Lan, Z. Gao, S. Zhang, G. Wu, Adv. Funct. Mater. (2025) 16, https://doi.org/10.1002/adfm.202528665. . Adv. Funct. Mater. 2025, doi: 10.1002/adfm.202528665
6	H. Liu, W. Xu, H. Ren, D. Li, J. He, L. Xia, Y. Xu, B. Zeng, C. Yuan, L. Dai. Chem. Eng. J. 2024, 486, 11. doi: 10.1016/j.cej.2024.150444
7	Z. Jia, J. Liu, Z. Gao, C. Zhang, G. Wu. Adv. Funct. Mater. 2025, 35(18), 13. doi: 10.1002/adfm.202405523
8	X. Ren, D. Lan, Z. Gao, S. Zhang, Y. Zhang, M. He, Z. Jia, G. Wu. J. Mater. Sci. Technol. 2026, 255, 236. doi: 10.1016/j.jmst.2025.09.001
9	J. Cheng, Y. Jin, J. Zhao, Q. Jing, B. Gu, J. Wei, S. Yi, M. Li, W. Nie, Q. Qin; et al.. Nano-Micro Lett. 2024, 16(1), 40. doi: 10.1007/s40820-023-01247-7
10	H. Zhang, J. Cheng, H. Wang, Z. Huang, Q. Zheng, G. Zheng, D. Zhang, R. Che, M. Cao. Adv. Funct. Mater. 2022, 32(6), 10. doi: 10.1002/adfm.202108194
11	Y. Shen, Z. Ma, F. Yan, C. Zhu, X. Zhang, Y. Chen. Adv. Funct. Mater. 2025, 35(26), 11. doi: 10.1002/adfm.202423947
12	Q. Wang, X. Su, Y. Jia, Y. Liu, F. Shahzad. Ceram. Int. 2025, 51(8), 9833. doi: 10.1016/j.ceramint.2024.12.415
13	Z. Jia, J. Li, D. Lan, S. Zhang, Z. Gao, X. Shi, G. Wu. J. Mater. Sci. Technol. 2026, 256, 246. doi: 10.1016/j.jmst.2025.08.044
14	X. Liu, S. Zhang, M. Yu, X. Zhao, Y. Jia, Y. Huang, M. Zong. Chem. Eng. J. 2023, 465, 10. doi: 10.1016/j.cej.2023.142932
15	J. Wang, Y. Wang, J. Cheng, Y. Fu, Y. Li, W. Nie, J. Wang, B. Liu, D. Zhang, G. Zheng; et al.. J. Mater. Sci. Technol. 2024, 194, 193.
16	Y. Guo, H. Liu, D. Wang, Z. El-Bahy, J. Althakafy, H. Abo-Dief, Z. Guo, B. Xu, C. Liu, C. Shen. Nano Res. 2022, 15(8), 6841.
17	J. Bai, S. Huang, X. Yao, X. Liu, Z. Huang. J. Mater. Chem. C 2024, 12(16), 5776. doi: 10.1039/d3tc04672a
18	H. Peng, D. Zhang, Z. Xie, S. Lu, Y. Liu, F. Liang. Small 2025, 21(8), 24. doi: 10.1002/smll.202408570
19	J. Chen, Z. Liu, L. Zhang, C. Liu, C. Zhu, H. Wang, P. Liu. Carbon 2025, 243, 11. doi: 10.1016/j.carbon.2025.120575
20	H. Xu, H. Zhan, Z. Xu, C. Jing, Q. Chen, M. Zhu, L. Kong, X. Fan, Y. Qing, S. Wen; et al.. Adv. Funct. Mater. 2025, 35(23), 11.
21	Z. Guo, D. Lan, Z. Jia, Z. Gao, X. Shi, M. He, H. Guo, G. Wu, P. Yin. Nano-Micro Lett. 2025, 17(1), 21. doi: 10.1007/s40820-024-01527-w
22	D. Zhang, T. Liu, J. Cheng, Q. Cao, G. Zheng, S. Liang, H. Wang, M. Cao. Nano-Micro Lett. 2019, 11(1), 15. doi: 10.1007/s40820-019-0270-4
23	J. Zhou, X. Huang, D. Lan, Z. Jia, G. Wu. Carbon 2026, 248, 10. doi: 10.1016/j.carbon.2025.121143
24	T. Hu, D. Lan, J. Wang, X. Zhong, G. Bu, P. Yin. Carbon 2025, 232, 13. doi: 10.1016/j.carbon.2024.119798
25	W. Zhao, Z. Guo, D. Lan, Z. Jia, S. Zhang, G. Wu. Small 2025, 21(45), 10. doi: 10.1002/smll.202509339
26	X. Zhao, Y. Huang, H. Jiang, X. Liu, X. Ma, P. Liu, M. Zong. Compos. Pt. A-Appl. Sci. Manuf. 2025, 188, 9. doi: 10.1016/j.compositesa.2024.108565
27	D. Mandal, K. Mandal. J. Appl. Phys. 2021, 129(7), 10. doi: 10.1063/5.0039560
28	Y. Yang, S. Xu, Q. Huang, Q. Ren, S. Chen, Z. Jin, Y. Ge, W. Liao, W. Xu, H. Xu; et al.. Mater. Res. Bull. 2024, 178, 12.
29	C. Li, M. Piao, H. Zhang, X. Wang. J. Alloy. Compd. 2022, 912, 10. doi: 10.1016/j.jallcom.2022.165269
30	Y. Yang, K. Logesh, S. Mehrez, I. Huynen, I. Elbadawy, V. Mohanavel, S. Alamri. Ceram. Int. 2023, 49(2), 2130. doi: 10.1016/j.ceramint.2022.09.179
31	D. Zhang, H. Wang, J. Cheng, C. Han, X. Yang, J. Xu, G. Shan, G. Zheng, M. Cao. Appl. Surf. Sci. 2020, 528, 11. doi: 10.1016/j.apsusc.2020.147052
32	W. Guo, H. Zhu, Q. Ren, S. Chen, Y. Ding, C. Xiong, J. Chen, X. Jia. Solid State Sci. 2023, 138, 107152. doi: 10.1016/j.solidstatesciences.2023.107152
33	Z. Guo, X. Zhang, C. Lv, S. Zhang, Z. Gao, Z. Jia, D. Lan, G. Wu. Carbon 2025, 234, 9. doi: 10.1016/j.carbon.2025.120010
34	Y. Guan, R. Shu, B. Liu. Chem. Eng. J. 2025, 505, 12. doi: 10.1016/j.cej.2025.159819
35	Z. Guo, J. Ren, X. Xu, D. Lan, S. Zhang, M. He, Z. Gao, Z. Jia, G. Wu. J. Mater. Sci. Technol. 2025, 236, 19. doi: 10.1016/j.jmst.2025.03.020
36	S. Zhang, C. Wang, X. Meng, S. Liu, X. Li, Z. Yao, M. Yu. Carbon 2025, 237, 13. doi: 10.1016/j.carbon.2025.120176
37	Y. Liu, W. Geng, L. Wang, H. Wang, R. Zhang, D. Lan, B. Fan. Chem. Eng. J. 2025, 505, 12. doi: 10.1016/j.cej.2025.159489
38	A. Feng, L. Yu, D. Lan, C. Lv, S. Zhang, Z. Gao, Z. Guo, G. Wu. J. Mater. Sci. Technol. 2025, 228, 225. doi: 10.1016/j.jmst.2025.02.001
39	X. Xie, R. Liu, C. Chen, D. Lan, Z. Chen, W. Du, G. Wu. Int. J. Miner. Metall. Mater. 2025, 32(3), 566. doi: 10.1007/s12613-024-3024-3
40	Y. Zhang, L. Zhang, H. Si, Y. Zhang, C. Li, L. Zhang, J. Zhang, C. Gong. J. Mater. Sci. Technol. 2025, 233, 69. doi: 10.1016/j.jmst.2025.01.046
41	Z. Deng, L. Wang, B. Peng, L. Ye, Z. Li, Z. Shi, W. Dong, C. Chen, Y. Hu, S. Rehman. Chem. Eng. J. 2025, 505, 12. doi: 10.1016/j.cej.2025.159457
42	T. Wang, W. Zhao, Y. Miao, A. Cui, C. Gao, C. Wang, L. Yuan, Z. Tian, A. Meng, Z. Li; et al.. Nano-Micro Lett. 2024, 16(1), 21. doi: 10.1007/s40820-024-01478-2
43	S. Feng, H. Wang, J. Ma, Z. Lin, C. Wang, X. Li, M. Ma, T. Li, Y. Ma. Compos. Pt. B-Eng. 2024, 275, 14. doi: 10.1016/j.compositesb.2024.111344
44	L. Zhu, W. Wu, J. Chen, Z. Hu, J. Yu, Y. Wang. Chem. Eng. J. 2024, 488, 9. doi: 10.1016/j.cej.2024.150649
45	H. Liang, Y. Guo, S. Hui, Z. Hou, Z. Wang, H. Shen, H. Wu. Carbon 2025, 243, 10. doi: 10.1016/j.carbon.2025.120605
46	D. Wu, C. Fan, W. Luo, Y. Jin, Q. He, Y. Wang. Inorg. Chem. Front. 2025, 12(8), 3083. doi: 10.1039/d5qi00118h
47	X. Zhong, M. He, C. Zhang, Y. Guo, J. Hu, J. Gu. Adv. Funct. Mater. 2024, 34(19), 13. doi: 10.1002/adfm.202313544
48	C. Wang, W. Kong, G. Li, M. Zhang, Y. Zhang, Z. Liu, L. Zu, W. Ding, H. Zhang, S. Tan. J. Alloy. Compd. 2024, 1005, 11. doi: 10.1016/j.jallcom.2024.176203
49	J. Zhao, M. He, H. Guo, Y. Zhang, H. Qiu, H. Lai. J. Mater. Sci. Technol. 2025, 218, 35. doi: 10.1016/j.jmst.2024.08.034
50	S. Yan, S. Shao, Y. Tang, X. Zhang, C. Guo, L. Wang, J. Liu, L. Wu, F. Wang. ACS Appl. Mater. Interfaces 2024, 16(28), 36962. doi: 10.1021/acsami.4c05903
51	M. Li, F. Wei, Q. Chen, Z. Xue, C. Yao, X. Zhou, M. Liu, B. Fan, S. Xu. Ceram. Int. 2025, 51(15), 21055. doi: 10.1016/j.ceramint.2025.02.274
52	X. Ren, Z. Jia, Z. Gao, S. Zhang, Y. Zhang, D. Lan, G. Wu. Adv. Funct. Mater. 2025, 11. doi: 10.1002/adfm.202524264

[1]	狄肖创, 袁牧山, 卢俊宇, 阳申全, 周翠清, 陈洋, 邹华维. 面向超宽带微波吸收的连续参数空间寻优：一种序列感知深度学习与进化优化方法[J]. 物理化学学报, 2026, 42(9): 100270 - .
[2]	朱良森, 崔彩云, 景涛, 谭世豪, 刘先国, 余梦琳. 多介电弛豫与多磁共振诱导的非晶FeSiBCr薄片双纳米晶相实现强宽带微波吸收[J]. 物理化学学报, 2026, 42(9): 100331 - .
[3]	谭世豪, 崔彩云, 马树玮, 朱良森, 刘先国. 层状FeSiBCr引入纳米晶/非晶异质结构实现同步增强吸收、拓宽吸收带宽并降低匹配厚度[J]. 物理化学学报, 2026, 42(7): 100283 - .
[4]	刘亚楠, 苏晓岗, 兰笛, 刘江涌, 马卫海, 刘亚青. 双金属MOF衍生的CoZn-C/MWCNTs复合材料用于轻质宽带微波吸收[J]. 物理化学学报, 2026, 42(6): 100276 - .
[5]	梁博, 赵禹一健, 王思雨, 黄诗涵, 周方科, 张传坤, 王越, 果小明. 聚酰亚胺衍生多孔碳纳米片中的协同分子组装与阻抗匹配及其微波吸收性能研究[J]. 物理化学学报, 2026, 42(6): 100285 - .
[6]	徐位云,汪丽莉,宓一鸣,赵新新. Fe原子吸附对单层WS₂结构和性质的影响[J]. 物理化学学报, 2017, 33(9): 1765 -1772 .
[7]	力国民,朱保顺,梁丽萍,田玉明,吕宝亮,王连成. 基于核壳结构Co₃Fe₇@C的高效微波吸收材料[J]. 物理化学学报, 2017, 33(8): 1715 -1720 .
[8]	夏娟, 宋乐新, 党政, 邵志成. 聚乙二醇-四氧化三铁纳米粒子复合材料的结构、物理性质及应用[J]. 物理化学学报, 2013, 29(07): 1524 -1533 .
[9]	李松梅, 王博, 刘建华, 于美, 安军伟. 不同形貌镍纳米粒子-石墨烯复合材料的制备及微波吸收性能[J]. 物理化学学报, 2012, 28(11): 2754 -2760 .
[10]	阮圣平;吴凤清;王永为;张力乌日娜;宣丽. 钡铁氧体纳米复合材料的制备及其微波吸收性能[J]. 物理化学学报, 2003, 19(03): 275 -277 .

花瓣状WS₂/MnFe₂O₄/GNs复合材料展现出高效电磁波吸收性能

Preparation and absorption properties of petal-clustered WS₂/MnFe₂/O₄/GNs composite materials

RichHTML

PDF

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 52

相关文章 10

Metrics

推荐阅读 0
