双金属MOF衍生的CoZn-C/MWCNTs复合材料用于轻质宽带微波吸收

doi:10.1016/j.actphy.2026.100276

物理化学学报 >> 2026, Vol. 42 >> Issue (6): 100276.doi: 10.1016/j.actphy.2026.100276

双金属MOF衍生的CoZn-C/MWCNTs复合材料用于轻质宽带微波吸收

刘亚楠¹, 苏晓岗¹^,*(), 兰笛², 刘江涌¹, 马卫海³^,*(), 刘亚青¹^,*()

¹ 中北大学材料科学与工程学院, 功能高分子复合材料山西省重点实验室, 山西太原 030051
² 湖北汽车工业学院汽车材料学院, 湖北十堰 442002
³ 中国电子科技集团公司第三十三研究所, 中国-白俄罗斯电磁环境效应"一带一路"联合实验室, 山西太原 030032

收稿日期:2026-02-13 修回日期:2026-03-02 录用日期:2026-03-02 发布日期:2026-04-21
通讯作者: Email: su_xiaogang@nuc.edu.cn (苏晓岗)zblhsys@126.com (马卫海)lyq@nuc.edu.cn (刘亚青)

Bimetallic MOF-derived CoZn-C/MWCNTs composite for lightweight and wideband microwave absorption

Yanan Liu¹, Xiaogang Su¹^,*(), Di Lan², Jiangyong Liu¹, Weihai Ma³^,*(), Yaqing Liu¹^,*()

¹ Shanxi Key Laboratory of Functional Polymer Composite Material, College of Materials Science and Engineering, North University of China, Taiyuan 030051, Shanxi Province, China
² School of Automotive Materials, Hubei University of Automotive Technology, Shiyan 442002, Hubei Province, China
³ China-Belarus "Belt and Road Initiative" Joint Laboratory on Electromagnetic Environmental Effects, The 33rd Research Institute of China Electronics Technology Group Corporation, Taiyuan 030032, Shanxi Province, China

Received:2026-02-13 Revised:2026-03-02 Accepted:2026-03-02 Published:2026-04-21
Contact: Email: su_xiaogang@nuc.edu.cn (Xiaogang Su)zblhsys@126.com (Weihai Ma)lyq@nuc.edu.cn (Yaqing Liu)

摘要/Abstract

摘要：

在现代雷达隐身和电磁兼容领域，实现兼具宽频带、强吸收、轻质和薄型特征的高性能微波吸收材料仍然是一项重大挑战。本研究提出一种简易经济的策略，利用双金属沸石咪唑酯骨架(ZIFs)衍生物制备轻质高效微波吸收剂。通过连续湿化学法合成了一系列掺有多壁碳纳米管(MWCNTs)的ZIF-8@ZIF-67前驱体，经后续热解转化为多孔双金属MOF衍生CoZn-C/MWCNTs复合材料。通过改变前驱体中Co/Zn的摩尔比，可以精确调控热解产物的成分、微观结构和电磁特性。得益于磁损耗与介电损耗的协同作用，Co/Zn比为3 : 1的复合材料在所有样品中表现出最优的衰减常数与阻抗匹配。填料负载量仅为20 wt.%，该优化复合材料在1.9 mm厚度时实现5.29 GHz的有效吸收带宽，2.0 mm厚度时最小反射损耗达−23.78 dB。雷达散射截面模拟进一步验证了其增强的散射抑制性能。本研究为宽带电磁波吸收性能的轻质MOF基复合材料设计提供了新视角。

关键词: 双金属MOF衍生物, 微波吸收, 阻抗匹配, 碳基材料

Abstract:

Achieving high-performance microwave absorbers characterized by wide bandwidth, robust absorption, lightweight properties, and thin profiles remains a critical challenge within modern radar stealth and electromagnetic compatibility domains. In this study, we introduce a straightforward and cost-effective strategy for fabricating lightweight and efficient microwave absorbers utilizing composites derived from bimetallic zeolitic imidazolate frameworks (ZIFs). A variety of ZIF-8@ZIF-67 precursors incorporating multi-walled carbon nanotubes (MWCNTs) were synthesized through a sequential wet-chemical process. These precursors underwent conversion into porous bimetallic MOF-derived CoZn-C/MWCNTs composites via subsequent pyrolysis. The composition, microstructure, and electromagnetic characteristics of the pyrolyzed materials were precisely regulated by varying the Co/Zn molar ratio within the precursors. Due to the synergistic magnetic and dielectric dissipations, the 3 : 1 Co/Zn composite exhibited the best attenuation constant and impedance matching among all synthesized samples. Thus, the optimized composite provided a significant effective absorption bandwidth of 5.29 GHz at a thickness of 1.9 mm, coupled with an outstanding minimum reflection loss of −23.78 dB at 2.0 mm, even with a minimal filler loading of 20 wt.%. The enhanced scattering suppression behavior was additionally verified through radar cross-section simulation. This research provides a novel viewpoint on the rational design of lightweight MOF-based composites for broadband electromagnetic wave absorption performance.

Key words: Bimetallic MOF derivatives, Microwave absorption, Impedance matching, Carbon-based materials

刘亚楠, 苏晓岗, 兰笛, 刘江涌, 马卫海, 刘亚青. 双金属MOF衍生的CoZn-C/MWCNTs复合材料用于轻质宽带微波吸收[J]. 物理化学学报, 2026, 42(6), 100276. doi: 10.1016/j.actphy.2026.100276

Yanan Liu, Xiaogang Su, Di Lan, Jiangyong Liu, Weihai Ma, Yaqing Liu. Bimetallic MOF-derived CoZn-C/MWCNTs composite for lightweight and wideband microwave absorption[J]. Acta Phys. -Chim. Sin. 2026, 42(6), 100276. doi: 10.1016/j.actphy.2026.100276

链接本文: https://www.whxb.pku.edu.cn/CN/10.1016/j.actphy.2026.100276

https://www.whxb.pku.edu.cn/CN/Y2026/V42/I6/100276

图/表 7

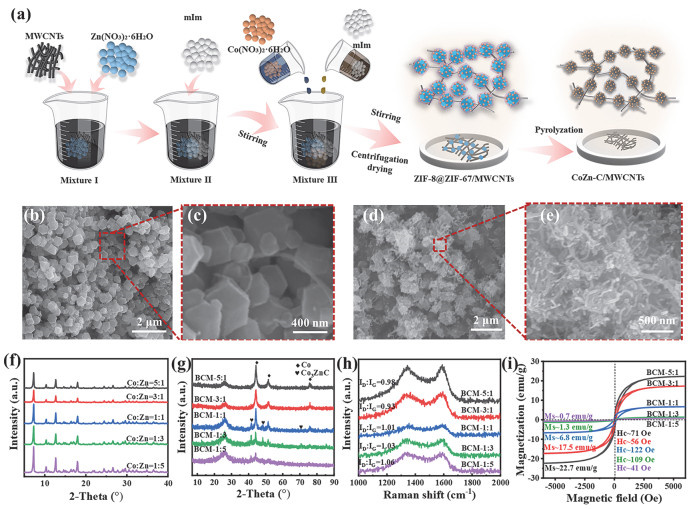

图1

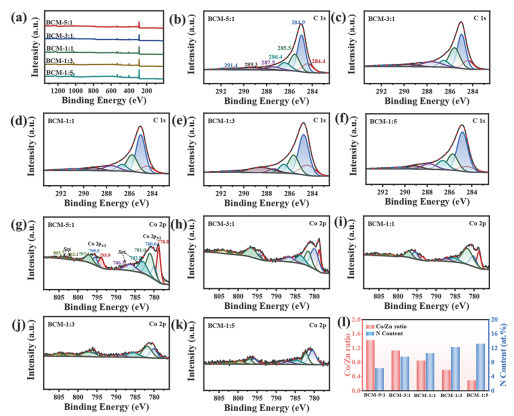

图2

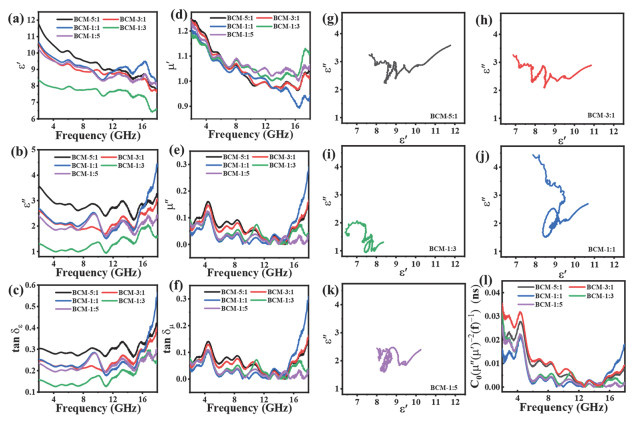

图3

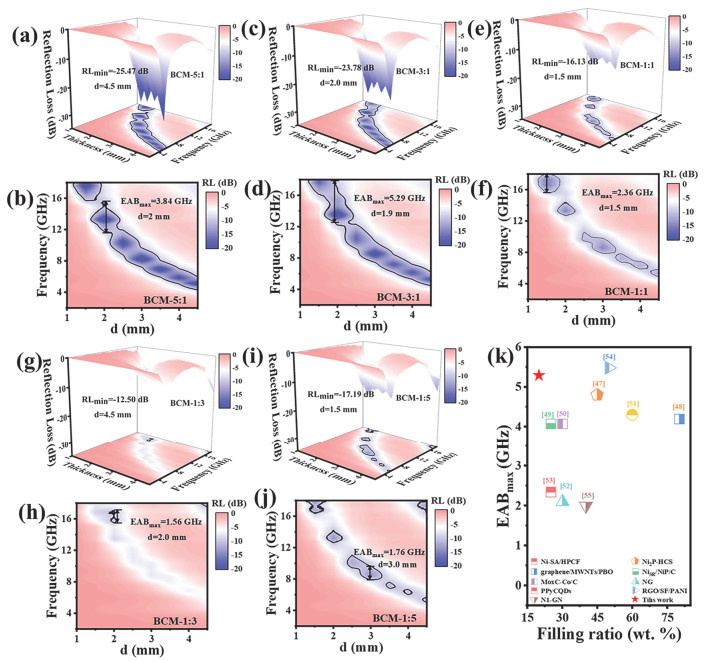

图4

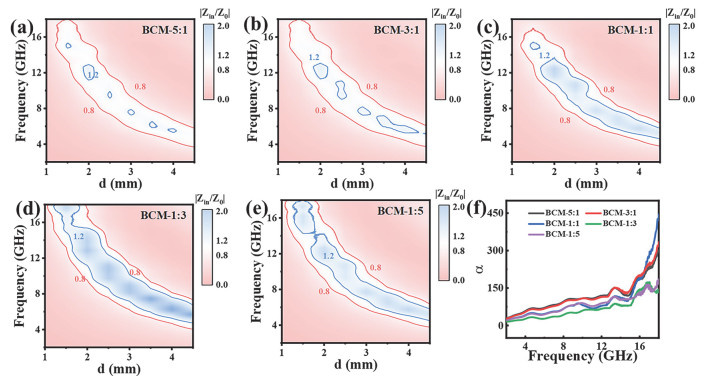

图5

表1

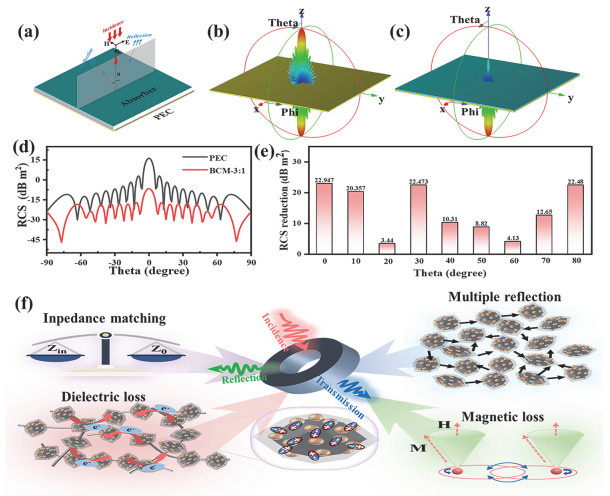

图6

参考文献 55

1	Z. Jia, J. Li, D. Lan, S. Zhang, Z. Gao, X. Shi, G. Wu. J. Mater. Sci. Technol. 2026, 256, 246. doi: 10.1016/j.jmst.2025.08.044
2	X. Su, X. Gao, J. Wang, Y. Zhang, Y. Liu, Y. Liu. Carbon 2025, 243, 120517. doi: 10.1016/j.carbon.2025.120517
3	Y. Wang, Y. Wang, T. Liu, Q. Zhao, C. Li, M. Cao. Adv. Funct. Mater. 2025, 35(34), 2500368. doi: 10.1002/adfm.202500368
4	J. Zhou, X. Huang, D. Lan, Z. Jia, G. Wu. Carbon 2026, 248, 121143. doi: 10.1016/j.carbon.2025.121143
5	W. Chen, Y. Duan, S. Gu, M. Zhang, C. Xia. Adv. Mater. 2025, 37(39), 2507366. doi: 10.1002/adma.202507366
6	J. Zhao, M. He, H. Guo, Y. Zhang, H. Qiu, H. Lai. J. Mater. Sci. Technol. 2025, 218, 35. doi: 10.1016/j.jmst.2024.08.034
7	H. Liang, G. Chen, D. Liu, Z. Li, S. Hui, J. Yun, L. Zhang, H. Wu. Adv. Funct. Mater. 2023, 33(7), 2212604. doi: 10.1002/adfm.202212604
8	J. Liu, Y. Duan, W. Chen, Y. Shi, J. Di, T. Zhang, H. Pang, L. Huang, J. Gong, J. Wang. ACS Appl. Mater. Interfaces 2024, 16(6), 8119. doi: 10.1021/acsami.3c17546
9	J. Tang, T. Li, Q. Liu, J. Du, J. Li, Q. Qi, F. Meng. J. Mater. Sci. Technol. 2024, 200, 93. doi: 10.1016/j.jmst.2024.03.007
10	R. Jiang, Y. Wang, J. Wang, Q. He, G. Wu. J. Colloid Interf. Sci. 2023, 648, 25. doi: 10.1016/j.jcis.2023.05.197
11	S. Zhang, R. Niu, X. Guo, Z. Jia, D. Lan, G. Wu. Carbon 2026, 252, 121371. doi: 10.1016/j.carbon.2026.121371
12	J. Qi, C. Liang, K. Ruan, M. Li, H. Guo, M. He, H. Qiu, Y. Guo, J. Gu. Natl. Sci. Rev. 2025, 12(11), nwaf394. doi: 10.1093/nsr/nwaf394
13	B. Hao, Z. Chai, M. Li, J. Duan, Y. Zhang, Y. Zhang, C. Li, C. Gong. Soft Sci. 2025, 5(3), 39. doi: 10.20517/ss.2025.48
14	J. Li, S. Shuai, J. Wang, T. Li, J. Li, Z. Xu, R. Zhang, L. Ma, F. Meng. Chem. Eng. J. 2025, 506, 160338. doi: 10.1016/j.cej.2025.160338
15	S. Ling, X. Zhang, S. Tan, Z. Tan, M. Song. Ceram. Int. 2025, 51(24), 42099. doi: 10.1016/j.ceramint.2025.06.425
16	R. Shu, W. Li, Y. Wu, J. Zhang, G. Zhang. Chem. Eng. J. 2019, 362, 513. doi: 10.1016/j.cej.2019.01.090
17	M. Cao, J. Yang, W. Song, D. Zhang, B. Wen, H. Jin, Z. Hou, J. Yuan. ACS Appl. Mater. Interfaces 2012, 4(12), 6949. doi: 10.1021/am3021069
18	B. Quan, W. Gu, J. Sheng, X. Lv, Y. Mao, L. Liu, X. Huang, Z. Tian, G. Ji. Nano Res. 2021, 14(5), 1495. doi: 10.1007/s12274-020-3208-8
19	C. Peng, G. Wang, L. Zou, Y. Zhuo, F. Liang, L. Pei, Q. Yuan, K. Yang, J. Chen. Int. J. Biol. Macromol. 2024, 277, 134310. doi: 10.1016/j.ijbiomac.2024.134310
20	Y. Miao, M. Zhang, Q. Liu, T. Xi, Y. Liu, Y. Wang, C. Wang, A. Cui, Z. Tian, T. Wang, et al.. Carbon 2025, 235, 120076. doi: 10.1016/j.carbon.2025.120076
21	H. Jiang, Y. Wang, C. Wang, Y. Li, S. Dai, B. Ding, J. Guo, Y. Yuan, D. Liu, H. Li. Carbon 2026, 246, 120864. doi: 10.1016/j.carbon.2025.120864
22	Z. Wu, X. Tan, J. Wang, Y. Xing, P. Huang, B. Li, L. Liu. Nano-Micro Lett. 2024, 16(1), 107. doi: 10.1007/s40820-024-01326-3
23	Z. Jia, L. Sun, Z. Gao, D. Lan. Nano Res. 2024, 17(11), 10099. doi: 10.1007/s12274-024-6939-0
24	M. A. Nazir, S. Ullah, M. U. Shahid, I. Hossain, T. Najam, M. A. Ismail, A. U. Rehman, M. R. Karim, S. S. A. Shah. Sep. Purif. Technol. 2025, 356, 129828. doi: 10.1016/j.seppur.2024.129828
25	Y. Liu, H. Pang, X. Wang, S. Yu, Z. Chen, P. Zhang, L. Chen, G. Song, N. Saleh Alharbi, S. Omar Rabah, et al.. Chem. Eng. J. 2021, 406, 127139. doi: 10.1016/j.cej.2020.127139
26	Y. Tang, J. Ruan, Y. Xin, X. Ren, H. Yuan, X. Liu, Q. Chen. Chem. Eng. J. 2025, 511, 161999. doi: 10.1016/j.cej.2025.161999
27	Y. Lu, D. Fan, Z. Shen, H. Zhang, H. Xu, X. Yang. Nano Energy 2022, 95, 107016. doi: 10.1016/j.nanoen.2022.107016
28	Y. Gao, Z. Lei, L. Pan, Q. Wu, X. Zhuang, G. Tan, M. Ning, Q. Man. Chem. Eng. J. 2023, 457, 141325. doi: 10.1016/j.cej.2023.141325
29	L. Hu, L. Chen, Y. Fang, A. Wang, C. Chen, Z. Yan. Micropor. Mesopor. Mat. 2018, 268, 207. doi: 10.1016/j.micromeso.2018.04.039
30	W. Sun, X. Zhai, L. Zhao. Chem. Eng. J. 2016, 289, 59. doi: 10.1016/j.cej.2015.12.076
31	R. Qiang, Y. Du, D. Chen, W. Ma, Y. Wang, P. Xu, J. Ma, H. Zhao, X. Han. J. Alloy. Comp. 2016, 681, 384. doi: 10.1016/j.jallcom.2016.04.225
32	P. Li, D. Xiang, Q. He, C. Fan, Y. Wang, X. Yin. J. Colloid Interf. Sci. 2026, 702, 138997. doi: 10.1016/j.jcis.2025.138997
33	J. Cheng, N. Liu, Y. Wang, X. Xuan, X. Yang, J. Zhou. Fuel 2020, 265, 116972. doi: 10.1016/j.fuel.2019.116972
34	S. Deng, X. Xu, C. Fan, Q. He, Y. Wang. Colloid. Surface. A 2025, 727, 138430. doi: 10.1016/j.colsurfa.2025.138430
35	J. Cheng, N. Liu, L. Hu, Y. Li, Y. Wang, J. Zhou. Chem. Eng. J. 2019, 364, 530. doi: 10.1016/j.cej.2019.02.026
36	Y. Jin, C. Fan, Q. Zhang, Q. He, Y. Wang. Inorg. Chem. Front. 2025, 12(23), 7590- 7602. doi: 10.1039/D5QI01376C
37	J. Wang, P. Zhang, L. Liu, Y. Zhang, J. Yang, Z. Zeng, S. Deng. Chem. Eng. J. 2018, 348, 57. doi: 10.1016/j.cej.2018.04.188
38	Y. Liu, X. Chen, Y. Yang, Y. Feng, D. Wu, S. Mao. Chem. Eng. J. 2019, 358, 408. doi: 10.1016/j.cej.2018.10.012
39	S. Gadipelli, W. Travis, W. Zhou, Z. Guo. Energ. Environ. Sci. 2014, 7(7), 2232. doi: 10.1039/C4EE01009D
40	X. Liu, L. Zhou, L. Huang, L. Chen, L. Long, S. Wang, X. Xu, M. Liu, W. Yang, J. Jia. Electrochim. Acta 2019, 318, 883. doi: 10.1016/j.electacta.2019.06.136
41	Q. Liu, J. Tian, W. Cui, P. Jiang, N. Cheng, A. M. Asiri, X. Sun. Angew. Chem. Int. Edit. 2014, 53(26), 6710. doi: 10.1002/anie.201404161
42	Y. Pan, K. Sun, S. Liu, X. Cao, K. Wu, W. Cheong, Z. Chen, Y. Wang, Y. Li, Y. Liu, et al.. J. Am. Chem. Soc. 2018, 140(7), 2610. doi: 10.1021/jacs.7b12420
43	D. Liu, M. Li, X. Li, F. Ren, P. Sun, L. Zhou. Chem. Eng. J. 2020, 387, 124008. doi: 10.1016/j.cej.2019.124008
44	S. Li, Y. Hou, Q. Chen, X. Zhang, H. Cao, Y. Huang. ACS Appl. Mater. Interfaces 2020, 12(2), 2581. doi: 10.1021/acsami.9b20275
45	Z. You, S. Liu, B. Kuang, Z. Shao, C. Wang, H. Jin, J. Li. Compos. Sci. Technol. 2024, 248, 110441. doi: 10.1016/j.compscitech.2024.110441
46	J. Wang, Y. Zhang, X. Gao, X. Su, S. Huang, Y. Liu. Compos. Sci. Technol. 2025, 270, 111299. doi: 10.1016/j.compscitech.2025.111299
47	Y. Zhou, W. Cai, Z. Liu, L. Zhang, Z. Long, J. Men, K. Bi, Y. Liu, Z. Zhang. J. Alloy. Comp. 2024, 991, 174527. doi: 10.1016/j.jallcom.2024.174527
48	J. Hua, Y. Li, X. Liu, X. Li, S. Lin, J. Gu, Z. Cui, Q. Zhuang. J. Phys. Chem. C 2017, 121(2), 1072. doi: 10.1021/acs.jpcc.6b11925
49	X. Gao, K. Zhang, H. Ding, X. Zhang, Y. Sun, X. Zhao, F. Zhang, Y. Wang, R. Gao, R. Cui, et al.. J. Alloy. Comp. 2025, 1020, 179371. doi: 10.1016/j.jallcom.2025.179371
50	X. Duan, Z. Wang, T. Cao, Q. Li, G. Chen, H. Guan, C. Dong. J. Alloy. Comp. 2024, 993, 174538. doi: 10.1016/j.jallcom.2024.174538
51	J. Zhang, L. Chen, X. Li, H. Cao, W. Chen, X. Wang. Small 2024, 20(27), 2308459. doi: 10.1002/smll.202308459
52	L. Quan, F. X. Qin, D. Estevez, H. Wang, H. Peng. Carbon 2017, 125, 630. doi: 10.1016/j.carbon.2017.09.101
53	M. Rahal, Y. Atassi, N. N. Ali, I. Alghoraibi. Mater. Chem. Phys. 2020, 255, 123491. doi: 10.1016/j.matchemphys.2020.123491
54	J. Luo, P. Shen, W. Yao, C. Jiang, J. Xu. Nanoscale Res. Lett. 2016, 11(1), 141. doi: 10.1186/s11671-016-1340-x
55	X. Qu, Y. Zhou, X. Li, M. Javid, F. Huang, X. Zhang, X. Dong, Z. Zhang. Inorg. Chem. Front. 2020, 7(5), 1148. doi: 10.1039/C9QI01577A

References	System	Mass filling ratio (wt.%)	d (mm) @EAB	RL_min	EAB_max
[47]	Ni₂P-HCS	45	1.71	−46.70	4.80
[48]	graphene/MWNTs/PBO	80	2.60	−50.17	4.20
[49]	Ni_SR/NiP/C	25	3.26	−76.97	4.08
[50]	MoxC-Co/C	30	2.09	−71.39	4.08
[51]	FePc/N-rGO	60	3.80	−49.30	4.30
[52]	NG	30	4.00	−13.00	2.10
[53]	PPyCQDs	25	3.25	−27.80	2.34
[54]	RGO/SF/PANI	50	1.50	−45.00	5.48
[55]	N1-GN	40	2.90	−43.20	2.00
This work	BCM-3:1	20	1.90	−23.78	5.29
