表面Cu2O纳米颗粒修饰高效促进γ-Bi2MoO6的可见光催化活性

doi:10.3866/PKU.WHXB201301151

物理化学学报 >> 2013, Vol. 29 >> Issue (04): 813-820.doi: 10.3866/PKU.WHXB201301151

表面Cu₂O纳米颗粒修饰高效促进γ-Bi₂MoO₆的可见光催化活性

杨自嵘¹, 韩玉琦¹, 王芳¹, 刘倩¹, 张扬¹, 敏世雄^1,2

1 河西学院化学化工学院, 甘肃省高校河西走廊特色资源利用省级重点实验室, 甘肃张掖 734000;
2 中国科学院兰州化学物理研究所, 羰基合成和选择氧化重点实验室, 甘肃兰州, 730000

收稿日期:2012-10-31 修回日期:2013-01-14 发布日期:2013-03-25
通讯作者: 韩玉琦, 王芳 E-mail:hanyq@hxu.edu.cn; wangfang987@126.com
基金资助:
国家自然科学基金(51263008), 河西学院校长基金(XZ2010), 河西学院大学生科技创新项目和甘肃省高校河西走廊特色资源利用省级重点实验室面上项目(XZ1012)资助

Significantly Improved Visible Light Photocatalytic Activity of γ-Bi₂MoO₆ by Surface Modification with Cu₂O Nanoparticles

YANG Zi-Rong¹, HAN Yu-Qi¹, WANG Fang¹, LIU Qian¹, ZHANG Yang¹, MIN Shi- Xiong^1,2

1 Key Laboratory of Hexi Corridor Resources Utilization of Gansu Universities , College of Chemistry and Chemical Engineering , Hexi University, Zhangye 734000 , Gansu Province, P. R. China;
2 State Key Laboratory for Oxo Synthesis and Selective Oxidation, Lanzhou Institute of Chemical Physics, Chinese Academy of Sciences, Lanzhou, 730000, P. R. China

Received:2012-10-31 Revised:2013-01-14 Published:2013-03-25
Supported by:
The project was supported by the National Natural Science Foundation of China (51263008), Principal Fund of Hexi University, China (XZ2010), University Science and Technology Innovation Project of Hexi University, China, and General Projects of Key Laboratory of Hexi Corridor Resources Utilization of Gansu Universities, China (XZ1012).

摘要/Abstract

摘要：

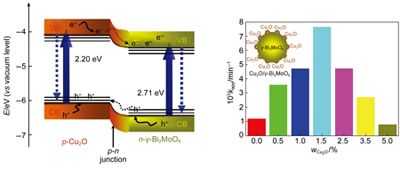

采用水热法在γ-Bi₂MoO₆光催化剂表面修饰了纳米级Cu₂O, 得到了具有高效可见光响应的复合光催化材料, 并利用X射线粉末衍射(XRD)、扫描电子显微镜(SEM)、透射电子显微镜(TEM)、选区电子衍射(SAED)、X射线光电子能谱(XPS)和紫外-可见漫反射光谱(UV-Vis-DRS)等技术对其相结构、微观形貌和光吸收性能进行了表征. 在可见光条件下(λ>400 nm)考察了Cu₂O表面修饰对γ-Bi₂MoO₆光催化降解亚甲基蓝(MB)性能的促进作用. 结果表明, 纳米级Cu₂O(~10 nm)颗粒均匀地修饰于γ-Bi₂MoO₆的表面, 使γ-Bi₂MoO₆的可见光吸收带发生明显红移, 且吸收强度大幅提高, 增强了复合材料光生电子-空穴对的分离效率, 从而使复合材料表现出较高的光催化活性. 当Cu₂O的表面修饰量为1.5%(w)时, 复合光催化剂降解MB的活性与纯γ-Bi₂MoO₆相比提高了6.4倍.

关键词: Cu₂O, γ-Bi₂MoO₆, 表面修饰, 可见光, 亚甲基蓝, 降解

Abstract:

Nanosized cuprous oxide (Cu₂O) was used to modify the surface of γ-Bi₂MoO₆, resulting in highly efficient visible-light-responsive Cu₂O/γ-Bi₂MoO₆ composite photocatalysts. The obtained photocatalysts were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), selected area electron diffraction (SAED), X-ray photoelectron spectroscopy (XPS), and UV-Vis diffuse reflectance spectrum (UV-Vis-DRS) to determine their phase structures, micromorphologies, and light absorption properties. The important role of surface-modified Cu₂O in improving the photocatalytic activity of γ-Bi₂MoO₆ under visible light irradiation was studied using the degradation of methylene blue (MB). The results showed that Cu₂O nanoparticles with average size of ~10 nm modified the surface of the γ-Bi₂MoO₆. The nanoparticles delivered both an obvious red-shift of absorption threshold and intensity of the γ-Bi₂MoO₆, as well as enhanced separation efficiency of photogenerated carriers, thereby leading to significant enhancement in photocatalytic activity. When the amount of Cu₂O was 1.5%, the photocatalytic activity of the Cu₂O/γ-Bi₂MoO₆ composite photocatalyst was 6.4 times higher than that of pristine γ-Bi₂MoO₆.

Key words: Cu₂O, γ-Bi₂MoO₆, Surface modification, Visible light, Methylene blue, Degradation

杨自嵘, 韩玉琦, 王芳, 刘倩, 张扬, 敏世雄. 表面Cu₂O纳米颗粒修饰高效促进γ-Bi₂MoO₆的可见光催化活性[J]. 物理化学学报, 2013, 29(04), 813-820. doi: 10.3866/PKU.WHXB201301151

YANG Zi-Rong, HAN Yu-Qi, WANG Fang, LIU Qian, ZHANG Yang, MIN Shi- Xiong. Significantly Improved Visible Light Photocatalytic Activity of γ-Bi₂MoO₆ by Surface Modification with Cu₂O Nanoparticles[J]. Acta Phys. -Chim. Sin. 2013, 29(04), 813-820. doi: 10.3866/PKU.WHXB201301151

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201301151

https://www.whxb.pku.edu.cn/CN/Y2013/V29/I04/813

参考文献

(1) Hoffmann, M. R.; Martin, S. T.; Choi,W. Y.; Bahnemann, D.W.Chem. Rev. 1995, 95, 69. doi: 10.1021/cr00033a004
(2) Tong, G. X.; Guan, J. G.; Zhang, Q. J. Mater. Chem. Phys. 2011,127, 371.
(3) Wang, S. F.; Yang, H.; Xian, T. Chin. J. Catal. 2011, 32, 1199.[王仕发, 杨华, 县涛. 催化学报, 2011, 32, 1199. ]
(4) Mei, S. X.;Wang, F.; Zhang, Z. M.; Han, Y. Q.; Feng, L. ActaPhys. -Chim. Sin. 2009, 25, 1303. [敏世雄, 王芳, 张振敏,韩玉琦, 冯雷. 物理化学学报, 2009, 25, 1303.] doi: 10.3866/PKU.WHXB20090711
(5) Tong, G. X.; Guan, J. G.; Xiao, Z. D.; Huang, X.; Guan, Y.J. Nanopart. Res. 2010, 12, 3025. doi: 10.1007/s11051-010-9897-2
(6) Kudo, A.; Hijii, S. Chem. Lett. 1999, 10, 1103.
(7) Zhang, C.; Zhu, Y. F. Chem. Mater. 2005, 17, 3537. doi: 10.1021/cm0501517
(8) Tang, J.W.; Zou, Z. G.; Ye, J. H. Catal. Lett. 2004, 92, 53. doi: 10.1023/B:CATL.0000011086.20412.aa
(9) Fu, H. B.; Pan, C. S.; Yao,W. Q.; Zhu, Y. F. J. Phys. Chem. B2005, 109, 22432. doi: 10.1021/jp052995j
(10) Jiang, H, Y.; Dai, H. X.; Meng, X.; Zhang, L.; Deng, J. G.; Ji, K.M. Chin. J. Catal. 2011, 32, 939. [蒋海燕, 戴洪兴, 孟雪,张磊, 邓积光, 吉科猛. 催化学报, 2011, 32, 939.]doi: 10.1016/S1872-2067(10)60215-X
(11) Zhang, L.; Chen, D. R.; Jiao, X. L. J. Phys. Chem. B 2006, 110,2668. doi: 10.1021/jp056367d
(12) Xi, G. C.; Ye, J. H. Chem. Commun. 2010, 46, 1893. doi: 10.1039/b923435g
(13) Tang, J.W.; Zou, Z. G.; Ye, J. H. Angew. Chem. Int. Edit. 2004,43, 4463.
(14) Li, H. H.; Li, K.W.;Wang, H. Chin. J. Inorg. Chem. 2009, 25,512. [李红花, 李坤威, 汪浩. 无机化学学报, 2009, 25,512.]
(15) Chen, Y.; Chen, J. L.; Yao, S. L.; Zhou, Y.; Xu, Y. T.Environmental. Chem. 2009, 28, 809. [陈亚, 陈建林, 姚三丽, 周懿, 许岳泰. 环境化学, 2009, 28, 809.] doi: 10.1897/08-228R.1
(16) Zhou, L.; Yu, M. M.; Yang, J.;Wang, Y. H.; Yu, C. Z. J. Phys.Chem. C 2010, 114, 18812. doi: 10.1021/jp107061p
(17) Kudo, A. Int. J. Hydrog. Energy 2006, 31, 197. doi: 10.1016/j.ijhydene.2005.04.050
(18) Bi, J. H.;Wu, L.; Li, J.; Li, Z. H.;Wang, X. X.; Fu, X. Z. ActaMater. 2007, 55, 4699. doi: 10.1016/j.actamat.2007.04.034
(19) Shimodaira, Y.; Kato, H.; Kobayashi, H.; Kudo, A. J. Phys.Chem. B 2006, 110, 17790. doi: 10.1021/jp0622482
(20) Zhao, X.; Liu, H. J.; Shen, Y. L.; Qu, J. H. Applied Catalysis B:Environmental 2011, 106, 63.
(21) Dawson, A.; Kamat, P. V. J. Phys. Chem. B 2001, 105, 960.doi: 10.1021/jp0033263
(22) Kohtani, S.; Kudo, A.; Sakata, T. Chem. Phys. Lett. 1993, 206,166. doi: 10.1016/0009-2614(93)85535-V
(23) Zong, X.; Yan, H. J.;Wu, G. P.; Ma, G. J.;Wen, F. Y.;Wang, L.;Li, C. J. Am. Chem. Soc. 2008, 130, 7176. doi: 10.1021/ja8007825
(24) Xu, L. L.; Ni, L.; Shi,W. D.; Guan, J. G. Chin. J. Catal. 2012,33, 1101. [许蕾蕾, 倪磊, 施伟东, 官建国. 催化学报, 2012,33, 1101.] doi: 10.1016/S1872-2067(11)60382-3
(25) Zhou, B.; Liu, Z. G.;Wang, H. X.; Huang, X. Q.; Sui, Y.;Wang,X. J.; Lu, Z.; Su,W. H. Acta Phys. -Chim. Sin. 2009, 25, 1841.[周波, 刘志国, 王红霞, 黄喜强, 隋郁, 王先杰, 吕喆,苏文辉. 物理化学学报, 2009, 25, 1841.] doi: 10.3866/PKU.WHXB20090904
(26) Ming, C. L.;Wei, M. C.; Kisch, H. Chem. Phys. Lett. 2008, 461,102.
(27) Song, J. M.; Zhang, X. X.; Jiao, J.; Mei, X. F.; Tian, Y. P. Chin.J. Appl. Chem. 2010, 27, 1328. [宋继梅, 张小霞, 焦剑,梅雪峰, 田玉鹏. 应用化学, 2010, 27, 1328.]
(28) Li, X. Z.; Li, F. B.; Yang, C. L.; Ge,W. K. J. Photochem.Photobiol. A: Chem. 2002, 141, 209.
(29) Xu, Y. H.; Liang, D. H.; Liu, M. L.; Liu, D. Z. Mater. Res.Bull. 2008, 43, 3474. doi: 10.1016/j.materresbull.2008.01.026
(30) Chen, X. Y.; Lu, D. F.; Huang, J. F.; Lu, Y. F.; Zheng, J. Q. ActaPhys. -Chim. Sin. 2012, 28, 161. [陈孝云, 陆东芳, 黄锦锋,卢燕凤, 郑建强. 物理化学学报, 2012, 28, 161.] doi: 10.3866/PKU.WHXB201228161
(31) Xiong, Z. G.; Zhang, L. L.; Ma, J. Z.; Zhao, X. S. Chem.Commun. 2010, 46, 6099. doi: 10.1039/c0cc01259a

[1]	王吉超, 乔秀, 史维娜, 贺景, 陈军, 张万庆. 多面体状Cu₂O修饰片状BiOI的S型异质结构筑及光催化水蒸气中CO₂转化性能研究[J]. 物理化学学报, 2023, 39(6): 2210003 - .
[2]	卢尔君, 陶俊乾, 阳灿, 侯乙东, 张金水, 王心晨, 付贤智. 碳包覆Pd/TiO₂光催化产氢协同胺类选择性氧化合成亚胺[J]. 物理化学学报, 2023, 39(4): 2211029 -0 .
[3]	孔菁, 张金贵, 张素芬, 奚菊群, 沈明. 可见光激发的BiOI/ZnO纳米复合抗菌剂制备及其抗菌活性与机制[J]. 物理化学学报, 2023, 39(12): 2212039 - .
[4]	张利君, 吴有林, Tsubaki Noritatsu, 靳治良. CeO₂-Cu₂O 2D/3D S型异质结界面促进有序电荷转移以实现高效光催化析氢[J]. 物理化学学报, 2023, 39(12): 2302051 - .
[5]	殷方鑫, 秦品权, 许景三, 曹少文. 亚甲基蓝嵌入的供体受体型g-C₃N₄纳米片光催化剂用于产H₂[J]. 物理化学学报, 2023, 39(11): 2212062 - .
[6]	陈帅, 秦江雷, 杜建忠. 可交联且可生物降解的高分子膜[J]. 物理化学学报, 2022, 38(8): 2006029 - .
[7]	孙轲, 赵永青, 殷杰, 靳晶, 刘翰文, 席聘贤. 有机配体表面改性NiCo₂O₄纳米线用于水全分解[J]. 物理化学学报, 2022, 38(6): 2107005 - .
[8]	卢岳, 葛杨, 隋曼龄. 紫外光辐照下CH₃NH₃PbI₃基钙钛矿太阳能电池失效机制[J]. 物理化学学报, 2022, 38(5): 2007088 - .
[9]	姜美慧, 盛利志, 王超, 江丽丽, 范壮军. 超级电容器用石墨烯薄膜：制备、基元结构及表面调控[J]. 物理化学学报, 2022, 38(2): 2012085 - .
[10]	何科林, 沈荣晨, 郝磊, 李佑稷, 张鹏, 江吉周, 李鑫. 纳米SiC基光催化剂研究进展[J]. 物理化学学报, 2022, 38(11): 2201021 - .
[11]	张鹏, 王继全, 李源, 姜丽莎, 王壮壮, 张高科. 非贵金属助剂Ni₂P修饰类石墨碳氮化物光催化剂增强可见光光催化产氢性能[J]. 物理化学学报, 2021, 37(8): 2009102 - .
[12]	周易, 欧阳威龙, 王岳军, 王海强, 吴忠标. 核壳结构NH₂-UiO-66@TiO₂的制备及其可见光下的甲苯降解性能研究[J]. 物理化学学报, 2021, 37(8): 2009045 - .
[13]	李喜宝, 刘积有, 黄军同, 何朝政, 冯志军, 陈智, 万里鹰, 邓芳. 全有机S型异质结PDI-Ala/S-C₃N₄光催化剂增强光催化性能[J]. 物理化学学报, 2021, 37(6): 2010030 - .
[14]	赫荣安, 陈容, 罗金花, 张世英, 许第发. 石墨烯量子点修饰的BiOI/PAN柔性纤维的制备及其增强的光催化活性[J]. 物理化学学报, 2021, 37(6): 2011022 - .
[15]	刘柏侨, 许韵华, 夏冬冬, 肖承义, 杨兆凡, 李韦伟. 基于非富勒烯电子受体的半透明有机太阳能电池[J]. 物理化学学报, 2021, 37(3): 2009056 - .

表面Cu₂O纳米颗粒修饰高效促进γ-Bi₂MoO₆的可见光催化活性

Significantly Improved Visible Light Photocatalytic Activity of γ-Bi₂MoO₆ by Surface Modification with Cu₂O Nanoparticles

PDF

赞

可视化

摘要/Abstract

引用本文

使用本文

参考文献

相关文章 15

Metrics

推荐阅读 0
