Pt-M (M = Co, Ni, Fe)/g-C3N4复合材料构建及其高效光解水制氢性能

doi:10.3866/PKU.WHXB201907001

摘要/Abstract

摘要：

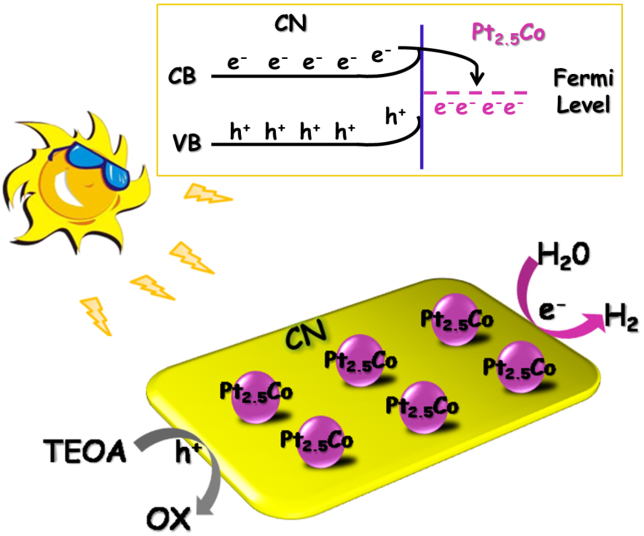

铂(Pt)是公认的优秀助催化剂：一方面，Pt能抑制光催化过程中光生载流子的复合；另一方面，Pt能降低光解水制氢反应过电势。尽管如此，高昂的价格和极低的丰度限制了Pt在光解水制氢中的应用。Pt基过渡金属合金在多种催化反应中呈现出卓越的催化性能，是潜在的助催化材料。在本工作中，我们利用Co、Ni、Fe等过渡金属部分取代贵金属Pt，并以乙二醇为还原剂，通过原位还原H₂PtCl₆和过渡金属盐制备了Pt-M/g-C₃N₄ (M = Co, Ni, Fe)复合材料。在可见光照射下，1% (w) Pt_2.5M/g-C₃N₄ (M = Co, Ni, Fe)均表现出比同样条件下Pt负载的复合材料更高或者相当的光解水制氢性能。其次，我们通过调节Pt/Co的原子比例以及Pt-Co合金的负载量进一步优化了光催化性能。结果显示：1% (w) Pt_2.5Co/g-C₃N₄复合材料表现出最高的光解水制氢性能，是同样条件下Pt负载的1.6倍。电化学阻抗谱(EIS)和光致发光光谱(PL)表明光催化性能的提升得益于电子从g-C₃N₄向Pt_2.5Co的有效传输以及光生载流子复合被有效抑制。这一工作显示Pt基过渡金属合金在高效光解水制氢中具有潜在的应用前景，对于开发低成本、高效助催化剂具有一定的指导意义。

关键词: 光解水制氢, 复合材料, 助催化剂, 氮化碳, Pt-Co合金

Abstract:

Platinum (Pt) is recognized as an excellent cocatalyst which not only suppresses the charge carrier recombination of the photocatalyst but also reduces the overpotential for photocatalytic H₂ generation. Albeit of its good performance, the high cost and low abundance restricted the utilization of Pt in large-scale photocatalytic H₂ generation. Pt based transition metal alloys are demonstrated to reveal enhanced activities towards various catalytic reactions, suggesting the possibility to substitute Pt as the cocatalyst. In the present work, Pt was partially substituted with Co, Ni, and Fe and Pt-M (M = Co, Ni, and Fe)/g-C₃N₄ composites were constructed through co-reduction of H₂PtCl₆ and transition metal salts by the reductant of ethylene glycol. The crystal structure and valence states were measured by X-ray diffractometer (XRD) and X-ray photoelectron spectrometer (XPS), respectively. The higher degree of XRD peaks and larger binding energies for Pt 4f_5/2 and Pt 4f_7/2 after incorporating Co²⁺ ions indicated that Co was successfully introduced into the lattice of Pt and Pt-Co bimetallic alloys was attained through the solvothermal treatment. The morphology was subsequently observed by transmission electron microscope (TEM), which showed a good dispersion of Pt-Co nanoparticles on the surface of g-C₃N₄. Meanwhile, the shrinkage of lattice fringe after introducing cobalt salt further confirmed the presence of Pt-Co bimetallic alloys. The UV-Vis absorption spectra of g-C₃N₄ and Pt, Pt-Co deposited g-C₃N₄ were subsequently performed. It was found that the absorption edges were all consistent for all three samples as anticipated, implying that the band gap energy was maintained after hybridizing with Pt or Pt-Co alloys. Furthermore, the photocatalytic H₂ generation was carried out over the as-prepared composites with triethanolamine (TEOA) as sacrificial reagent. Under visible-light illumination, the1% (w) Pt_2.5M/g-C₃N₄ (M = Co, Fe, Ni) composites all exhibited higher or comparable activity towards photocatalytic H₂ generation when compared to 1% (w) Pt loaded counterpart. In addition, the atomic ratios of Pt/Co and the loading amount of Pt-Co cocatalyst were modified to optimize the photocatalytic performance, among which, 1% (w) Pt_2.5Co/g-C₃N₄ composite revealed the highest activity with a 1.6-time enhancement. Electrochemical impedance spectra (EIS) and photoluminescence (PL) spectra indicated that the enhancement might be attributed to improved charge transfer from g-C₃N₄ to Pt_2.5Co cocatalyst and inhibited charge carrier recombination in the presence of Pt_2.5Co cocatalyst. Therefore, the present study demonstrates the great potential to partially replace Pt with low-cost and abundant transition metals and to fabricate Pt based bimetallic alloys as promising cocatalysts for highly efficient photocatalytic H₂ generation.

Key words: Photocatalytic H₂ generation, Composite, Cocatalyst, g-C₃N₄, Pt-Co alloy

王梁,朱澄鹭,殷丽莎,黄维. Pt-M (M = Co, Ni, Fe)/g-C₃N₄复合材料构建及其高效光解水制氢性能[J]. 物理化学学报, 2020, 36(7), 1907001. doi: 10.3866/PKU.WHXB201907001

Liang Wang,Chenglu Zhu,Lisha Yin,Wei Huang. Construction of Pt-M (M = Co, Ni, Fe)/g-C₃N₄ Composites for Highly Efficient Photocatalytic H₂ Generation[J]. Acta Physico-Chimica Sinica 2020, 36(7), 1907001. doi: 10.3866/PKU.WHXB201907001

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201907001

https://www.whxb.pku.edu.cn/CN/Y2020/V36/I7/1907001

图/表 6

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Fig 6

参考文献 36

1	Cao S. ; Low J. ; Yu J. ; Jaroniec M. Adv. Mater. 2015, 27, 2150. doi: 10.1002/adma.201500033
2	Ong W. J. ; Tan L. L. ; Ng Y. H. ; Yong S. T. ; Chai S. P. Chem. Rev. 2016, 116, 7159. doi: 10.1021/acs.chemrev.6b00075
3	Wang X. ; Maeda K. ; Thomas A. ; Takanabe K. ; Xin G. ; Carlsson J. M. ; Domen K. ; Antonietti M. Nat. Mater. 2009, 8, 76. doi: 10.1038/nmat2317
4	Huang P. ; Huang J. ; Pantovich S. A. ; Carl A. D. ; Fenton T. G. ; Caputo C. A. ; Grimm R. L. ; Frenkel A. I. ; Li G. J. Am. Chem. Soc. 2018, 140, 16042. doi: 10.1021/jacs.8b10380
5	Li J. ; Wu D. ; Iocozzia J. ; Du H. ; Liu X. ; Yuan Y. ; Zhou W. ; Li Z. ; Xue Z. ; Lin Z. Angew. Chem. Int. Ed. 2019, 58, 1985. doi: 10.1002/anie.201813117
6	Zhou Z. ; Zhang Y. ; Shen Y. ; Liu S. ; Zhang Y. Chem. Soc. Rev. 2018, 47, 2298. doi: 10.1039/c7cs00840f
7	Xiao Y. ; Tian G. ; Li W. ; Xie Y. ; Jiang B. ; Tian C. ; Zhao D. ; Fu H. J. Am. Chem. Soc. 2019, 141, 2508. doi: 10.1021/jacs.8b12428
8	Zou X. ; Zhang Y. Chem. Soc. Rev. 2015, 44, 5148. doi: 10.1039/c4cs00448e
9	Toshima N. ; Yonezawa T. New J. Chem. 1998, 22, 1179. doi: 10.1039/a805753b
10	Han M. R. ; Zhou Y. A. ; Zhou X. ; Chu W. Acta Phys. -Chim. Sin. 2019, 35, 850. doi: 10.3866/PKU.WHXB201811040
	韩萌茹; 周亚男; 周旋; 储伟.. 物理化学学报, 2019, 35, 850. doi: 10.3866/PKU.WHXB201811040
11	Di Y. ; Wang X. ; Thomas A. ; Antonietti M. ChemCatChem 2010, 2, 834. doi: 10.1002/cctc.201000057
12	Li X. H. ; Antonietti M. Chem. Soc. Rev. 2013, 42, 6593. doi: 10.1039/c3cs60067j
13	Li X. ; Bi W. ; Zhang L. ; Tao S. ; Chu W. ; Zhang Q. ; Luo Y. ; Wu C. ; Xie Y. Adv. Mater. 2016, 28, 2427. doi: 10.1002/adma.201505281
14	Yuan Y. P. ; Ruan L. W. ; Barber J. ; Loo S. C. J. ; Xue C. Energy Environ. Sci. 2014, 7, 3934. doi: 10.1039/c4ee02914c
15	Morales Guio C. G. ; Stern L. A. ; Hu X. Chem. Soc. Rev. 2014, 43, 6555. doi: 10.1039/c3cs60468c
16	Kudo A. ; Miseki Y. Chem. Soc. Rev. 2009, 38, 253. doi: 10.1039/b800489g
17	Yang J. ; Wang D. ; Han H. ; Li C. Acc. Chem. Res. 2013, 46, 1900. doi: 10.1021/ar300227e
18	Yu J. ; Qi L. ; Jaroniec M. J. Phys. Chem. C 2010, 114, 13118. doi: 10.1021/jp104488b
19	Wang Y. ; Wang Y. ; Xu R. J. Phys. Chem. C 2013, 117, 783. doi: 10.1021/jp309603c
20	Maeda K. ; Wang X. ; Nishihara Y. ; Lu D. ; Antonietti M. ; Domen K. J. Phys. Chem. C 2009, 113, 4940. doi: 10.1021/jp809119m
21	Zeb Gul Sial M. A. ; Ud Din M. A. ; Wang X. Chem. Soc. Rev. 2018, 47, 6175. doi: 10.1039/c8cs00113h
22	Wu J. ; Zhang J. ; Peng Z. ; Yang S. ; Wagner F. T. ; Yang H. J. Am. Chem. Soc. 2010, 132, 4984. doi: 10.1021/ja100571h
23	Murthi V. S. ; Urian R. C. ; Mukerjee S. J. Phys. Chem. B 2004, 108, 11011. doi: 10.1021/jp048985k
24	Stamenkovic V. ; Schmidt T. J. ; Ross P. N. ; Markovic N. M. J. Phys. Chem. B 2002, 106, 11970. doi: 10.1021/jp021182h
25	Travitsky N. ; Ripenbein T. ; Golodnitsky D. ; Rosenberg Y. ; Burshtein L. ; Peled E. J. Power Sources 2006, 161, 782. doi: 10.1016/j.jpowsour.2006.05.035
26	Huang S. ; He Q. ; Zai J. ; Wang M. ; Li X. ; Li B. ; Qian X. Chem. Commun. 2015, 51, 8950. doi: 10.1039/c5cc02584b
27	Yin L. ; Yuan Y. P. ; Cao S. W. ; Zhang Z. ; Xue C. RSC Adv. 2014, 4, 6127. doi: 10.1039/c3ra46362a
28	Hu Z. ; Yu J. C. J. Mater. Chem. A 2013, 1, 12221. doi: 10.1039/c3ta12407j
29	Zhao H. ; Dong J. ; Xing S. ; Li Y. ; Shen J. ; Xu J. Int. J. Hydrogen Energy 2011, 36, 9551. doi: 10.1016/j.ijhydene.2011.05.015
30	Han C. ; Lu Y. ; Zhang J. ; Ge L. ; Li Y. ; Chen C. ; Xin Y. ; Wu L. ; Fang S. J. Mater. Chem. A 2015, 3, 23274. doi: 10.1039/c5ta05370f
31	Chang F. ; Shan S. ; Petkov V. ; Skeete Z. ; Lu A. ; Ravid J. ; Wu J. ; Luo J. ; Yu G. ; Ren Y. ; Zhong C. J. Am. Chem. Soc. 2016, 138, 12166. doi: 10.1021/jacs.6b05187
32	Chen H. ; Wang D. ; Yu Y. ; Newton K. A. ; Muller D. A. ; Abruña H. ; DiSalvo F. J. J. Am. Chem. Soc. 2012, 134, 18453. doi: 10.1021/ja308674b
33	Choi S. I. ; Lee S. U. ; Kim W. Y. ; Choi R. ; Hong K. ; Nam K. M. ; Han S. W. ; Park J. T. ACS Appl. Mater. Interf. 2012, 4, 6228. doi: 10.1021/am301824w
34	Wakisaka M. ; Mitsui S. ; Hirose Y. ; Kawashima K. ; Uchida H. ; Watanabe M. J. Phys. Chem. B 2006, 110, 23489. doi: 10.1021/jp0653510
35	Li Y. H. ; Xing J. ; Chen Z. J. ; Li Z. ; Tian F. ; Zheng L. R. ; Wang H. F. ; Hu P. ; Zhao H. J. ; Yang H. G. Nat. Commun. 2013, 4, 2500. doi: 10.1038/ncomms3500
36	Greeley J. ; Mavrikakis M. Nat. Mater. 2004, 3, 810. doi: 10.1038/nmat1223
