钾改性Mn/Ce0.65Zr0.35O2催化剂催化氧化甲苯

doi:10.3866/PKU.WHXB201905047

Abstract

Abstract:

Volatile organic compounds (VOCs) are both harmful to human health and the environment; however, catalytic combustion offers a promising method for VOC purification because of its high efficiency without secondary pollution. Although manganese-based catalysts have been well studied for VOC catalytic oxidation, their catalytic activity at low temperature must be improved. Alkali metals as promoters have the potential to modulate the electronic and structural properties of the catalysts, improving their catalytic activity. Herein, a Ce_0.65Zr_0.35O₂ support was prepared by co-precipitation and MnO_x/Ce_0.65Zr_0.35O₂ catalysts were obtained through the incipient-wetness impregnation method. The catalytic properties of K-modified MnO_x/Ce_0.65Zr_0.35O₂ for toluene oxidation with different molar ratios of K/Mn were investigated. In addition, the catalysts were characterized by XRD, UV/visible Raman, Hydrogen temperature program reduction (H₂-TPR), Oxygen temperature programmed desorption (O₂-TPD), X-ray photoelectron spectroscopy (XPS) and in situ diffuse reflectance FTIR spectroscopy (DRIFTS) experiments. The results showed that alkali metal doping with K significantly improved the catalytic activity. In particular, when the molar ratio of K/Mn was 0.2, the monolith catalyst Mn/Ce_0.65Zr_0.35O₂-K-0.2 exhibited the best performance with the lowest complete conversion temperature T₉₀ of 242 ℃ at a GHSV of 12000 h⁻¹. The XRD results suggested that MnO_x was uniformly distributed on the surface of the catalyst and that Mn⁴⁺ partially reduced to Mn³⁺ on the addition of K. The Raman spectrum demonstrated that with increasing K content, both the β- and α-MnO₂ phases coexisted on the Mn/Ce_0.65Zr_0.35O₂-K-0.2 catalyst, increasing the number of surface defect sites. The H₂-TPR experiment results confirmed that Mn/Ce_0.65Zr_0.35O₂-K-0.2 exhibited the lowest reduction temperature and good reducibility. From the O₂-TPD experiments, it was clear that Mn/Ce_0.65Zr_0.35O₂-K-0.2 contained the most surface adsorbed oxygen species and excellent lattice oxygen mobility, which benefitted the toluene oxidation activity. In addition, the XPS results suggested that the content of surface adsorbed oxygen species of the Mn/Ce_0.65Zr_0.35O₂-K-0.2 catalyst was the highest among all the tested samples. In addition, toluene-TPSR in N₂ as measured by in situ DRIFTs analysis demonstrated that available lattice oxygen was present in the Mn/Ce_0.65Zr_0.35O₂-K-0.2 catalyst. Therefore, the Mn/Ce_0.65Zr_0.35O₂-K-0.2 catalyst exhibited the best redox properties and oxygen mobility of the prepared samples and showed excellent activity toward toluene oxidation. Therefore, it was concluded that the addition of an appropriate amount of K improved the redox performance of the catalyst and increased the number of surface defect sites and mobility of the lattice oxygen of the catalyst as well as the concentration of the surface active oxygen species, thereby significantly improving catalytic ability.

Key words: Toluene, Catalytic oxidation, Potassium, Ce_0.65Zr_0.35O₂, Manganese oxide

Xiaoxiao Lai, Jie Feng, Xiaoying Zhou, Zhongyan Hou, Tao Lin, Yaoqiang Chen. Catalytic Oxidation of Toluene Over Potassium Modified Mn/Ce_0.65Zr_0.35O₂ Catalyst[J]. Acta Physico-Chimica Sinica 2020, 36(8), 1905047. doi: 10.3866/PKU.WHXB201905047

Figures/Tables 14

References 52

1	He C. ; Cheng J. ; Zhang X. ; Douthwaite M. ; Pattisson S. ; Hao Z. Chem. Rev. 2019. doi: 10.1021/acs.chemrev.8b00408
2	Kim S. C. ; Shim W. G. Appl. Catal. B. 2010, 98 (3–4), 180. doi: 10.1016/j.apcatb.2010.05.027
3	Parmar G. R. ; Rao N. N. Crit. Rev. Environ. Sci. Technol. 2008, 39 (1), 41. doi: 10.1080/10643380701413658
4	Tidahy H. ; Siffert S. ; Lamonier J. ; Zhilinskaya E. ; Aboukais A. ; Yuan Z. ; Vantomme A. ; Su B. ; Canet X. ; Deweireld G. Appl. Catal. A. 2006, 310, 61. doi: 10.1016/j.apcata.2006.05.020
5	Scirè S. Appl. Catal. B. 2003, 45 (2), 117. doi: 10.1016/s0926-3373(03)00122-x
6	Genuino H. C. ; Dharmarathna S. ; Njagi E. C. ; Mei M. C. ; Suib S. L. J. Phys. Chem. C. 2012, 116 (22), 12066. doi: 10.1021/jp301342f
7	Yang J. S. ; Jung W. Y. ; Lee G. D. ; Park S. S. ; Jeong E. D. ; Kim H. G. ; Hong S. S. J. Ind. Eng. Chem. 2008, 14 (6), 779. doi: 10.1016/j.jiec.2008.05.008
8	Li H. ; Qi G. ; Tana ; Zhang X. ; Huang X. ; Li W. ; Shen W. Appl. Catal. B. 2011, 103 (1-2), 54. doi: 10.1016/j.apcatb.2011.01.008
9	Wu M. ; Wang X. ; Dai Q. ; Gu Y. ; Li D. Catal. Today. 2010, 158 (3–4), 336. doi: 10.1016/j.cattod.2010.04.006
10	Zhao F. ; Zhang G. ; Zeng P. ; Yang X. ; Ji S. Chin. J. Catal. 2011, 32 (5), 821. doi: 10.1016/s1872-2067(10)60184-2
11	Zhang C. ; Guo Y. ; Guo Y. ; Lu G. ; Boreave A. ; Retailleau L. ; Baylet A. ; Giroir-Fendler A. Appl. Catal. B. 2014, 148, 490. doi: 10.1016/j.apcatb.2013.11.030
12	Lahousse C. ; Bernier A. ; Grange P. ; Delmon B. ; Papaefthimiou P. ; Ioannides T. ; Verykios X. J. Catal. 1998, 178, 214. doi: 10.1006/jcat.1998.2148
13	Raciulete M. ; Afanasiev P. Appl. Catal. A. 2009, 368 (1–2), 79. doi: 10.1016/j.apcata.2009.08.012
14	Aguero F. N. ; Barbero B. P. ; Gambaro L. ; Cadús L. E. Appl. Catal. B. 2009, 91 (1–2), 108. doi: 10.1016/j.apcatb.2009.05.012
15	Piumetti M. ; Fino D. ; Russo N. Appl. Catal. B. 2015, 163, 277. doi: 10.1016/j.apcatb.2014.08.012
16	Huang N. ; Qu Z. ; Dong C. ; Qin Y. ; Duan X. Appl. Catal. A. 2018, 560, 195. doi: 10.1016/j.apcata.2018.05.001
17	Wang H. ; Lu Y. ; Han Y. ; Lu C. ; Wan H. ; Xu Z. ; Zheng S. Appl. Surf. Sci. 2017, 420, 260. doi: 10.1016/j.apsusc.2017.05.133
18	Shen B. ; Wang Y. ; Wang F. ; Liu T. Chem. Eng. J. 2014, 236, 171. doi: 10.1016/j.cej.2013.09.085
19	Ferrandon M. ; Mawdsley J. ; Krause T Appl. Catal. A. 2008, 342 (1–2), 69. doi: 10.1016/j.apcata.2008.03.001
20	Pasha N. ; Lingaiah N. ; Siva Sankar Reddy P. ; Sai Prasad P. S. Catal. Lett. 2007, 118 (1–2), 64. doi: 10.1007/s10562-007-9146-1
21	Tang Q. ; Liu T. ; Yang Y. Catal. Commun. 2008, 9 (15), 2570. doi: 10.1016/j.catcom.2008.07.013
22	Panagiotopoulou P. ; Kondarides D. I. J. Catal. 2008, 260 (1), 141. doi: 10.1016/j.jcat.2008.09.014
23	Li X. ; Hong H. ; Chang L. ; Changbin Z. ; Bo Z. Environ. Sci. Technol. 2009, 43, 890. doi: 10.1021/es801867y
24	Bai B. ; Li J. ACS Catal 2014, 4 (8), 2753. doi: 10.1021/cs5006663
25	Tang Q. ; Huang X. ; Wu C. ; Zhao P. ; Chen Y. ; Yang Y. J. Mol. Catal. A: Chem. 2009, 306 (1–2), 48. doi: 10.1016/j.molcata.2009.02.020
26	Jirátová K. ; Mikulová J. ; Klempa J. ; Grygar T. ; Bastl Z. ; Kovanda F. Appl. Catal. A. 2009, 361 (1–2), 106. doi: 10.1016/j.apcata.2009.04.004
27	Hou Z. ; Feng J. ; Lin T. ; Zhang H. ; Zhou X. ; Chen Y. Appl. Surf. Sci. 2018, 434, 82. doi: 10.1016/j.apsusc.2017.09.048
28	Feng J. ; Hou Z. ; Zhou X. ; Zhang H. ; Cheng T. ; Lin T. ; Chen Y. Chem. Pap. 2017, 72 (1), 161. doi: 10.1007/s11696-017-0267-8
29	Saqer S. M. ; Kondarides D. I. ; Verykios X. E. Appl. Catal. B. 2011, 103 (3–4), 275. doi: 10.1016/j.apcatb.2011.01.001
30	Tang W. ; Wu X. ; Li S. ; Li W. ; Chen Y. Catal. Commun. 2014, 56, 134. doi: 10.1016/j.catcom.2014.07.023
31	Chiou J. Y. Z. ; Lai C. L. ; Yu S. W. ; Huang H. H. ; Chuang C. L. ; Wang C. B. Int. J. Hydrog. Energy. 2014, 39 (35), 20689. doi: 10.1016/j.ijhydene.2014.07.141
32	Gandía L. M. ; Gil A. ; Korili S. A. Appl. Catal. B. 2001, 33, 1. doi: 10.1016/S0926-3373(01)00155-2
33	He H. ; Lin X. ; Li S. ; Wu Z. ; Gao J. ; Wu J. ; Wen W. ; Ye D. ; Fu M. Appl. Catal. B. 2018, 223, 134. doi: 10.1016/j.apcatb.2017.08.084
34	Deng J. ; Zhou Y. ; Cui Y. ; Lan L. ; Wang J. ; Yuan S. ; Chen Y. J. Mater. Sci. 2017, 52 (9), 5242. doi: 10.1007/s10853-017-0765-7
35	Hong W. J. ; Iwamoto S. ; Hosokawa S. ; Wada K. ; Kanai H. ; Inoue M. Catal 2011, 277 (2), 208. doi: 10.1016/j.jcat.2010.11.007
36	Zhou G. ; He X. ; Liu S. ; Xie H. ; Fu M. J. Ind. Eng. Chem. 2015, 21, 932. doi: 10.1016/j.jiec.2014.04.035
37	Natile M. M. ; Giovanni B. ; Antonella G. Chem. Mater. 2005, 17, 6272. doi: 10.1021/cm051352d
38	Azalim S. ; Franco M. ; Brahmi R. ; Giraudon J. M. ; Lamonier J. F. J. Hazard. Mater. 2011, 188 (1–3), 422. doi: 10.1016/j.jhazmat.2011.01.135
39	Zhou K. ; Wang X. ; Sun X. ; Peng Q. ; Li Y. J. Catal. 2005, 229 (1), 206. doi: 10.1016/j.jcat.2004.11.004
40	Wu Y. ; Liu M. ; Ma Z. ; Xing S. T. Catal. Today. 2011, 175 (1), 196. doi: 10.1016/j.cattod.2011.04.023
41	Liao Y. ; Fu M. ; Chen L. ; Wu J. ; Huang B. ; Ye D. Catal. Today. 2013, 216, 220. doi: 10.1016/j.cattod.2013.06.017
42	Levasseur B. ; Kaliaguine S. Appl. Catal. B. 2009, 88 (3–4), 305. doi: 10.1016/j.apcatb.2008.11.007
43	Cellier C. ; Ruaux V. ; Lahousse C. ; Grange P. ; Gaigneaux E. Catal. Today. 2006, 117 (1–3), 350. doi: 10.1016/j.cattod.2006.05.033
44	Atribak I. ; Bueno-Lopez A. ; Garcia-Garcia A. ; Azambre B. Phys. Chem. Chem. Phys. 2010, 12 (41), 13770. doi: 10.1039/c0cp00540a
45	Wang X. ; Kang Q. ; Li D. Appl. Catal. B. 2009, 86 (3–4), 166. doi: 10.1016/j.apcatb.2008.08.009
46	Tang W. ; Wu X. ; Li S. ; Shan X. ; Liu G. ; Chen Y. Appl. Catal. B. 2015, 162, 110. doi: 10.1016/j.apcatb.2014.06.030
47	Wang X. ; Du L. Y. ; Du M. ; Ma C. ; Zeng J. ; Jia C. J. ; Si R. Phys. Chem. Chem. Phys. 2017, 19 (22), 14533. doi: 10.1039/c7cp02004j
48	Muroyama H. ; Asajima H. ; Hano S. ; Matsui T. ; Eguchi K. Appl. Catal. A. 2015, 489, 235. doi: 10.1016/j.apcata.2014.10.039
49	Einaga H. ; Mochiduki K. ; Teraoka Y. Catalysts 2013, 3 (1), 219. doi: 10.3390/catal3010219
50	Sun H. ; Liu Z. ; Chen S. ; Quan X. Chem. Eng. J. 2015, 270, 58. doi: 10.1016/j.cej.2015.02.017
51	Lichtenberger J. ; Hargroveleak S. ; Amiridis M. J. Catal. 2006, 238 (1), 165. doi: 10.1016/j.jcat.2005.12.007
52	Du J. ; Qu Z. ; Dong C. ; Song L. ; Qin Y. ; Huang N. Appl. Surf. Sci. 2018, 433, 1025. doi: 10.1016/j.apsusc.2017.10.116

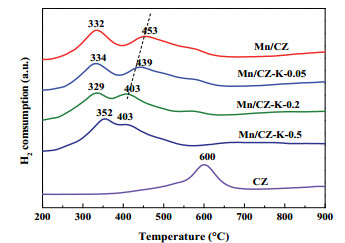

Catalyst	S_BET/(m²·g⁻¹)	Pore volume/(cm³·g⁻¹)	Pore size/nm	Major reduction temperature/℃	Total hydrogen consumption/(μmol·g⁻¹ catalyst) ± 0.2
Mn/CZ	77	0.27	6.5	332, 453	2023.6
Mn/CZ-K-0.05	72	0.26	7.0	334, 439	1903.9
Mn/CZ-K-0.2	73	0.27	7.1	329, 403	1869.6
Mn/CZ-K-0.5	60	0.24	7.6	352, 403	1672.1
CZ	86	0.33	5.9	500–650	720.6

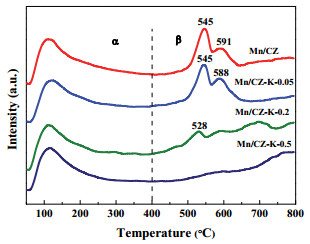

Sample	T_d/℃	The amount of oxygen desorption/ (μmol∙g⁻¹ catalyst) ± 0.1 (T < 400 ℃)
Mn/CZ	123	226.3
Mn/CZ-K-0.05	127	240.2
Mn/CZ-K-0.2	118	262.4
Mn/CZ-K-0.5	125	215.0

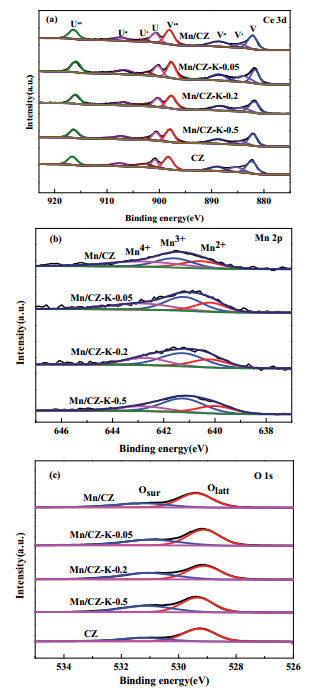

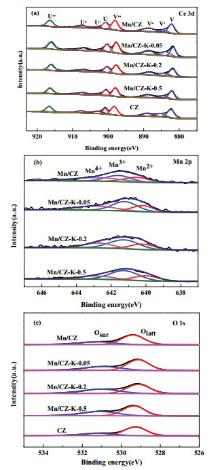

Sample	Ce³⁺/Ce_total (%)	Mn⁴⁺	Mn³⁺	Mn²⁺	Mn³⁺/Mn⁴⁺	O_sur/O_total (%)
Mn/CZ	14.72	37.93	34.68	27.39	0.91	32.58
Mn/CZ-K-0.05	15.68	32.20	43.74	24.06	1.36	37.21
Mn/CZ-K-0.2	14.78	26.60	48.75	24.66	1.83	43.39
Mn/CZ-K-0.5	15.21	21.32	53.63	25.05	2.51	37.80
CZ	16.21	–	–	–	–	27.30

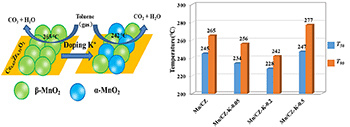

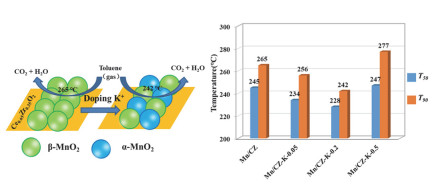

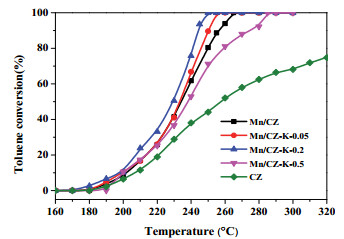

Sample	T₅₀ (℃)	T₉₀ (℃)
Mn/CZ	245	265
Mn/CZ-K-0.05	234	256
Mn/CZ-K-0.2	228	242
Mn/CZ-K-0.5	247	277
CZ	257	360
