基于1,3,5-三嗪的具有力致变色性质的聚集诱导荧光化合物的合成及性质

doi:10.3866/PKU.WHXB201208012

物理化学学报 >> 2012, Vol. 28 >> Issue (12): 2944-2952.doi: 10.3866/PKU.WHXB201208012

基于1,3,5-三嗪的具有力致变色性质的聚集诱导荧光化合物的合成及性质

欧阳密, 俞春辉, 张玉建, 胡彬, 吕晓静, 孙璟玮, 张诚

浙江工业大学化学工程与材料学院, 绿色化学合成技术国家重点实验室培育基地, 杭州 310014

收稿日期:2012-06-26 修回日期:2012-07-30 发布日期:2012-11-14
通讯作者: 张诚 E-mail:czhang@zjut.edu.cn
基金资助:
国家重点基础研究发展规划(973)前期专项项目(2010CB635108, 2011CBA00700)及国际科技合作重点项目计划(2012DFA51210)资助

Synthesis and Characterization of New 1,3,5-Triazine-Based Compounds Exhibiting Aggregation-Induced Emission and Mechanochromism

OUYANG Mi, YU Chun-Hui, ZHANG Yu-Jian, HU Bin, Lü Xiao-Jing, SUN Jing-Wei, ZHANG Cheng

State Key Laboratory Breeding Base for Green Chemistry Synthesis Technology, College of Chemical Engineering and Material Science, Zhejiang University of Technology, Hangzhou, 310014, P. R. China

Received:2012-06-26 Revised:2012-07-30 Published:2012-11-14
Supported by:
The project was supported by the National Key Basic Research Program of China (973) (2010CB635108, 2011CBA00700) and International S & T Cooperation Program, China (2012DFA51210).

摘要/Abstract

摘要：

以1,3,5-三嗪为核, 四苯基乙烯为端基, 合成了两种新型的星状结构分子2,4,6-三(4-(1,2,2-三苯基乙烯基)苯基)-1,3,5-三嗪(TTPE-Tr)和2,4,6-三(4-(1,2,2-三苯基乙烯基)-4-联苯基)-1,3,5-三嗪(TTPE-Ph-Tr), 并利用核磁共振(NMR)、离子化质谱(MALDI-MS)及元素分析等对其进行了结构表征. 通过混合溶剂四氢呋喃(THF)/水析出实验显示, 化合物TTPE-Tr和TTPE-Ph-Tr在纯THF溶剂中无荧光, 而在THF/水混合溶剂中, 当水体积分数增加时呈现荧光增强现象. 通过紫外-可见(UV-Vis)光谱、荧光(PL)光谱、扫描电子显微镜(SEM)证实荧光量子效率的提高是由于分子内电子旋转受限(RIR)导致的. 同时发现化合物TTPE-Tr具有力致变色性质, 简单的研磨使其发光颜色(蓝绿光到黄绿光)及发光强度(Φ_F, 24.4%到14.7%)发生了明显的改变. UV-Vis光谱、PL光谱、X射线衍射(XRD)、荧光寿命和荧光量子效率等测试结果显示, 这种现象是由于力刺激改变了TTPE-Tr的分子堆积形式导致的. 热分析结果显示化合物TTPE-Tr和TTPE-Ph-Tr的热分解温度分别为464和385℃, 具有良好的热稳定性.

关键词: 1,3,5-三嗪, 四苯基乙烯, 聚集诱导荧光增强, 力致变色, 热稳定性

Abstract:

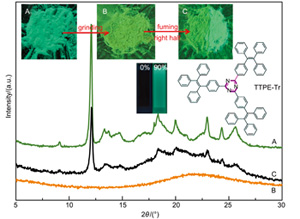

Two star-shaped molecules consisting of a 1,3,5-triazine core with peripheral tetraphenylethylene moieties, 2,4,6-tris(4-(1,2,2-triphenylvinyl)phenyl)-1,3,5-triazine (TTPE-Tr) and 2,4,6-tris(4-(1,2,2- triphenylvinyl)- [1,1-biphenyl]-4-yl)-1,3,5-triazine (TTPE-Ph-Tr), have been synthesized. These compounds were characterized by nuclear magnetic resonance spectroscopy (NMR), matrix assisted laser desorption/ionization-mass spectrometry (MALDI-MS) and elemental analysis. Both compounds exhibited aggregation-induced emission enhancement (AIEE) properties during addition of water to their tetrahydrofuran (THF) solutions. Results from UV-Vis spectroscopy, photoluminescence (PL) spectroscopy, and scanning electron microscopy (SEM) demonstrated that the restricted intra-molecular bond rotation (RIR) reduced non-radiative transitions in these compounds in the aggregated state, resulting in the fluorescence quantum yields (Φ_F) increase. TTPE-Tr was also found to display mechanofluorochromic behavior. This compound, a blue-green powder (Φ_F=24.4%, λ_em=508 nm), exhibited relatively weak yellow/green emission (Φ_F=14.7%, λ_em=517 nm) upon grinding. The phase transition process responsible for this mechanochromism was confirmed by PL spectroscopy, X-ray diffraction (XRD) and time-resolved fluorescence spectroscopy. Thermal analysis of TTPE-Tr and TTPE-Ph-Tr showed that these compounds possess excellent thermal stability, with decomposition temperatures of 464 and 385℃, respectively.

Key words: 1,3,5-Triazine, Tetraphenyl-ethylene, Aggregation-induced emission enhancement, Mechanochromism, Thermal stability

欧阳密, 俞春辉, 张玉建, 胡彬, 吕晓静, 孙璟玮, 张诚. 基于1,3,5-三嗪的具有力致变色性质的聚集诱导荧光化合物的合成及性质[J]. 物理化学学报, 2012, 28(12), 2944-2952. doi: 10.3866/PKU.WHXB201208012

OUYANG Mi, YU Chun-Hui, ZHANG Yu-Jian, HU Bin, Lü Xiao-Jing, SUN Jing-Wei, ZHANG Cheng. Synthesis and Characterization of New 1,3,5-Triazine-Based Compounds Exhibiting Aggregation-Induced Emission and Mechanochromism[J]. Acta Phys. -Chim. Sin. 2012, 28(12), 2944-2952. doi: 10.3866/PKU.WHXB201208012

链接本文: https://www.whxb.pku.edu.cn/CN/10.3866/PKU.WHXB201208012

https://www.whxb.pku.edu.cn/CN/Y2012/V28/I12/2944

参考文献

(1) Hong, Y. N.; Lam, J.W. Y.; Tang, B. Z. Chem. Commun. 2009,4332.
(2) Fan, X.; Sun, J. L.;Wang, F. Z.; Chu, Z. Z.;Wang, P.; Dong, Y.Q.; Hu, R.; Tang, B. Z.; Zou, D. C. Chem. Commun. 2008, 2989.
(3) Xie, Z. Q.; Yang, B.; Li, F.; Cheng, G.; Liu, L. L.; Yang, G. D.;Xu, H.; Ye, L.; Hanif, M.; Liu, S. Y.; Ma, D. G.; Ma, Y. G.J. Am. Chem. Soc. 2005, 127, 14152. doi: 10.1021/ja054661d
(4) Würthner, F.; Sens, R.; Etzbach, K. H.; Seybold, G. Angew. Chem. Int. Edit. 1999, 38, 1649.
(5) Oelkrug, D.; Tompert, A.; Gierschner, J.; Egelhaaf, H. J.;Hanack, M.; Hohloch, M.; Steinhuber, E. J. Phys. Chem. B1998, 102, 1902. doi: 10.1021/jp973225d
(6) Xia,W. S.; Schmehl, R. H.; Li, C. J. Chem. Commun. 2000, 695.
(7) Tang, B. Z.; Zhan, X.W.; Yu, G.; Lee, P.; Liu, Y. Q.; Zhu, D. B.J. Mater. Chem. 2001, 11, 2974. doi: 10.1039/b102221k
(8) Luo, J. D.; Xie, Z. L.; Lam, J.W. Y.; Cheng, L.; Chen, H. Y.;Qiu, C. F.; Kwok, H. S.; Zhan, X.W.; Liu, Y. Q.; Zhu, D. B.;Tang, B. Z. Chem. Commun. 2001, 1740.
(9) An, B. K.; Kwon, S. K.; Park, S. Y. J. Am. Chem. Soc. 2002,124, 14410. doi: 10.1021/ja0269082
(10) Chen, J.W.; Law, C. C.W.; Lam, J.W. Y.; Dong, Y. P.; Lo, S.M. F.;Williams, I. D.; Zhu, D. B.; Tang, B. Z. Chem. Mater.2003, 15, 1535. doi: 10.1021/cm021715z
(11) Li, Z.; Dong, Y. Q.; Mi, B. X.; Tang, Y. H.; Häussler, M.; Tong,H.; Dong, Y. P.; Lam, J.W. Y.; Ren, Y.; Sung, H. H. Y.;Wong,K. S.; Gao, P.;Williams, I. D.; Kwok, H. S.; Tang, B. Z. J. Phys. Chem. B 2005, 109, 10061. doi: 10.1021/jp0503462
(12) Yu,W.; Li, Y. G.;Wang, T. Y.; Liu, M. H.; Li, Z. S. Acta Phys. -Chim. Sin. 2008, 24, 1535. [于微, 李远刚, 王天宇,刘鸣华, 李占双. 物理化学学报, 2008, 24, 1535.] doi: 10.1016/S1872-1508(08)60062-5
(13) Liu, Y.; Deng, C. M.; Tang, L.; Qin, A. J.; Hu, R. R.; Sun, J. Z.;Tang, B. Z. J. Am. Chem. Soc. 2011, 133, 660. doi: 10.1021/ja107086y
(14) Zhao, Z. J.; Chen, S. M.; Shen, X. Y.; Mahtab, F.; Yu, Y.; Lu, P.;Lam, J.W. Y.; Kwok, H. S.; Tang, B. Z. Chem. Commun. 2010,46, 686. doi: 10.1039/b915271g
(15) Zhao, Z. J.; Chen, S. M.; Lam, J.W. Y.; Lu, P.; Zhong, Y. C.;Wong, K. S.; Kwok, H. S.; Tang, B. Z. Chem. Commun. 2010,46, 2221. doi: 10.1039/b921451h
(16) Cheng, K. H.; Zhong, Y. C.; Xie, B. Y.; Dong, Y. Q.; Hong, Y.N.; Sun, J. Z.; Tang, B. Z.;Wong, K. S. J. Phys. Chem. C 2008,112, 17507. doi: 10.1021/jp805158b
(17) Zhang, Y. J.; Sun, J.W.; Bian, G. F.; Chen, Y. Y.; Ouyang, M.;Hu, B.; Zhang, C. Photochem. Photobiol. Sci. 2012, 11, 1414.doi: 10.1039/c2pp05404c.
(18) Jenekhe, S. A.; Osaheni, J. A. Science 1994, 265, 765. doi: 10.1126/science.265.5173.765
(19) Friend, R. H.; Gymer, R.W.; Holmes, A. B.; Burroughes, J. H.;Marks, R. N.; Talini, C.; Bradley, D. D. C.; Dos Santos, D. A.;Bredas, J. L.; Logdlund, M.; Salaneck,W. R. Nature 1999, 397,121. doi: 10.1038/16393
(20) Li, Y. P.; Li, F.; Zhang, H. Y.; Xie, Z. Q.; Xie,W. J.; Xu, H.; Li,B.; Shen, F. Z.; Ye, L.; Hanif, M.; Ma, D. G.; Ma, Y. G. Chem. Commun. 2007, 231.
(21) Xie, Z. Q.; Yang, B.; Xie,W. J.; Liu, L. L.; Shen, F. Z.;Wang,H.; Yang, X. Y.;Wang, Z. M.; Li, Y. P.; Muddasir, H.; Yang, G.D.; Ye, L.; Ma, Y. G. J. Phys. Chem. B 2006, 110, 20993. doi: 10.1021/jp064069q
(22) Löwe, C.;Weder, C. Adv. Mater. 2002, 14, 1625. doi: 10.1002/1521-4095(20021118)14:22<1625::AID-ADMA1625>3.0.CO;2-Q
(23) Kunzelman, J.; Kinami, M.; Crenshaw, B. R.; Protasiewicz, J.D.;Weder, C. Adv. Mater. 2008, 20, 119.
(24) Crenshaw, B. R.; Burnworth, M.; Khariwala, D.; Hiltner, A.;Mather, P. T.; Simha, R.;Weder, C. Macromolecules 2007, 40,2400. doi: 10.1021/ma062936j
(25) Papaefstathiou, G. S.; Zhong, Z.; Geng, L.; MacGillivray, L. R.J. Am. Chem. Soc. 2004, 126, 9158. doi: 10.1021/ja047819n
(26) Ren, S. J.; Zeng, D. L.; Zhong, H. L.;Wang, Y. C.; Qian, S. X.;Fang, Q. J. Phys. Chem. B 2010, 114, 10374. doi: 10.1021/jp104710y
(27) Hu, B.; Ouyang, M.; Zhang Y. J.; Xiang,W. Q.; Zhang, C.Chem. J. Chin. Univ. 2012, 33, 82. [胡彬, 欧阳密, 张玉建,项文勤, 张诚. 高等学校化学学报, 2012, 33, 82.]
(28) Dong, Y. Q.; Lam, J.W. Y.; Qin, A. J.; Liu, J. Z.; Li, Z.; Tang, B.Z. Appl. Phys. Lett. 2007, 91, 011111. doi: 10.1063/1.2753723
(29) Zhang, X. Q.; Chi, Z. G.; Xu, B. J.; Zhou,W.; Zhang, Y.; Xu, J.R. Chem-Asian J. 2011, 6, 808. doi: 10.1002/asia.201000802
