回收造纸污泥制备低成本Ni改性碳/硅复合材料用于高效微波吸收

doi:10.1016/j.actphy.2026.100417

物理化学学报 >> 2026, Vol. 42 >> Issue (11): 100417.doi: 10.1016/j.actphy.2026.100417

论文上一篇

回收造纸污泥制备低成本Ni改性碳/硅复合材料用于高效微波吸收

朱保顺¹^,*(), 王薪琰¹, 牟维鹏¹, 孙轩鹏¹, 王昱博¹, 卫泓妤¹, 石庞玉¹, 郝惠兰¹, 王大双⁴, 力国民²^,*(), 王桂振³^,*()

¹ 山西科技学院材料科学与工程学院, 山西晋城 048011
² 太原科技大学材料科学与工程学院, 山西太原 030024
³ 海南大学材料科学与工程学院精密仪器高等研究中心, 海南海口 570228
⁴ 湖北汽车工业学院汽车材料学院, 湖北十堰 442002

收稿日期:2026-06-09 修回日期:2026-08-22 录用日期:2026-08-31 发布日期:2026-09-29
通讯作者: Email: zhubaoshun@sxist.edu.cn (朱保顺)ligm@tyust.edu.cn (力国民)wangguizhen@hainanu.edu.cn (王桂振)

Recycling paper mill sludge to prepare low-cost Ni-modified carbon/silica composite for efficient microwave absorption

Baoshun Zhu¹^,*(), Xinyan Wang¹, Weipeng Mu¹, Xuanpeng Sun¹, Yubo Wang¹, Hongyu Wei¹, Pangyu Shi¹, Huilan Hao¹, Dashuang Wang⁴, Guomin Li²^,*(), Guizhen Wang³^,*()

¹ School of Materials Science and Engineering, Shanxi Institute of Science and Technology, Jincheng 048011, Shanxi Province, China
² School of Materials Science and Engineering, Taiyuan University of Science and Technology, Taiyuan 030024, Shanxi Province, China
³ Center for Advanced Studies in Precision Instruments School of Material Science and Engineering, Hainan University, Haikou 570228, Hainan Province, China
⁴ School of Automotive Materials, Hubei University of Automotive Technology, Shiyan 442002, Hubei Province, China

Received:2026-06-09 Revised:2026-08-22 Accepted:2026-08-31 Published:2026-09-29
Contact: Email: zhubaoshun@sxist.edu.cn (Baoshun Zhu)ligm@tyust.edu.cn (Guomin Li)wangguizhen@hainanu.edu.cn (Guizhen Wang)

1. ACTPHY-D-26-00384-SI.pdf(470KB)

摘要/Abstract

摘要：

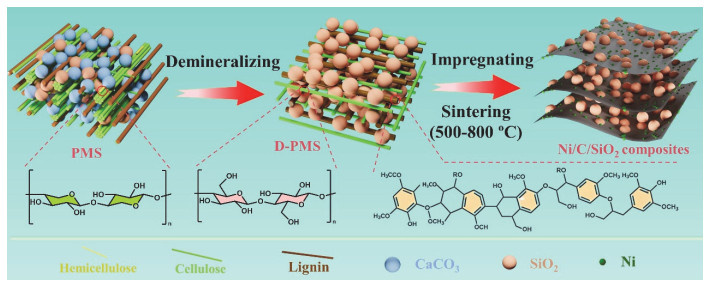

生物质衍生的磁介电协同复合材料因其来源广泛、成本低廉和结构独特而在微波吸收领域受到广泛关注。本研究通过脱矿-浸渍-烧结工艺，成功制备了造纸污泥(PMS)衍生的Ni改性C/SiO₂ (Ni/C/SiO₂)复合材料。通过调节烧结温度，优化了Ni颗粒分布以及多孔碳骨架与内部灰分SiO₂的复合，增强了磁介电协同效应，实现了优异的阻抗匹配和电磁波衰减。特别是Ni/C/SiO₂复合材料在700 ℃热处理温度下(NCS-700)表现出优异的微波吸收性能，在匹配厚度为2.0 mm时，有效吸收带宽(EAB)达到5.6 GHz，最小反射损耗(RL_min)为−39.2 dB。这种优异的性能源于多重损耗机制的协同增强，包括偶极子/界面极化弛豫、导电损耗和磁损耗。这项工作不仅为造纸污泥回收利用开辟了新前景，也为设计宽频段微波吸收剂提供了一条简单且经济高效的途径。

关键词: 造纸污泥, 微波吸收, 阻抗匹配, 界面极化, 固废利用

Abstract:

Biomass-derived magnetic-dielectric synergistic composites have drawn extensive attention for microwave absorption (MA) due to their wide sources, low-cost, and unique structures. In this work, Ni-modified carbon/silica (Ni/C/SiO₂) composites from paper mill sludge (PMS) were successfully synthesized using a combination of demineralization, impregnation, and sintering processes. By regulating the sintering temperature, the Ni particle distribution and the compositing of the porous carbon skeleton with SiO₂ present in internal ash were optimized, enhancing the magnetic-dielectric synergy and yielding superior impedance matching and electromagnetic wave attenuation. In particular, Ni/C/SiO₂ composite sintering at 700 ℃ (NCS-700) demonstrated excellent microwave absorption performance, achieving an effective absorption bandwidth (EAB) of 5.6 GHz and a minimum reflection loss (RL_min) of −39.2 dB at a matching thickness of 2.0 mm. This superior performance originates from the synergistic enhancement of multiple loss mechanisms, including dipole/interface polarization relaxation, conductive loss, and magnetic loss. This work not only opens up new prospects for PMS recycling but also provides a facile and cost-effective route to designing broadband microwave absorbers.

Key words: Paper mill sludge, Microwave absorption, Impedance matching, Interface polarization, Solid waste utilization

朱保顺, 王薪琰, 牟维鹏, 孙轩鹏, 王昱博, 卫泓妤, 石庞玉, 郝惠兰, 王大双, 力国民, 王桂振. 回收造纸污泥制备低成本Ni改性碳/硅复合材料用于高效微波吸收[J]. 物理化学学报, 2026, 42(11), 100417. doi: 10.1016/j.actphy.2026.100417

Baoshun Zhu, Xinyan Wang, Weipeng Mu, Xuanpeng Sun, Yubo Wang, Hongyu Wei, Pangyu Shi, Huilan Hao, Dashuang Wang, Guomin Li, Guizhen Wang. Recycling paper mill sludge to prepare low-cost Ni-modified carbon/silica composite for efficient microwave absorption[J]. Acta Phys. -Chim. Sin. 2026, 42(11), 100417. doi: 10.1016/j.actphy.2026.100417

链接本文: https://www.whxb.pku.edu.cn/CN/10.1016/j.actphy.2026.100417

https://www.whxb.pku.edu.cn/CN/Y2026/V42/I11/100417

图/表 8

表1

图1

图2

图3

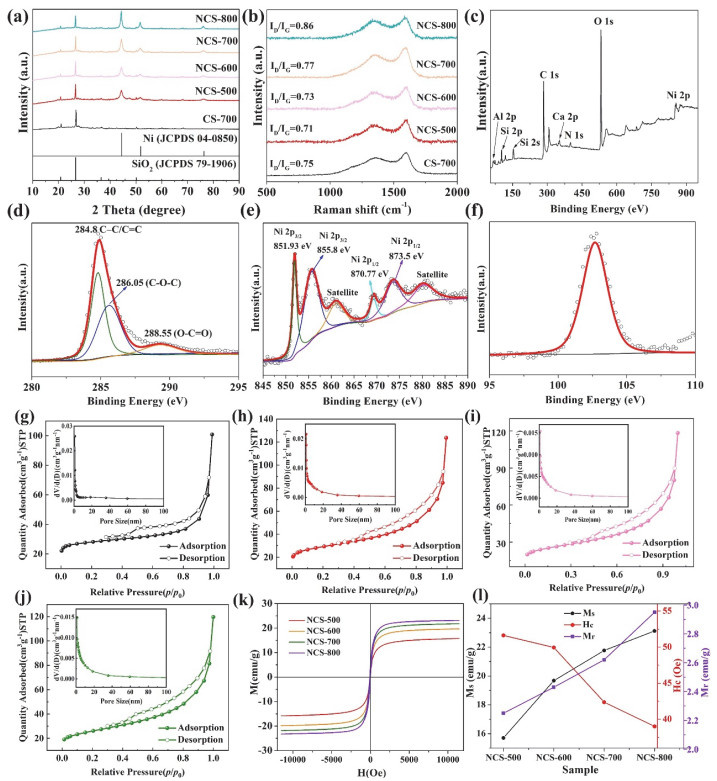

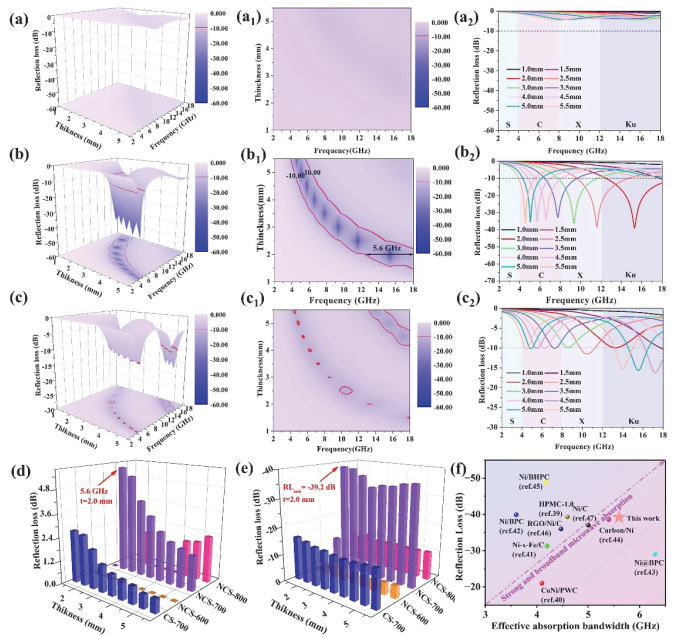

图4

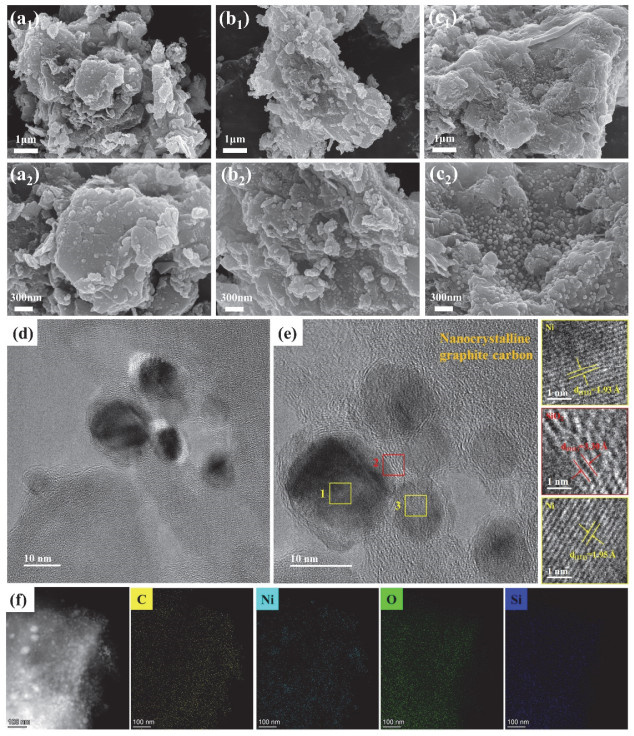

图5

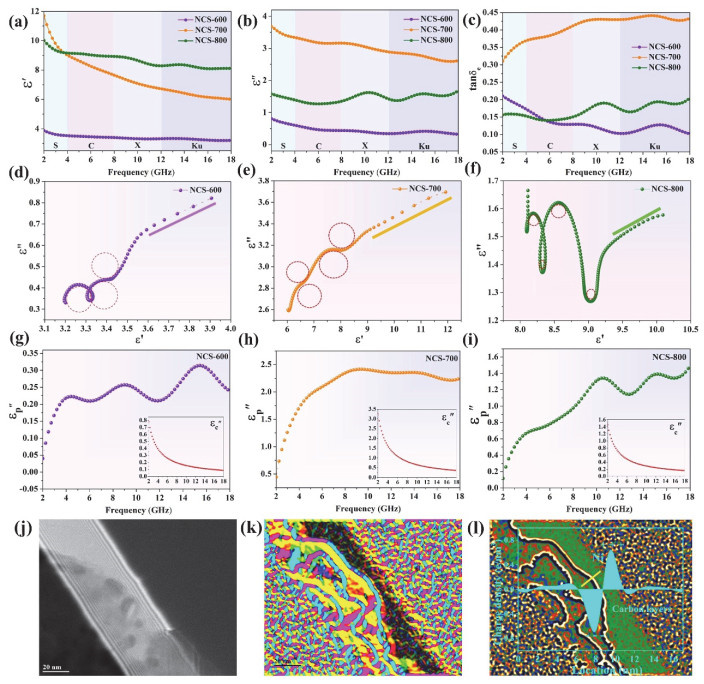

图6

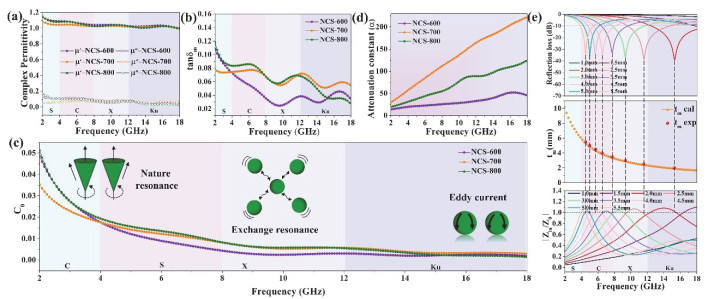

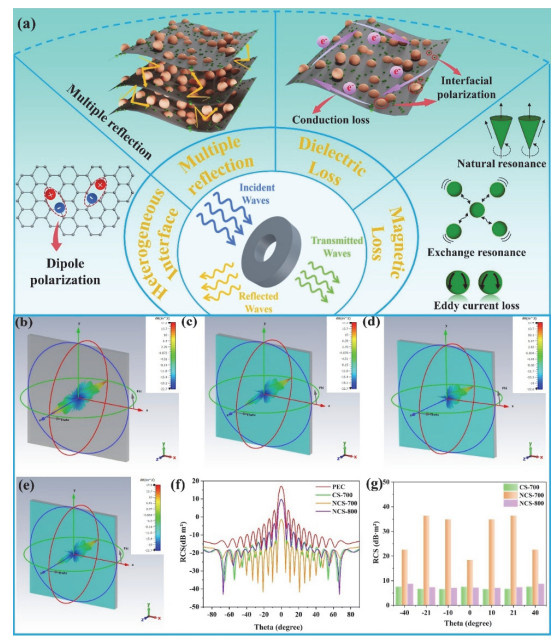

图7

参考文献 58

1	X.H. Xiong, H.B. Zhang, H.L. Lv, L.T. Yang, G.S. Liang, J.C. Zhang, Y.X. Lai, H.W. Cheng, R.C. Che. Carbon 2024, 219, 118834. doi: 10.1016/j.carbon.2024.118834
2	X. Du, F.F. Yan, M.T. Cheng, H.Y. Li, C. Peng, Y.L. Liu, D. Liu, D. Lan, G.L. Wu, Z.R. Jia. Int. J. Miner. Metall. Mater. 2026, 33, 1320. doi: 10.1007/s12613-025-3317-1
3	M.R. Karami, B. Jaleh, A. Nasri, M. Eslamipanah, K.Y. Rhee. J. Mater. Res. Technol-JMRT 2024, 32, 1368. doi: 10.1016/j.jmrt.2024.07.212
4	Z.Y. Li, Y. Xu, L.H. Wu, Y. Sun, M.N. Zhang, Z.F. Dou, J.C. Zhao, Y.Z. Yan, G.Z. Wang. Adv. Sci. 2024, 12(6), 2412890. doi: 10.1002/advs.202412890
5	Q. Wei, Y.R. Qiu, T.F. Yang, Y.L. Jiang, S.H. Zhu, J. Zhou, C.C. Liu, W.J. Hou, Y. Wang, D. Liu. Acta Phys.-Chim. Sin. 2026, 42(9), 100320. doi: 10.1016/j.actphy.2026.100320
6	R.W. Feng, D. Lan, Y.Q. Li, Y.C. He, Q.C. He, Y.Q. Wang. Ceram. Int. 2024, 50(24), 55461. doi: 10.1016/j.ceramint.2024.10.405
7	M.X. Shen, X.J. Li, J.L. Qi, J.J. Sun, W.S. Cao, H.J. Xiu, J.B. Li, Z.L. Zhang, X.F. Zheng, Z. Shang. Compos. Pt. A-Appl. Sci. Manuf. 2025, 198, 109070. doi: 10.1016/j.compositesa.2025.109070
8	B.B. Zhan, Y.R. Zhang, Z.Y. Tan, A.M. Xie, X. Gong, Q. Peng, J.L. Yang, Y.P. Qu, X.S. Qi. InfoMat 2026, 8(2), e70098. doi: 10.1002/inf2.70098
9	Y.P. Jiang, H.Q. Jin, X.J. Liu, A.H. He, H.R. Nie. Ceram. Int. 2024, 50(22), 45919. doi: 10.1016/j.ceramint.2024.08.433
10	H.M. Wang, B.B. Zhan, Y.R. Zhang, Z.Y. Tan, J.F. Ding, Y.L. Chen, Y.P. Qu, X.S. Qi. Research 2026, 9, 1051. doi: 10.34133/research.1051
11	S. Xu, Z.R. Jia, D. Lan, M.J. Shi, Z.G. Gao, G.L. Wu. Adv. Funct. Mater. 2026, 36(47), e75567. doi: 10.1002/adfm.75567
12	C.H. Sun, Z.R. Jia, S. Xu, D.Q. Hu, C.H. Zhang, G.L. Wu. J. Mater. Sci. Technol. 2022, 113, 128. doi: 10.1016/j.jmst.2021.11.006
13	J.J. Li, F. Zhang, H.B. Lu, W.B. Guo, X.D. He, Y. Yuan. Carbon 2021, 181, 358. doi: 10.1016/j.carbon.2021.05.031
14	X. Jian, X.Y. Xiao, L.J. Deng, W. Tian, X. Wang, N. Mahmood, S.X. Dou. ACS Appl. Mater. Interfaces 2018, 10(11), 9369. doi: 10.1021/acsami.7b18324
15	G. Jaria, C.P. Silva, C.I.A. Ferreira, M. Otero, V. Calisto. J. Environ. Manage. 2017, 188, 203. doi: 10.1016/j.jenvman.2016.12.004
16	M. Zhang, K. Lin, X.D. Li, L.J. Wu, J. Yu, S. Cao, D. Zhang, L.H. Xu, S.J. Parikh, Y.S. Ok. Environ. Pollut. 2022, 293, 118521. doi: 10.1016/j.envpol.2021.118521
17	T. Turner, R. Wheeler, I.W. Oliver. J. Environ. Manage. 2022, 317, 115439. doi: 10.1016/j.jenvman.2022.115439
18	B. Govindan, V. Kumarasamy. Constr. Build. Mater. 2024, 439, 137291. doi: 10.1016/j.conbuildmat.2024.137291
19	D. Pereira, M.V. Gil, V.I. Esteves, N.J.O. Silva, M. Otero, V. Calisto. J. Water Process. Eng. 2025, 69, 106766. doi: 10.1016/j.jwpe.2024.106766
20	A. Tawfik, A.M. Azzam, A. El-Dissouky, A.Y. Ibrahim, M. Nasr. J. Environ. Manage. 2023, 326, 116724. doi: 10.1016/j.jenvman.2022.116724
21	M.R. Hasan, S. Islam, M.M. Rahman, H. Jameel, K.S. Salem. Next Research 2025, 2(3), 100543. doi: 10.1016/j.nexres.2025.100543
22	K. Yoon, G. Kwon, E. Kim, J. Rinklebe, H. Song. Chem. Eng. J. 2024, 484, 149470. doi: 10.1016/j.cej.2024.149470
23	Y.H. Zhou, J. Qian, Z. Qiang, W.Q. Kong, C.H. Ye, M.F. Zhu. Compos. Pt. A-Appl. Sci. Manuf. 2025, 190, 108700. doi: 10.1016/j.compositesa.2024.108700
24	A.C. Ferrari, J. Robertson. Phys. Rev. B 2000, 61(20), 14095. doi: 10.1103/PhysRevB.61.14095
25	B.S. Zhu, Y.Y. Li, Y.M. Tian, K.Y. Wang, Y.K. Wang, G. Wen, L.P. Liang, K.W. Zhang, G.M. Li. Colloid Surf. A-Physicochem. Eng. Asp 2021, 627, 127127. doi: 10.1016/j.colsurfa.2021.127127
26	Y.M. Zhao, L.H. Wang, Z.L. Liu, J.X. Ren, H.J. Wang, J.Q. Hu, H.T. Guan, Y.D. Wang. J. Mater. Sci. Technol. 2025, 238, 178. doi: 10.1016/j.jmst.2025.03.033
27	B.S. Zhu, W.P. Mu, Y.F. Gao, G.M. Li, Y.M. Tian. Surf. Interfaces 2023, 42, 103354. doi: 10.1016/j.surfin.2023.103354
28	Y. Qiu, H.B. Yang, M.X. Liu, D. Wang, J.Y. Zhou, H. Liu, Y.P. Gao. Appl. Surf. Sci. 2024, 645, 158885. doi: 10.1016/j.apsusc.2023.158885
29	L.L. Ma, Z.F. Dou, D.G. Li, J. Liu, Y. Xu, G.Z. Wang. Carbon 2023, 201, 587. doi: 10.1016/j.carbon.2022.09.055
30	Y.Z. Hou, B.C. Li, J.S. Chen, X.Y. Shen, B. Wang, K.R. Liu, S.C. Wei, X.C. He, D. Li, Q. Han. Appl. Surf. Sci. 2023, 615, 156345. doi: 10.1016/j.apsusc.2023.156345
31	H.Y. Hou, D.W. Ma, Z. N Zhang, Z.R. Jia. Acta Phys.-Chim. Sin. 2026, 42(8), 100325. doi: 10.1016/j.actphy.2026.100325
32	X.G. Liu, Y.H. Wan, S.M. Tao, P. Cao, Y.L. Liu, F. Zhou. Carbon 2025, 244, 120688. doi: 10.1016/j.carbon.2025.120688
33	X.X. Zhao, J. Yan, Y. Huang, X.D. Liu, L. Ding, M. Zong, P.B. Liu, T.H. Li. J. Colloid Interface Sci. 2021, 595, 78. doi: 10.1016/j.jcis.2021.03.109
34	Y. Cheng, K. Zhou, Y.Z. Ma, H.Q. Zhao, H.B. Yang. J. Alloy. Compd. 2024, 980, 173641. doi: 10.1016/j.jallcom.2024.173641
35	Y.H. Wang, X.D. Li, X.J. Han, P. Xu, L.R. Cui, H.H. Zhao, D.W. Liu, F.Y. Wang, Y.C. Du. Chem. Eng. J. 2020, 387, 124159. doi: 10.1016/j.cej.2020.124159
36	Y.S. Cai, Z.R. Jia, Z.H. Wu, W.C. Zhou, X.Y. Xu, Y. Wang, Z.G. Gao, H. Qiu, G.L. Wu. J. Mater. Sci. Technol. 2027, 277, 66. doi: 10.1016/j.jmst.2026.05.009
37	W.X. Wang, H.Y. Qiu, H.Y. Li, D. Lan, Y.X. Wang, Y.X. Han, D. Liu, R.S. Liu, G.L. Wu. Sci. China-Mater. 2025, 68(10), 3757. doi: 10.1007/s40843-025-3624-y
38	Z.Z. Tian, T.M. Jia, X.C. Kan, B.B. Zhan, J.F. Ding, Y.P. Qu, X. Gong, Y.L. Chen, X.S. Qi. Rare Metals 2026, 45(5), e70327. doi: 10.1002/rar2.70327
39	H.Q. Zhao, Y. Cheng, H.L. Lv, G.B. Ji, Y.W. Du. Carbon 2019, 142, 245. doi: 10.1016/j.carbon.2018.10.027
40	Y.R. Huang, J. Huang, X.R. Wang, Z.Y. Chen, Y. Chen, Z.X. Liu, Z.Q. Xu, G.M. Yuan. Biomass Bioenerg. 2026, 215, 109603. doi: 10.1016/j.biombioe.2026.109603
41	Y.J. Wang, H. Xu, Y.N. Zheng, L.M. Yu. Compos. Commun. 2025, 57, 102500. doi: 10.1016/j.coco.2025.102500
42	Q.Q. Zhu, Y.X. Zhang, L.H. Xu, H. Pan, X.L. Shi, H. Dou, Z.H. Shen, W.J. Zhang, Z.J. Wang. Colloid Surf. A-Physicochem. Eng. Asp. 2026, 735, 139482. doi: 10.1016/j.colsurfa.2026.139482
43	Z.J. Wang, G.Y. Xu. J. Alloy. Compd. 2022, 926, 166923. doi: 10.1016/j.jallcom.2022.166923
44	T.P. Ying, J. Zhang, X.G. Liu, J.H. Yu, J.F. Yu, X.F. Zhang. J. Alloy. Compd. 2020, 849, 156662. doi: 10.1016/j.jallcom.2020.156662
45	Z.H. Wu, X.Y. Guo, Z.Z. Meng, C. Yao, Y. Deng, H.F. Zhou, Y.B. Wang. J. Alloy. Compd. 2022, 925, 166732. doi: 10.1016/j.jallcom.2022.166732
46	Y.H. Zhang, Y. Li, H.J. Liu, L. Zhang, Y. Zhang, C.C. Xu, C.H. Gong. Mater. Today Phys. 2023, 31, 100966. doi: 10.1016/j.mtphys.2023.100966
47	G.H. Fan, Y.L. Jiang, C.X. Hou, X.R. Deng, Z.X. Liu, L.J. Zhang, Z.D. Zhang, R.H. Fan. J. Alloy. Compd. 2020, 835, 155345. doi: 10.1016/j.jallcom.2020.155345
48	L.X. Gai, Y.H. Wang, P. Wan, S.P. Yu, Y.Z. Chen, X.J. Han, P. Xu, Y.C. Du. Nano-Micro Lett. 2024, 16, 167. doi: 10.1007/s40820-024-01369-6
49	X.X. Ji, H.L. Wang, D. Xu, X. Ye, T.Y. Chen, N. Zhao, Y.L. Hu, W. Xie, T.S. Cao, Y.G. Tong. Appl. Surf. Sci. 2024, 669, 160546. doi: 10.1016/j.apsusc.2024.160546
50	S.X. Li, Y.J. Sun, F.J. Meng, X.Z. Jiang, H.Y. Yu. Chem. Eng. J. 2024, 498, 155405. doi: 10.1016/j.cej.2024.155405
51	P.B. Liu, S. Gao, Y. Wang, F.T. Zhou, Y. Huang, W.H. Huang, N.H. Chang. Carbon 2020, 170, 503. doi: 10.1016/j.carbon.2020.08.043
52	R.H. Yu, X. Wen, J. Liu, Y.H. Wang, X.C. Chen, K. Wenelska, E. Mijowska, T. Tang. Appl. Catal. B-Environ. Energy. 2021, 298, 120544. doi: 10.1016/j.apcatb.2021.120544
53	D.F. Liu, D. Lan, Y.Z. Yin, J.R. Kong, Y.H. Meng, Y. Liu, Y.R. Qiu, G.F. Xia, D. Liu. Acta Phys.-Chim. Sin. 2026, 42(7), 100275. doi: 10.1016/j.actphy.2026.100275
54	S.H. Yang, Z.Q. Guo, Z.R. Jia, Y. Liu, D.S. Wang, Z.C. Li, H.F. Li, H. Qiu, G.L. Wu. Acta Phys.-Chim. Sin. 2026, 42(9), 100348. doi: 10.1016/j.actphy.2026.100348
55	X. Liu, L.S. Wang, Y.T. Ma, Y.L. Qiu, Q.S. Xie, Y.Z. Chen, D.L. Peng. Chem. Eng. J. 2018, 333, 92. doi: 10.1016/j.cej.2017.09.139
56	T.M. Jia, Y.L. Hao, X.S. Qi, Y.C. Rao, L. Wang, J.F. Ding, Y.P. Qu, W. Zhong. J. Mater. Sci. Technol. 2024, 176, 1. doi: 10.1016/j.jmst.2023.08.022
57	F. Wu, Z.H. Liu, T. Xiu, B.L. Zhu, I. Khan, P. Liu, Q.Y. Zhang, B.L. Zhang. Compos. Pt. B-Eng. 2021, 215, 108814. doi: 10.1016/j.compositesb.2021.108814
58	L.L. Xing, H.R. Cheng, Y. Li, Q. Chen, X.H. Liu. Chem. Eng. J. 2024, 487, 150729. doi: 10.1016/j.cej.2024.150729

Samples	Ultimate analyses (wt.%)					Proximate analyses (wt.%)
	C	H	O	N	S	V^a	Fc^b	A^c	M^d
PMS	18.32	2.26	29.33	0.87	1.61	47.00	0.09	51.21	1.70
D-PMS	30.34	4.12	23.92	2.31	1.23	44.90	11.59	41.11	2.40
