TiO2负载Mn-Co复合氧化物催化剂上NO催化氧化性能

doi:10.3866/PKU.WHXB201212031

Abstract

Abstract:

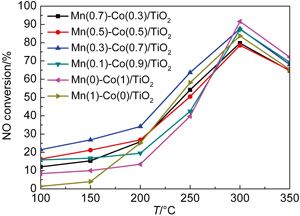

Globally, NO_x is one of the most widespread pollutants. It is generated mainly from the burning of fossil fuels, and NO is very difficult to remove because of its capacity to be dissolved in water. The catalytic oxidation method can be used to convert NO to NO₂, which is soluble in water and can be removed using desulfurization devices. Here, a series of TiO₂-supported Mn-Co composite oxide catalysts were prepared using the impregnation method. The results of catalytic activity tests showed that the addition of Mn enhanced the efficiency of NO oxidation. Significantly, with 6% doping amounts, Mn (0.3)-Co(0.7)/TiO₂ showed the best activity of 88% NO conversion at 300 ° C. X-ray diffraction (XRD), N₂ adsorption/desorption, hydrogen temperature-programmed reduction (H₂-TPR), oxygen temperatureprogrammed desorption (O₂-TPD), and in-situ diffuse reflectance Fourier transform infrared (in-situ DRFTIR) spectroscopy were used to characterize the catalysts. The results indicated that when the doping amount was 6%, the Mn enhanced the specific surface areas and pore volumes, which improved the dispersion of the active component over the TiO₂ support. The co-doping of manganese into the Co/TiO₂ also enhanced the oxygen desorption capabilities of the catalysts, which improved their reduction abilities. In addition, bridge NO₃^-, the key intermediate, was converted into NO₂; this conversion was also enhanced by the presence of Mn on the Co/TiO₂ catalyst. All of the above reasons account for the high NO catalytic oxidation activity of the supported Mn-Co composite oxide catalysts.

Key words: Nitric oxide, Catalytic oxidation, Manganese, Cobalt, Nitrogen dioxide

XU Wen-Qing, ZHAO Jun, WANG Hai-Rui, ZHU Ting-Yu, LI Peng, JING Peng-Fei. Catalytic Oxidation Activity of NO on TiO₂-Supported Mn-Co Composite Oxide Catalysts[J]. Acta Phys. -Chim. Sin. 2013, 29(02), 385-390. doi: 10.3866/PKU.WHXB201212031

References

(1) Fritz, A.; Pitchon, V. Appl. Catal. B 1997, 13, 1. doi: 10.1016/S0926-3373(96)00102-6
(2) Qi, G. S.; Yang, R. T. J. Catal. 2003, 217, 434.
(3) Wang, Q.; Park, S. Y.; Choi, J. S.; Chung, J. S. Appl. Catal. B2008, 79, 101. doi: 10.1016/j.apcatb.2007.09.038
(4) Wen, Y.; Zhang, C.; He, H.; Yu, Y.; Teraoka, Y. Catal. Today2007, 126, 400. doi: 10.1016/j.cattod.2007.06.032
(5) Yung, M.; Holmgreen, E.; Ozkan, U. J. Catal. 2007, 247, 356.doi: 10.1016/j.jcat.2007.02.020
(6) Brik, Y.; Kacimi, M.; Bozon-Verduraz, F.; Ziyad, M. J. Catal.2002, 211, 470.
(7) Jacobs, G.; Das, T. K.; Zhang, Y. Q.; Li, J. L.; Racoillet, G.;Davis, B. H. Appl. Catal. A 2002, 233, 263. doi: 10.1016/S0926-860X(02)00195-3
(8) Wyrwalski, F.; Lamonier, J. F.; Perez-Zurita, M. J.; Siffert, S.;Aboukais, A. Catal. Lett. 2006, 108, 87. doi: 10.1007/s10562-006-0018-x
(9) Brik, Y.; Kacimi, M.; Ziyad, M.; Bozon-Verduraz, F. J. Catal.2001, 202, 118. doi: 10.1006/jcat.2001.3262
(10) Voss, A.; Borgmann, D.;Wedler, G. J. Catal. 2002, 212, 10. doi: 10.1006/jcat.2002.3739
(11) Jiang, B. Q.; Liu, Y.;Wu, Z. B. J. Hazard. Mater. 2009, 162,1249. doi: 10.1016/j.jhazmat.2008.06.013
(12) Qi, G. S.; Yang, R. T. Appl. Catal. B 2003, 44, 217. doi: 10.1016/S0926-3373(03)00100-0
(13) Huang, J. H.; Tong, Z. Q.; Huang, Y.; Zhang, J. F. Appl. Catal. B2008, 78, 309. doi: 10.1016/j.apcatb.2007.09.031
(14) Wang, H.;Wang, J.;Wu, Z.; Liu, Y. Catal. Lett. 2010, 134, 295.doi: 10.1007/s10562-009-0252-0
(15) Wu, Z.; Tang, N.; Xiao, L.; Liu, Y.;Wang, H. J. Colloid Interface Sci. 2010, 352, 143. doi: 10.1016/j.jcis.2010.08.031
(16) Thirupathi, B.; Smirniotis, P. G. J. Catal. 2012, 288, 74. doi: 10.1016/j.jcat.2012.01.003
(17) Garcia-Cortes, J. M.; Perez-Ramirez, J.; Illan-Gomez, M. J.; deLecea, C. S. M. Catal. Commun. 2003, 4, 165. doi: 10.1016/S1566-7367(03)00029-3
(18) Thirupathi, B.; Smirniotis, P. G. Appl. Catal. B 2011, 110, 195.doi: 10.1016/j.apcatb.2011.09.001
(19) Doggali, Y.; Teraoka, Y.; Mungse, P.; Shah, I. K.; Rayalu, S.;Labhsetwar. N. J. Mol. Catal. A: Chem. 2012, 358, 23. doi: 10.1016/j.molcata.2012.02.004
(20) Xue, L.; Zhang, C.; He, H.; Teraoka, Y. Appl. Catal. B 2007, 75,167. doi: 10.1016/j.apcatb.2007.04.013
(21) Li, P.; He, C.; Cheng, J.; Ma, C. Y.; Dou, B. J.; Hao, Z. P. Appl. Catal. B 2011, 101, 570. doi: 10.1016/j.apcatb.2010.10.030
(22) Li, P.; He, C.; Cheng, J.; Hao, Z. P. Acta Phys. -Chim. Sin. 2009,25, 2279. [李鹏, 何炽, 程杰, 郝郑平. 物理化学学报,2009, 25, 2279.] doi: 10.3866/PKU.WHXB20091111
(23) Liu, C.; Xue, L.; He, H. Acta Phys. -Chim. Sin. 2009, 25, 1033.[刘畅, 薛莉, 贺泓. 物理化学学报, 2009, 25, 1033.]doi: 10.3866/PKU.WHXB20090604
(24) Hadjiivanov, K. I. Catal. Rev. 2000, 42, 71. doi: 10.1081/CR-100100260
(25) Kantcheva, M. J. Catal. 2001, 204, 479. doi: 10.1006/jcat.2001.3413
(26) Azambre, B.; Collura, S.; Trichard, J. M.;Weber, J. V. Appl. Surf. Sci. 2006, 253, 2296. doi: 10.1016/j.apsusc.2006.04.027
